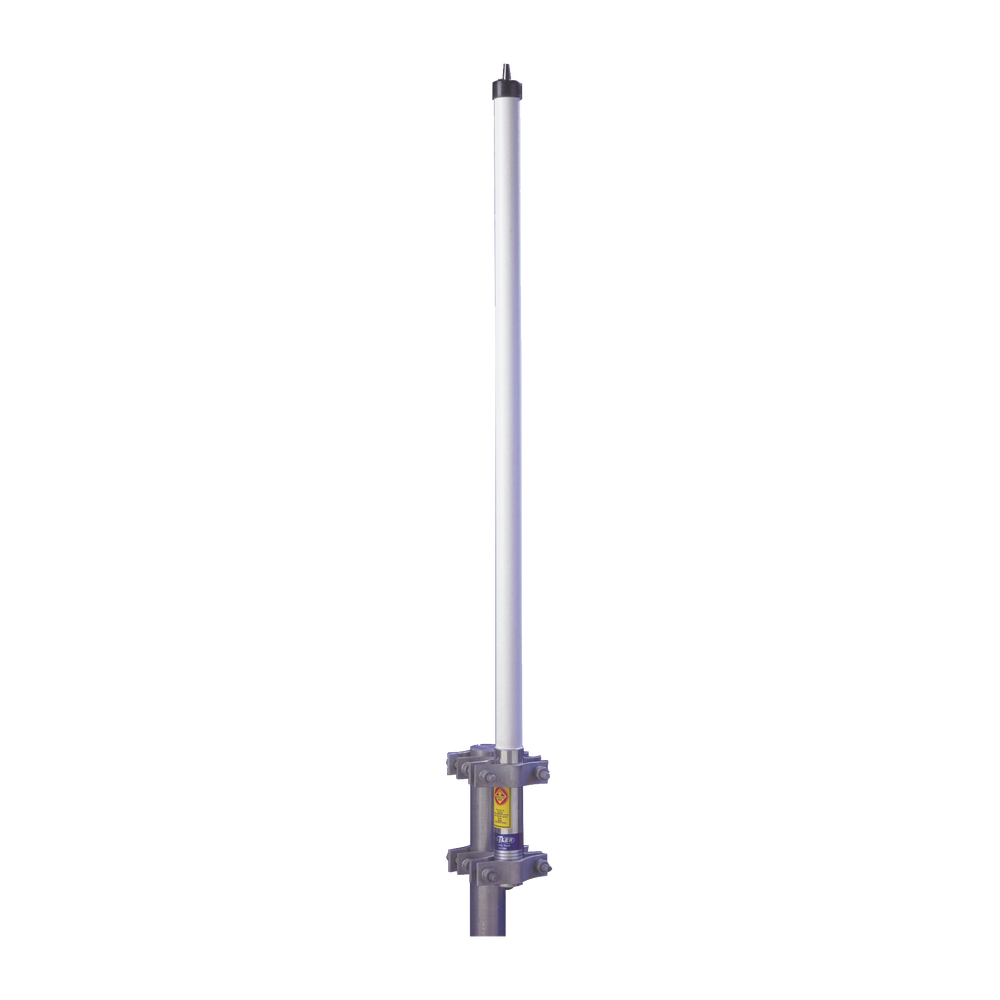

UHF 470-490 MHz Base Antenna, Fiberglass, 9 dB Gain, HD Series for Harsh Climates

UHF 470-490 MHz Base Antenna, Fiberglass, 9 dB Gain, HD Series for Harsh Climates

Hustler's Spirit series antennas are designed to meet the most demanding requirements for professional communications systems. These antennas feature a fiberglass jacket, providing a superior advantage over antennas with exposed elements, providing equal or better electrical performance and high resistance to lightning, ice, water, and wind.

If you've had problems with lightning in the past, these antennas are the solution.

HD Series Extra Heavy Duty version , for harsh environments, remote locations and tower installation.

• Radiators and feed line : Constructed with copper alloy and soldered to reduce the intermodulation effect.
• Weatherproof , they feature a sealed “n” connector, gaskets and plugs that allow drainage in a vertical or inverted position.
• Lightning protection : They have a lightning rod at the top of the antenna connected to a copper line that runs through the antenna to ground it to its support structure.
• Mounting: Includes set of 2 clamps for mounting on diameters from 1-1/2' to 3-1/4'.

Specifications

-Frequency Range: 470-490 MHz.
-Gain: 9 dB.
-Bandwidth: 20 MHz.
-Power: 600 Watts.
-Connector: N Female.
-Length: 4.47 m.
-Wind resistance: 241 km/h.

• Includes set of 2 model 8527 clamps for mounting on diameters of  1-1/2' to 3-1/4'.
• For side mounting on towers, use SMK450HD mount (Not included)

High wind resistance (241 km/h), 600W power, High gain, 9 dB
