PANDUIT
Patch Cord Cat6A, Shielded S/FTP, CM/LS0H, 1.5m, Blue
Patch Cord Cat6A, Shielded S/FTP, CM/LS0H, 1.5m, Blue
Regular price
$69.519 COP
Regular price
$76.036 COP
Sale price
$69.519 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

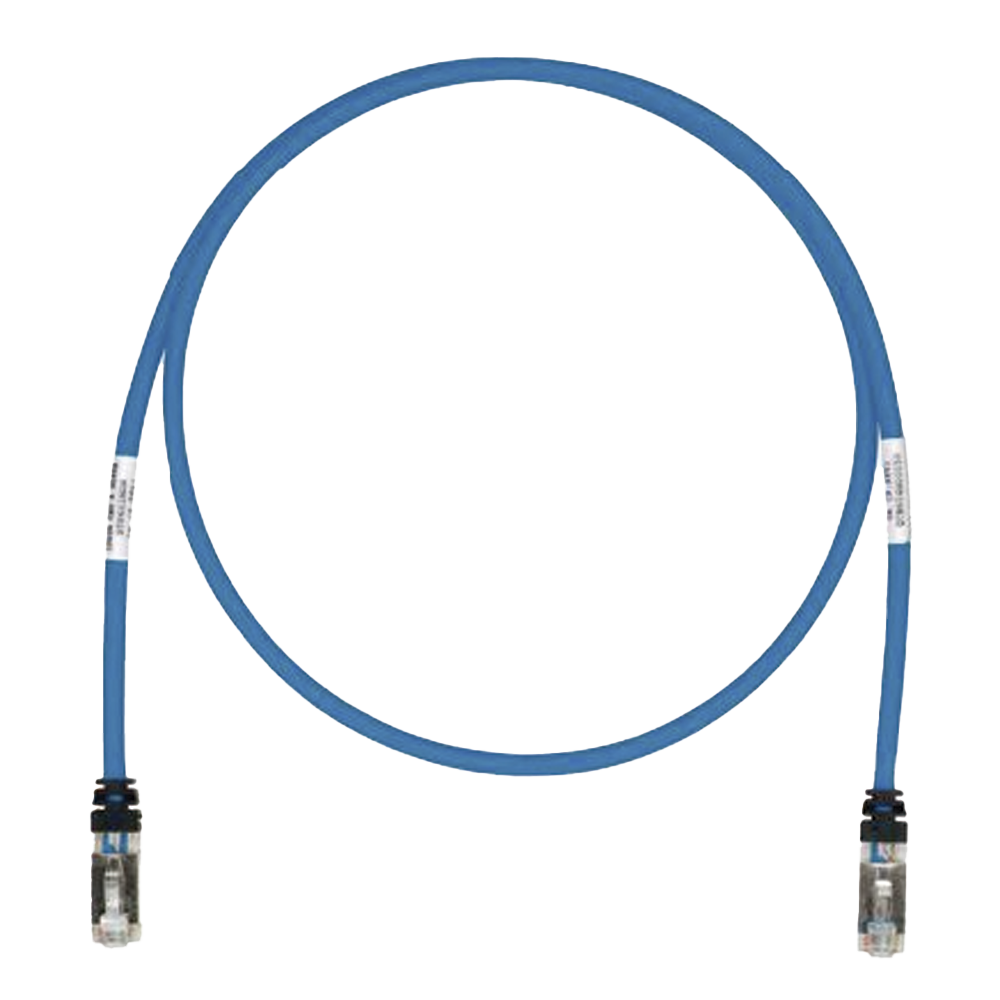

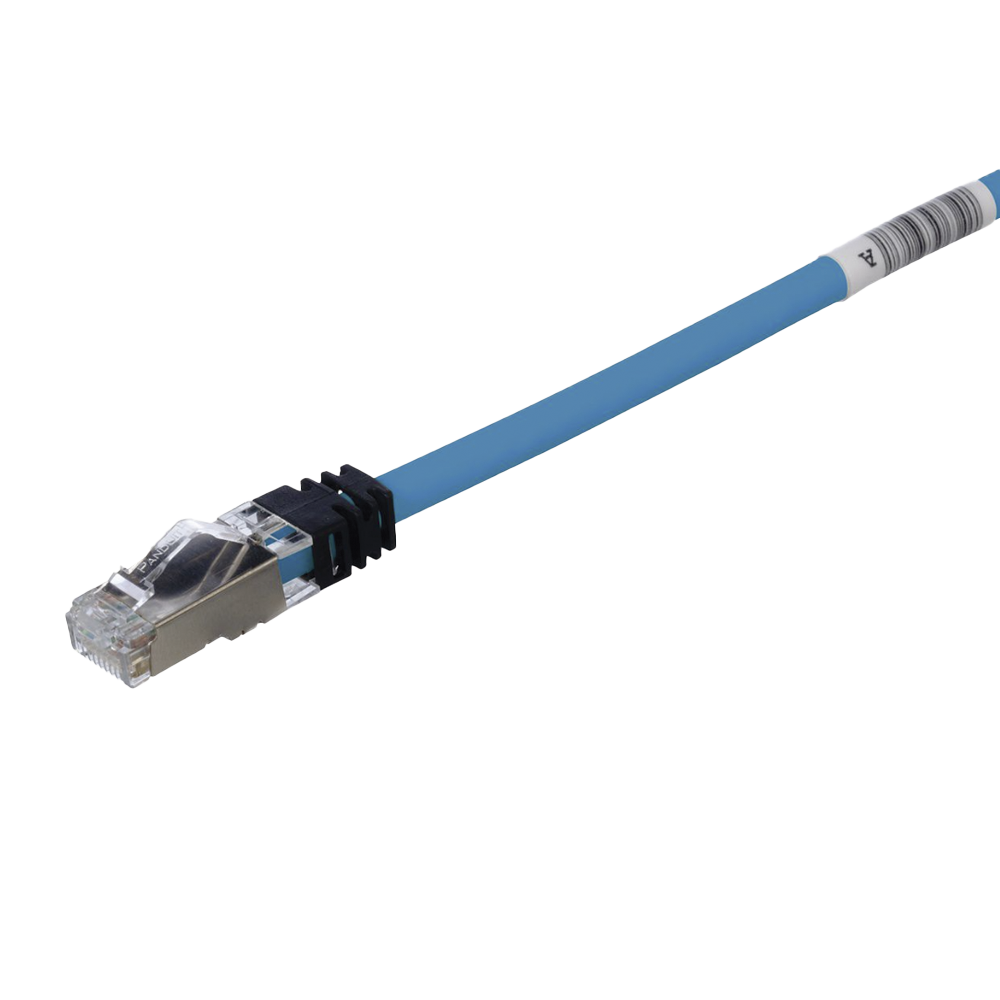

Patch Cord Cat6A, Shielded S/FTP, CM/LS0H, 1.5m, Blue
The TX6A™ Cat 6A shielded patch cable is constructed of 26 AWG shielded twisted-pair CM/LSZH cable with enhanced-performance modular plugs. The patented tangle-free latch prevents snagging and provides easy release, saving time during frequent moves, adds, and changes. The slim strain-relief boot on the patch cord provides easy access in high-density applications. The cable is 1.5 meters long and blue in color.
Specs
| Application | (1) Switch-to-switch stacking links (2) Gigabit Ethernet channel aggregation (3) Video streaming (4) Scientific modeling (5) Storage area networks (6) Real-time intensive financial transactions (7) Animation (8) Medical imaging |
| Product type | Armored Patch Cord |
| Wire gauge (AWG) | 26 |
| Conductor gauge (kcmil) | 0.3 |
| Sub Brand | Pan-Net® |
| Performance level | Category 6A |
| Driver Type | Braided |
| Cable Construction | S/FTP |
| Patch Cord Type | Armored |
| Connector housing material | Polycarbonate |
| Connector Type 1 | Modular |
| Connector Type 2 | Modular |
| Total length (m) | 1.5 |
| Nominal outer diameter of the cable (mm) | 6.1 |
| Wiring diagram | T568B |
| Maximum operating temperature (°C) | 60 |
| Minimum operating temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°C) | -40 |
| Cap color | Black |
| Color | Blue |
| Flammability classification | Double classification (CM/LSZH) |
| Standards | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE compatibility | PoE/PoE+/PoE++ |
| Connector type | 8 Positions |
Share
Out of stock
MODELO: STP6X1.5MBU
