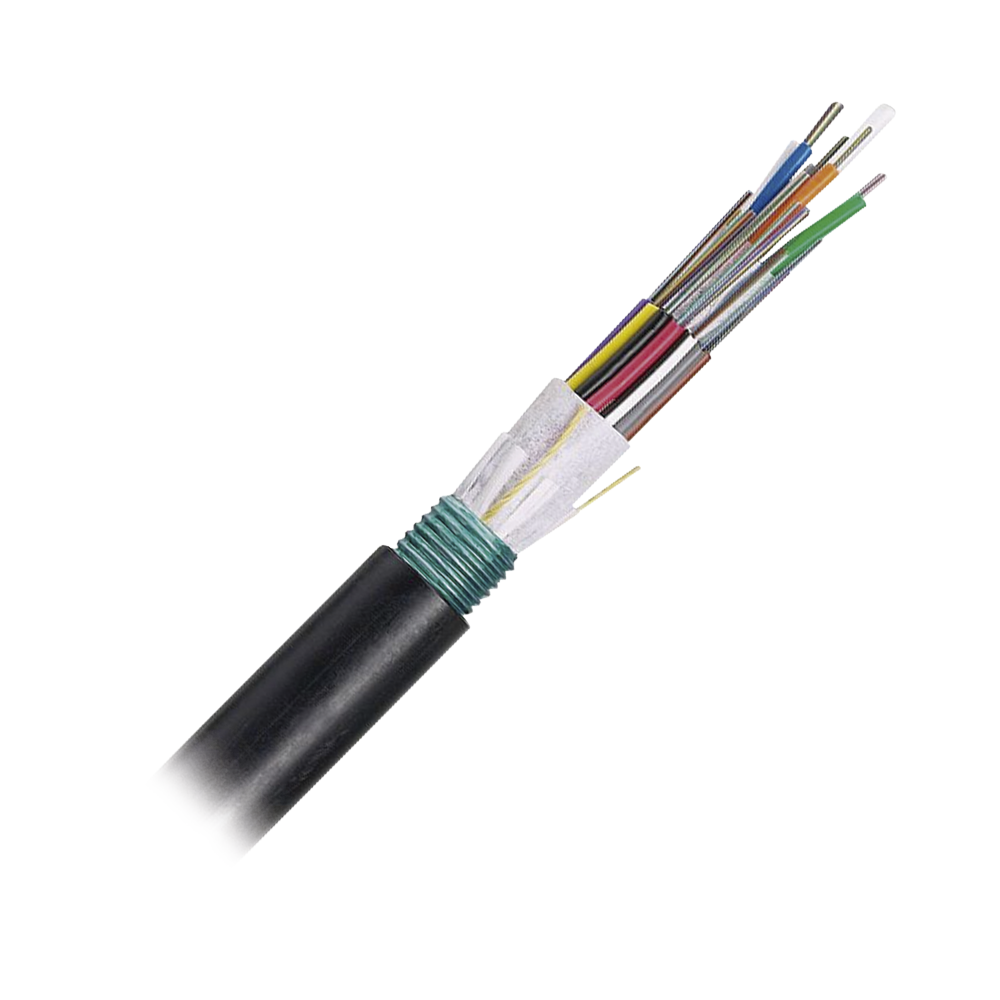

24-strand fiber optic cable, OSP (Outside Plant), armored, 250um, OS2 single-mode, price per meter

24-strand fiber optic cable, OSP (Outside Plant), armored, 250um, OS2 single-mode, price per meter

Opti-Core® Gel-Free Outside Plant Cable offers dry water-blocking technology, UV resistance, and high density to provide compliance and flexibility for outdoor use. Opti-Core® Gel-Free Outside Plant Cable is available in armored and all-dielectric cable designs to meet your specific installation requirements. Opti-Core® Gel-Free Armored Outside Plant Cable features a corrugated steel armor to provide superior crush resistance for direct burial applications.

Opti-Core® Gel-Free Outside Plant Cable meets RUS 7 CFR 1755.900 requirements for fiber optic service entrance cables. It also meets or exceeds Telcordia GR-20, Issue 2 and ICEA 640 performance requirements to withstand the harsh demands of outdoor environments. Opti-Core® Gel-Free Outside Plant Cable is available in singlemode (meeting proposed OS1 and OS2 standards) and multimode (OM1, OM2, laser optimized OM3 and OM4) and in fiber counts up to 144 fibers as a “loose tube” design. All Opti-Core® fiber optic cable is RoHS compliant.

Technical specifications:

• Loose Tube: 250μm
• Fiber Optic Cladding: 125μm
• Length increment marks every 2 feet.
• Color code: TIA-598-C
• Armored Optical Fiber
• Nominal diameter: .50 in (12.7 mm)

Compliance with Standards:

• TIA 455 series
• FOTPS
• ICEA 640
• Telcordia GR-20
• IEC 60794-3-11
• RUS 7 DVR 1755 (Listed PE90)
