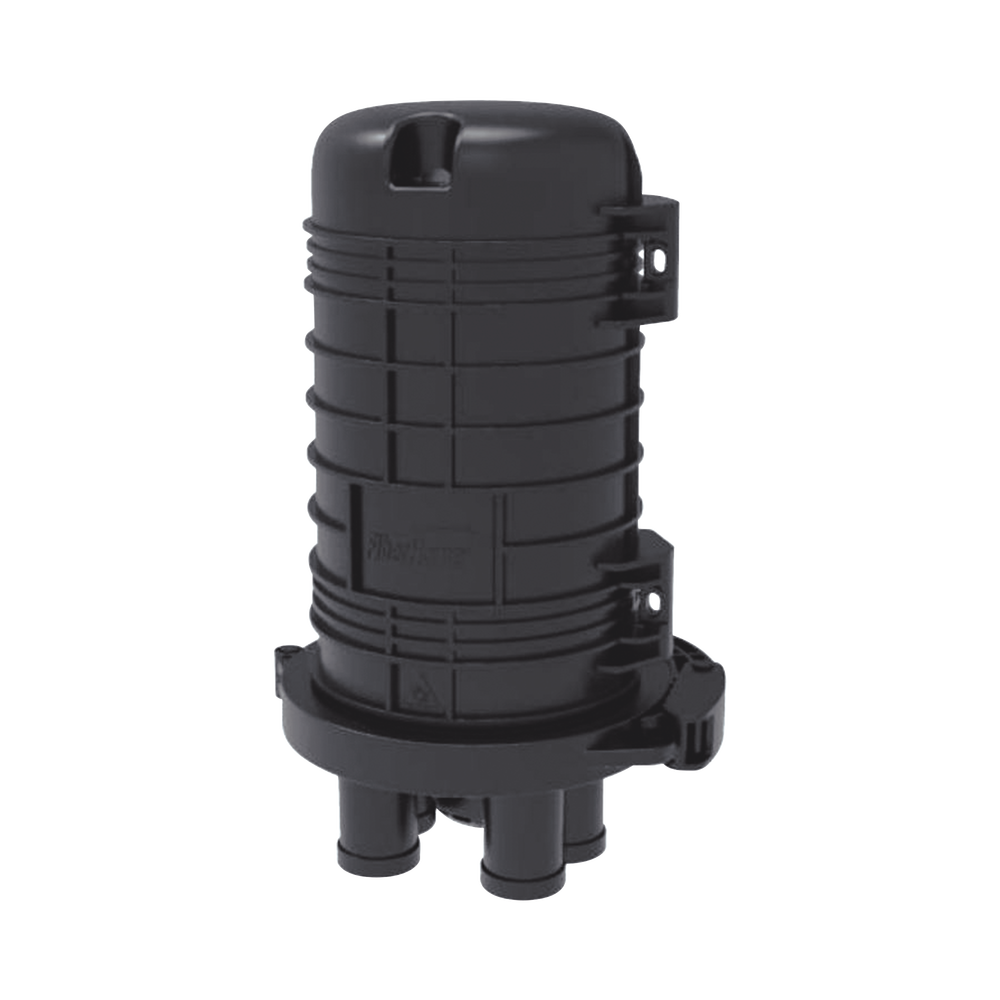

Dome-type Vertical Fiber Optic Distribution Box, up to 48 splices, Outdoor, IP68

Dome-type Vertical Fiber Optic Distribution Box, up to 48 splices, Outdoor, IP68

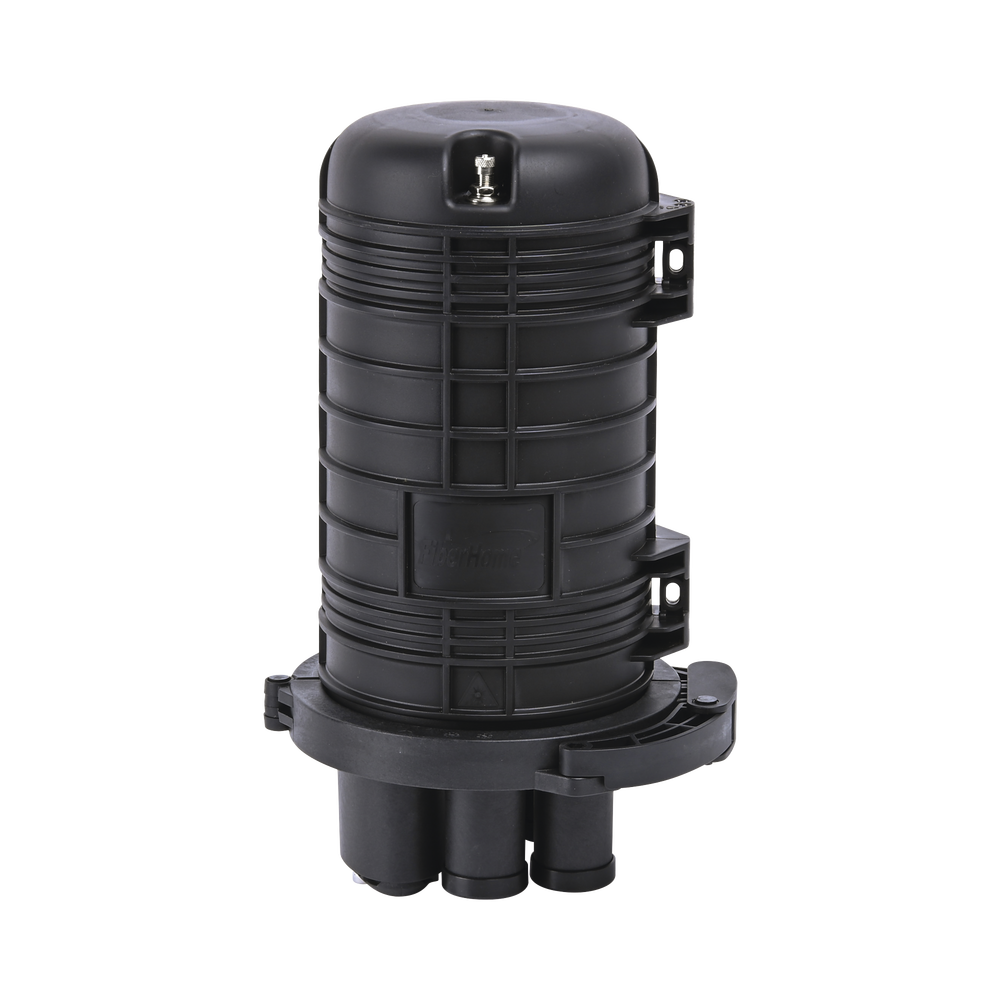

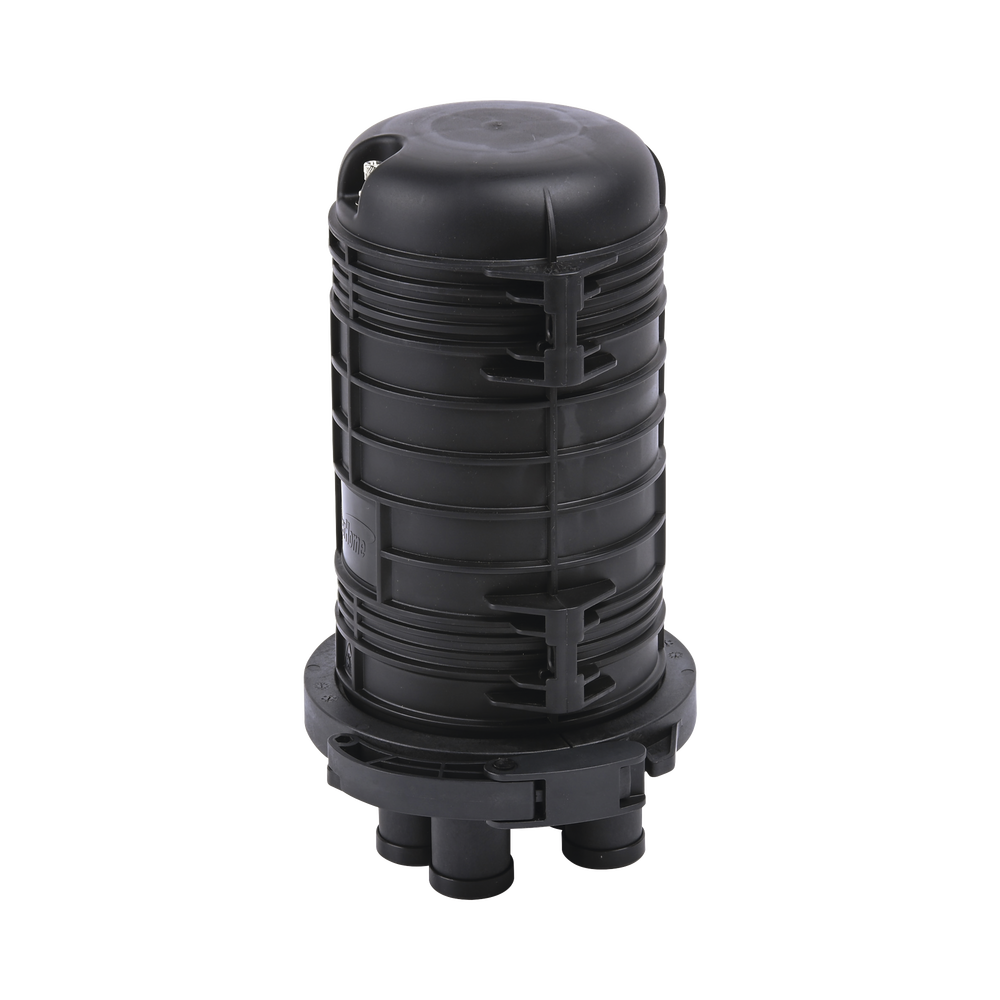

The FOSC-220J series is the latest version of the mechanically sealed dome-based splice closures, designed for aerial installations in cables, manholes, walls, and direct burial. It features flexible splice trays and a wide variety of accessories available for a variety of applications. Rigorous testing is performed to ensure the highest quality for network reliability.

Characteristics:

• Dome base design structure with mechanical sealing
• Portrait orientation
• High-strength modified polypropylene material
• Flexible grommets for standardized universal cables
• A splitter without connectors can be installed inside (Not included)
• Easy to open and close
• Ideal fiber management design
• Protection level: IP68
• Compatible with ADSS, Mini ADSS and Mini Figure 8 fiber*.

* It is recommended to add more fusion tape (sealing mud) at the cable entry when used with Mini Figure 8 fiber ( OC-FIG8-06C , OC-FIG8-12C )

Installation Type:

• Abroad
• Aerial, wall, pole mount, manhole or direct burial (Includes accessories for aerial installation only)

Specs:

• Dimensions (mm): Φ 220 x 360
• Temperature range (°C): -40 ~ +65

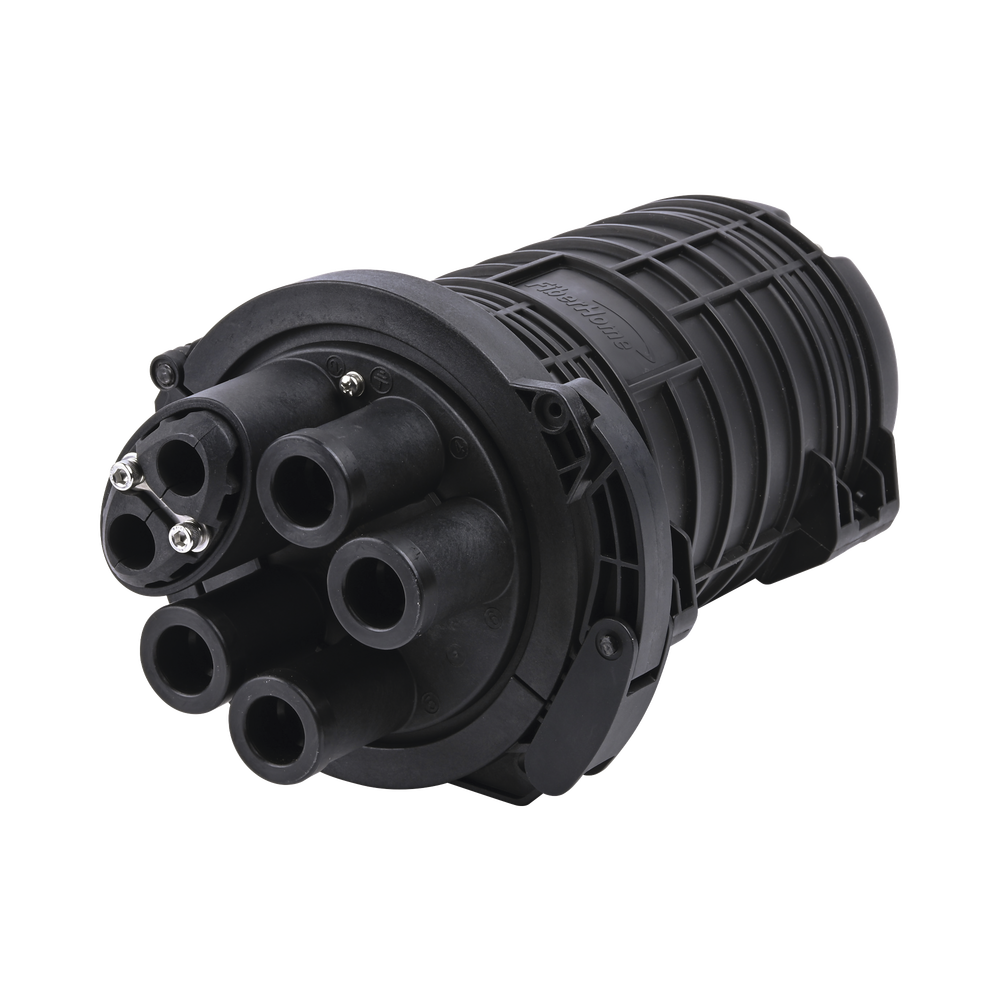

• 1 main entry for 2 trunk fiber cables Φ10-14 mm
• 4 secondary inputs for distribution fiber Φ10-14 mm or Φ5-7 mm

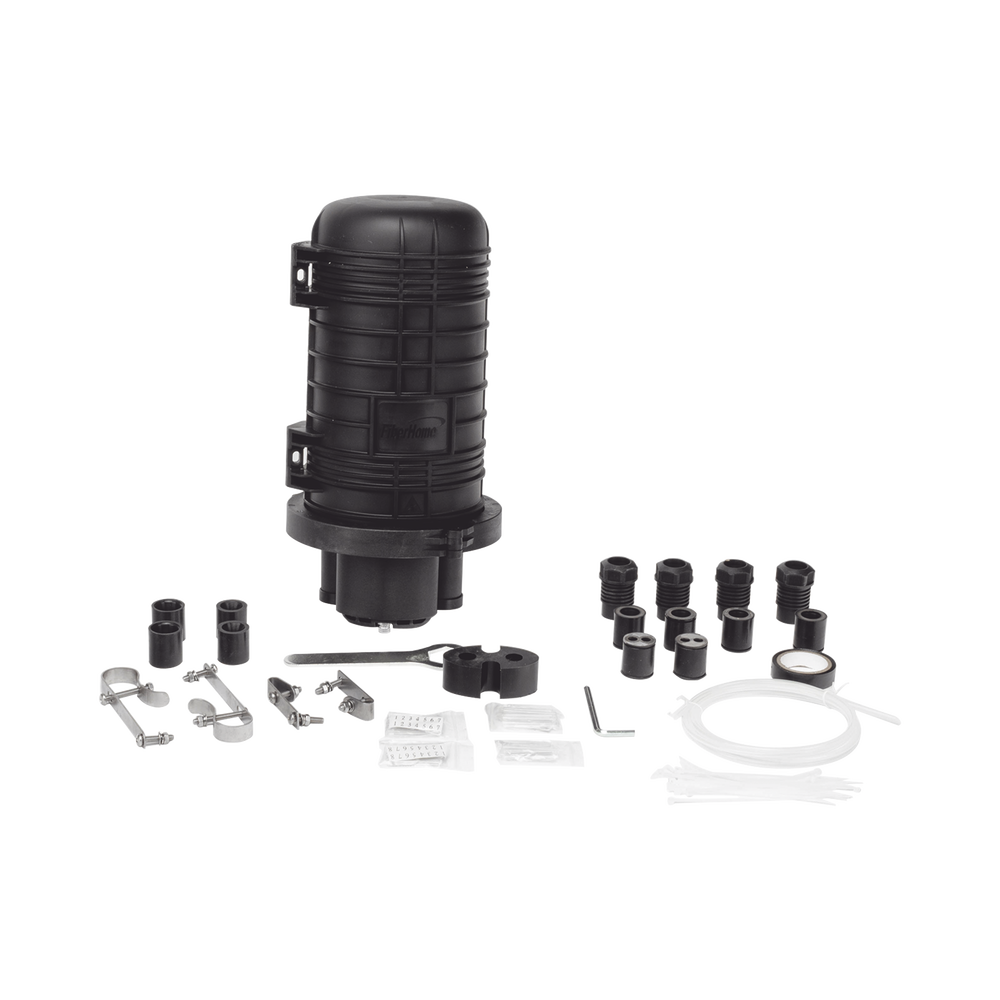

Includes:

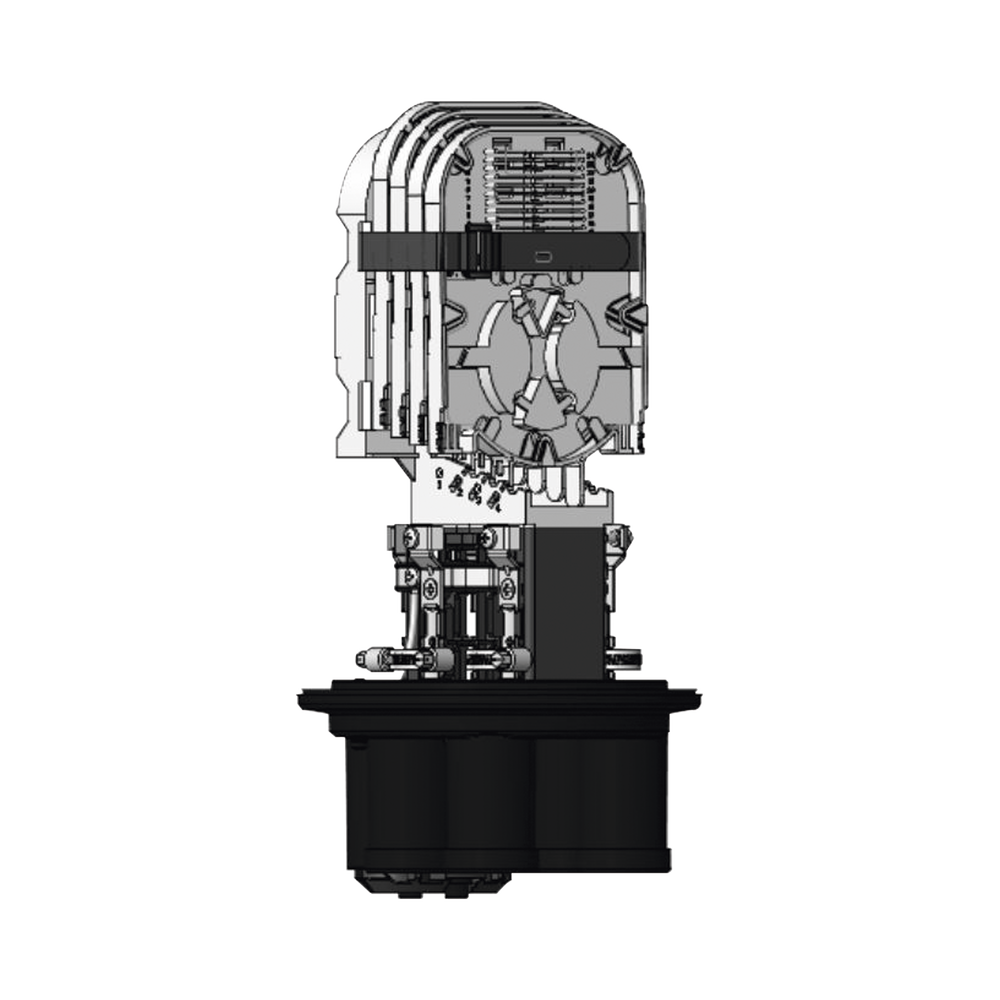

• 4 trays for 12 fibers each (48 in total)
• 48 40mm splice sleeves
• 20 nylon cable ties (3*120 mm)
• 1 bare fiber protection tube (2 m)
• 1 oval grommet for 2 cables Φ10-14 mm
• 4 Round Grommets for Φ10-14 mm Cable
• 2 Double Grommets for Φ5-7 mm cable
• 1 roll of insulating tape
• 1 set of 2 hooks for aerial mounting on fiber optic cable
• 1 set of 2 hooks for overhead mounting on steel messenger
• 1 allen key
• 1 hex key

4 trays for 12 fibers each, Easy to open and close, High-strength modified polypropylene material, Aerial, pole, manhole, or direct burial installation
