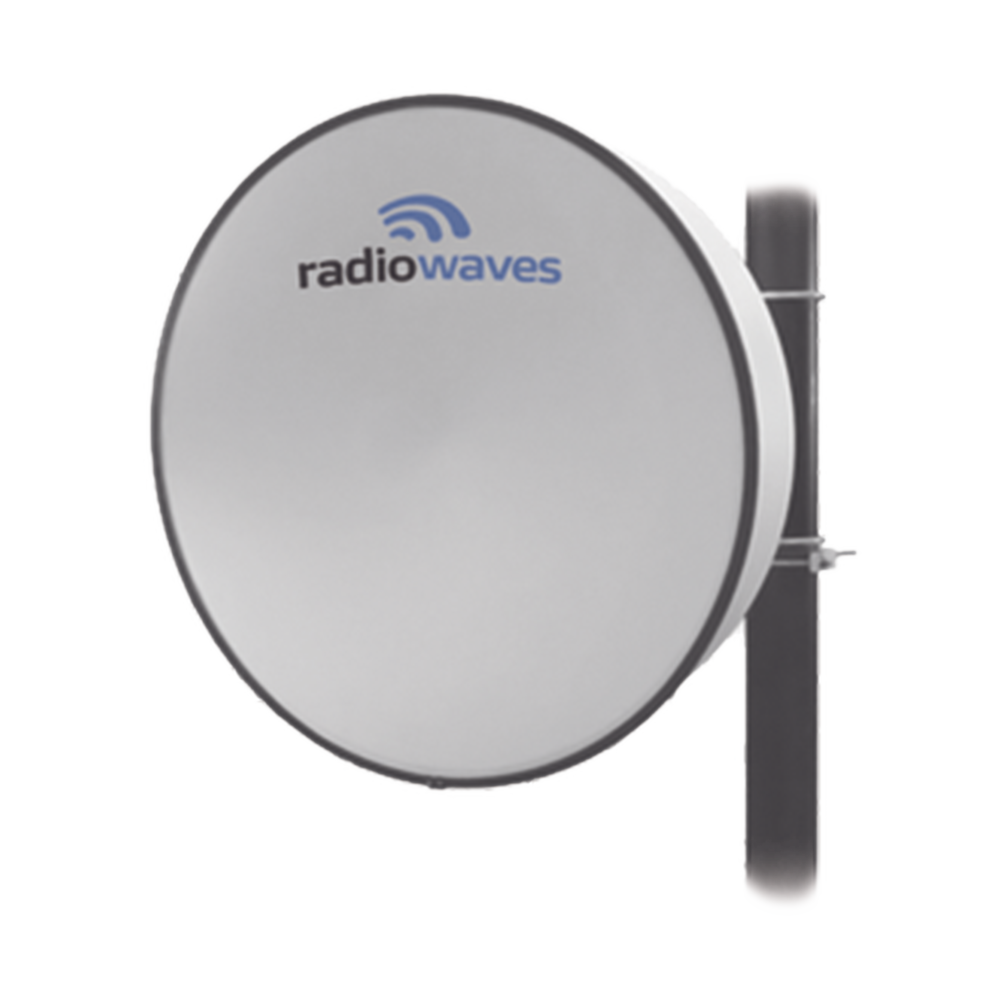

High performance directional antenna, (3 ft), 4.4 - 5 GHz, 2 N-female connectors, 30 dBi gain, Radome and mount included.

High performance directional antenna, (3 ft), 4.4 - 5 GHz, 2 N-female connectors, 30 dBi gain, Radome and mount included.

Electrical Specifications

Measurement: 0.9 m (3 ft).

Polarization: Double.

Connectors: N-Female (x2).

Frequency: 4.4 - 5 GHz.

Horizontal/Vertical Beamwidth: 4.7°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 52 dB.

High frequency gain: 30.3 dBi.

Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Fine adjustment of elevation: ±25°.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter: 11.4 cm (4.5 in).

Net weight: 12.3 kg (50 lbs).

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Radome included.

*7-year warranty

Shipping Information

Dimensions: 119 (length) x 71 (width) x 122 (height) cm

/ 47 (length) x 28 (width) x 48 (height) in

Packaging: Wooden box.
