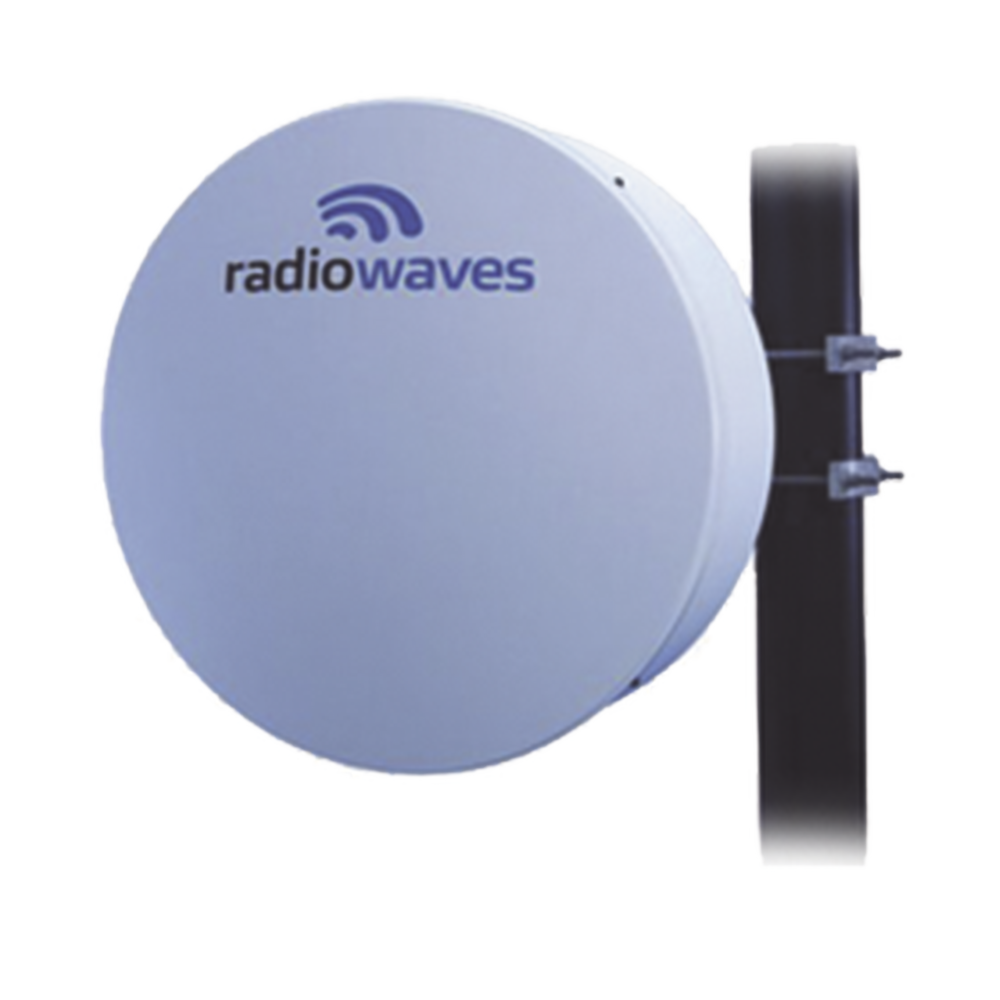

Antena direccional de alto rendimiento, (2 ft), 4.4 - 5 GHz, 2 conectores N-hembra, Ganancia de 26 dBi, Radomo y montaje incluido.

High performance directional antenna, (2 ft), 4.4 - 5 GHz, 2 N-female connectors, 26 dBi gain, Radome and mount included.

Sale price  $6,330,213 Regular price  $8,419,473
Skip to product information
Antena direccional de alto rendimiento, (2 ft), 4.4 - 5 GHz, 2 conectores N-hembra, Ganancia de 26 dBi, Radomo y montaje incluido.

High performance directional antenna, (2 ft), 4.4 - 5 GHz, 2 N-female connectors, 26 dBi gain, Radome and mount included.

Sale price  $6,330,213 Regular price  $8,419,473
Shipping calculated at checkout.
Marca
RADIOWAVES
Referencia / SKU
HPD24.7NS-US
Disponibilidad
Agotado por ahora
Descripción y especificaciones

High performance directional antenna, (2 ft), 4.4 - 5 GHz, 2 N-female connectors, 26 dBi gain, Radome and mount included.

Some Features

-High-performance Carrier-Class antennas.

- Radome included to reduce wind problems.

-High selectivity for interference mitigation.

-Pre-assembled antennas for easy field installation.

-Super robust mount for precise alignment in azimuth and elevation.

- 7-year warranty on maximum performance.

-They withstand all types of weather.

-They can be installed anywhere.

Electrical Specifications

Measurement: 0.6 m (2 ft).

Polarization: Double.

Connectors: N-Female (x2).

Frequency: 4.4 - 5 GHz.

Horizontal/Vertical Beamwidth: 7.1°.

Cross-polarization discrimination: 28 dB.

Front to Back Ratio (F/B): 48 dB.

Low frequency gain: 25.8 dBi.

Mid-frequency gain: 26.4 dBi.

High frequency gain: 26.9 dBi.

Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Fine adjustment of elevation: ±25°.

Minimum mounting tube diameter: 5.08 cm (2 in).

Maximum mounting tube diameter: 11.4 cm (4.5 in).

Net weight: 12.3 kg (27 lbs).

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Radome included.

*7-year warranty

Shipping Information

Dimensions: 79 (length) x 79 (width) x 64 (height) cm

/ 31 (length) x 31 (width) x 25 (height) in

Packaging: Carton.
