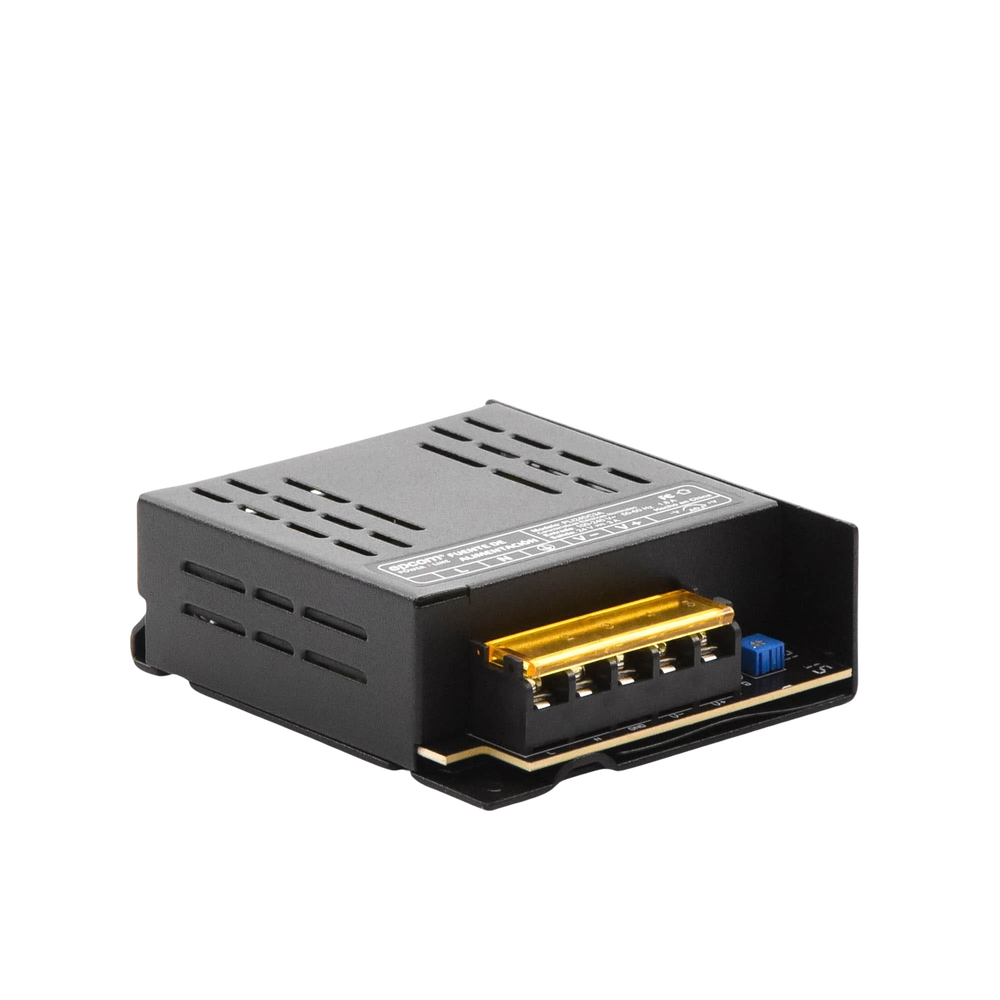

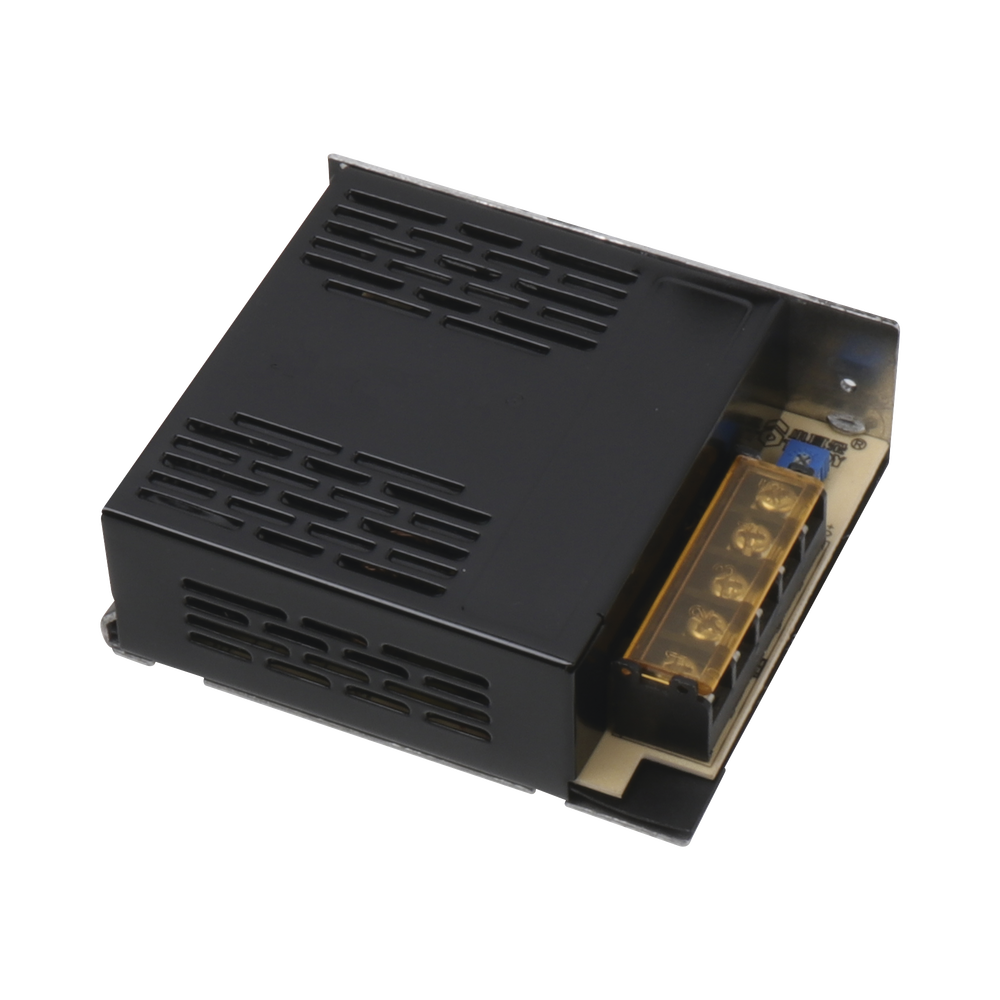

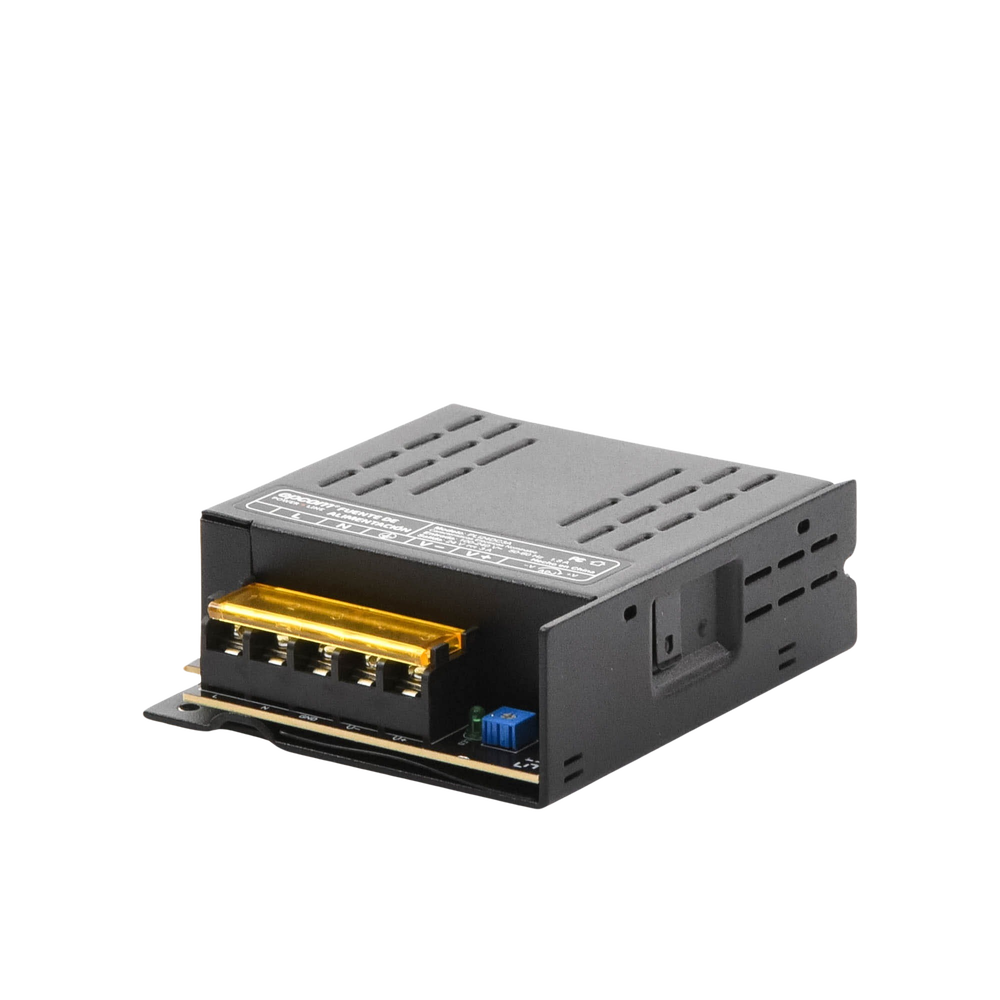

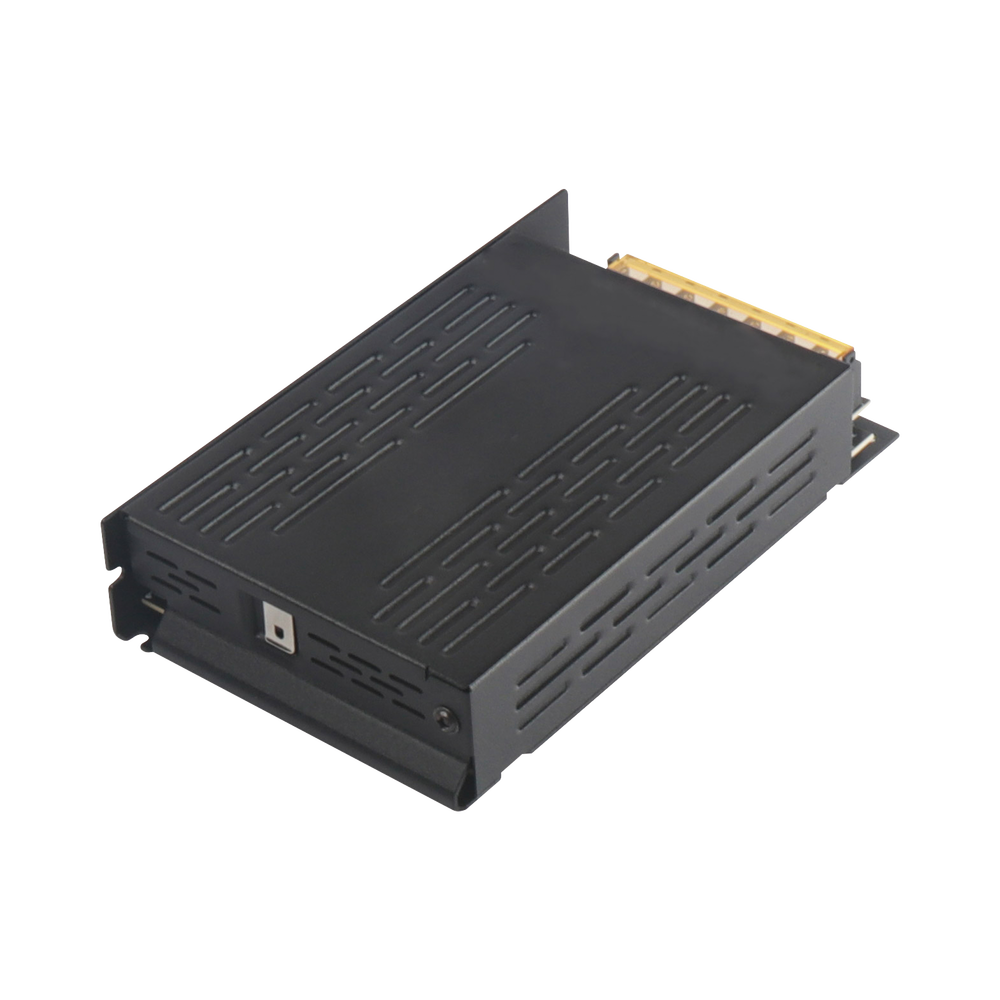

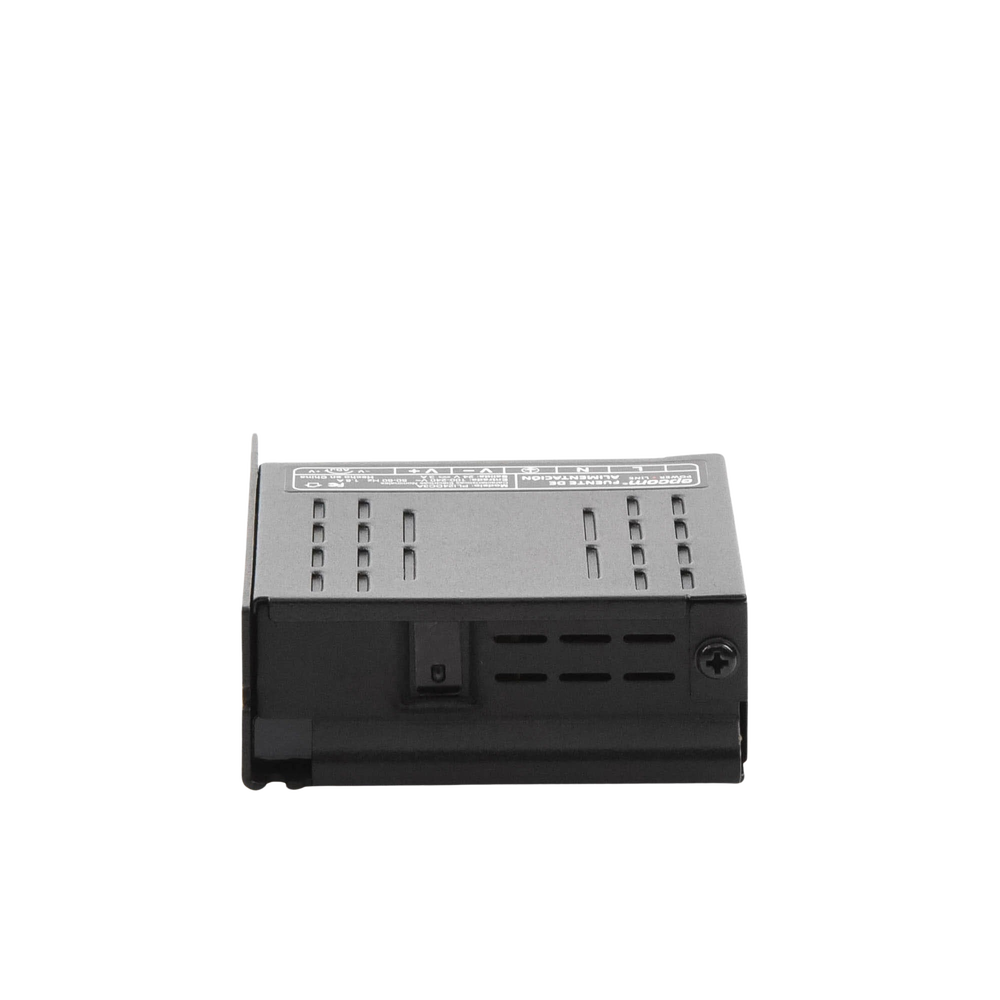

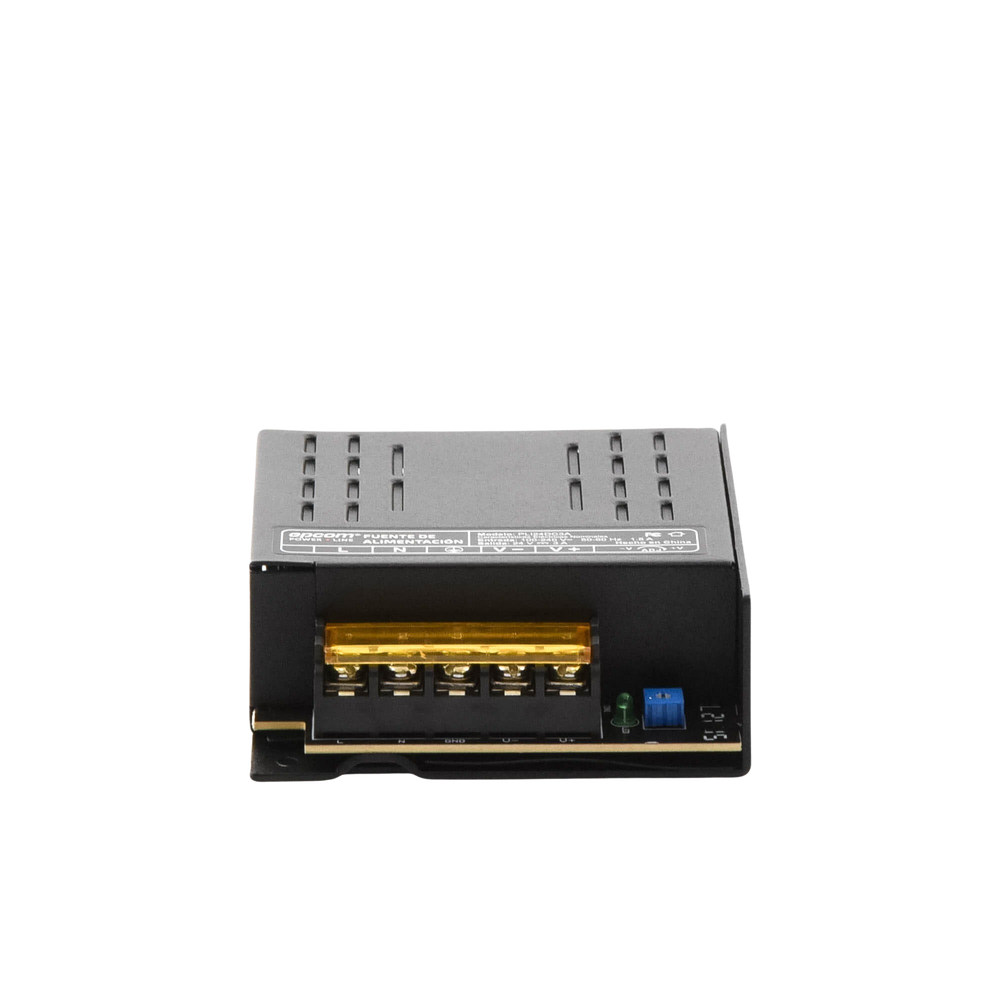

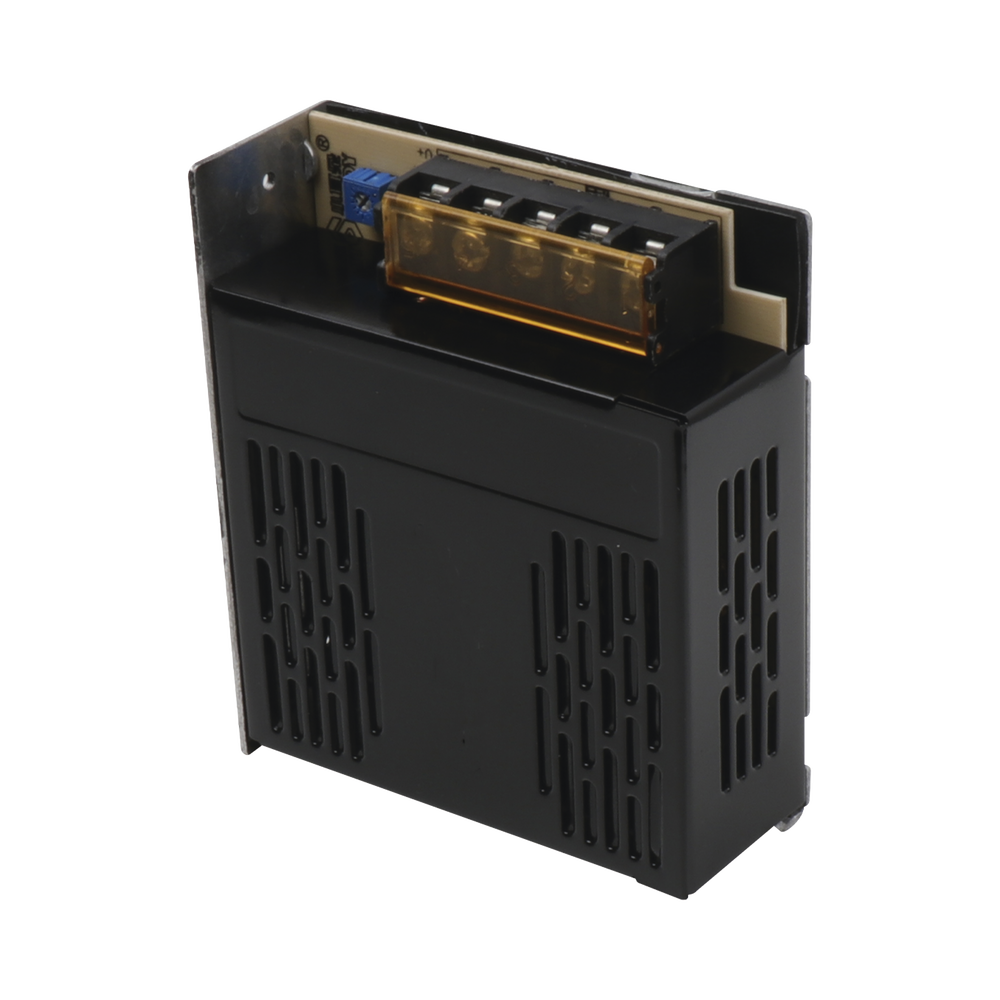

Epcom Power Line Industrial Supply DIN Rail Type 24Vdc 3Amperes

• Power Supply for Installation in Din Rail type mounting.
• Conversion efficiency greater than 85%
• It has protection output for over-current, short-circuit, over-voltage.

• Input voltage: 100-240Vac 50/60Hz
• Output voltage: 24 Vdc +/- 1.5V
• Storage humidity: 10~95%RH
• Operating humidity: 20~90RH non-condensing
• Input current: 1.7A MAX
• Output current: 3A
• Operating temperature: -20~60°C
• Storage temperature: -25~85°C non-condensing
• Load loss: 1W

• L101mm * W87mm * H33mm
• DIN Rail measurements: TS35/7.5

- 5 Year Warranty.
