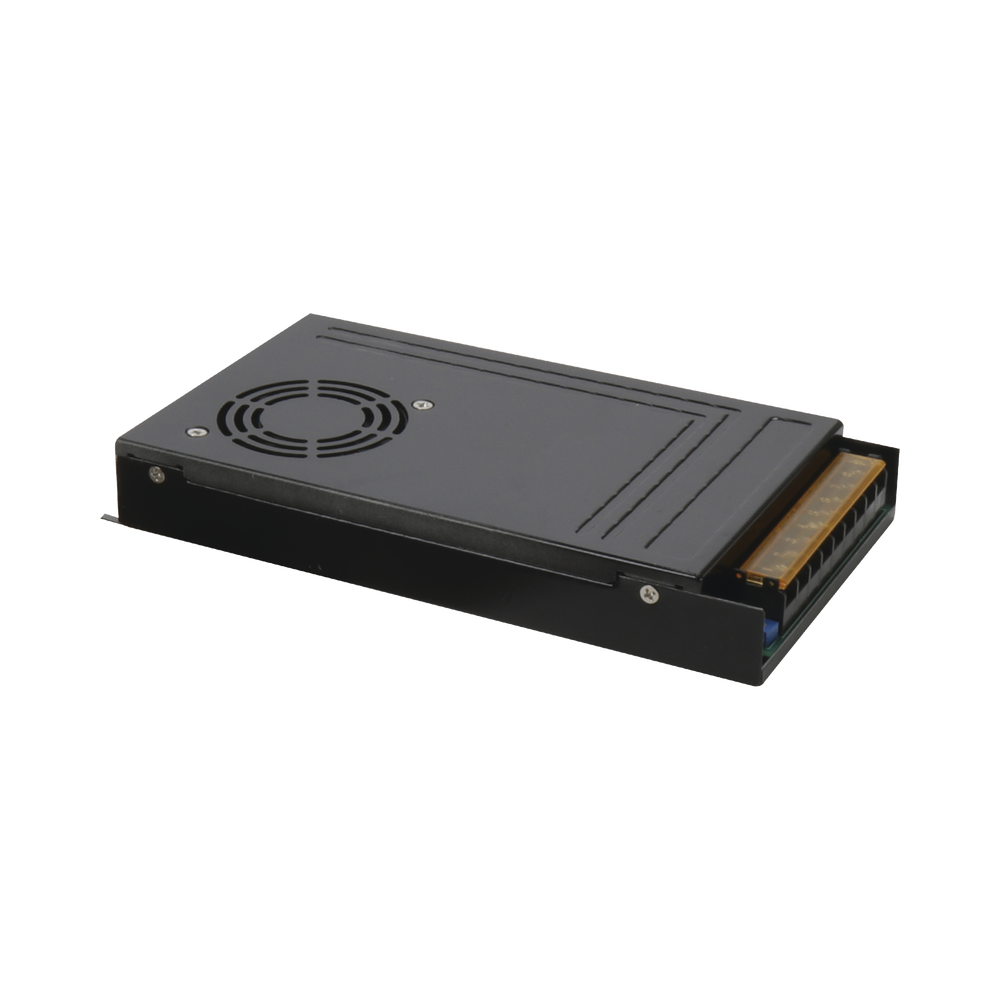

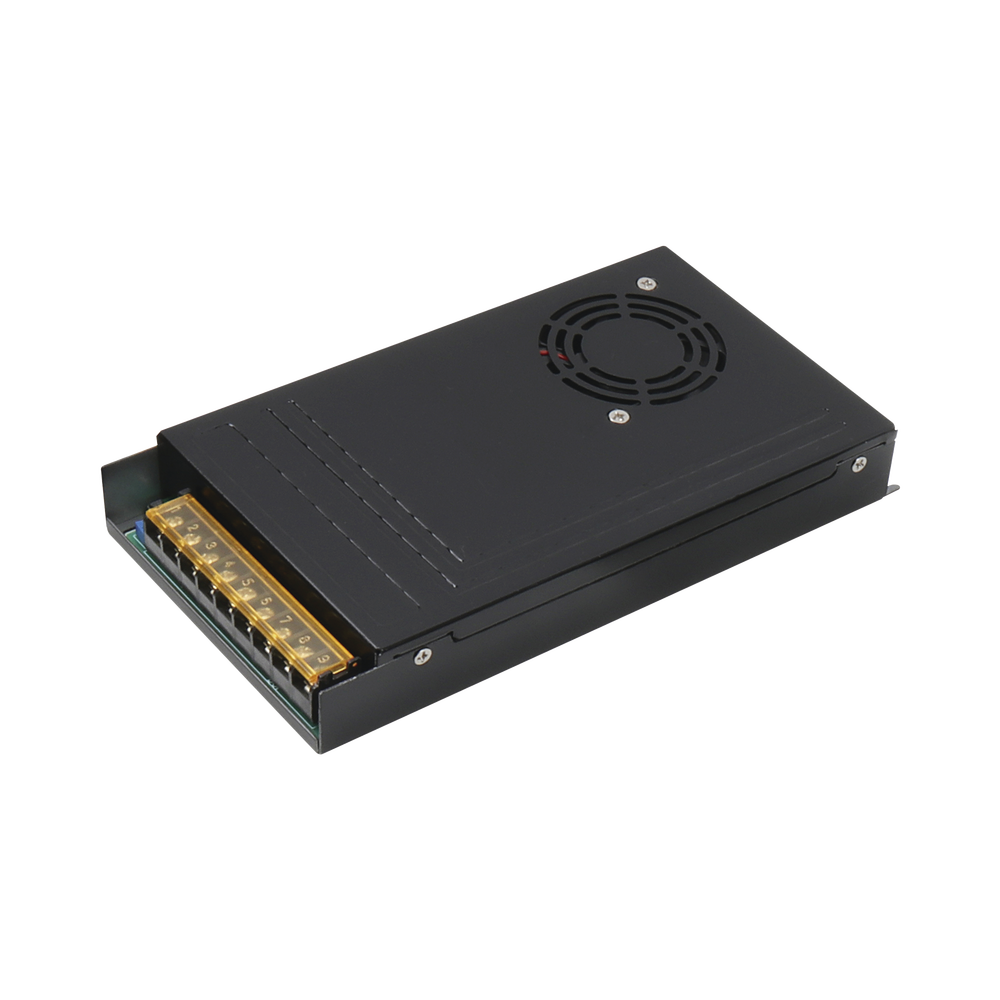

Epcom Power Line Industrial Supply DIN Rail Type 24Vdc 10Amperes

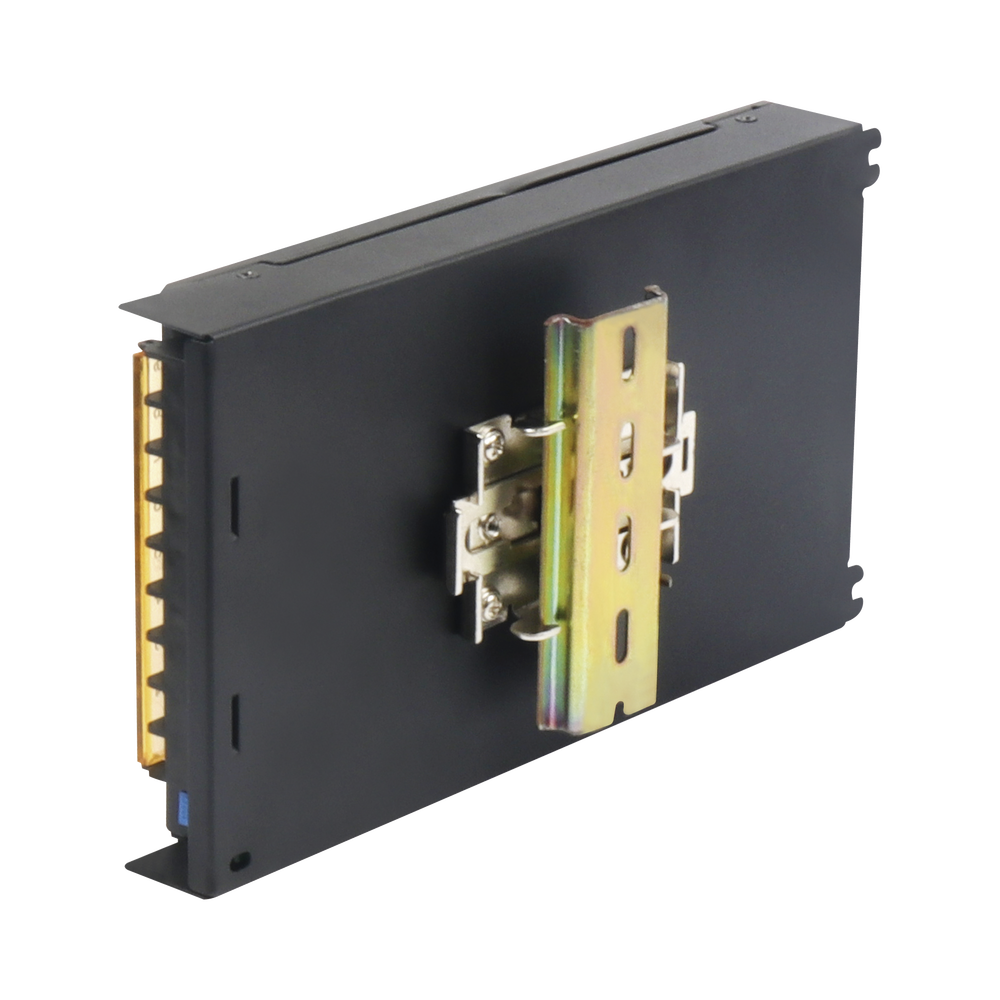

• Power Supply for Installation in Din Rail type mounting.
• Conversion efficiency greater than 88%
• It has protection output for over-current, short-circuit, over-voltage.

• Input voltage: 100-240Vac 50/60Hz
• Output voltage: 24Vdc +/- 1.5V
• Storage humidity: 10~95%RH
• Operating humidity: 20~90RH non-condensing
• Input current: 6.0A MAX
• Output current: 10A
• Operating temperature: -20~60°C
• Storage temperature: -25~85°C non-condensing
• Load loss: 1W

• L212mm * W115mm * H30mm
• DIN Rail measurements: TS35/7.5

- 1 Year Warranty
