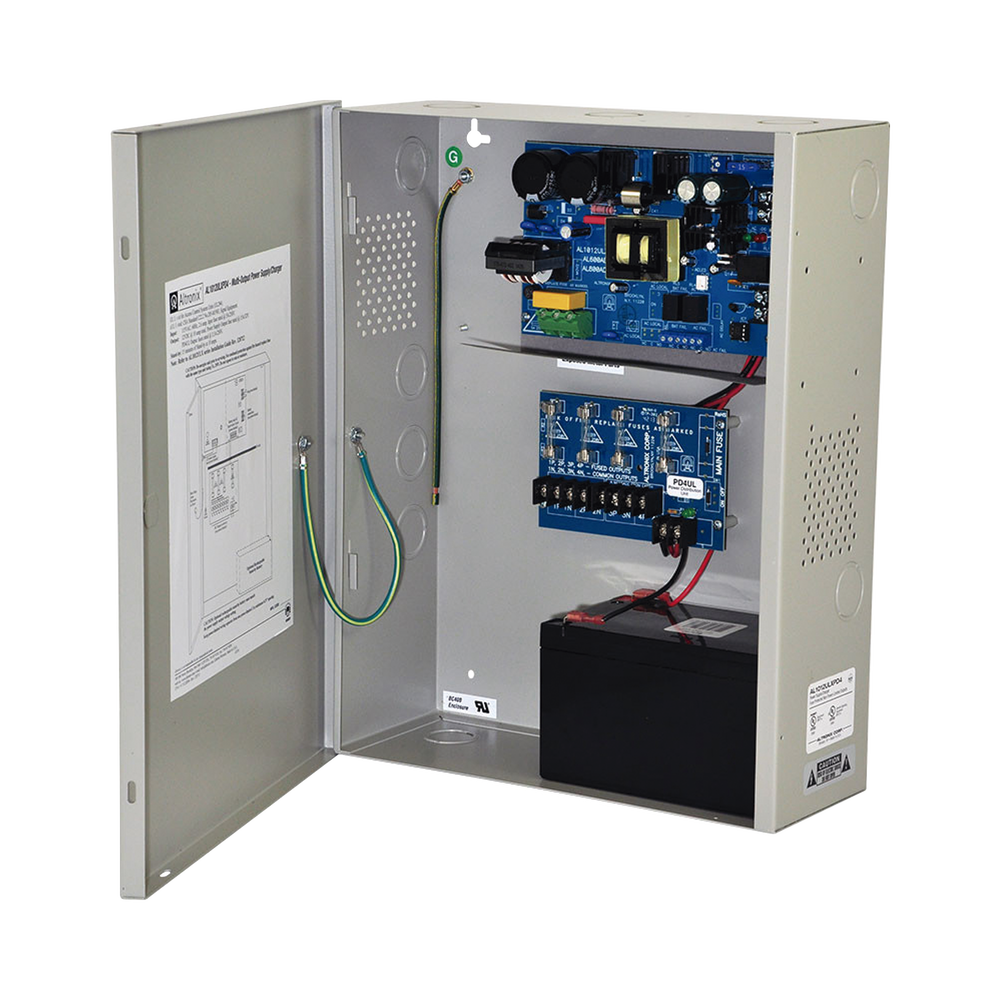

4-Outlet UL Listed Power Supply / With Battery Backup Capability / Batteries Required / 12VDC at 10A Continuous

4-Outlet UL Listed Power Supply / With Battery Backup Capability / Batteries Required / 12VDC at 10A Continuous

Entrance:
- Input 115VAC, 60Hz, 1.9A.
- 5A/250V input fuse.

Exit:
- 12VDC output.
- 10 amp continuous power supply.
- Four (4) fuse-protected outputs.
- The output fuses are rated at 3.5A/250VAC.
- Electronically filtered and regulated output.
- Protection against short circuits and thermal overloads.

Backup battery:
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switchover to backup battery when AC power fails. - With backup battery capability. - Batteries not included. - Suggested batteries: PL4.512 / PL712 / PL912.

Supervision:
- AC fault supervision (form 'C' contacts).
- You can select the notification trigger for 30 seconds (factory setting) or 6 hours.
- Low battery supervision ('C' contacts).
- Monitoring the presence of the battery ('C' contacts).

**Product on request.

12VDC at 10A Continuous, 4 Outputs
