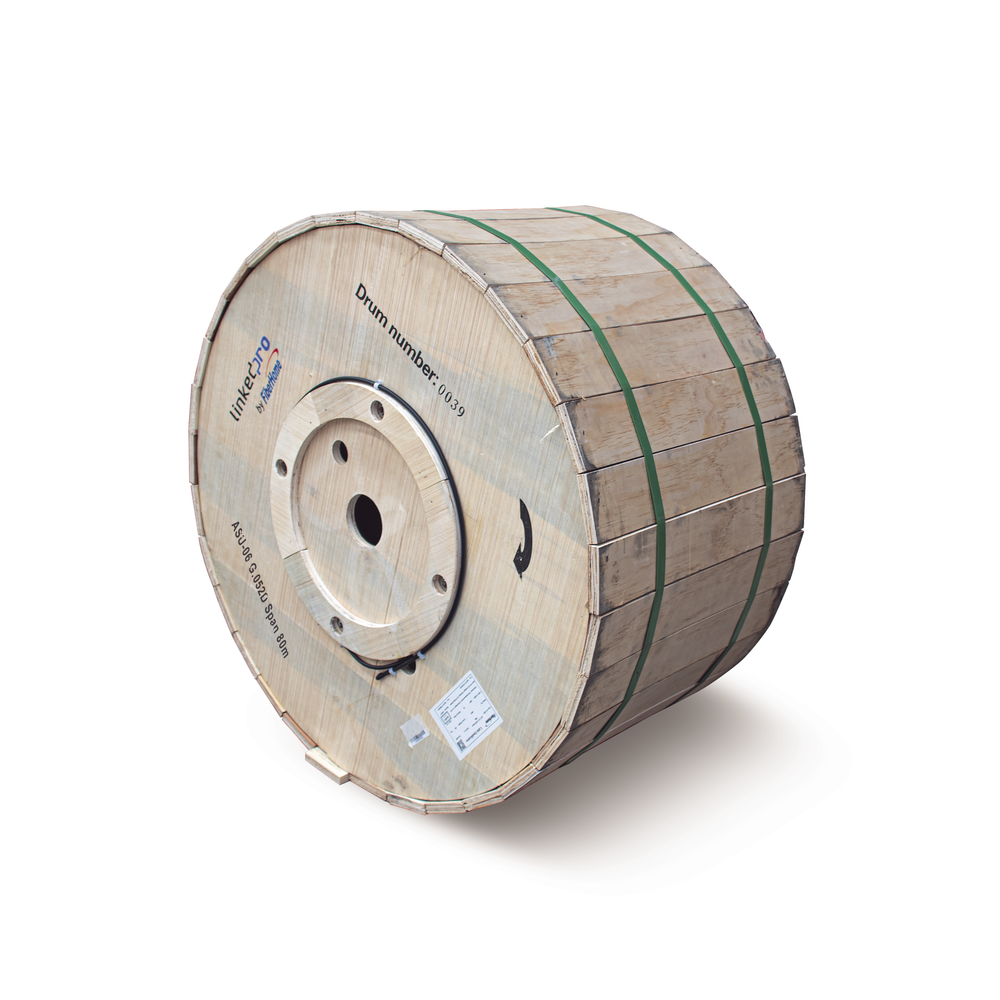

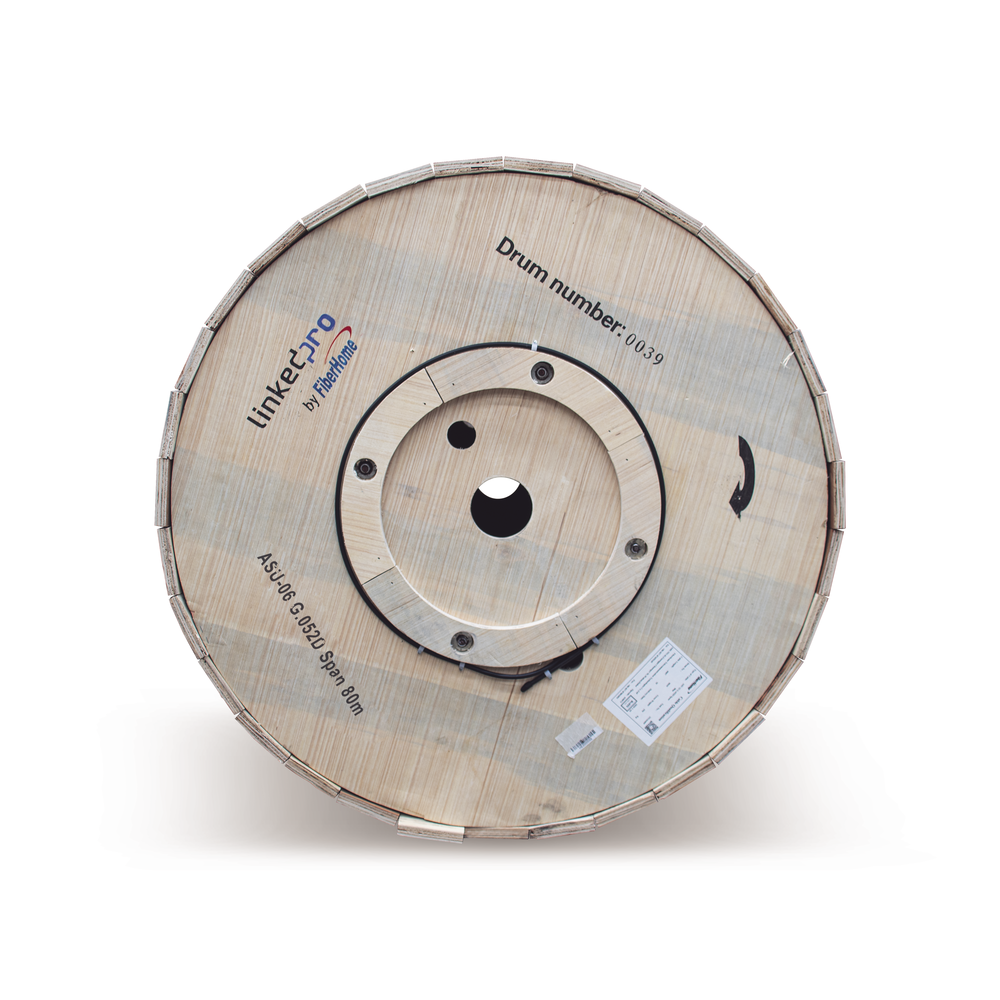

4km reel of G.652D Mini ADSS (ASU) Aerial Optical Fiber, 6-Wire Singlemode, Outdoor, Span 80, Loose Tube

4km reel of G.652D Mini ADSS (ASU) Aerial Optical Fiber, 6-Wire Singlemode, Outdoor, Span 80, Loose Tube

Mini ADSS (All Dielectric Self-Supported) fiber optic cable is designed for aerial installations between poles. Mini ADSS cables withstand the necessary tensile strength thanks to their reinforcing elements; they contain no metallic elements.

Technical Specifications:

• Fiber Optic Mini ADSS G.652D Singlemode Loose Tube
• Outer Cover: MDPE (Medium Density Polyethylene)
• Maximum operating tension: 800N
• Maximum installation tension: 1250N
• Operating temperature: -20ºC ～ +65ºC
• Span (Distance between Poles): 80 meters
• UV and moisture protection
• Nominal diameter (D): 6.6 ± 0.3 mm
• Minimum bending radius: Installation 20D, Operation 10D
• Crush resistance: 1000N/10cm
• Rated weight (kg/km): 50 ± 10 kg/km
• 6 threads
• Black Lining
• Dimensions (mm): 950 x 950 x 554
• Gross Reel Weight (4 km): 193 kg

Note: Free shipping (major cities only; does not apply to extended areas). For orders of 10 or more reels, a forklift or ramp is required for loading/unloading and/or moving.

Outer Cover: MDPE (Medium Density Polyethylene), Operating Temperature: -20ºC to +65ºC, Maximum Tensile: 1250N, Span (Distance between Posts): 80 meters
