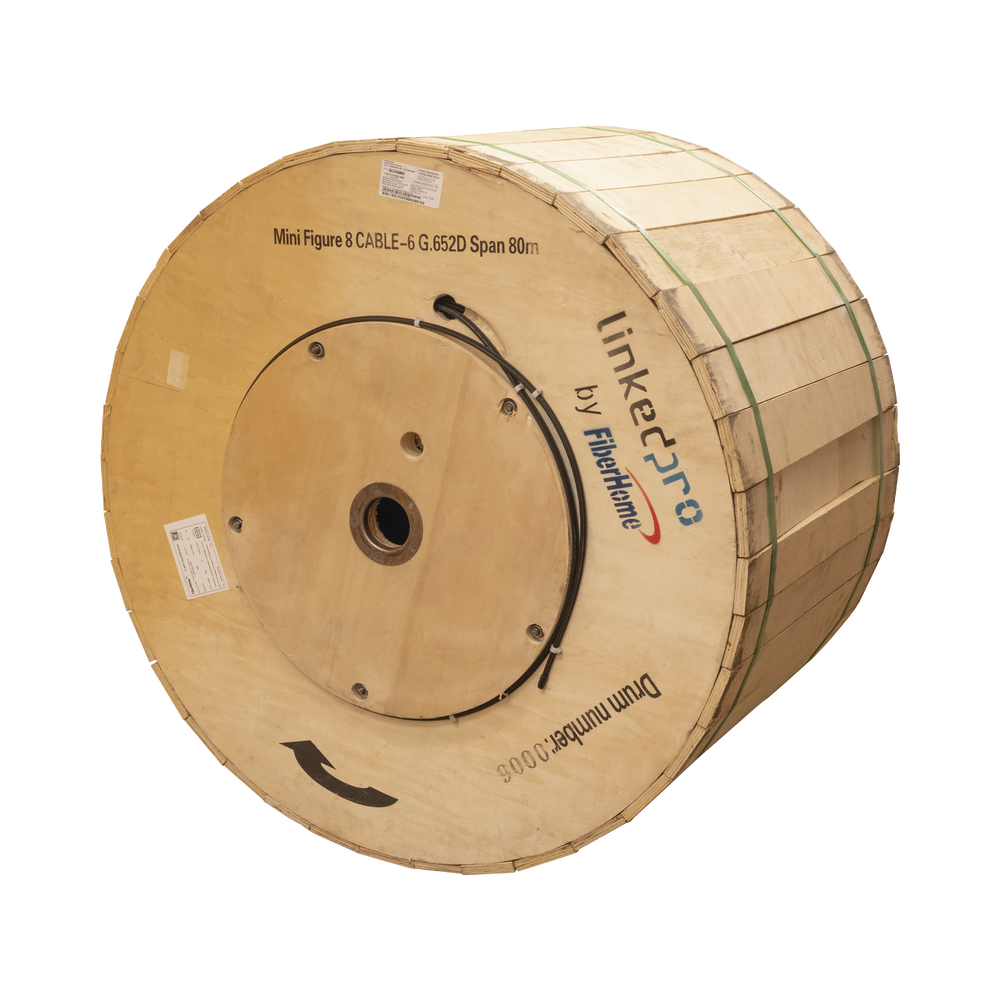

4km reel of Mini Figure 8 Aerial Optical Fiber, G.652D, 6-Wire Singlemode, Outdoor, Span 80, Loose Tube

4km reel of Mini Figure 8 Aerial Optical Fiber, G.652D, 6-Wire Singlemode, Outdoor, Span 80, Loose Tube

The Mini Figure 8 fiber optic cable is designed for aerial installations between poles. This type of cable offers the necessary tensile strength thanks to its steel messenger.

Technical Specifications:

• Mini Figure 8 G.652D Singlemode Loose Tube Optical Fiber
• Outer cover: PE (Polyethylene)
• Galvanized steel messenger
• Maximum tension: 1250N
• Operating temperature: -20ºC ～ +65ºC
• Span (Distance between Poles): 80 meters
• UV and moisture protection
• Nominal diameter: 5.4 ± 0.5 mm (W)(Optical tube) x 10.2 ± 0.5 mm (Total)
• Steel messenger diameter: 1.6 mm
• Messenger + lining diameter: 3.6 ± 0.5 mm
• Minimum bending radius: Installation 30W, Operation 15W
• Crush resistance: 1000N/10cm
• Nominal weight (kg/km): 60 ± 15
• 6 threads
• Black Lining
• Price per 4 km reel
• Dimensions (mm): 1150 x 1150 x 750
• Gross reel weight: 270 kg

Note: Free shipping (major cities only; does not apply to extended areas). For orders of 10 or more reels, a forklift or ramp is required for loading/unloading and/or moving.

1.6 mm diameter Steel Messenger, Maximum tension: 1250N, Operating temperature: -20ºC to +65ºC, Span (Distance between Posts): 80 meters
