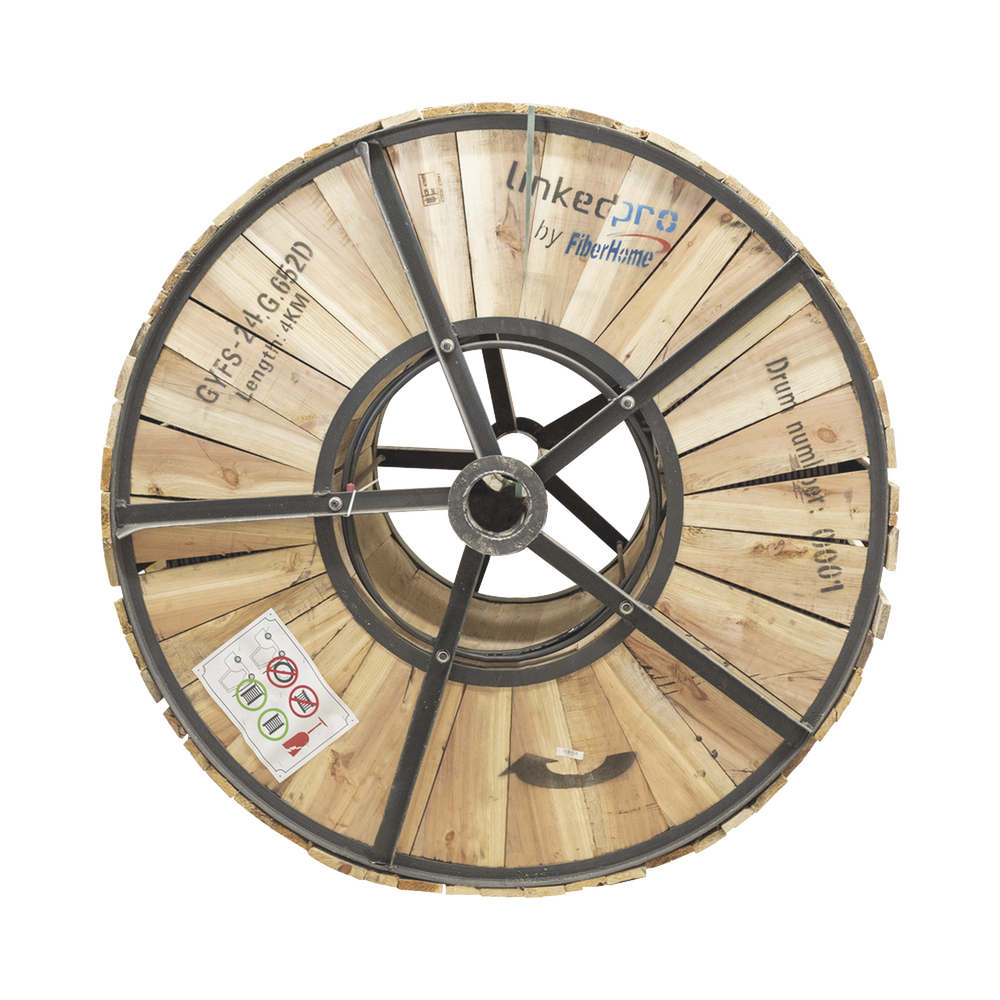

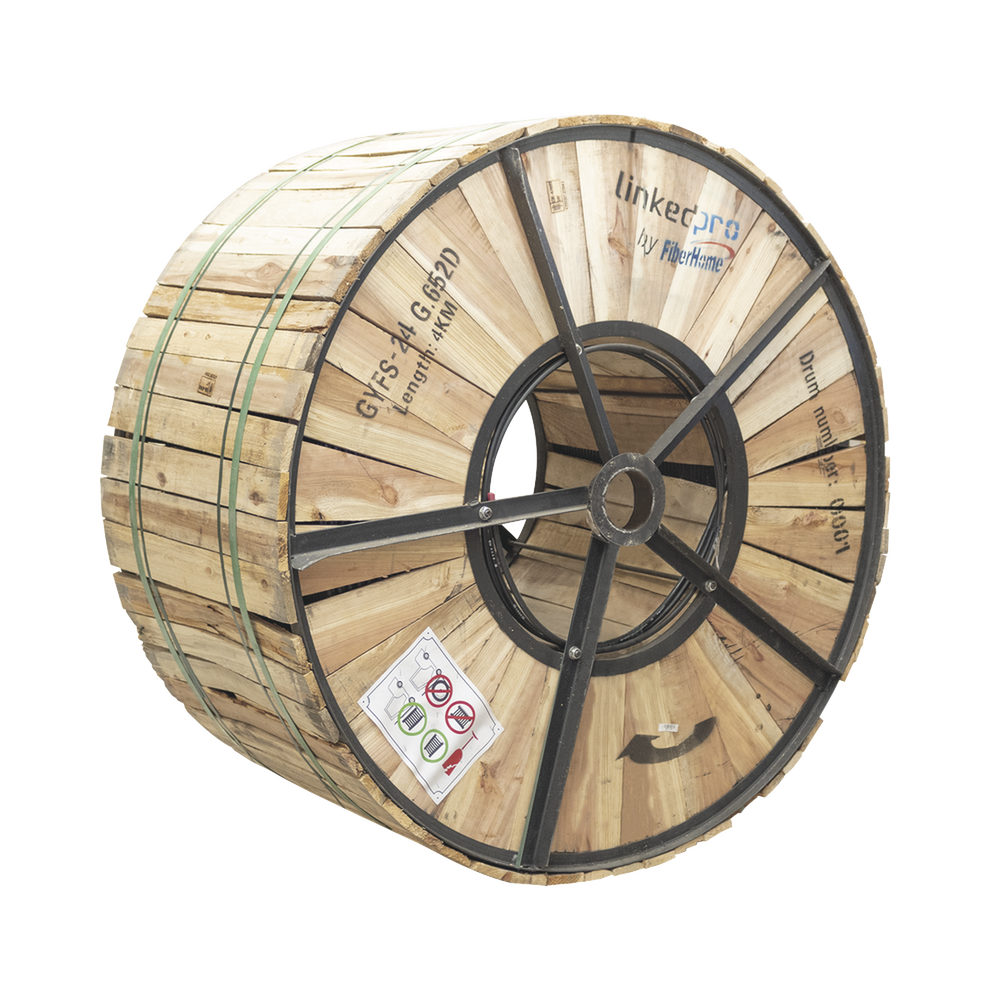

4km reel of G.652D outdoor fiber optic, armored, 24-strand single-mode, loose tube, black.

4km reel of G.652D outdoor fiber optic, armored, 24-strand single-mode, loose tube, black.

GYFS fiber cables are designed for underground duct installations and feature metal armor for rodent protection.

Characteristics:

• G.652D Loose Tube Singlemode Optical Fiber for Outdoors
• For installation in pipe
• Type of Assembly: Steel Deck
• Moisture-proof water-blocking cover
• Maximum Tension: 2200N
• Lining Material: HDPE (High Density Polyethylene)
• Operating Temperature: -20ºC to +65ºC
• Weight: 117 ± 15 kg/km
• Wire diameter (D): 11.4 ± 0.5 mm
• Minimum bending radius: Installation 25D, Operation 12.5D
• Crush resistance: 1000N/10cm
• 24 threads
• Price per 4 km reel
• Dimensions (mm): 1400 x 1400 x 750
• Gross weight of 4km reel: 590kg

Note: Free shipping (major cities only; does not apply to extended areas). For orders of 10 or more reels, a forklift or ramp is required for loading/unloading and/or moving.

For installation in pipe or direct burial, Type of assembly: Steel cover, Cover with moisture-proof water lock, Maximum tension: 2200 N
