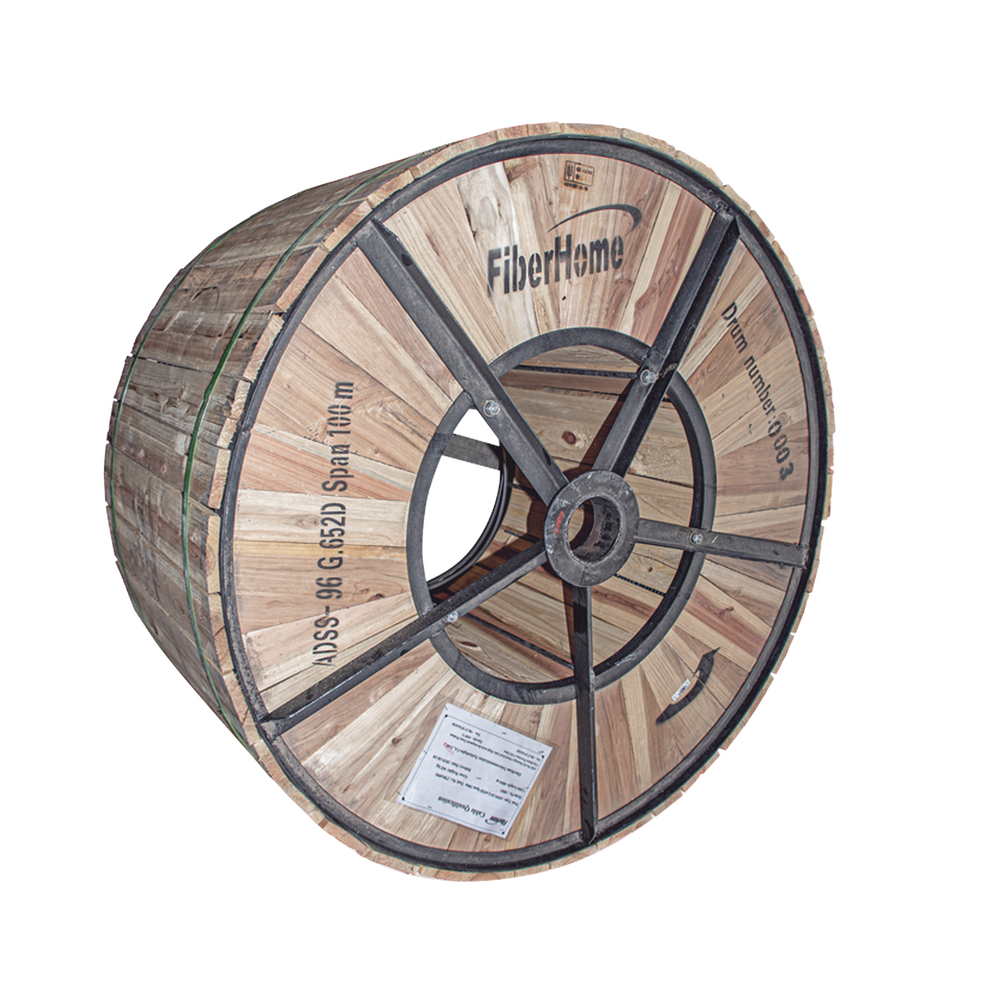

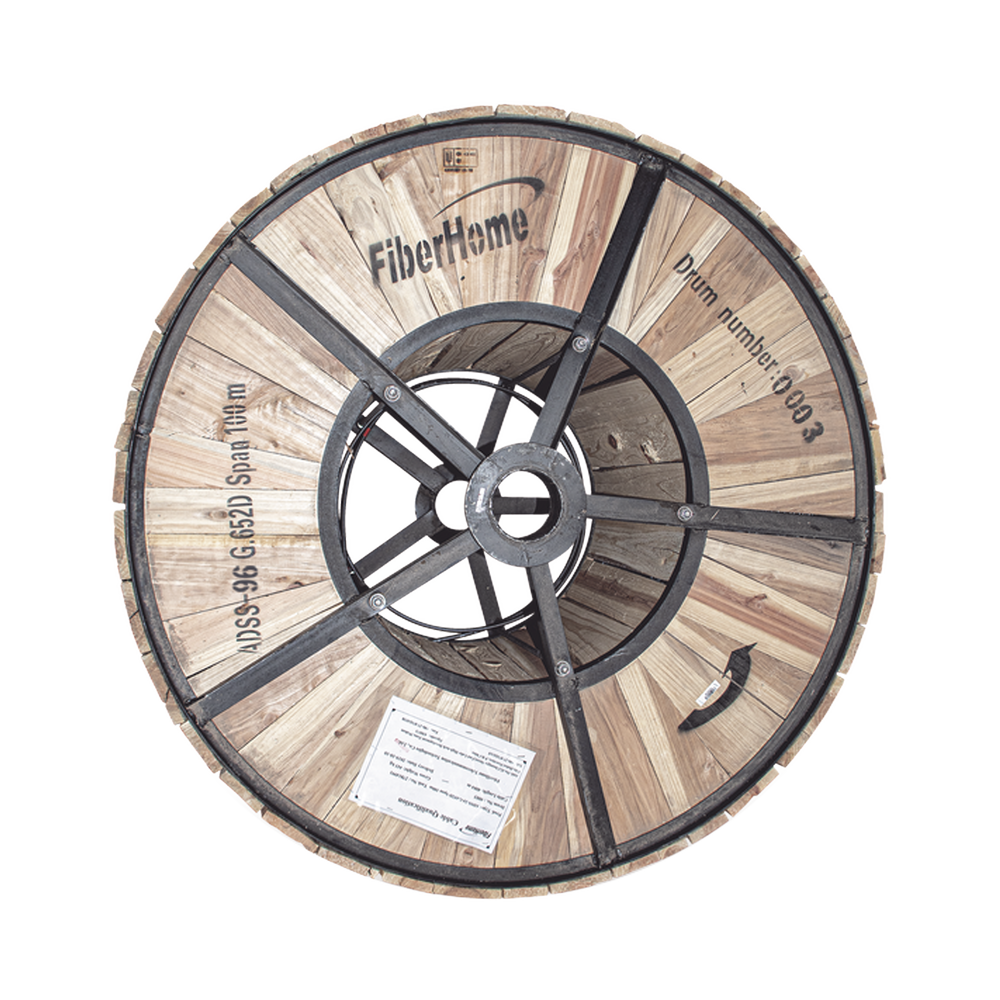

4 km reel of Aerial Optical Fiber (ADSS) G.652D, 96-Thread Singlemode, Outdoor, Span 100, Loose Tube

4 km reel of Aerial Optical Fiber (ADSS) G.652D, 96-Thread Singlemode, Outdoor, Span 100, Loose Tube

ADSS (All Dielectric Self-Supported) fiber optic cable is designed for aerial installations between poles. ADSS cables withstand the necessary tensile strength thanks to their aramid strands; they contain no metallic elements.

Technical Specifications:

• Fiber Optic ADSS G.652D Singlemode Loose Tube
• Outer Cover: HDPE (High Density Polyethylene)
• Maximum tension: 2100N
• Anti-tracking (up to 110kV)
• Operating temperature: -20ºC ～ +65ºC
• Span (Distance between Poles): 100 meters
• UV and moisture protection
• Nominal diameter (D): 11.6 ± 0.5 mm
• Minimum bending radius: Installation 25D, Operation 12.5D
• Crush resistance: 1000N/10cm
• Rated weight (kg/km): 101 ± 15 kg/km
• 96 threads
• Black Lining
• Price per 4 km reel
• Reel dimensions (mm): 1450 x 1450 x 750
• Gross weight of 4km reel: 535kg

Note: Free shipping (major cities only; does not apply to extended areas). For orders of 10 or more reels, a forklift or ramp is required for loading/unloading and/or moving.

Outer Cover: HDPE (High Density Polyethylene), Operating Temperature: -20ºC to +65ºC, Span (Distance between Poles): 100 meters, Maximum Tension: 2100N, Anti-tracking (up to 110kV)
