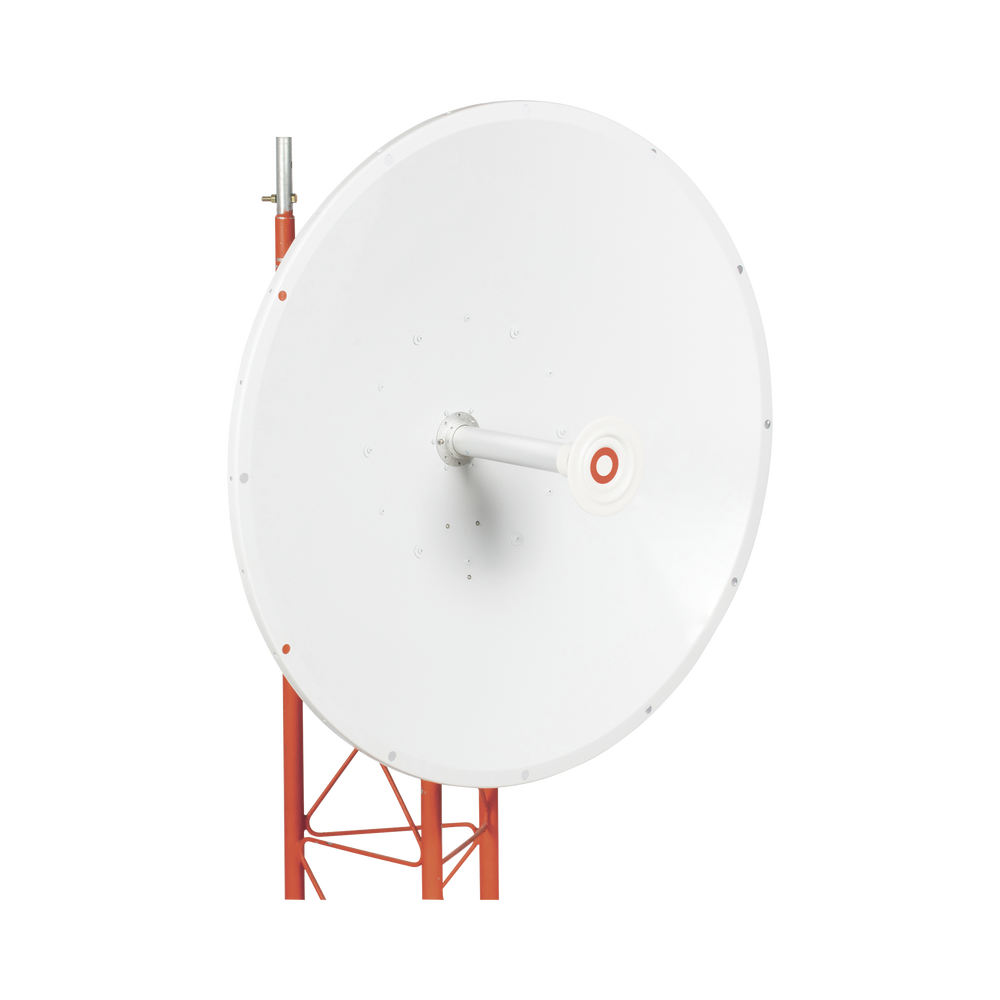

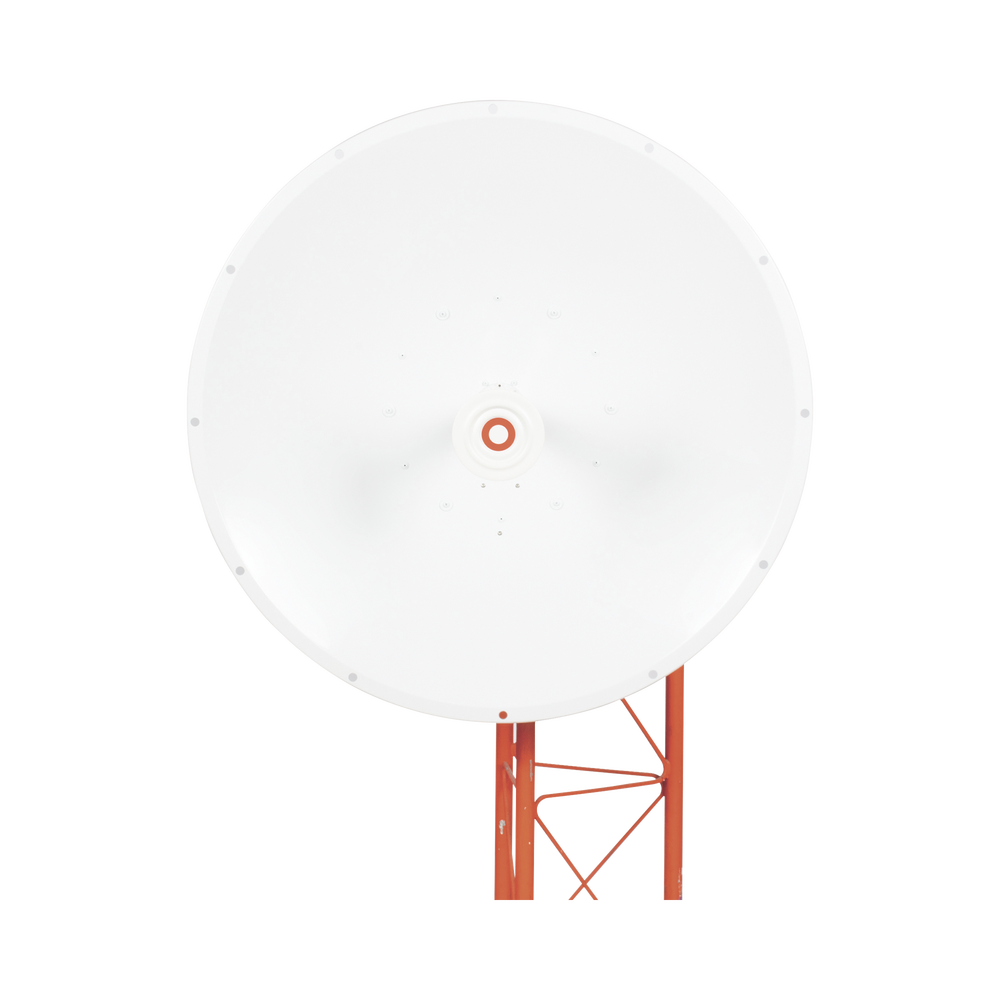

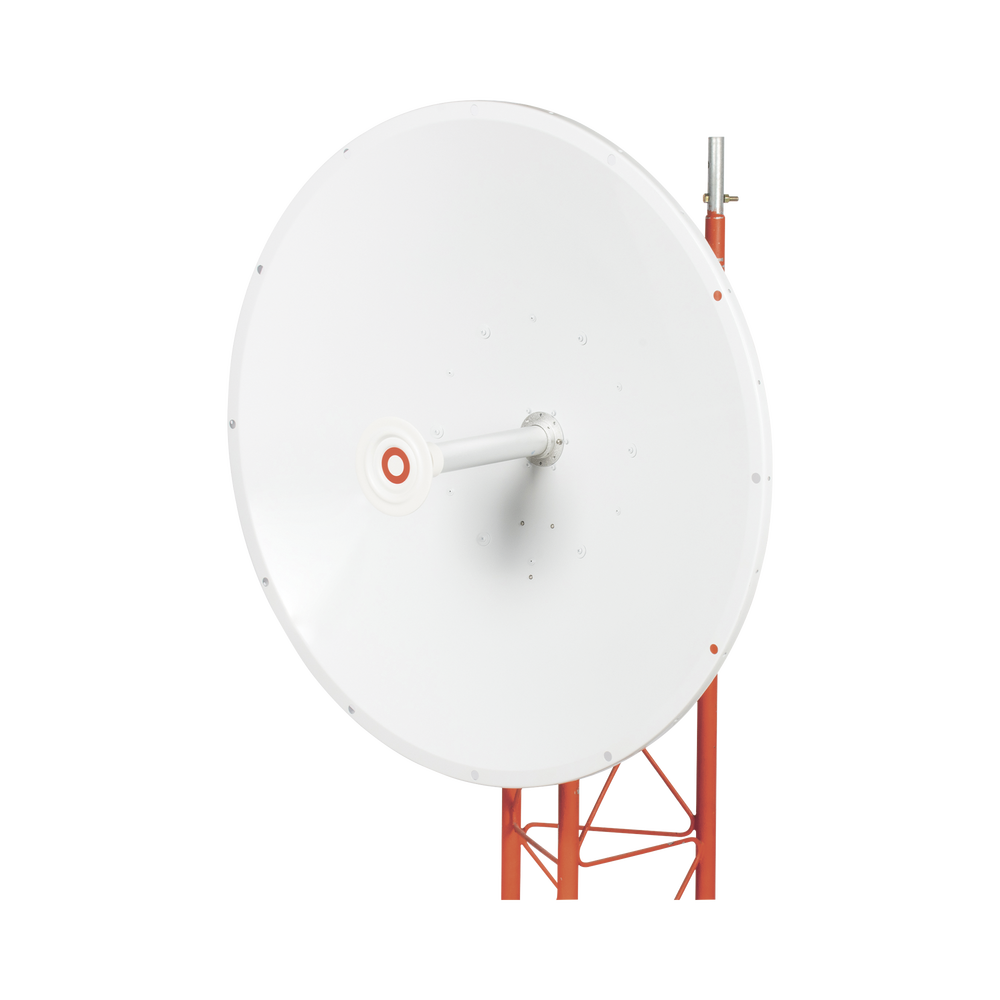

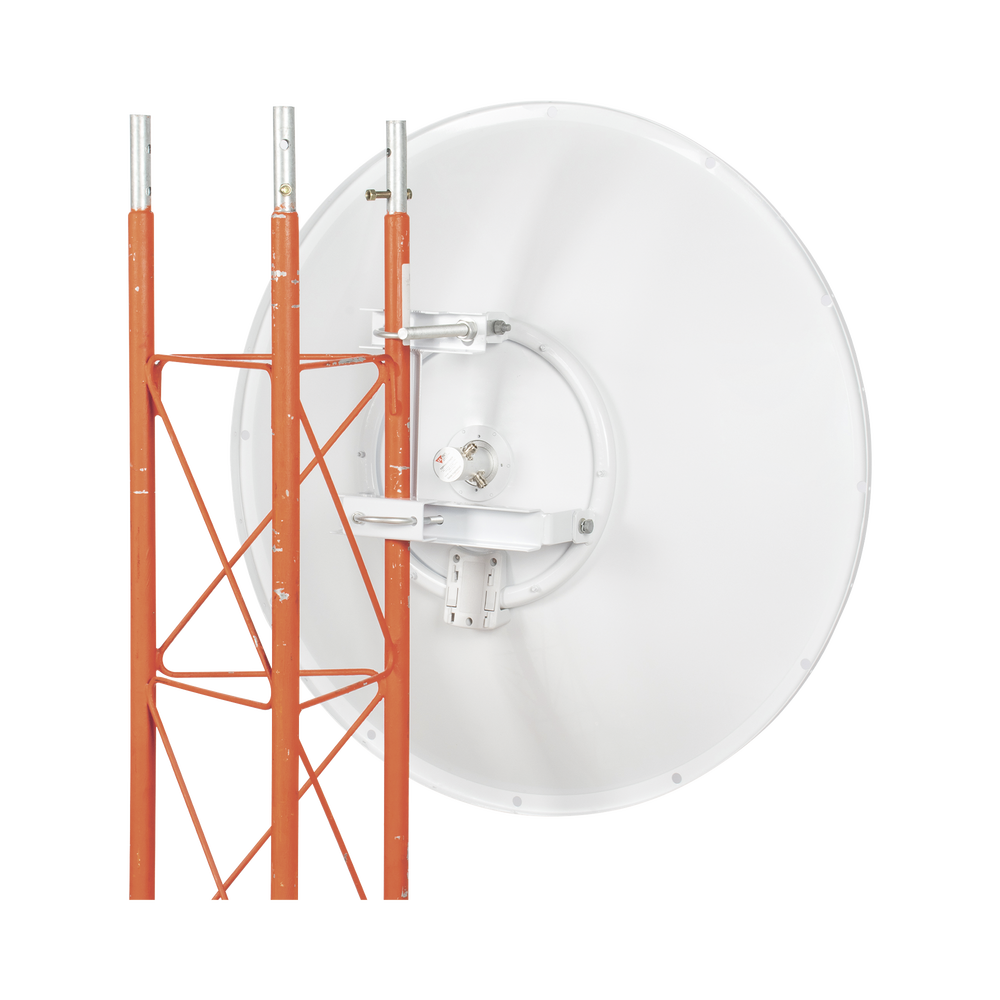

3ft Directional Antenna, 4.9-6.5 GHz, 34 dBi Gain, SMA Connectors, Dual Polarization, Includes Tower or Mast Mount

Frequency range 4.9 to 6.5 GHz.

Gain: 34 dBi.

Polarization: double (V/H).

Vertical beam spread: 3.5°

Horizontal beam spread: 3.5°

Maximum power per port: 50 W

Impedance: 50 Ω

F/B Radio > 42 dB

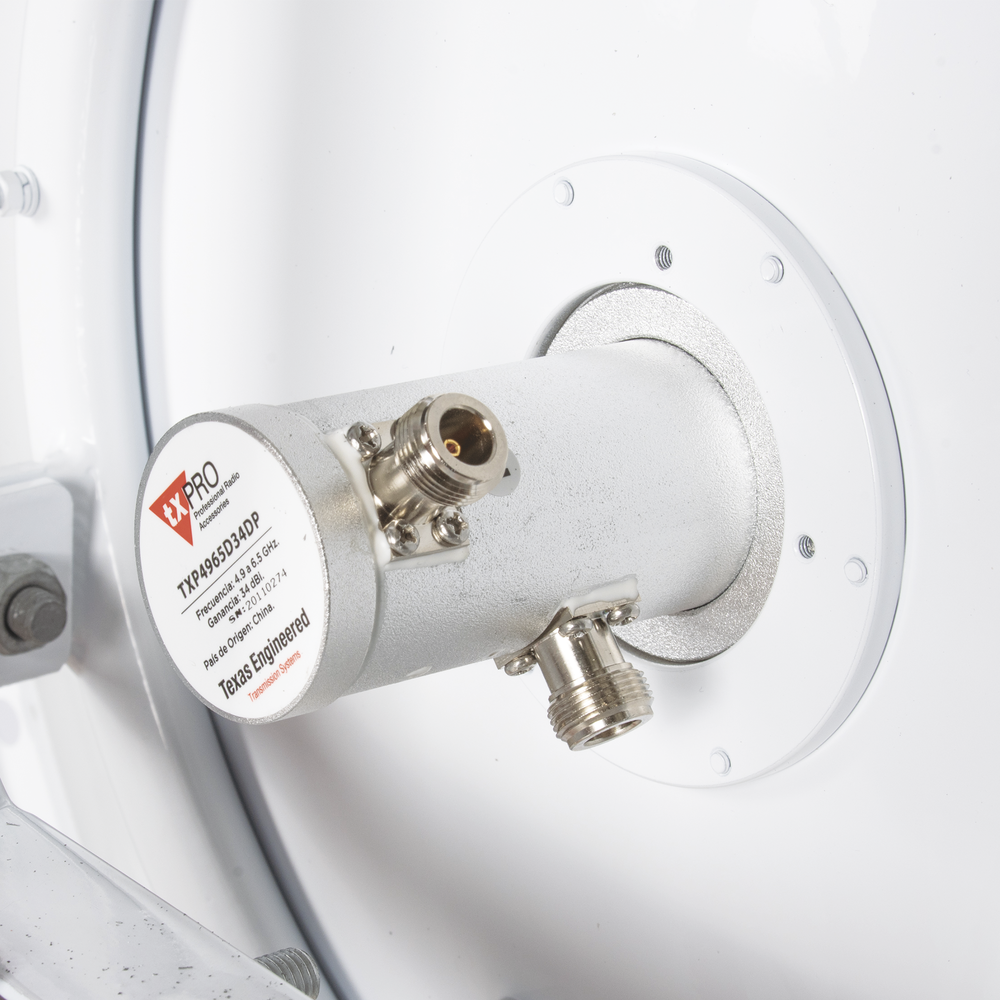

2 Connectors: SMA.

Temperature range: -40°C to +70°C (-32°F to +158°F)

Weight 10 kg.

Note: does not include jumpers

Efficient connectivity with any type of radio

Range up to 70 km and wind survival of 120 km

---

Highly directional, with an opening angle of 3.5º and an F/B >42 dB, capable of suppressing side lobes, improving the transfer warmth

---



No rear lobes, Compatibility with Ubiquiti, Cambium, Mimosa, etc. brands, Extended frequency, Highly directional, PTP distance up to 70 km
