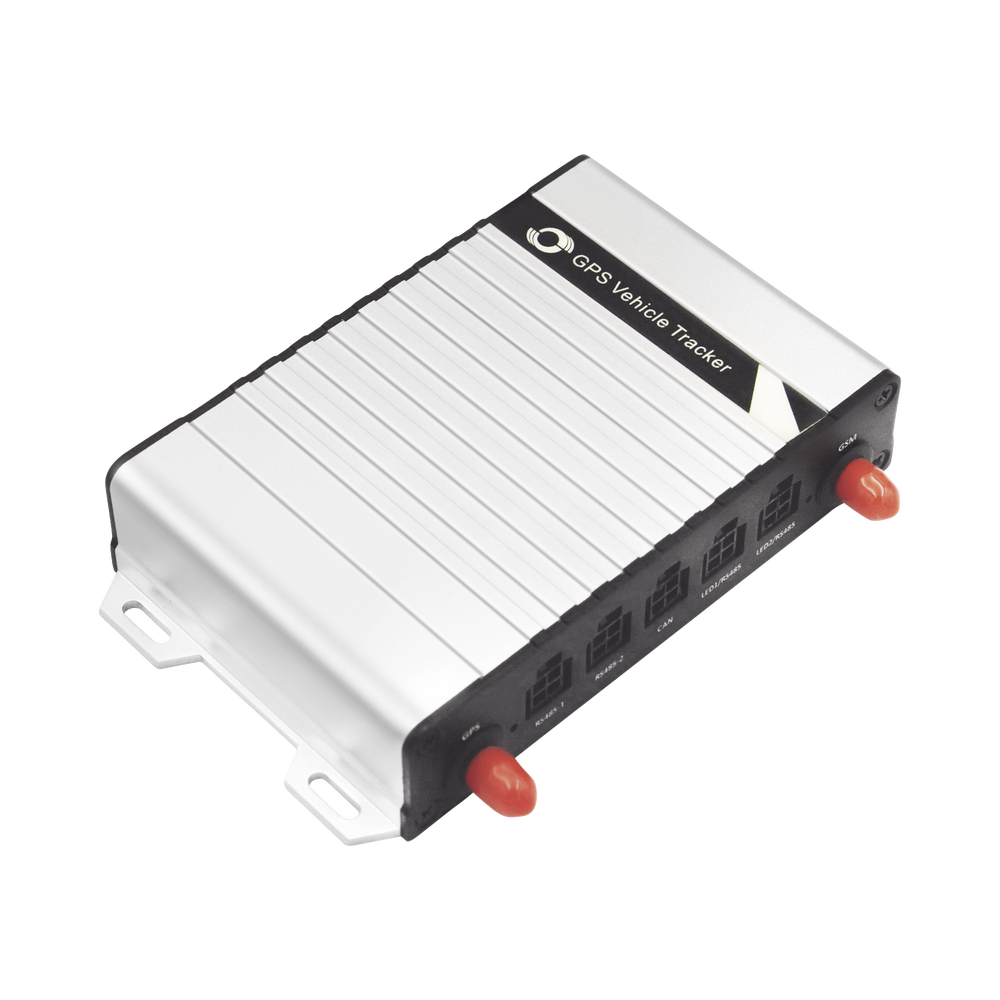

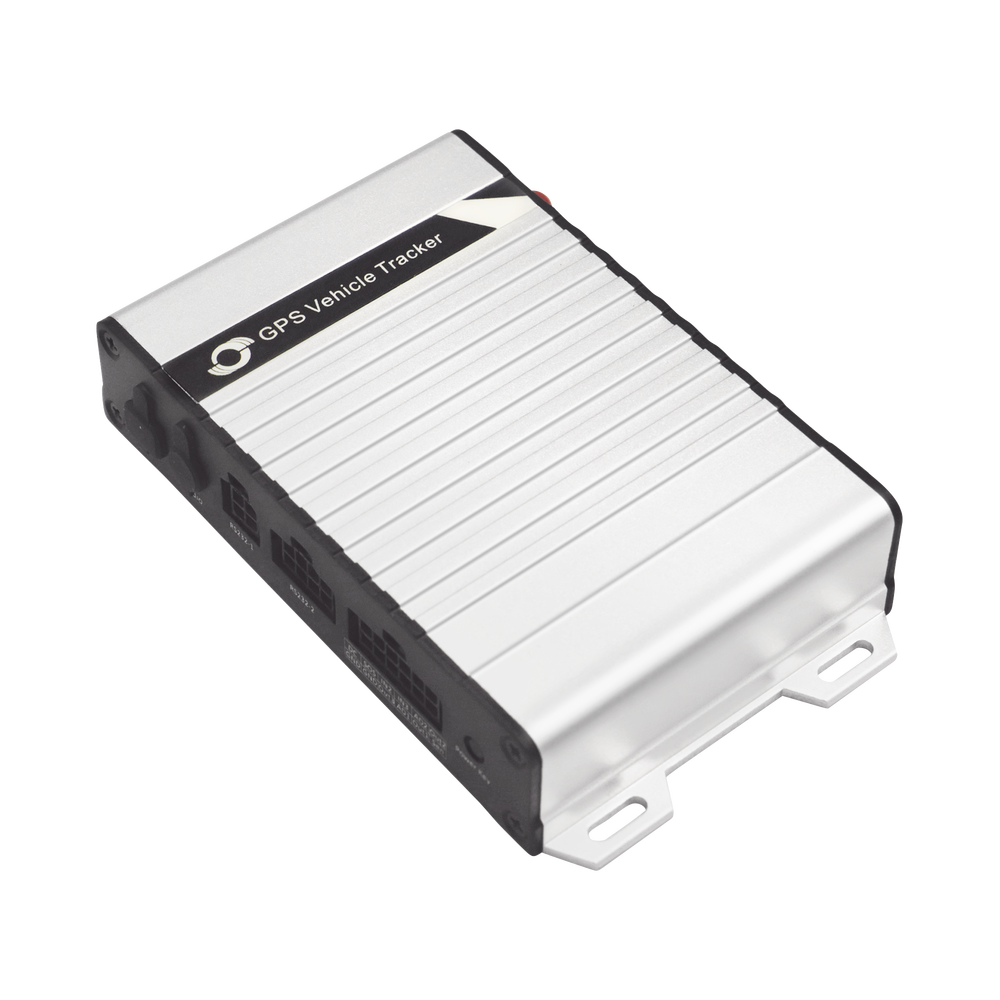

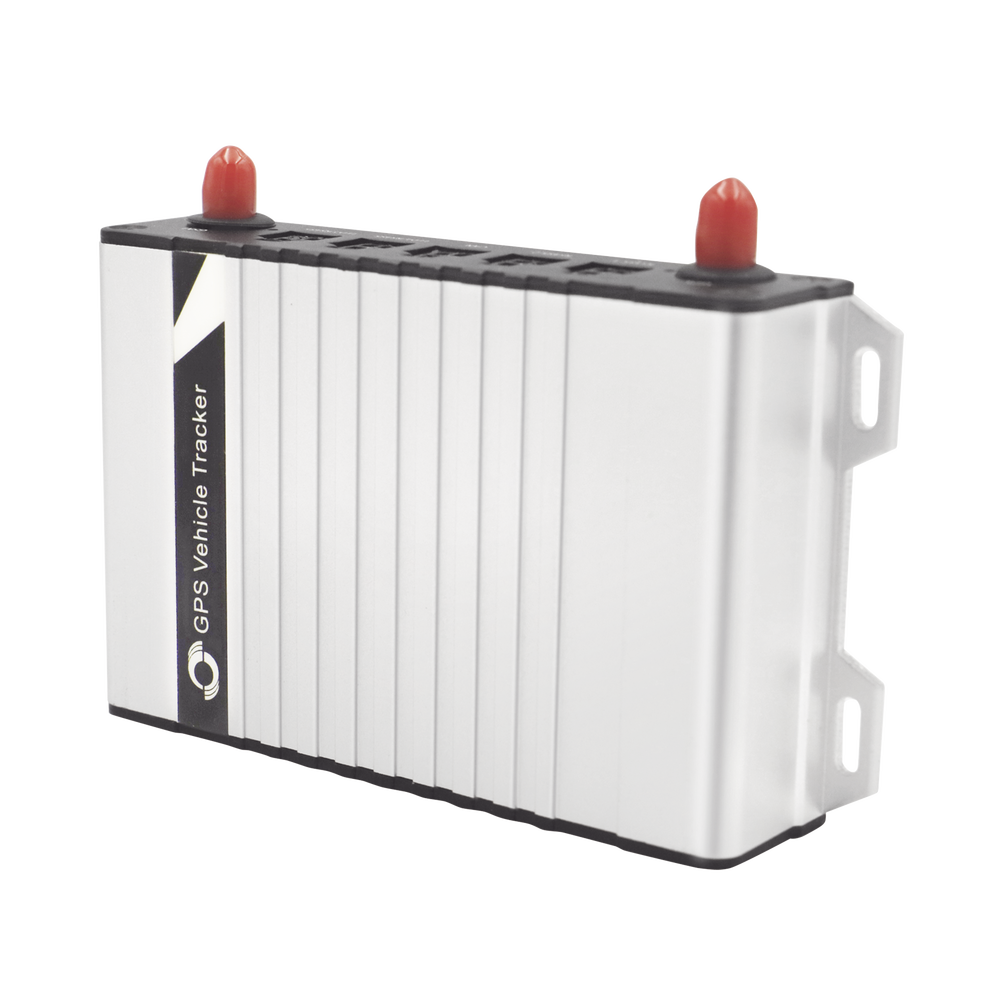

Advanced 4G GPS Tracker with Can Bus Port Connection

Advanced 4G GPS Tracker with Can Bus Port Connection

New Generation of 4G Trackers from Meitrack.

Meitrack's new super-versatile 4G tracker features multiple RS232 and RS485 interfaces, compatible with multiple accessories such as RFID readers, cameras, temperature and fuel sensors. It also features a CAN interface for reading CAN Bus data and simultaneously analyzes driver behavior. It also features two-way audio capability.
The equipment has fully configurable inputs and outputs, you can have up to 9 digital inputs, 8 outputs or 4 analog inputs.

It is a (4G) tracker that is super sensitive to the GPS signal, which gives it a minimum margin of error in positioning. It also has the ability to be tracked by LBS, which is a great support if the vehicle is in a parking lot or place where the GPS signal does not easily reach.

*Programming cable not included, compatible with PLUSB.

***Requires micro SIM size, compatible with MICSIM25GPS or MICROSIM30M2M***

**Battery backup time varies depending on programming.

• Two-way audio option
• Fully configurable digital inputs and outputs.
• 1 1Wire Port
• 1 MicroUSB port for programming
• Jammer Detection
• Internal geofences
• Accelerometer
• Track vehicle location, history, mileage, and speed
• Remote ignition lock
• Supports additional sensors

• Compatible with EpcomGPS.
• Fuel sensors.
• Temperature sensors
• Driver's registration
• Report by time, distance and turn.
• Compatible with RFID reader
• Configuration by SMS.
• Panic button included.
• Customizable events
• Dimensions 106 mm x 24.5 mm x 70 mm
• 2-year warranty

Temperature

• Operation: -20 to +55 °C
• Relative humidity 5% to 95% non-condensing

Electrical specifications

• Supply voltage 11 - 36 V DC 1.5 A
• Internal battery – 400 mAh
