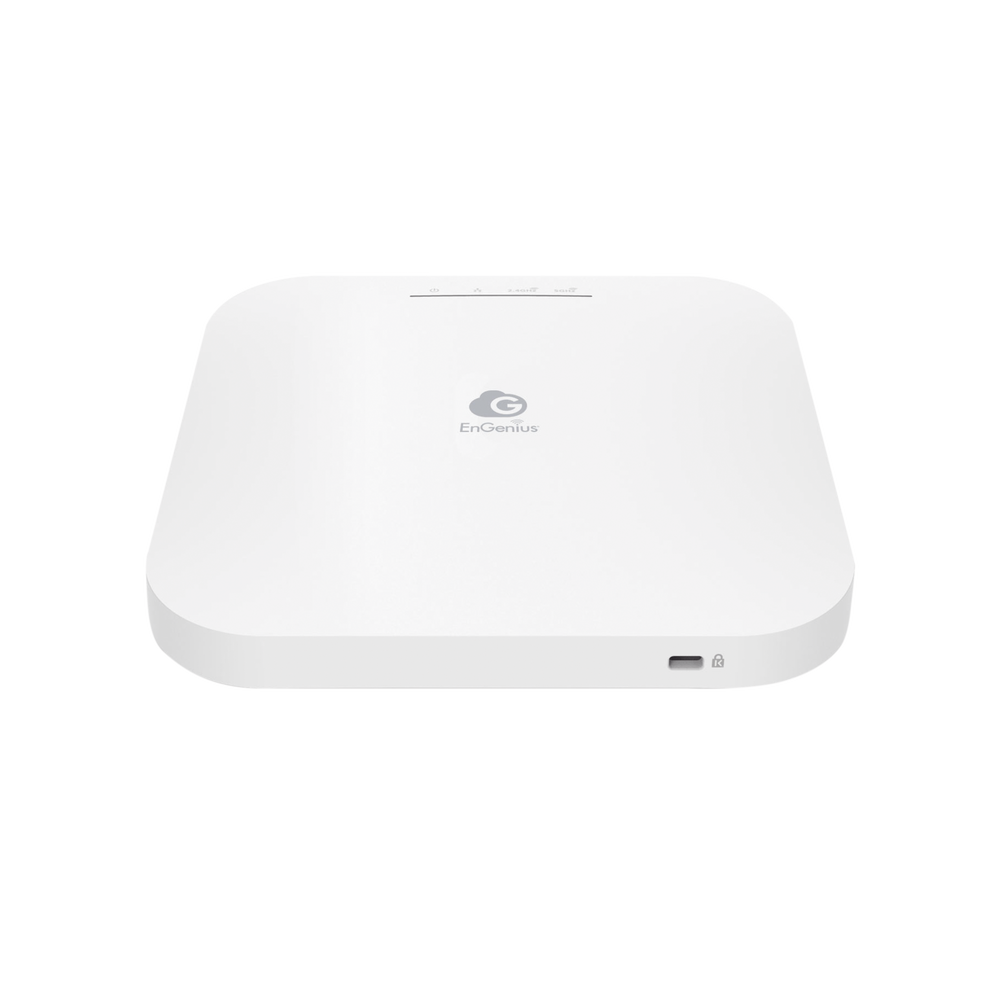

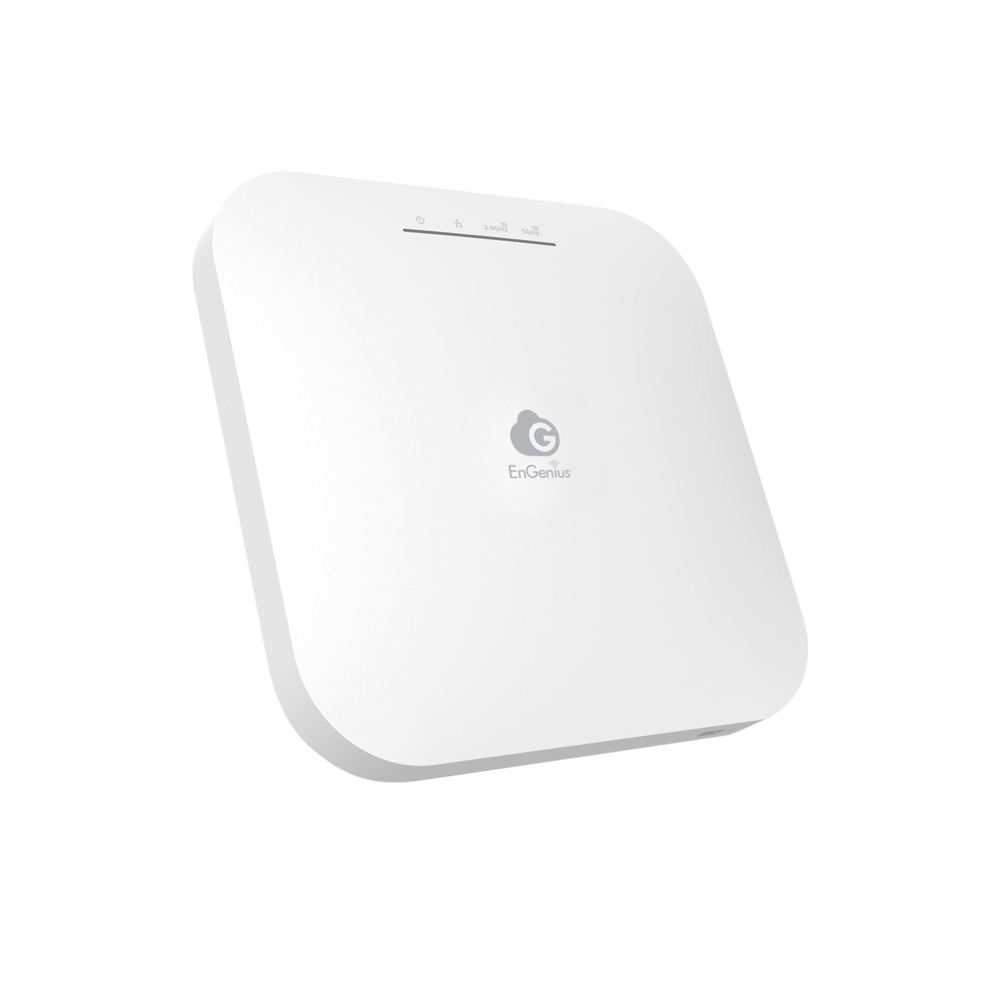

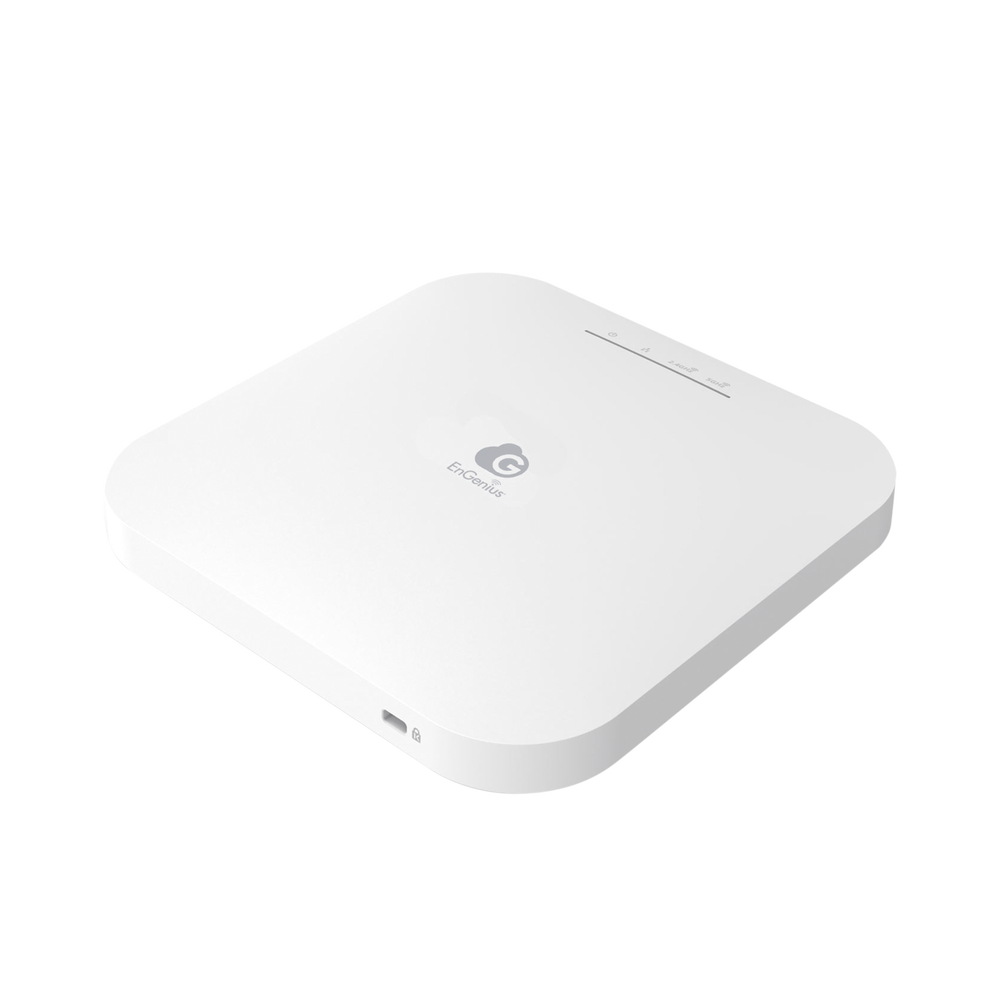

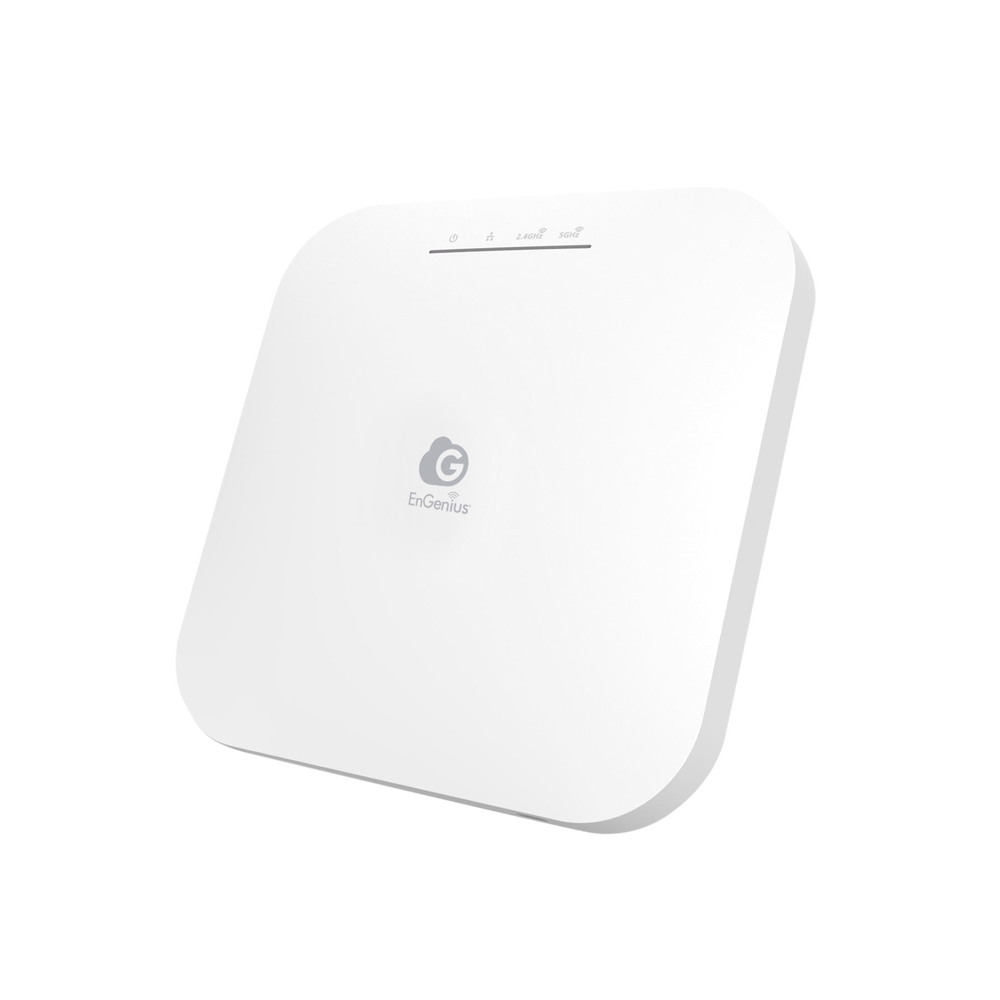

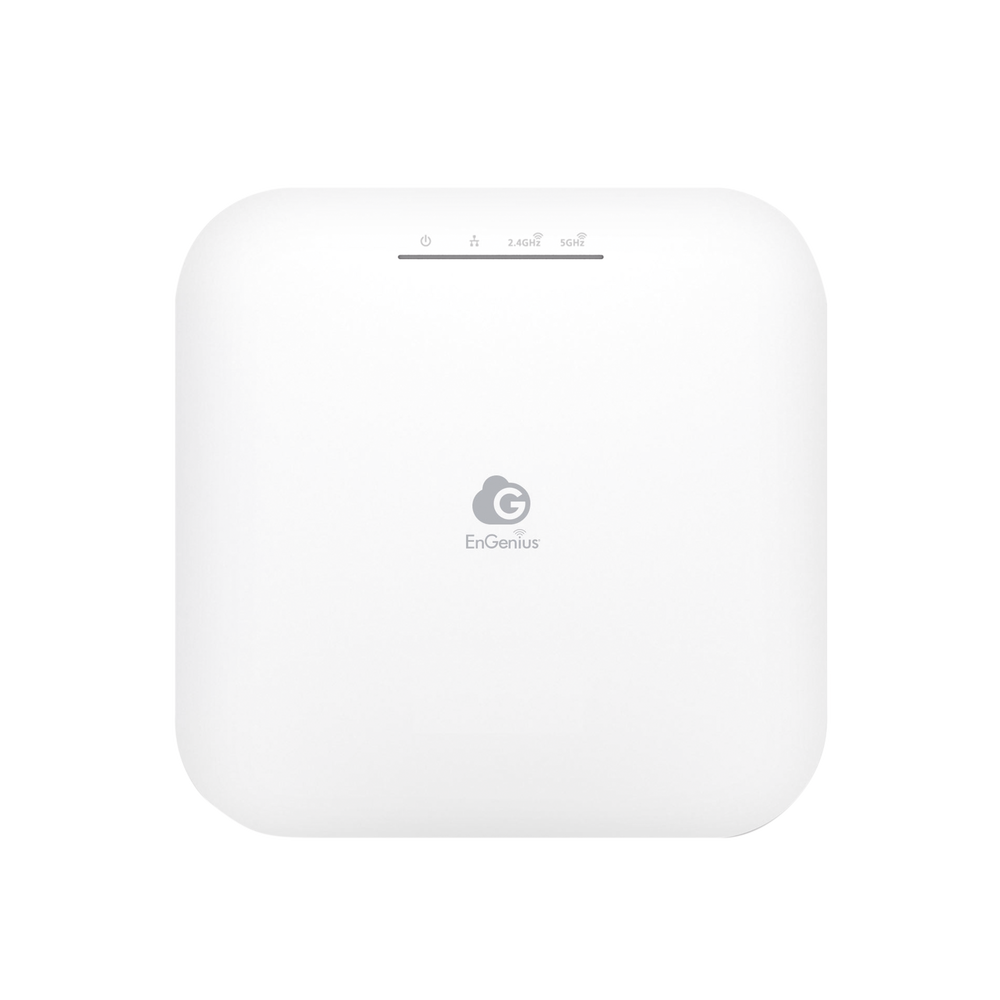

4x4 Indoor Wi-Fi 6 Access Point, Cloud-Managed, for High User Capacity, Up to 2,400 Mbps (5GHz) and 1,148 Mbps (2.4GHz), Mesh Mode, Supports 802.3af/at PoE
- Marca
- ENGENIUS
- Referencia / SKU
-
ECW230
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones
4x4 Indoor Wi-Fi 6 Access Point, Cloud-Managed, for High User Capacity, Up to 2,400 Mbps (5GHz) and 1,148 Mbps (2.4GHz), Mesh Mode, Supports 802.3af/at PoE
Start Demo Cloud Cloud Registration
|
|
|||
|
Easily manage multiple sites
No expensive site visits or on-site assistance required |
Precise problem solving with graphical tools
Provides real-time and historical visibility into network devices. |
Remotely manage device firmware
Coordinate repetitive updates with scheduled maintenance |
Simultaneous updates for distributed devices
Save time and avoid |
|
|
|
Main Features
- Indoor Access Point
- Ceiling Mount
- Supports simultaneous dual band
- Up to 2,400 Mbps at 5 GHz.
- Up to 1,148 Mbps at 2.4 GHz.
- Beamforming Technology
- Supports 8 SSIDs on both bands
- MAC address filtering, up to 32 MACs per SSID
- Backwards compatible with 802.11b/g/n/ac
- Roaming (802.11k and 802.11r)
- Captive portal by SSID
- Hotspot (voucher)
- Remote administration in the cloud
Integrated Antenna
- 2 2.4 GHz omnidirectional antennas of 3 dBi
- 2 5 GHz omnidirectional antennas of 3 dBi
Physical interface
- 1 Gigabit Ethernet Port 10/100/1000/2500 BASE-T,
- 1 Jack input for 12 VDC adapter
- 1 Reset Button
Power supply (NOT INCLUDED)
- Power over Ethernet: 802.3at PoE input.
- 12VDC /2 A power supply
Maximum consumption
- 19.5W
Modes of operation
- AP, Mesh
Transmission power
- Up to 23 dBm at 2.4 GHz
- Up to 23 dBm at 5 GHz
Dimensions
- Device weight: (597 g)
- Length: 6.30" (210 mm)
- Width: 6.30" (210 mm)
- Height: 1.31" (33.2 mm)
Package contents
- ECW230 Indoor Access Point
- Roof Mount Base (9/16” Trail)
- Ceiling Mount Base (15/16” Trail)
- Screw kits for ceiling and wall mounting
- Quick Installation Guide
Warranty
- 1 year



Deploy and monitor your networks with the EnGenius Cloud app
Easy device deployment, monitoring, visualization, and alerts of abnormal network activity available within an intuitive mobile app.
- Cloud administration ¨No Cost¨, No license or annual fees, Easy to configure, Compatible with Wi-Fi 5, Simultaneous dual band
