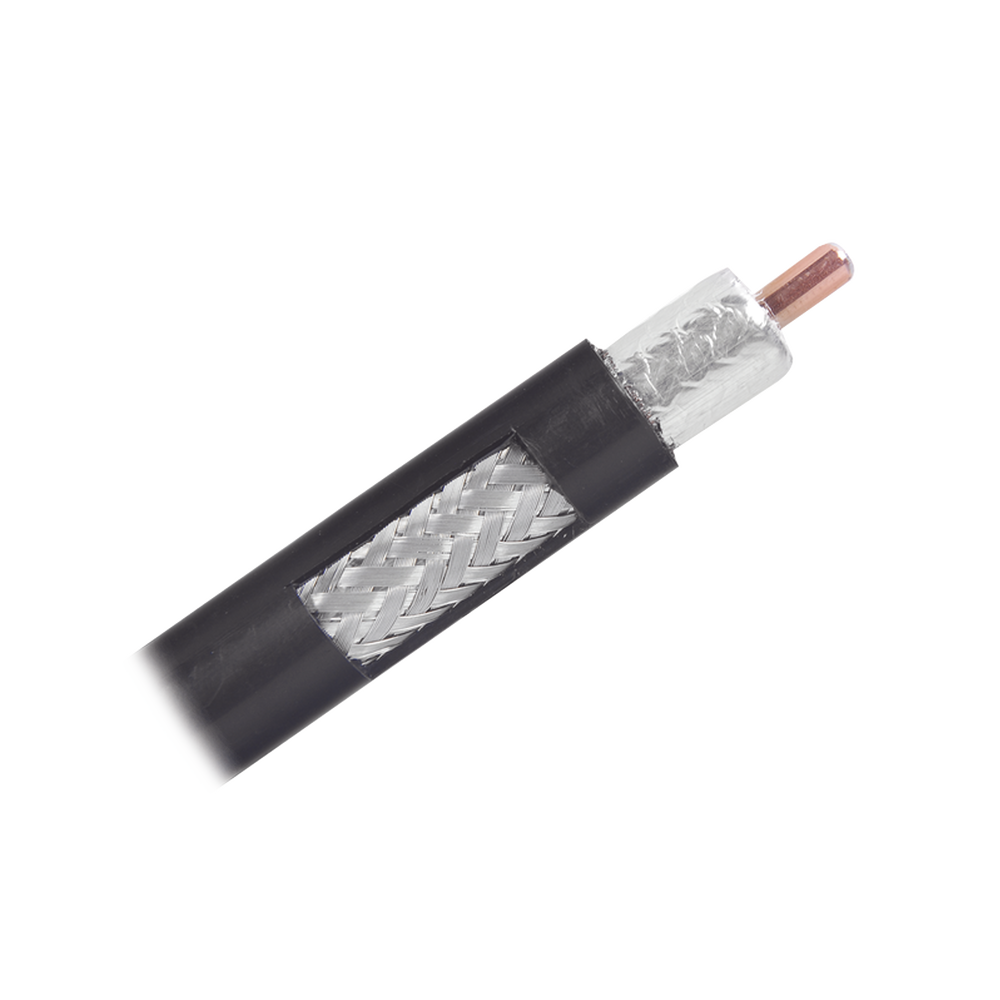

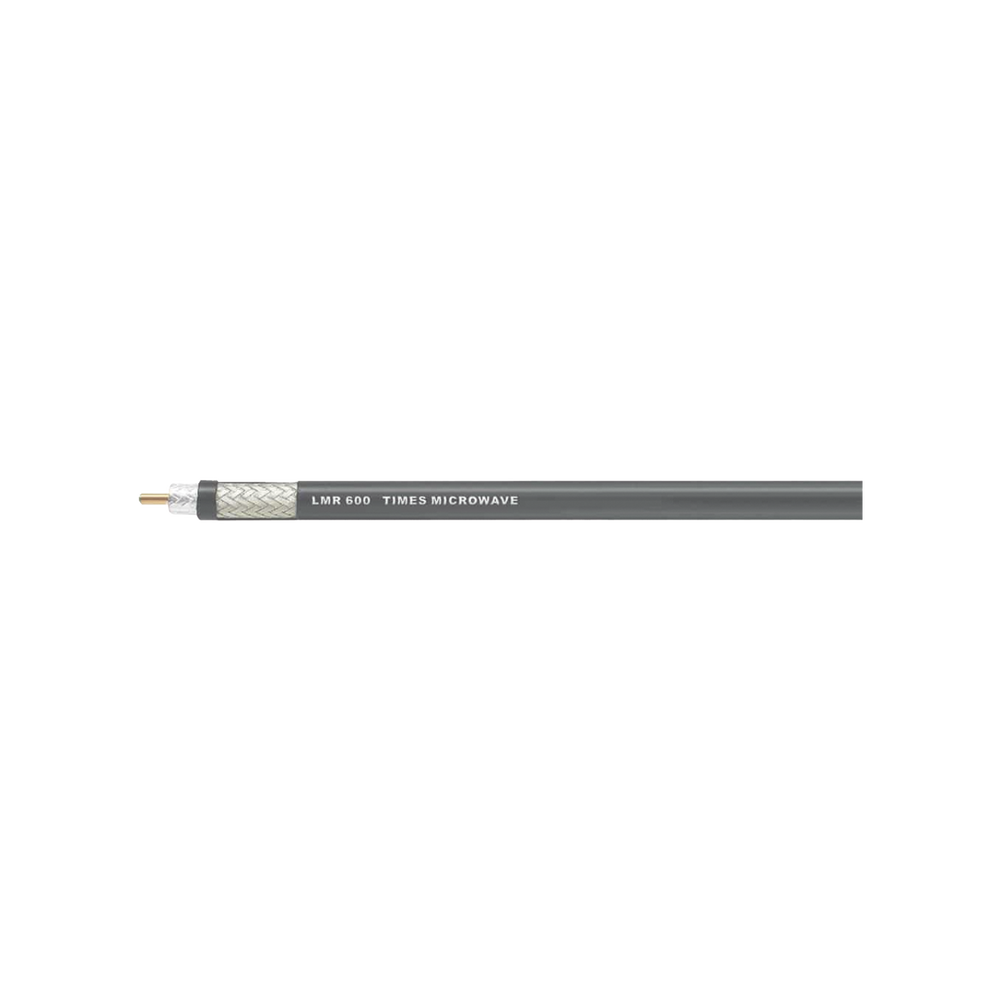

Meter of 1/2" Fire Retardant 50 Ohm Coaxial Cable

Meter of 1/2" Fire Retardant 50 Ohm Coaxial Cable

LMR-FR is a non-toxic, fire-retardant cable designed for indoor installation. (Except for installation in vents and air handling plenums.)

UL/NEC and CSA certified, FAA FAR 25 and MSHA-P for mining.

Advantages of the LMR-600-FR cable

• Performance similar to that offered by corrugated copper cables.
• Superior flexibility.
• Easier and faster installation.
• Better shielding and lower loss compared to other RG type cables.

Ideal for:

• Indoor installation.
• Installation of base stations on towers or masts.
• Jumpers for communication systems.
• Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, Etc.

Specs

• Impedance: 50 Ohm.
• Cable Outer Diameter: 14.99 mm
• Speed ​​Factor: 87%.
• Inner Conductor Diameter: 4.47 mm.(AWG 5.5).
• Center Conductor Material: Solid copper clad aluminum.
• Attenuation at 30 mts. at 450 MHz:  1.7 dB.
• Attenuation at 30 mts. at 800 MHz: 2.3 dB.
• Shielding: Aluminum Mesh + 100% Aluminum Laminated Tape
• Shielding Effectiveness: greater than 90 dB
• Dielectric Insulation: High Density Foamed Polyethylene.
• Minimum Bending Radius: 152.4 mm.
• Weight per meter: 0.2 Kg.
• Maximum Frequency: 6 GHz.
• Nominal Power : 1.3 kW at 450 MHz.
• Operating Temperature: -40 ºC to +85 ºC.

20 years of overseas service, Solid Copper-Clad Aluminum Center Conductor
