Kilometer of Aerial Optical Fiber Figure 8 G.652D, 72-Wire Singlemode, Outdoor, Span 100, Loose Tube

Kilometer of Aerial Optical Fiber Figure 8 G.652D, 72-Wire Singlemode, Outdoor, Span 100, Loose Tube

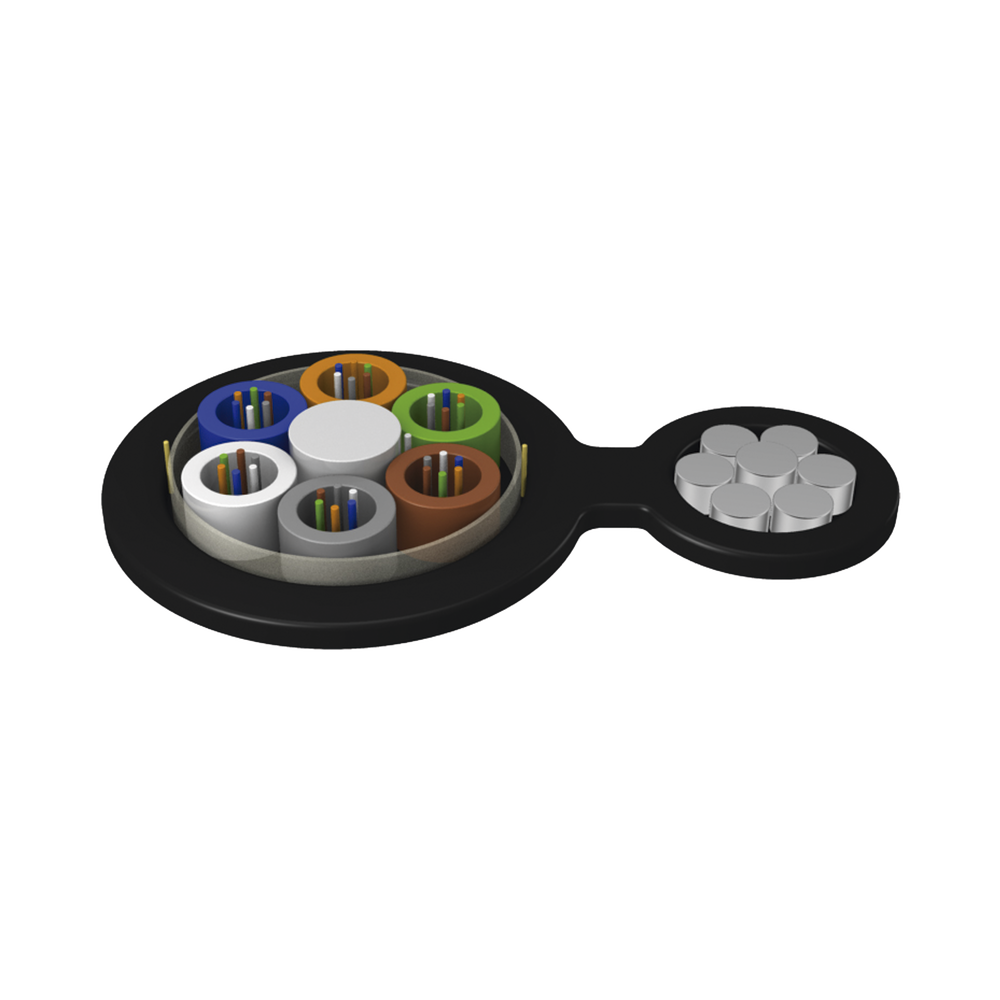

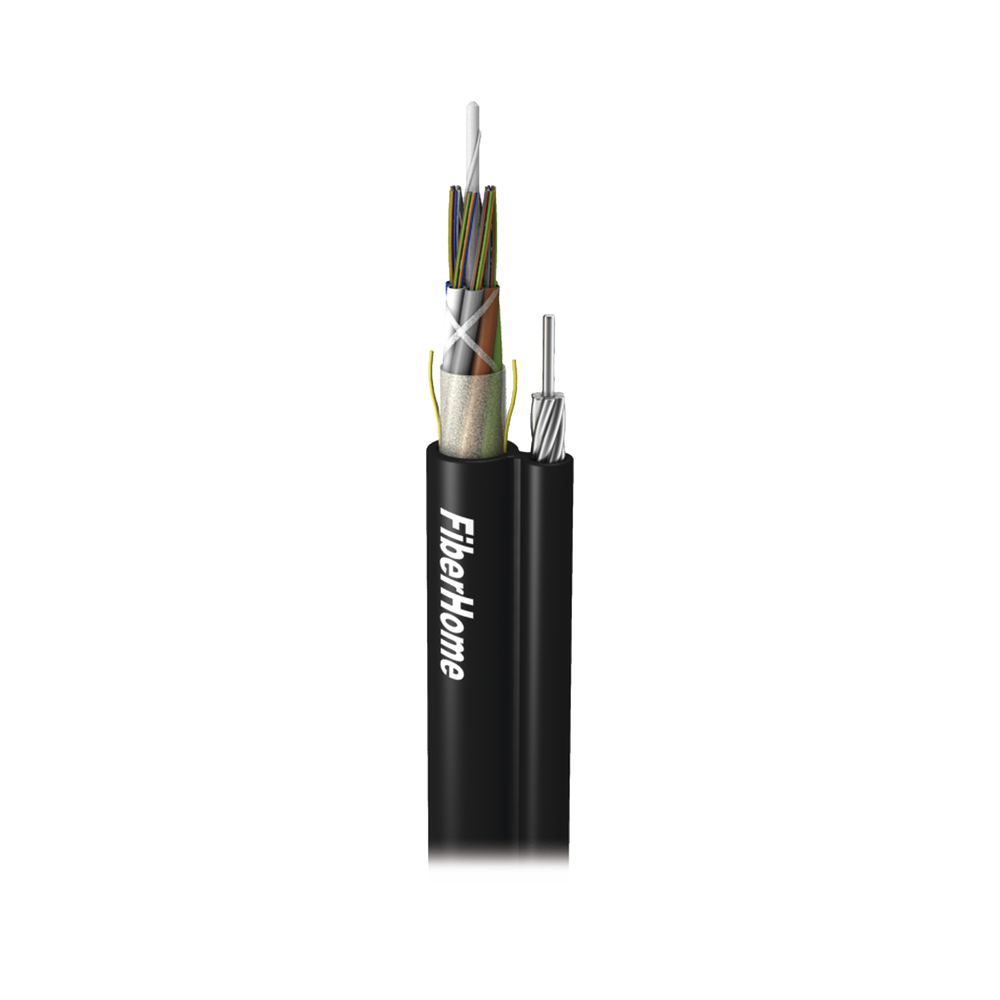

The Figure 8 fiber optic cable has a messenger composed of 7 steel strands of 1.2 mm diameter each to provide sufficient tensile strength when installed overhead.

Technical Specifications:

• Optical Fiber Figure 8 G.652D Singlemode Loose Tube
• Outer Cover: HDPE (High Density Polyethylene)
• Maximum tension: 8000 N
• Galvanized Steel Messenger composed of 7 1.2 mm wires
• Operating temperature: -25ºC ～ +70ºC
• Span (Distance between Poles): 100 meters
• Protection against humidity
• Cable Width (D): 10.1 ± 0.5 mm (Optical Tube)
• Cable height: 17.2 ± 0.5 mm (Optical Tube + Messenger)
• Steel messenger diameter: 3.6 mm
• Messenger + lining diameter: 5.6 ± 0.5 mm
• Minimum bending radius: Installation 25D, Operation 12.5D
• Crush resistance: 1000N/10cm
• Rated weight (kg/km): 160 ± 15 kg/km
• 72 threads
• Black Lining

Outer Cover: HDPE (High Density Polyethylene), Operating Temperature: -25ºC to +70ºC, Span (Distance between Poles): 100 meters, Maximum Tension: 8000 N, Galvanized Steel Messenger composed of 7 1.2 mm wires
