SUPREMA
Outdoor Card Reader, Multi-technology, NFC and Bluetooth
Outdoor Card Reader, Multi-technology, NFC and Bluetooth
Couldn't load pickup availability
Outdoor Card Reader, Multi-technology, NFC and Bluetooth

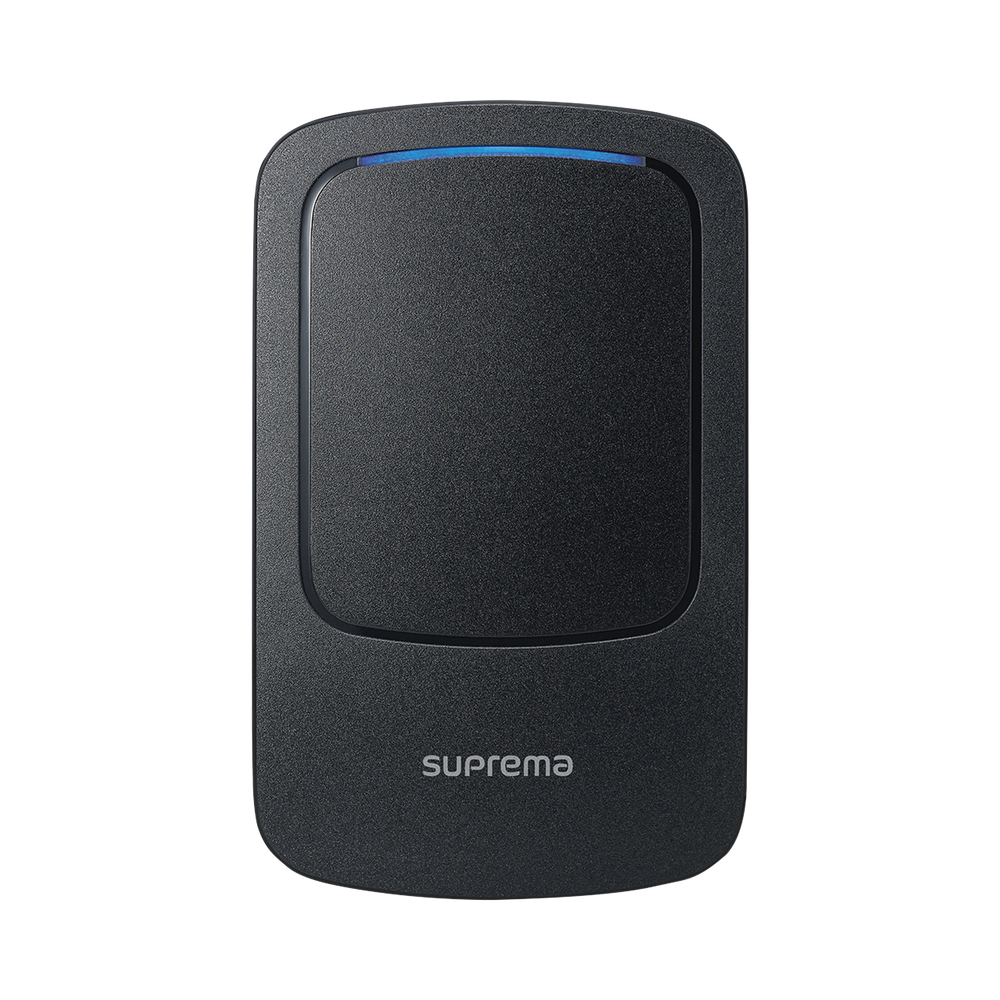

XPass D2
Slave Reader compatible with XPASS S2 series
The new XPass D2 series compact RFID reader optimizes the processes of the core station's centralized access control system. It utilizes multi-format technology, surface-mount installation, and supports a wide range of card readings for a variety of technologies (125kHz/13.56MHz), including NFC and BLE. Its rugged construction meets IP65/IP67 standards, resisting dust and moisture, and it is built with IK08 impact protection, making it comfortable and safe for all installation environments.
>
| RFID | Supports RF |
| Supports Mobile Card | |
| Protection | Degree of Protection |
| Impact Grade | |
| HW | CPU |
| Memory | |
| LED | |
| Sound | |
| Weight | |
| Dimension (WxHxD) | |
| RS-485 | |
| Wiegand | |
| Voltage | |
| XPD2-GDB |
| 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa |
| NFC, BLE |
| IP65, IP67 |
| IK08 |
| 80 MHz |
| 256 KB Flash + 64 KB RAM |
| Multiple colors |
| Multi-tone |
| Device: 117g, Bracket: 30g |
| 80 x 130 x 25 mm |
| 1 Slave output |
| 1 exit |
| DC 12 V |
Note 1.- Some XPD2MDB readers are version 01, so it is important to use the APM module that comes with the device to have the Bluetooth function and be able to use Suprema mobile credentials.
Note 2-. The XPD2MDB version 02 already comes with the Bluetooth module incorporated, so they do not need the APM module.
Share
Out of stock
MODELO: XPD2GDB
