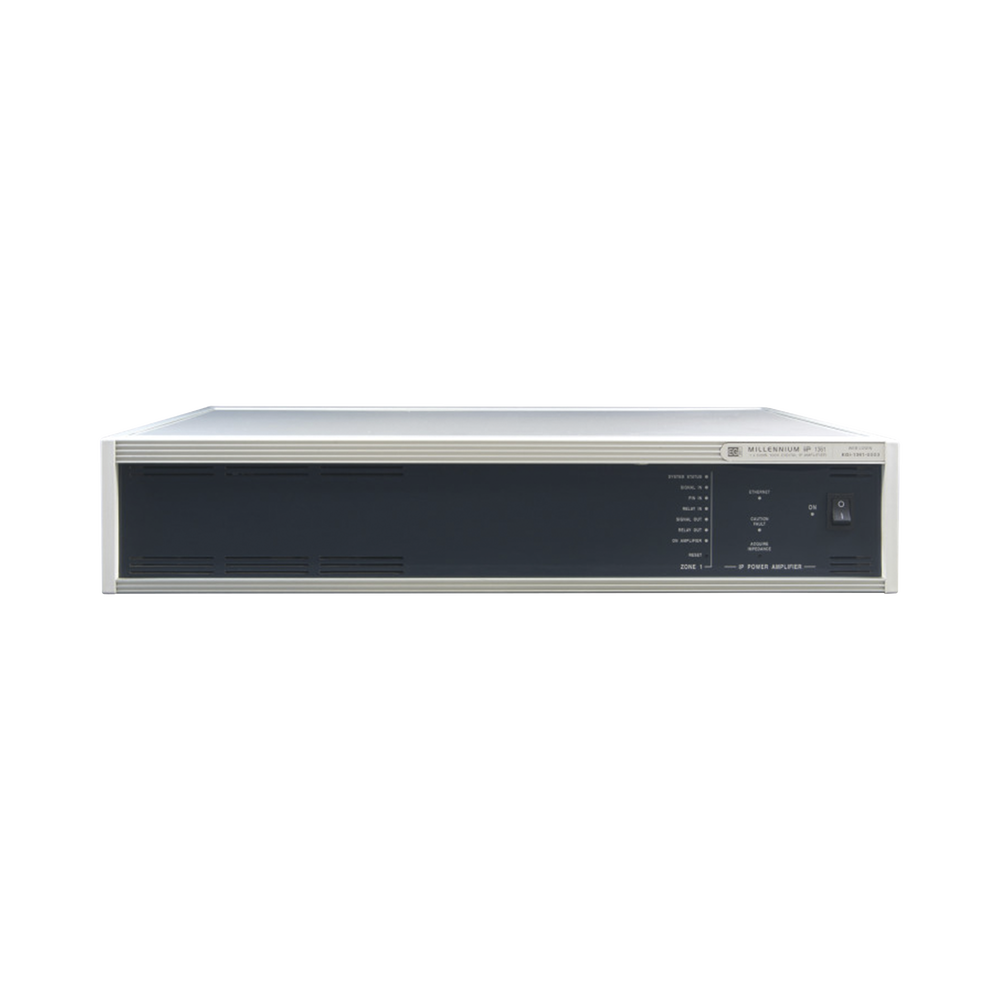

(1361) 1x500W 100V MILLENNIUM IP DIGITAL POWER STATION WITH IP LAN CONNECTIVITY, SUPERVISION, HQ SOUND QUALITY FOR 1 ZONE, IN 2U RACK FORMAT

• IP Audio Power Stage 1 High Quality Zone (HQ).
• 100V Supervised In-Line Speaker Output.
• Audio input:
  • Audio streaming as an IP client.
  • Balanced LINE IN local audio with automatic signal detection, VOX control.
  • EGI PIN audio input.
• Operating modes:
  • Local analog inputs LINE IN and/or PIN.
  • Internal audio player (WAV, MP3, internet radio, streaming...)
  • Airplay/DLNA
  • VoIP, Unicast or Multicast client.
  • RTP protocol and SIP telephony.
  • Modbus support.
  • Event programmer

• Internal memory for storing audio with capacity for 8-6 GB
• Upgradable firmware.
• Configuration via web interface accessible from PC, Smartphone or Tablet.
• A single RJ45 Ethernet connection for all zones.
• Programmable event-based voltage-free input and output relay.
• Two types of integrated monitoring and alerting:
  • Speaker line short circuit and/or equipment status: temperature, overload.
  • All failures generate an alarm signal that is integrated into the “Millennium IP” control software as another event.
• Includes rack accessories.
• Finish: aluminum, 2UA rack.

General Characteristics

• Number of zones: 1
• Power per zone: 1x500W
• Maximum consumption: 600W
• Maximum current consumption:
  • 4.2 @ 230V~
  • 8.4 @ 115 V~
• Power supply: 115/230V 50/60Hz
• PIN input impedance: 60KΩ.
• PIN input sensitivity: 3 V~ + 7 Vdc

• LINE IN XLR input impedance: >10 KΩ
• AUX-VOX Input Sensitivity Control: 0.3 V - 1.2 V
• Relay IN: Activated when IN contact is closed with GND
• Relay OUT usage limit: 3A - 24 Vdc max, NO or NC.
• Frequency response (@-3dB): 45 Hz - 22 KHz
• Network speed: 10/100 Mb
• Audio sampling rate: 44.1 KHz 16-bit
• Dimensions: 442 x 87 x 350 mm
• Weight: 4.5Kg
