MIKROTIK

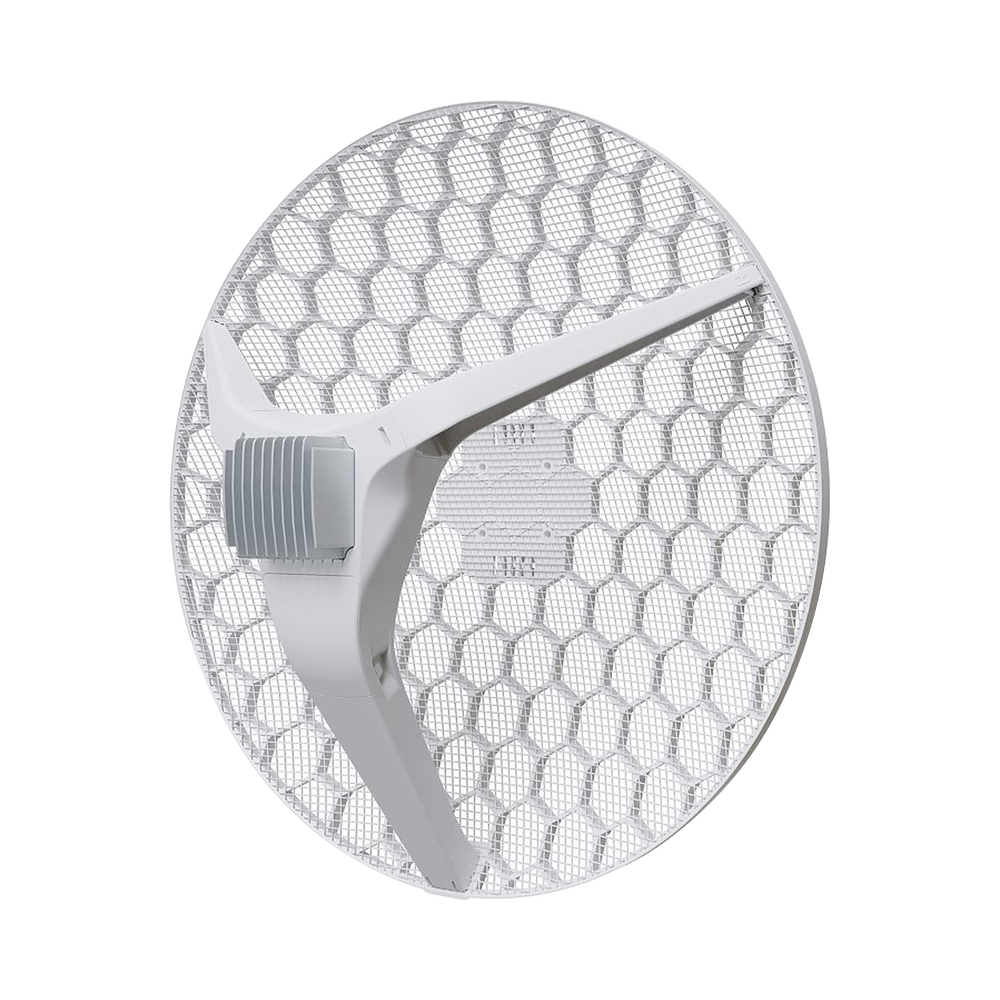

(LHG XL 52 ac) Dual Band Backbone and CPE with 27 dBi (5 GHz) and 18 dBi (2.4 GHz) Antenna, Up to 1000 mW Power and 860 Mbps, Supports PoE af/at

(LHG XL 52 ac) Dual Band Backbone and CPE with 27 dBi (5 GHz) and 18 dBi (2.4 GHz) Antenna, Up to 1000 mW Power and 860 Mbps, Supports PoE af/at

Regular price $1.693.807 COP
Regular price $1.852.602 COP Sale price $1.693.807 COP
Sale Sold out
Shipping calculated at checkout.

(LHG XL 52 ac) Dual Band Backbone and CPE with 27 dBi (5 GHz) and 18 dBi (2.4 GHz) Antenna, Up to 1000 mW Power and 860 Mbps, Supports PoE af/at

Need a reliable, strong long-distance connection that never drops? The new LHG XL 52 ac will provide just that with its dual-band capability. You can easily set the 5 GHz channel as your primary channel with speeds up to 600 Mbps and use the 2.4 GHz channel as an automatic backup connection with speeds up to 260 Mbps.

The powerful 27 dBi 5 GHz / 18 dBi 2.4 GHz antenna will provide a connection with a link distance of up to 40 km. The grille design ensures wind protection and can withstand temperatures from -40 C° to +70 C°. The antenna element is integrated into the wireless unit, with no cable loss. This device can handle the heaviest loads thanks to its impressive quad-core CPU and 256 MB of RAM. It has a Gigabit Ethernet port, an SFP port, and supports 802.3af/at—you can power it with smart switches!

Specs

Details
Product code RBLHGG-5HPacD2HPnD-XL
Architecture ARM 32 bits
CPU IPQ-4018
CPU core count 4
Nominal CPU frequency 716 MHz
Dimensions Ø 550 x 291 mm
RouterOS License 3
Operating system RouterOS
RAM size 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200,000 hours at 25C
Room temperature tested -40 °C to 70 °C
IPsec hardware acceleration Yeah

Feeding

Details
Number of DC inputs 1 (PoE-IN)
Maximum energy consumption 18 W
Maximum power consumption without accessories 16 W
Fan count Passive
PoE in 802.3af/at
PoE on input voltage 12-57 V

Wireless specifications

Details
Maximum wireless data rate of 2.4 GHz 300 Mbit/s
Number of 2.4 GHz wireless chains 2
2.4 GHz wireless standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 18
2.4GHz Wireless Chip Model IPQ-4018
2.4 GHz wireless generation Wi-Fi 4
Maximum 5 GHz wireless data rate 867 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz Wireless Standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 27
5GHz Wireless Chip Model IPQ-4018
5 GHz wireless generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP ports 1

Other

Details
PCB Temperature Monitor Yeah
Voltage monitor Yeah
Mode Button Yeah

Certification and approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

2.4 GHz Transmit (dBm) Receive sensitivity
1MBit/s 29 -100
11MBit/s

Out of stock

MODELO: RBLHGG-5HPACD2HPND-XL
