Industrial PoE injector / With No-Break UPS / Features 2 Gigabit Ports (1 passive PoE 24/48V) / DC 12V Output

Industrial PoE injector / With No-Break UPS / Features 2 Gigabit Ports (1 passive PoE 24/48V) / DC 12V Output

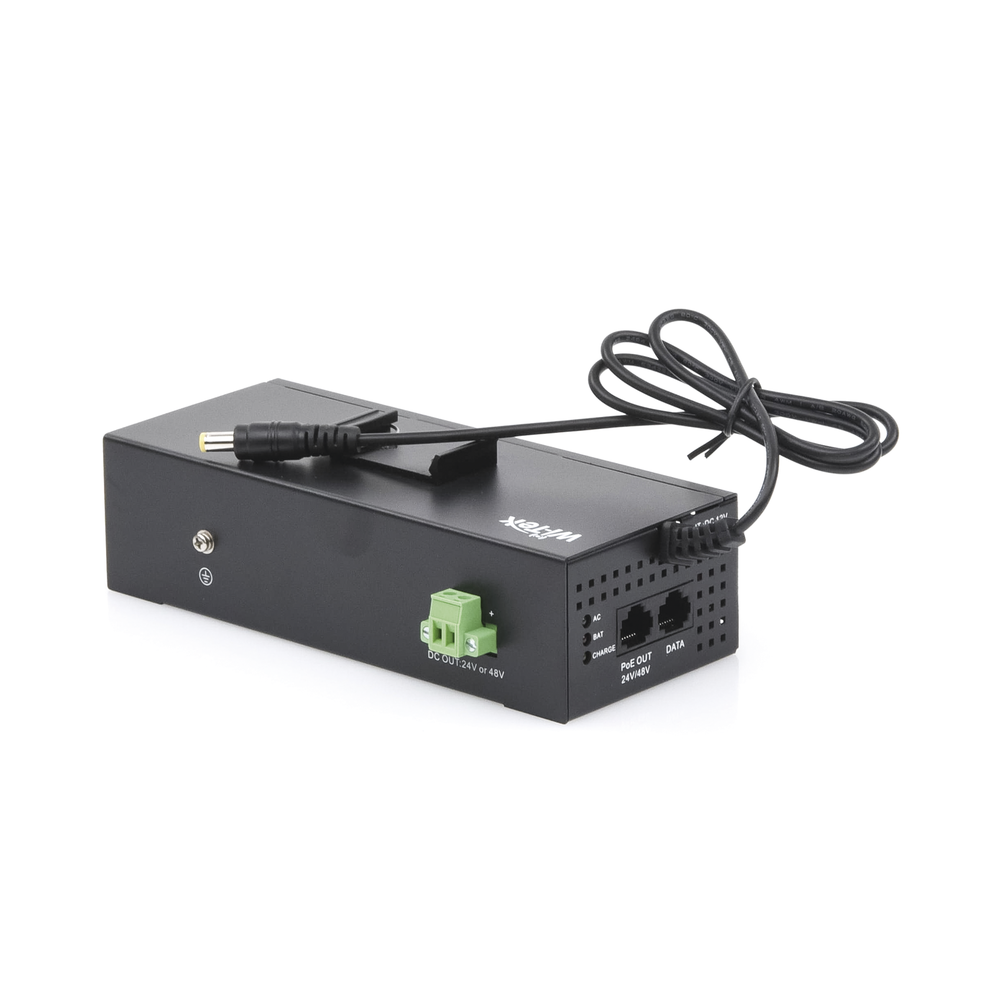

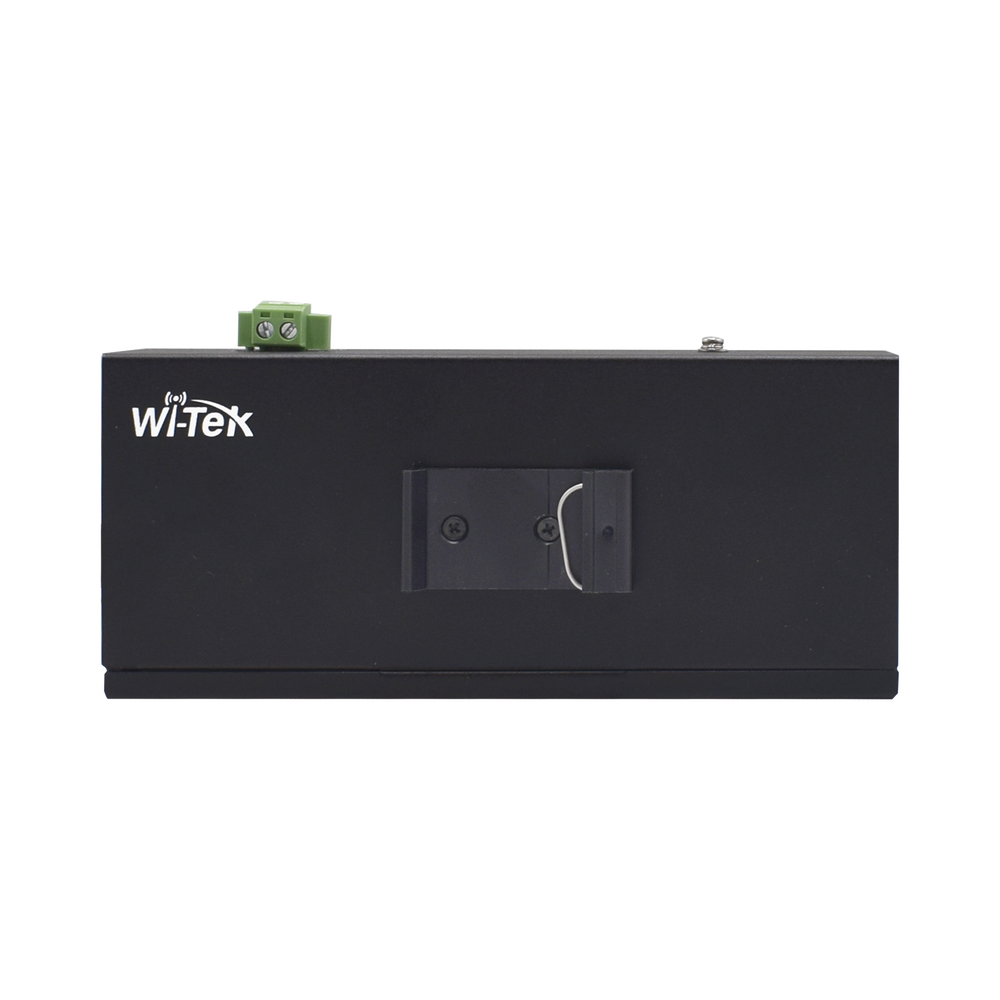

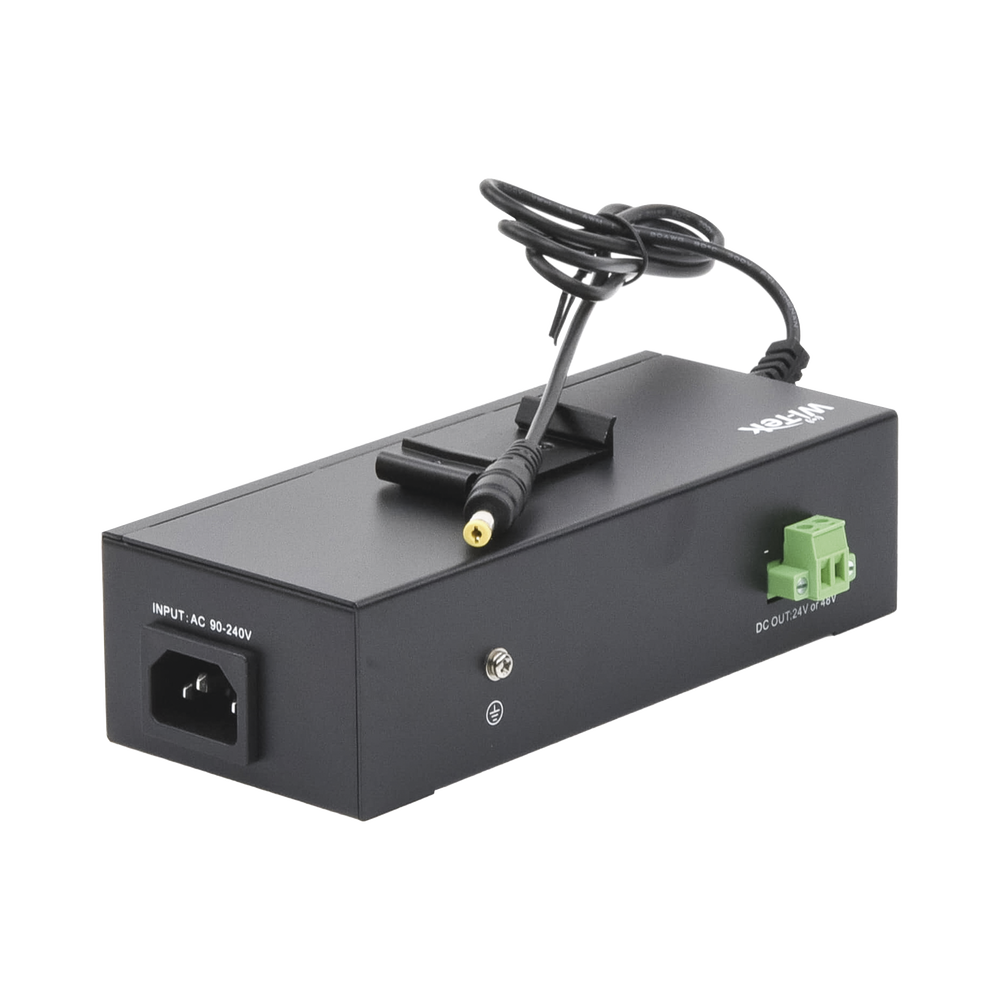

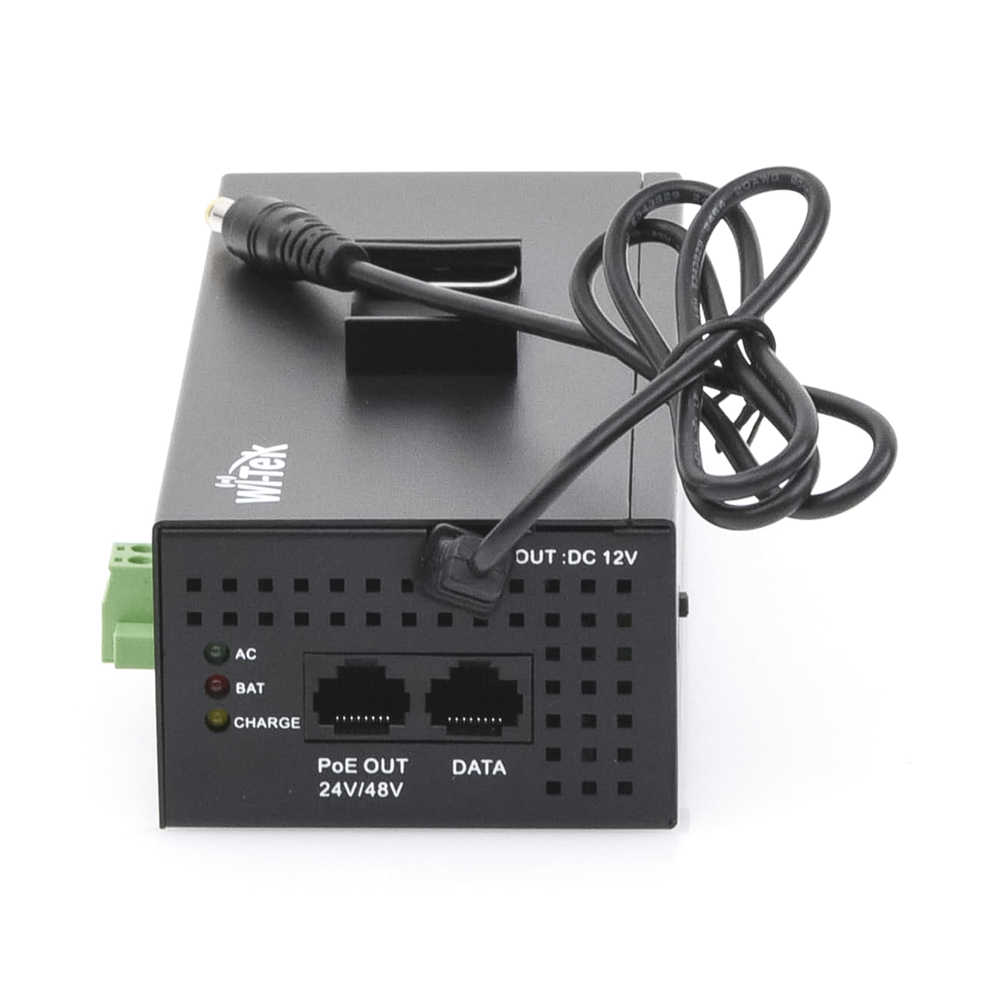

Physical characteristics of the Industrial Injector

Vehicle applications

Solar Applications

---

AC Applications

---

Specs
Dimensions	170 x 73 x 67 mm
Network Interfaces	(2) 10/100/1000 Mbps RJ45
Feeding	Option 1 12V 3A max Option 2 24V/48V 30W max
MAC Address Table	2k
Bandwidth	4 Gbps
Small per sec.	2.98 Mpps
Fans	Fan
Level of protection	Lightning protection 6KV 6KV ESD Contact discharge
Operating temperature	-30 to 70° C
Certifications	CE, FCC, RoHS
Characteristics
Transmission Method	Store-And-Forward
Battery input	12V 30AH
Others

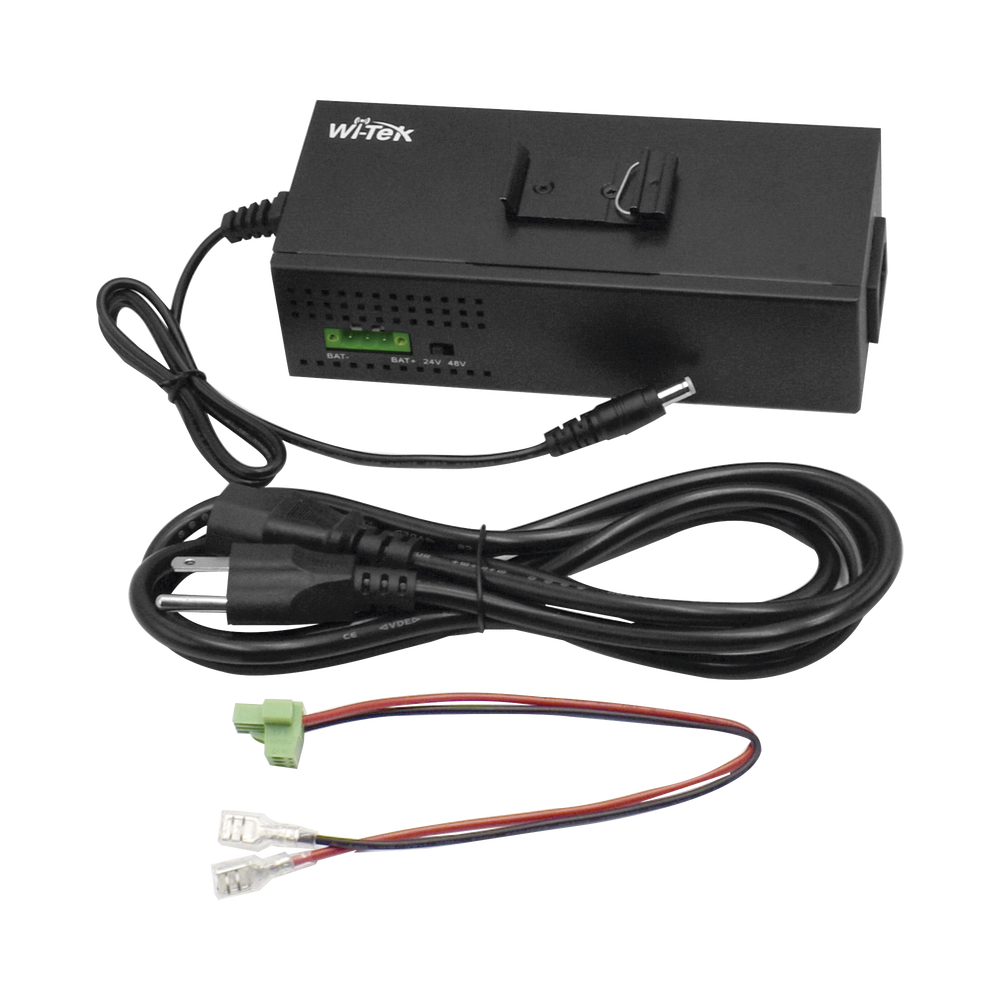

Package Contents	PoE UPS Injector Power cable User Guide/Warranty

Internal battery controller for charging and discharging, AC 90-240V support and 12V 30AH Max battery, DIN rail mounting and wall mounting support
