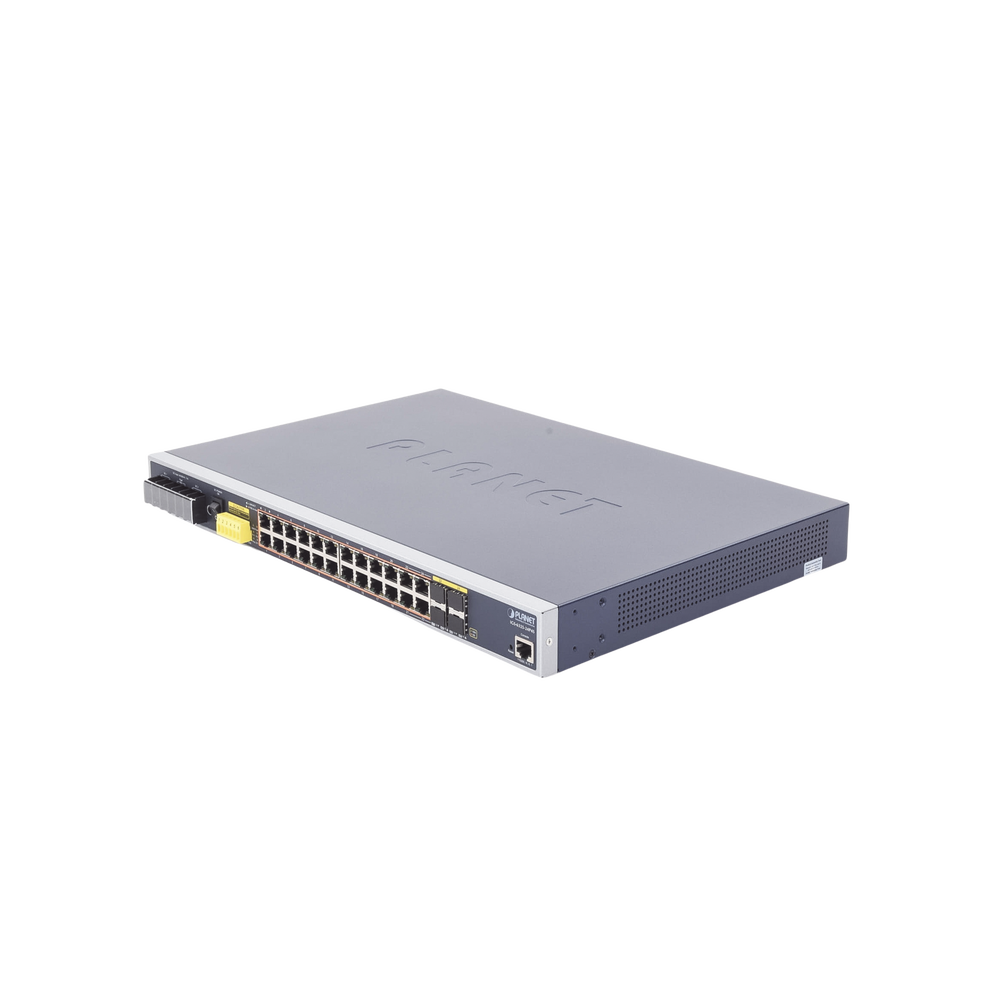

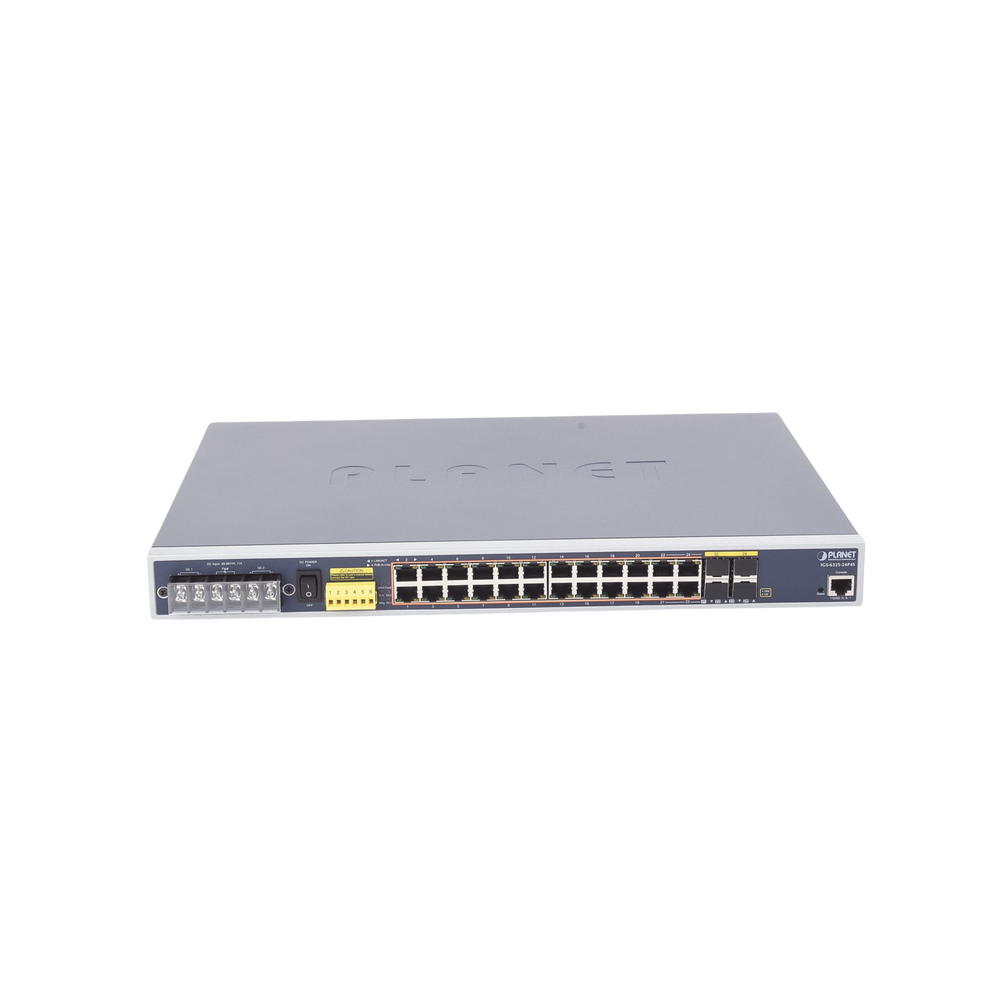

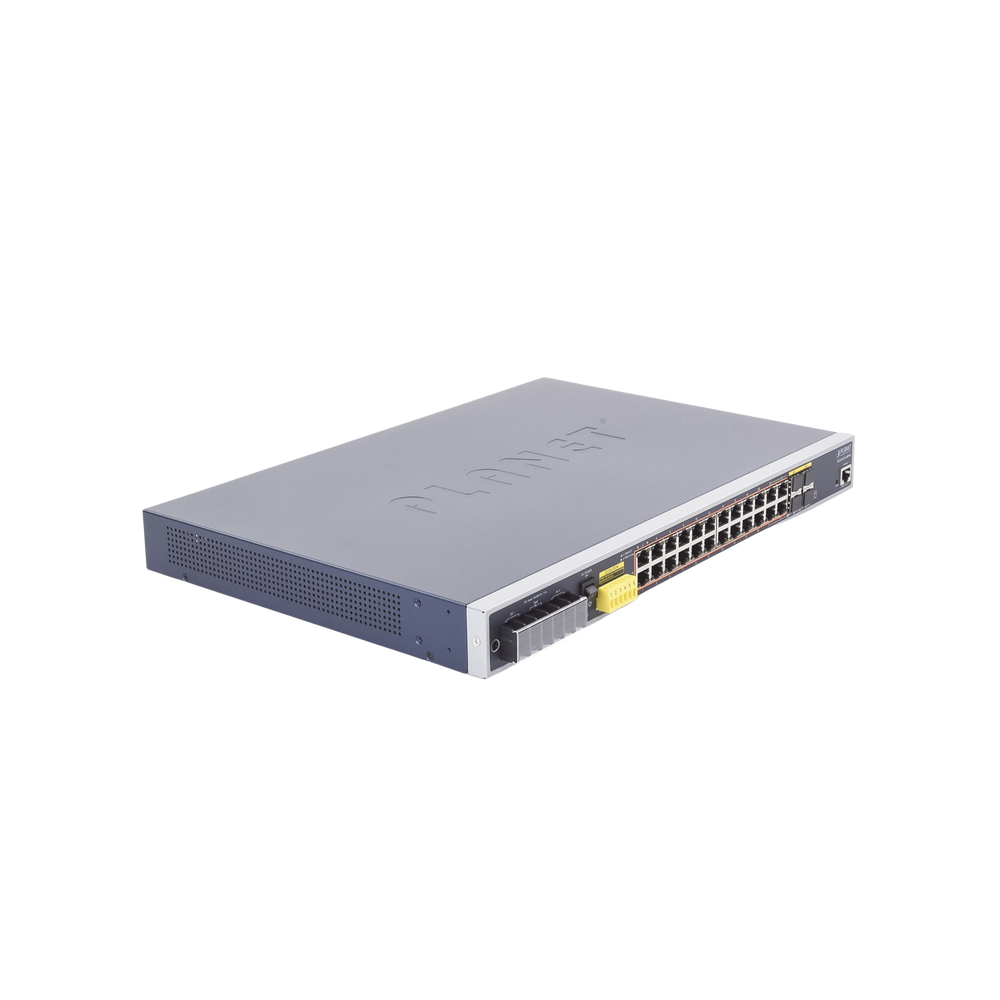

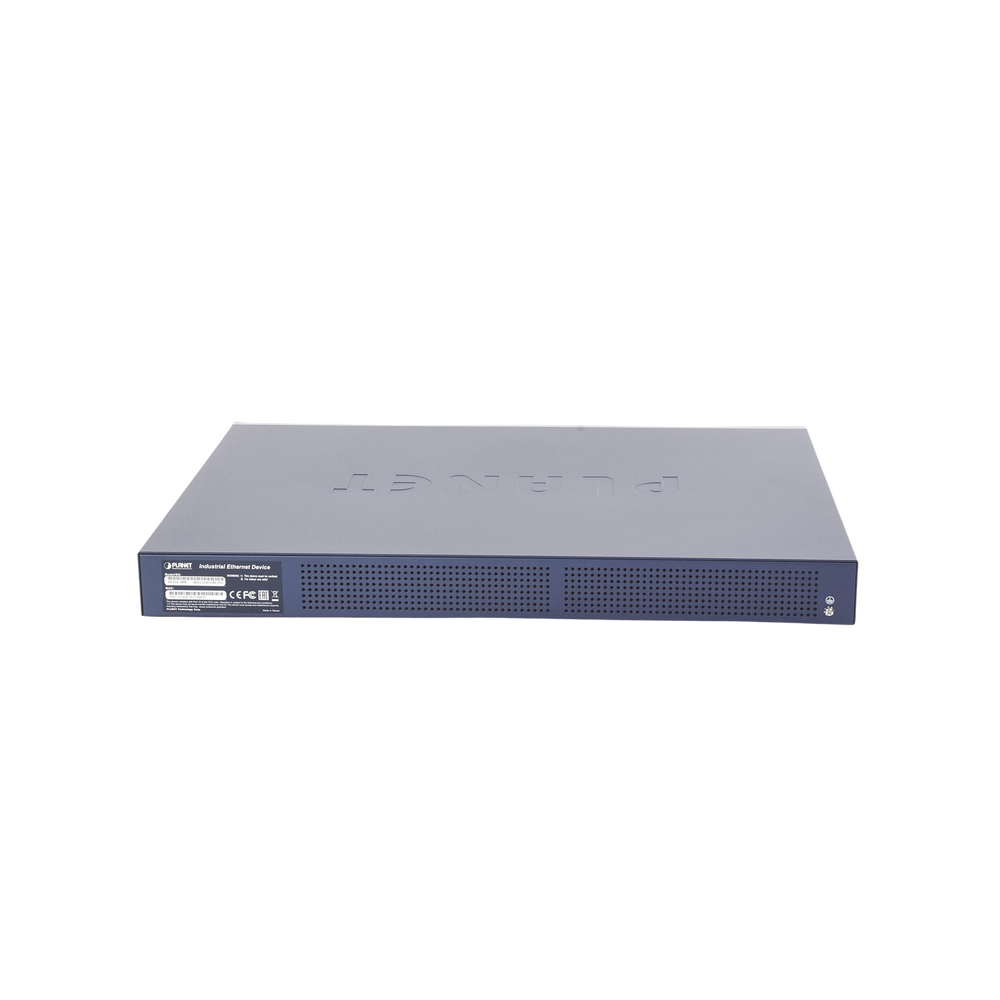

Industrial Layer 3 PoE Switch, With 24 Gigabit 802.3af/at PoE Ports, 4 Shared 100/1000X SFP Ports, Withstands Extreme Temperatures of -40~75°C

Industrial Layer 3 PoE Switch, With 24 Gigabit 802.3af/at PoE Ports, 4 Shared 100/1000X SFP Ports, Withstands Extreme Temperatures of -40~75°C

$5.696.575 COP
$6.230.629 COP $5.696.575 COP
Sale Sold out
Shipping calculated at checkout.

Industrial Layer 3 PoE Switch, With 24 Gigabit 802.3af/at PoE Ports, 4 Shared 100/1000X SFP Ports, Withstands Extreme Temperatures of -40~75°C



Cybersecurity network solution

The IGS-6325 series supports SSHv2, TLS, and SSL protocols to provide strong protection against advanced threats.

Redundant ring, fast recovery for critical network applications

The IGS-6325 series supports redundant ring technology and features fast and robust recovery capability to prevent interruptions and external intrusions.

.

Smart verification for powered device

The switch can be configured to monitor the status of the connected PD in real time using ping action.

PoE Programming

It is used to enable or disable PoE power supply for each PoE port during specific time intervals to help SMBs or businesses save energy and money.

Digital input and digital output for external alarm

This external alarm allows users to use the digital input to detect and record the status of external devices (such as intrusion detectors at the door) and send event alarms to administrators.

Hardware specifications
Copper ports 24 ports 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
SFP / mini-GBIC slots 4 SFP 100/1000BASE-X interfaces, shared with port 21 to port 24
Compatible with 100BASE-FX SFP transceiver
PoE injector port 24 ports with 802.3af/at PoE injector function with port 1 to port 24
Console 1 RJ45 to RS232 serial port (115200, 8, N, 1)
Facility Rack Mount Kit
Connector 6-pin fixed terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
6-pin removable terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One power failure relay output. Alarm relay current carrying capacity: 1A at 24V DC
DI & DO 2 digital inputs (DI):
Level 0: -24
V ~ 2.1 V (± 0.1 V) Level 1: 2.1 V ~ 24 V (± 0.1 V)
Max. input current: 10mA
2 digital outputs (DO):
Open collector at 24V DC, 100mA max.
Dimensions 440 x 300 x 44mm, 1U height
Weight 3740g

Energy requirements

(Voltage source not included)

 Dual 48~56V DC (>53V DC recommended for PoE+ output), 11A
Energy consumption Max. 33 Watts / 112.51 BTU (on without any connection)
Max. 536 Watts / 1828.90 BTU (full load with PoE function)
PoE power supply type End-span
PoE power output
IEEE 802.3af Standard
Per port 48V ~ 51V DC (depending on power supply), max. 15.4 Watts
IEEE 802.3at Standard
Per port 52V ~ 56V DC (depending on power supply), max. 36 Watts
PoE Power Budget

48V power input
- Single power input: 240W maximum (depending on power input)
- Dual power input: 300W maximum (depending on power input)

52~56V power input
- Single power input: 240W maximum (depending on power input)
- Dual power input: 440W maximum (depending on power input)
※ Dual power input must be the same as DC voltage, such as dual 56V

Management interfaces Console; Telnet; Web browser; SNMP v1, v2c, SSH, TLS, SSL, SNMP v3
Layer 2 Function Configuration per port, Port Status, Port Mirroring, VLAN, Link Aggregation, Spanning Tree Protocol, QoS, IGMP Snooping, MLD Snooping, Access Control List, Bandwidth Control
Layer 3 Function IP Interfaces, Routing Table, Routing Protocols

    With secondary voltage input for redundant power supply, With RJ45 to RS232 (DB9) console interface for basic configuration, Up to 440 W (depending on input voltage)

Out of stock

MODELO: IGS-6325-24P4S
