SHAKESPEARE

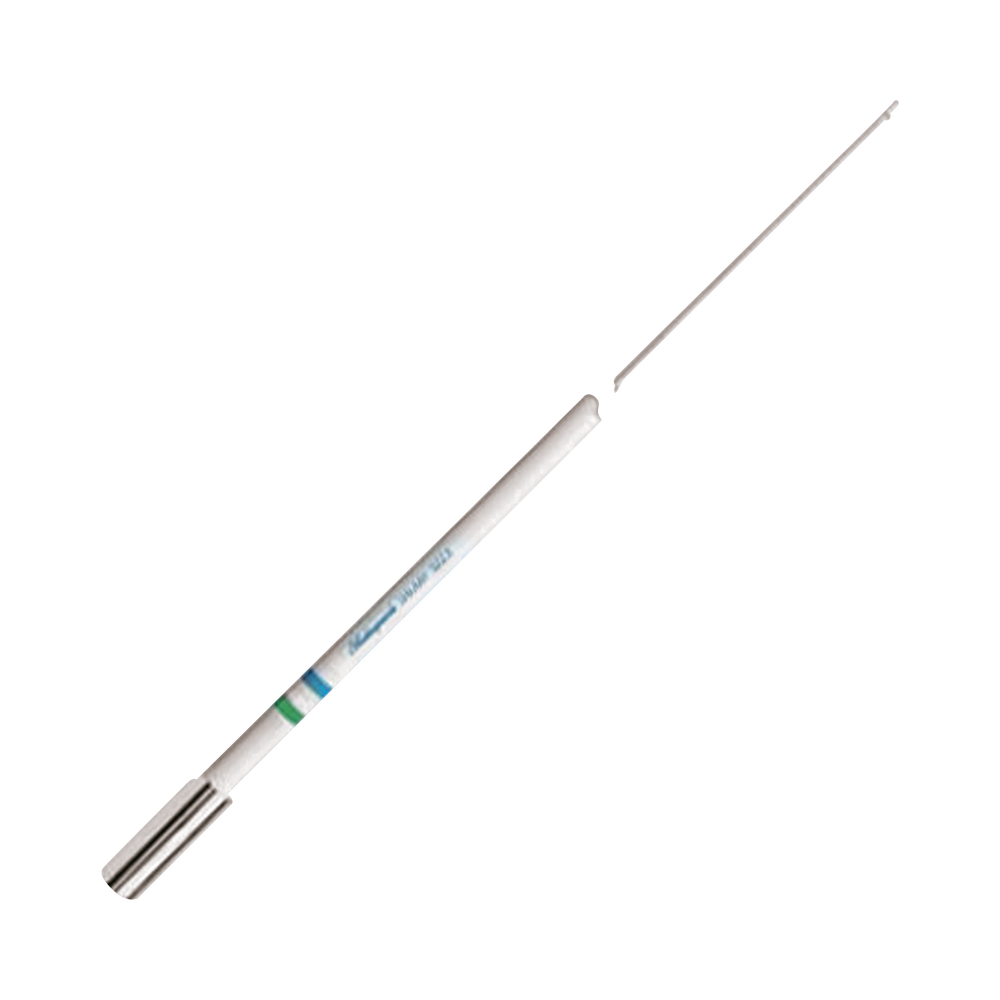

White CB 5223-TX Marine Antenna with a maximum input power of 25W
White CB 5223-TX Marine Antenna with a maximum input power of 25W
Regular price
$1.388.521 COP
Regular price
$1.518.695 COP
Sale price
$1.388.521 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
White CB 5223-TX Marine Antenna with a maximum input power of 25W
Galaxy CB 5223-XT Antenna
A tunable, easy-to-install CB antenna for superior performance in demanding situations. The connector is supplied but not installed, so only a 3/8″ hole is required for cable passage. The coaxial cable length can be altered with this antenna.
- Stainless steel bracket with standard 1″-14 thread
- Includes 20-foot RG-8/X cable, which can be cut to size, and a PL-259 connector
- Suggested Mounting : Shakespeare Style 4187 or 5187 Ratchet Mount, or use a 409-R or 410-R Mounting Kit and 5228 Extension Mast (each sold separately) to form a 16' antenna system
- Frequency: Citizens Band 27 MHz
- Single-section antenna.
| Galaxy 5223-XT Specifications | |
| Band: | CB Marine |
| Max. Input Power: | 25 W |
| SWR: | 1.5:1 or less on channel 19 |
| Broadband: | 440 kHz within 2.0:1 VSWR |
| Tip: | Stainless steel |
| Coaxial supplied: | 20 feet of RG-8/X |
| Connector supplied: | PL-259, not installed |
| Color/Finish: | White Galaxy |
| DC ground: | DC grounded : The antenna will read shorted on the continuity test. |
Share
Out of stock
MODELO: 5223-XT
