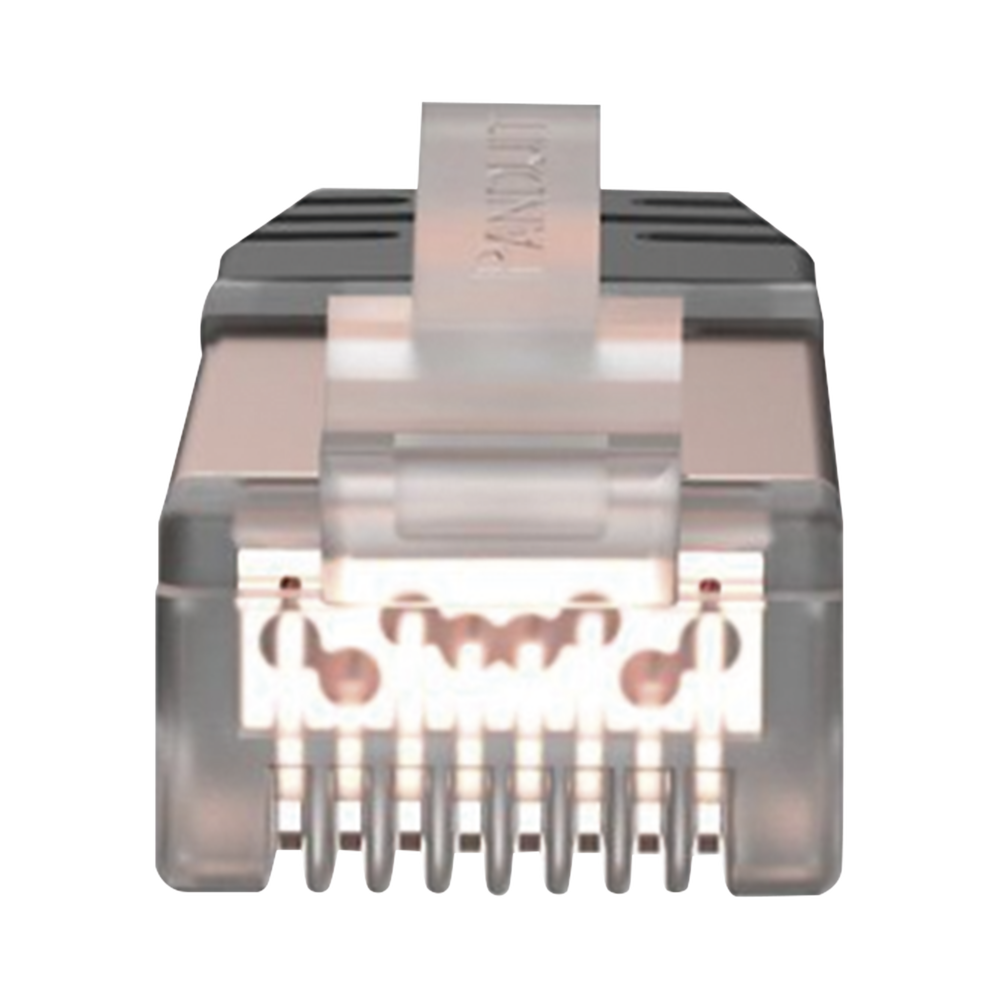

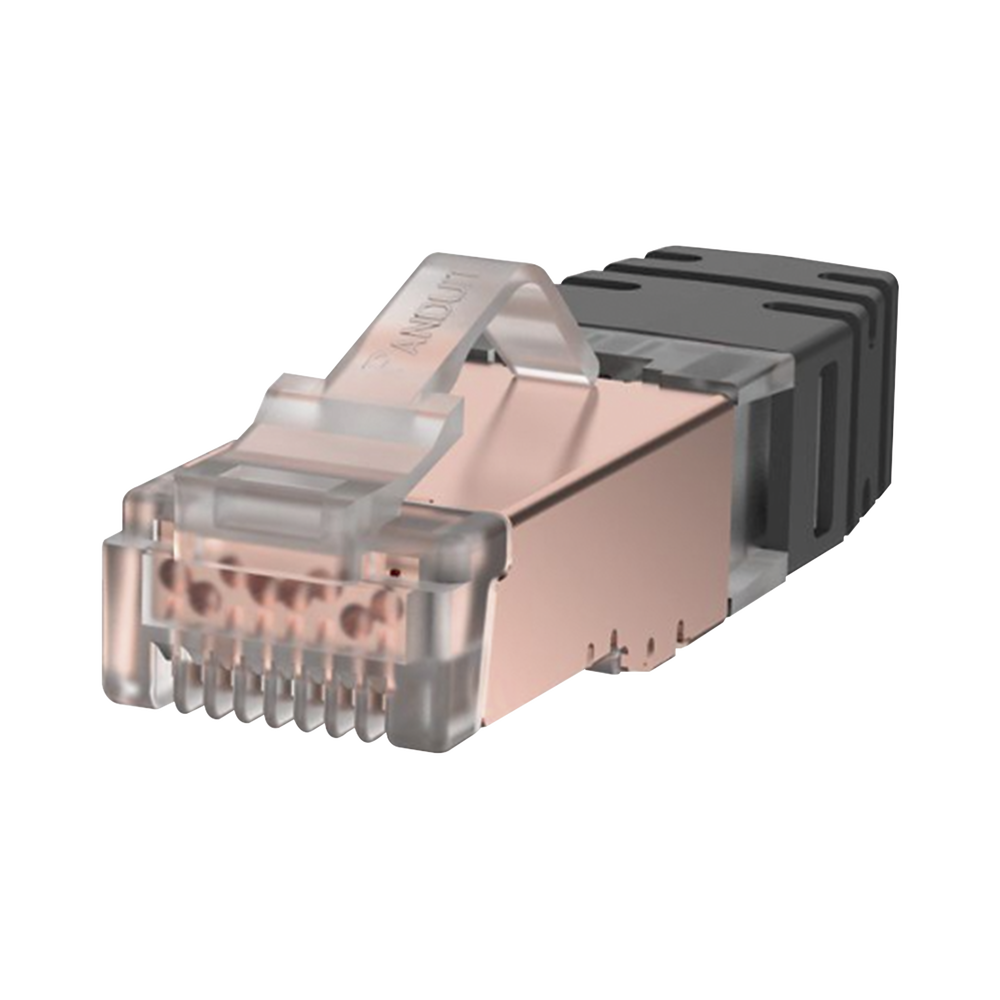

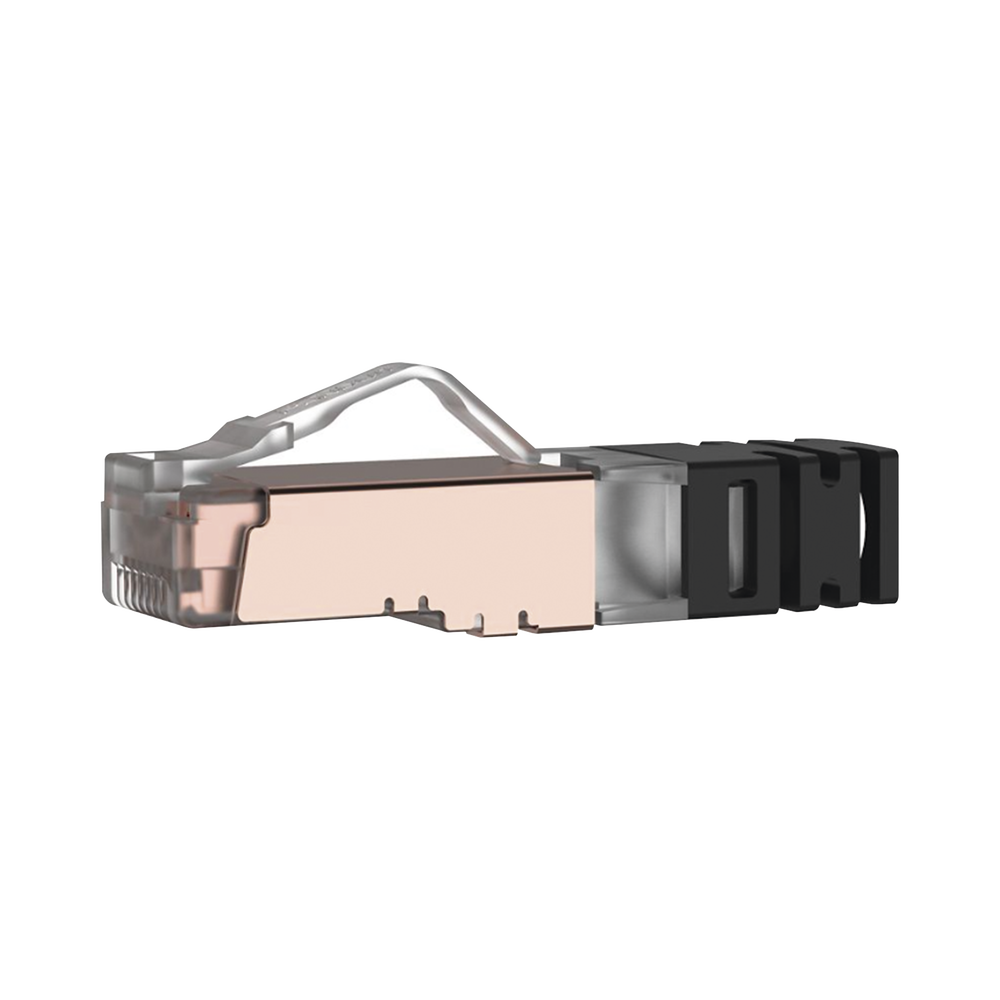

Cat6A Shielded RJ45 Plug, For 23-24 AWG Cable, 50 Micron Gold Plated, 100-Pack

Cat6A Shielded RJ45 Plug, For 23-24 AWG Cable, 50 Micron Gold Plated, 100-Pack

The Category 6A/Class EA, 8-position, 8-wire shielded modular plug can be terminated to Panduit 4-pair, 23-24 AWG, 100 ohm solid or stranded shielded twisted pair cable with a maximum conductor insulation diameter of 0.047 in. (1.19 mm) and a maximum jacket diameter of 0.300 in. (7.62 mm).

Technical specifications:

• Performance: Category 6A or lower
• Number of insertion cycles: 2500
• Supported conductor: 23 to 24 AWG solid or stranded, with 1.07 to 1.19 mm diameter
• Cable diameter: 6.99 to 7.62 mm
• Contact Material: 50 micro inches of gold plating over nickel
• PoE Compliance: Supports PoE, PoE+, Type 3 and Type 4 for applications above 100 W
• Plastic materials: Polycarbonate, UL 94 V0
• RoHS Compliant
• Lead-free, halogen-free and PVC-free
• Operating temperature: -10 to 70ºC

50 micro inches of gold plating over nickel for maximum durability and performance, Plastic materials: Polycarbonate, UL 94 V0, Lead-free, halogen-free, and PVC-free, Maximum wire diameter: 7.62 mm, Supported conductor: 23 to 24 AWG solid or stranded
