(netPower 15FR) 18-port outdoor switch with 15 reverse PoE and SFP ports
(netPower 15FR) 18-port outdoor switch with 15 reverse PoE and SFP ports
Couldn't load pickup availability
(netPower 15FR) 18-port outdoor switch with 15 reverse PoE and SFP ports
With the netPower 15FR switch, you can forget about expensive GPON base stations and optical splitters. This switch is part of our GPEN concept, which aims to provide the speed and versatility of fiber networks while utilizing the advantages of Ethernet. It's an easy-to-deploy and low-cost way for any ISP to deliver internet to individual apartments.
You don't have to worry about power options in the attic or utility room: the netPower 15FR has 15 reverse PoE ports. Depending on your configuration, the netPower can draw the necessary power from even a single client. The 15th Ethernet port can power other PoE-capable devices with the same voltage applied to the unit.

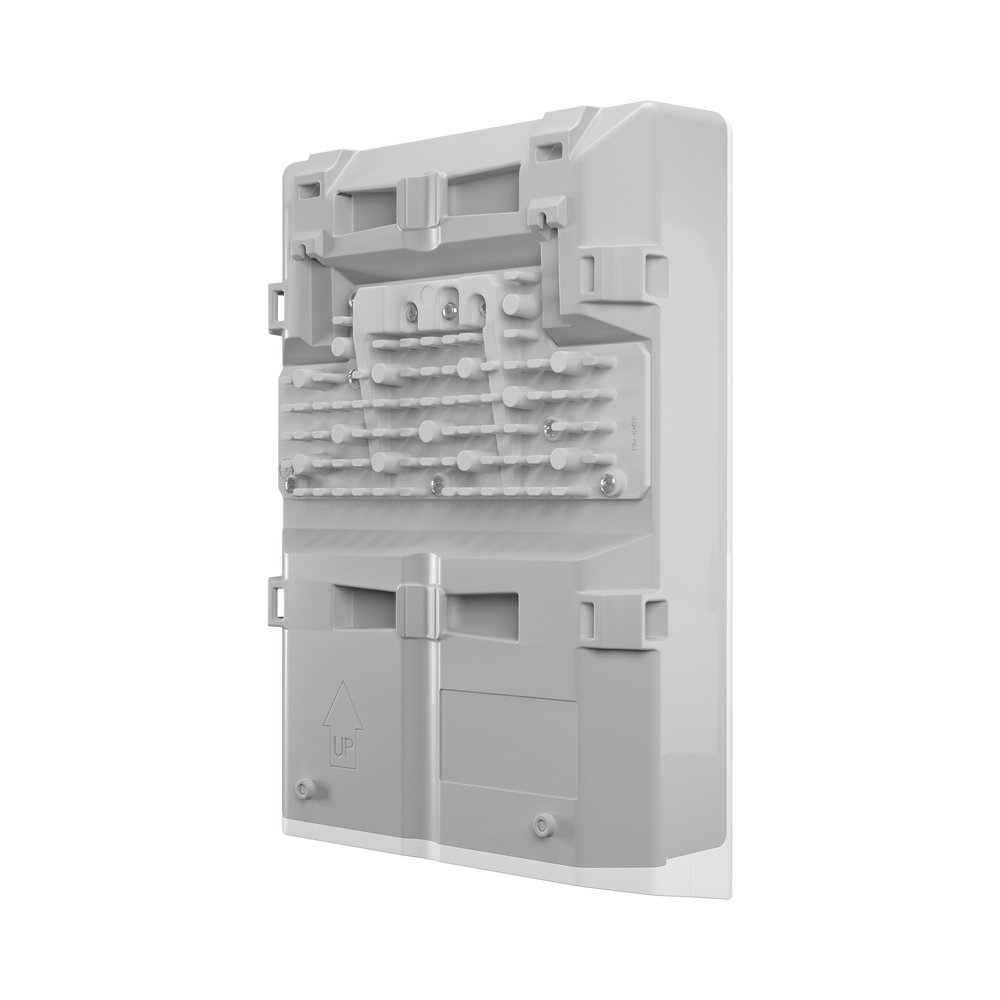

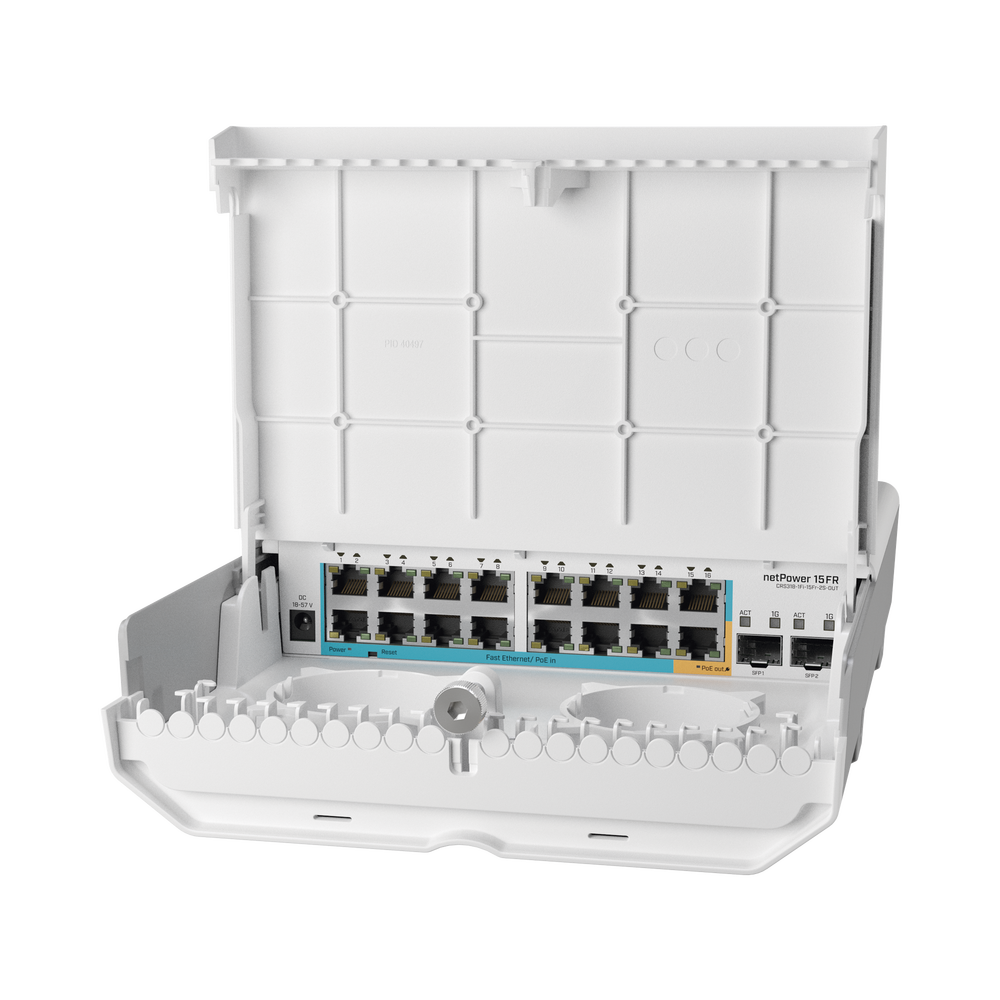

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all types of environments, from damp attics to elevator shafts and various poles with hose clamps. netPower 15FR: reducing costs and increasing speed!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, a switching capacity of 7.2 Gbps, and a forwarding rate of 5.4 Mpps.
The power supply is NOT included with the product; it must be purchased separately. Read more about the GPEN concept.
Specs
Details | |
---|---|
Product code | CRS318-1Fi-15Fr-2S-OUT |
Architecture | ARM 32bit |
CPU | 98DX224S |
CPU core count | 1 |
Nominal CPU frequency | 800 MHz |
Dimensions | 304 x 212 x 71 mm |
License level | 5 |
Operating system | SwOS / RouterOS (dual boot) |
RAM size | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
Room temperature tested | -40°C to 70°C |
Feeding
Details | |
---|---|
PoE input | Passive PoE |
PoE in input voltage | 18-57 V (recommended 36-57 V) |
Number of DC inputs | 16 (PoE-IN, DC jack) |
DC jack input voltage | 18-57 V |
Maximum energy consumption | 29 W |
Maximum power consumption without accessories | 10 W |
PoE-out
Details | |
---|---|
PoE output ports | Ether 15 |
PoE out | Passive PoE |
Maximum output per output port (input <30 V) | 0.75 A |
Maximum output per output port (input > 30V) | 0.5 A |
Maximum total output (A) | 0.75 A |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 16 |
Fiber
Details | |
---|---|
SFP ports | 2 |
Other
Details | |
---|---|
CPU Temperature Monitor | Yeah |
Voltage monitor | Yeah |
Certifications and approvals
Details | |
---|---|
Certification | CE/RED, EAC, ROHS |
Parts included
