THW-LS Coated Copper Electrical Cable Gauge 6 AWG 19 Wires Red Color (100 meters)

THW-LS Coated Copper Electrical Cable Gauge 6 AWG 19 Wires Red Color (100 meters)

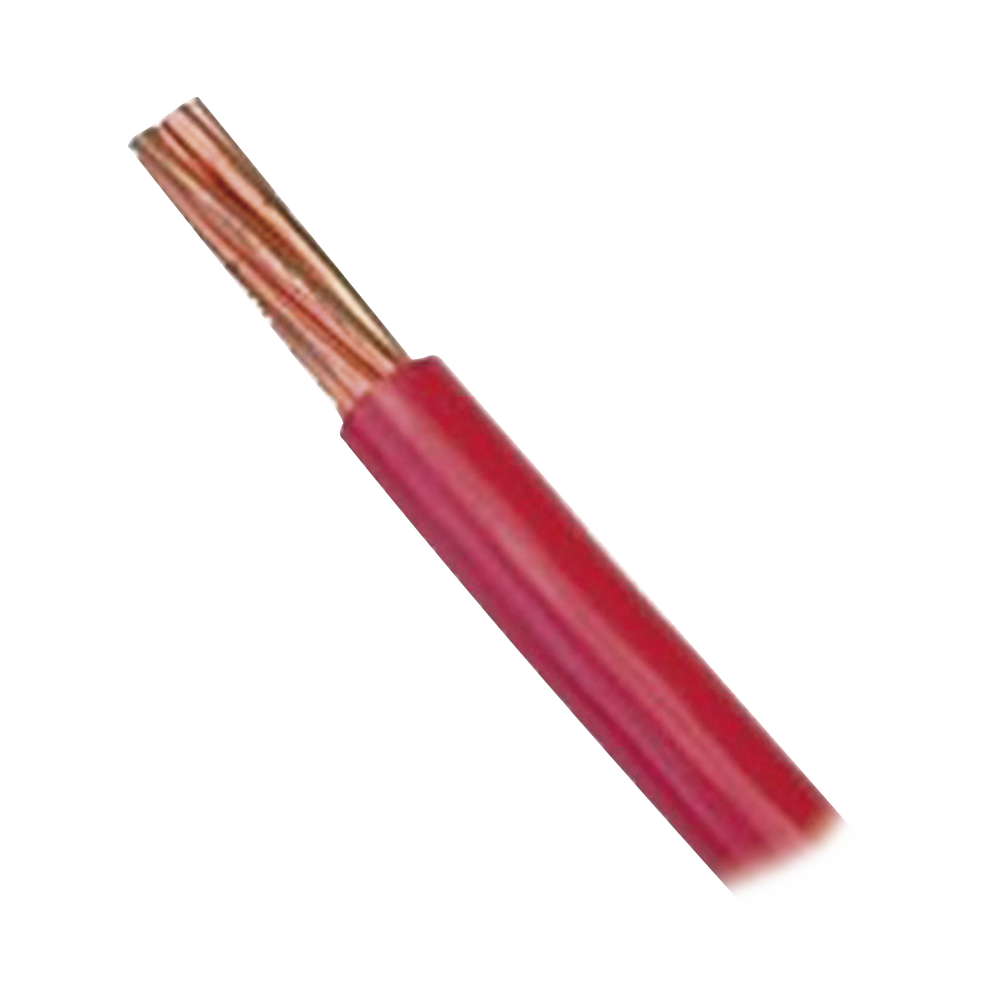

Soft copper conductor stranded with self-extinguishing PVC insulation. **Sold in 100-meter coils**

Physical Characteristics.

• Gauge: 6 AWG.
• Thread Count: 19.
• Conductor Area: 13.3 mm².
• Conductor Diameter: 4.67 mm.
• Insulation Thickness: 1.52 mm.
• Outer Diameter: 7.6 mm.
• Weight per Meter: 0.168 kg.
• Coating Color: Green.
  Approximate data, subject to manufacturing tolerances.

Specs:
NMX-J-010-ANCE.

Benefits:
Indiana THW-LS Slide-On installs more easily in duct, reducing wiring time.

Applications:
THW-LS high-security conductors are manufactured for reliable use in dry, wet, or oily locations, and are installed in duct, conduit, or trays. Their excellent properties
Self-extinguishing, making it ideal for installation in housing constructions
and small businesses.
It is recommended for integration of Physical Earths.

Operating Temperature:

• In dry places 90° C.
• In Wet Places 75° C.
