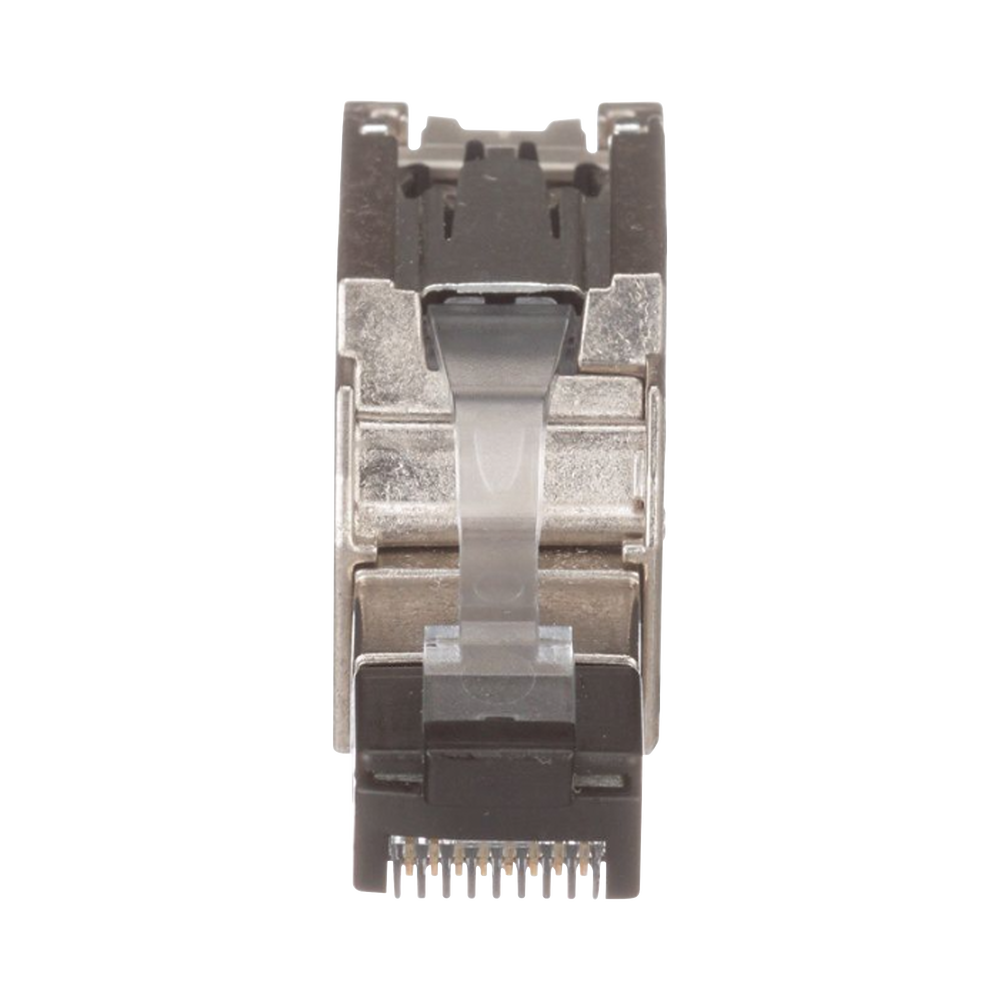

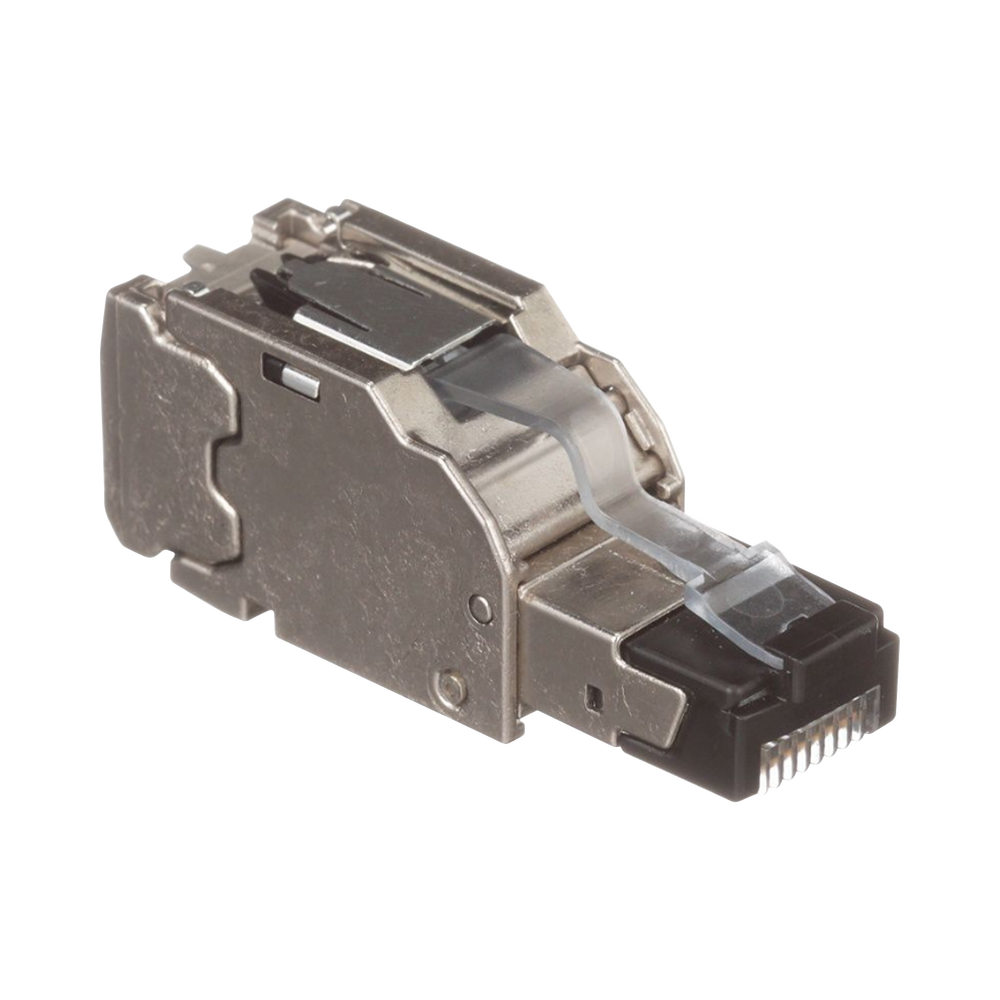

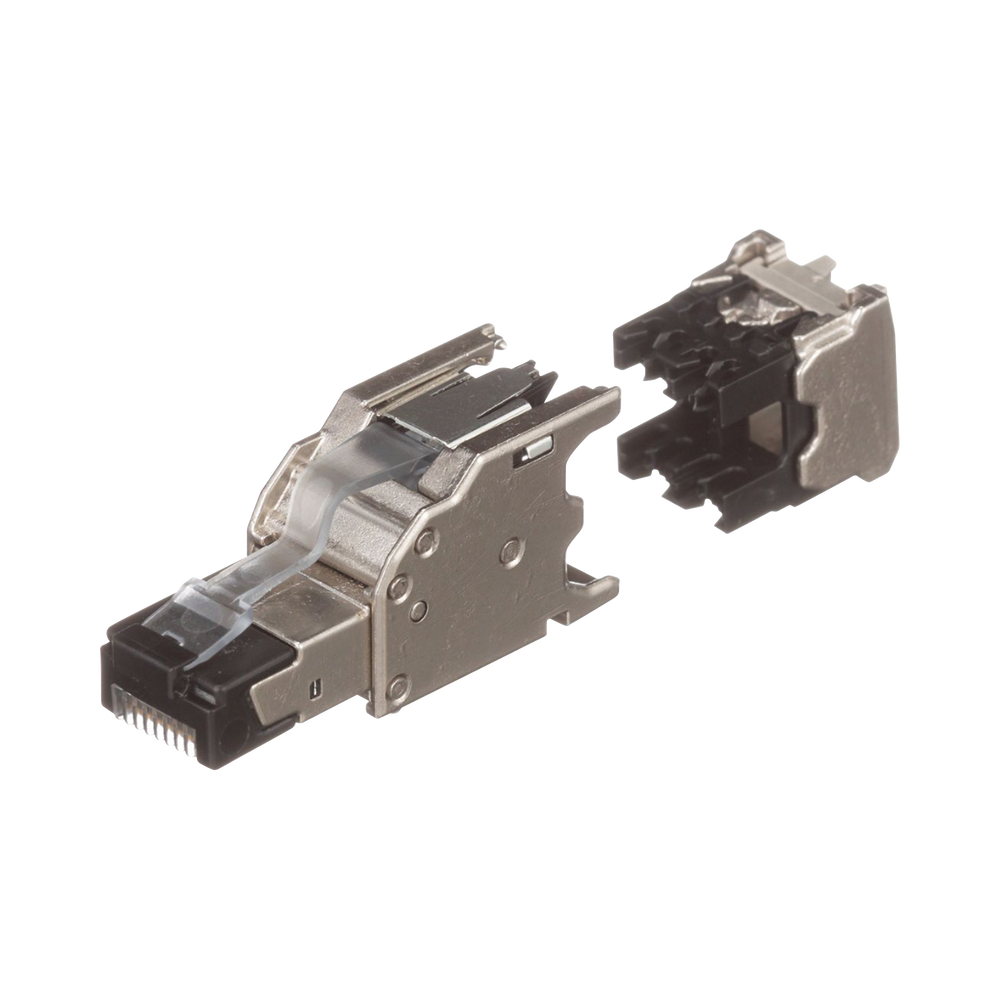

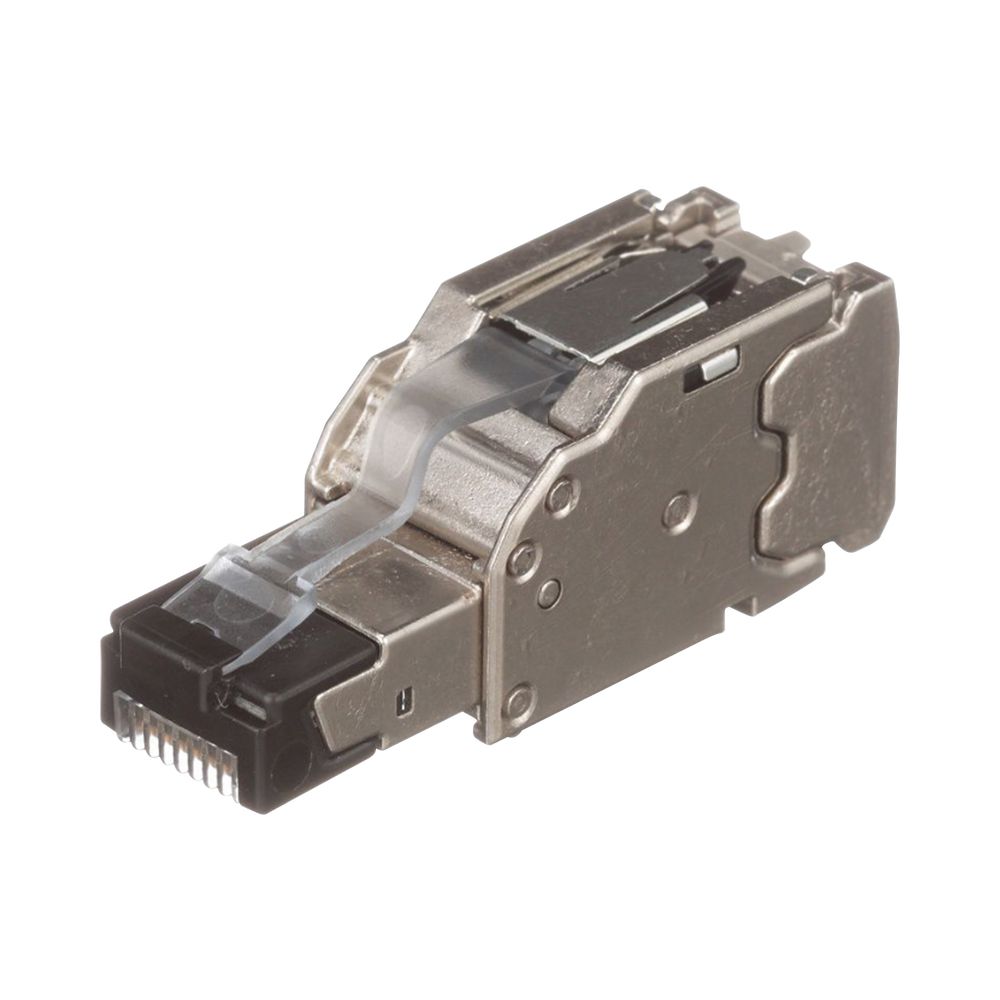

Shielded RJ45 Plug, Straight Installation, Field Termination Certifiable, Compatible with Cat5e, Cat6 and Cat6A, Silver Color

Shielded RJ45 Plug, Straight Installation, Field Termination Certifiable, Compatible with Cat5e, Cat6 and Cat6A, Silver Color

The IndustrialNet™ TX6A™ field-terminated shielded RJ-45 connector is an easy-to-install connector on 4-pair shielded twisted pair cable. Providing Category 6A performance, the IndustrialNet™ TX6A™ Plug is also backward compatible with Category 6 and 5e shielded systems. It can be terminated to 4-pair, 22-26 AWG, 100 ohm shielded twisted pair cable and utilizes proven TG-style forward motion connection technology to optimize performance by maintaining wire pair geometry and eliminating conductor de-twisting.

Applications:

The field-terminated plug is easy to install and is ideal for a growing number of network-connected devices:

• Wireless Access Points (WAP)
• Power Over Ethernet (PoE) LED Lighting
• IP Security Cameras and Motion Sensors
• Access control points
• Network-connected audio and video equipment
• Other network devices with PoE or HDBASE-T power

Technical Information:

• Cat6A/Class EA Performance: Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA minimum performance requirements for two field termination connections. Exceeds TIA MPTL testing requirements with a maximum of two field termination connections.
• Cable Compatibility: Compatible with 4-pair cable, 22 to 26 AWG solid or shielded twisted pair stranded, with conductor diameters from 1 to 1.6 mm and overall wire diameters from 5.08 to 9 mm.
• Operating temperature: -40 to 85ºC
