300Mbps WISP N 2.4GHz Wireless Router 1 10/100Mbps WAN port 2 10/100Mbps LAN ports version with 2 x 5dBi antennas

300Mbps WISP N 2.4GHz Wireless Router 1 10/100Mbps WAN port 2 10/100Mbps LAN ports version with 2 x 5dBi antennas

Agile Configuration

Download the Agile tool

The password to open .ZIP files is = Tplinkonly1

Main features

• Fast Wi-Fi for everyday life — MW302R provides fast and stable connections to meet all your networking needs with speeds up to 300 Mbps
• Wider Coverage — Equipped with high-gain external antennas to deliver strong Wi-Fi signals to every corner of your home
• Multimode — four modes in one device to meet all application scenarios
• Easy installation — the intuitive website guides you through the setup process in minutes
• Active Parental Controls — Set appropriate access policies to protect children with safe and responsible Internet access
• Compatible with IPv6 (Internet Protocol version 6)

Specs

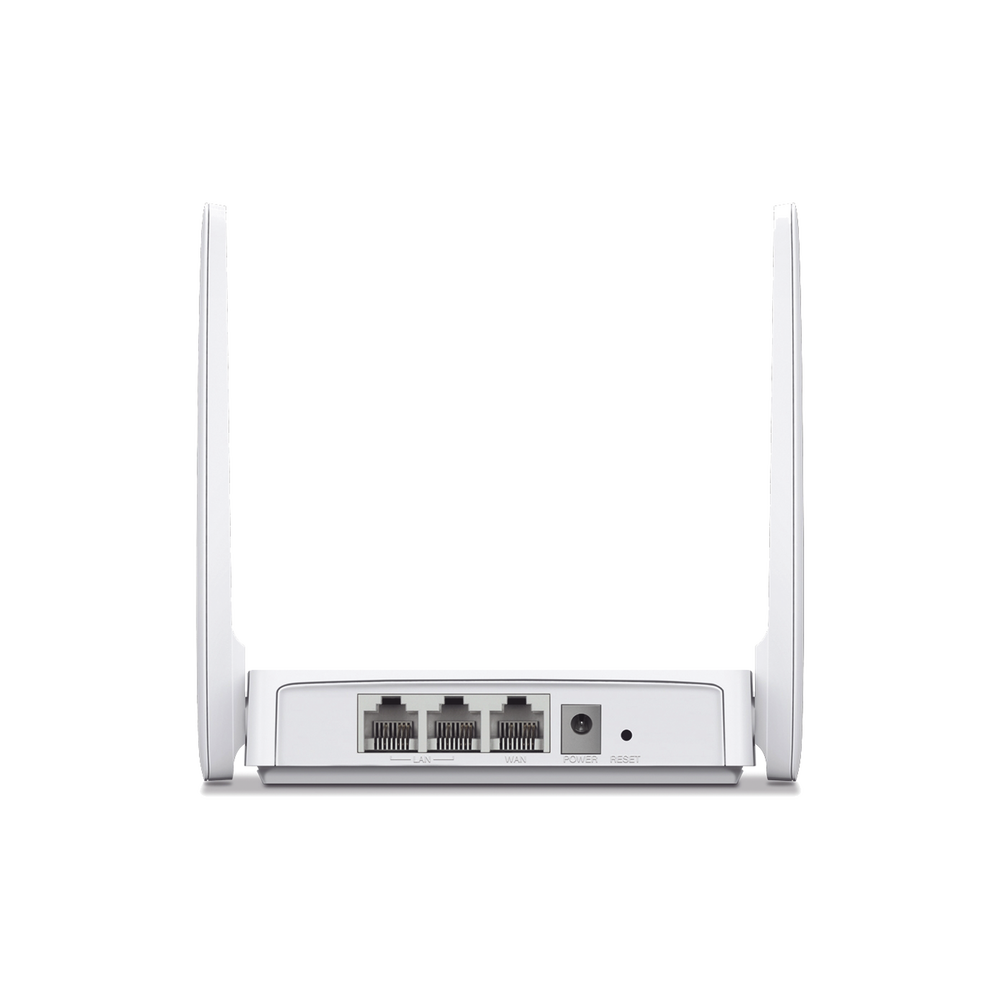

• 2 10/100Mbps LAN ports
• 1 10/100Mbps WAN port
• Transmission speed 300 Mbps
• 2 external omni-directional 5 dBi antennas
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
• Frequency 2.4 - 2.4835GHz
• WPA-PSK / WPA2-PSK wireless security
• Transmission power <20dBm

Physical and electrical characteristics

• Operating temperature: 0â °C ~ 40â °C (32â °F ~ 104â °F)
• Storage temperature: -40â °C ~ 70â °C (-40â °F ~ 158â °F)
• Dimensions (WxDxH) 114 x 94 x 26 mm
• External power supply 5 VDC/0.6 A

Includes

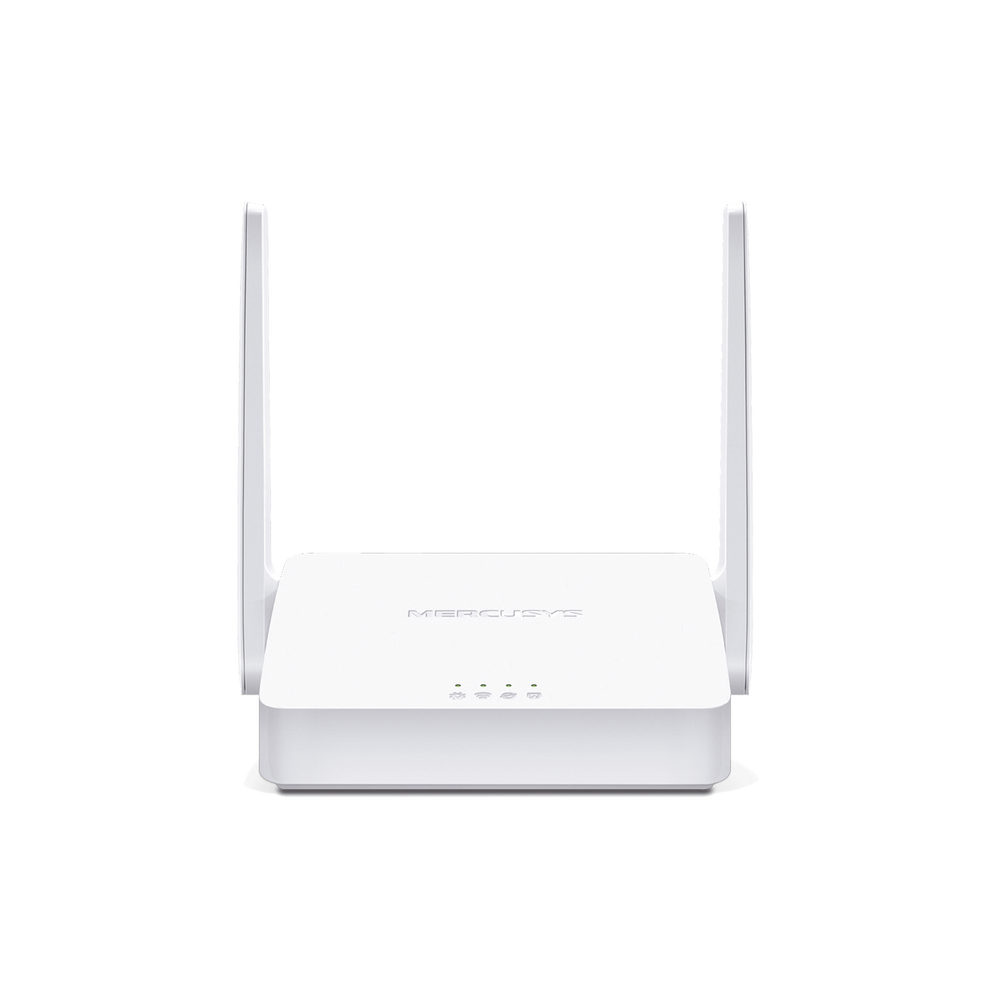

• MW302R Wireless Router
• Power adapter
• Quick installation guide
• Ethernet cable
