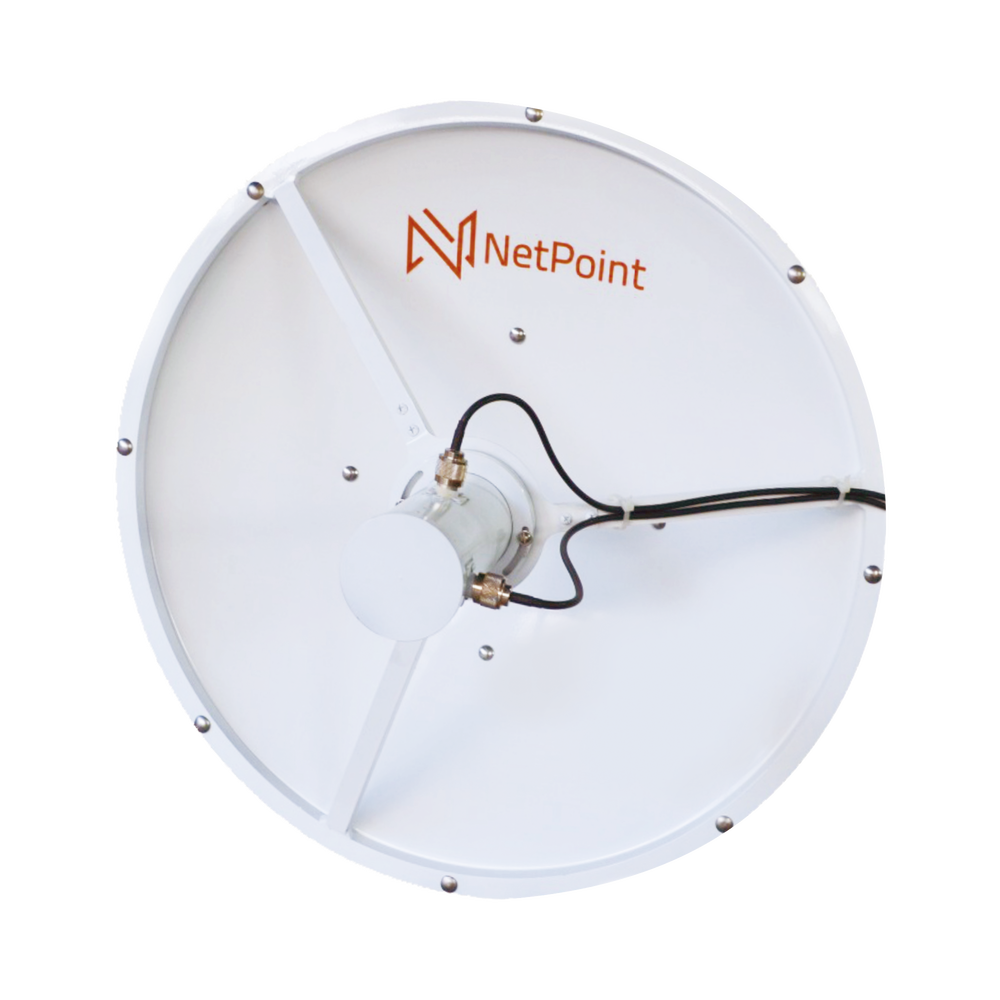

2ft High Performance Shielded Antenna, 4 3.3-3.9 GHz, 26 dBi Gain, N-Female Connectors.

2ft High Performance Shielded Antenna, 4 3.3-3.9 GHz, 26 dBi Gain, N-Female Connectors.

60cm Diameter Directional Antenna, 3.3-3.9 GHz 30 dBi for Point-to-Point applications.

Electrical Specifications:
Frequency Range: 3.3-3.9 GHz
Antenna Type: Parabolic
Connector Type: N - Female
Gain 27 dBi
VSWR: < 2.0
HPOL beamwidth: 9.5°
VPOL beamwidth: 9.0°
Return loss: 9.54 dB
ISO: 30 dB
F/B Radio: 30 dB
XPD: 30 dB
Polarization: Dual

Mechanical Specifications:
Wind resistance speed: 120 km/hr
Azimuth Adjustment: 360°
Elevation Adjustment: ±15°
Suggested mast diameter: 50 - 70, 100 - 114 mm
Operating Temperature: -45 to +60 ℃
Gross Weight: 6.5 kg
Net Weight: 5.5 kg

High-precision assembly, dual polarization, high noise isolation, electrostatic painting
