4ft High Performance Shielded Antenna, 4 3.3-3.9 GHz, 35 dBi Gain, N-Female Connectors.

4ft High Performance Shielded Antenna, 4 3.3-3.9 GHz, 35 dBi Gain, N-Female Connectors.

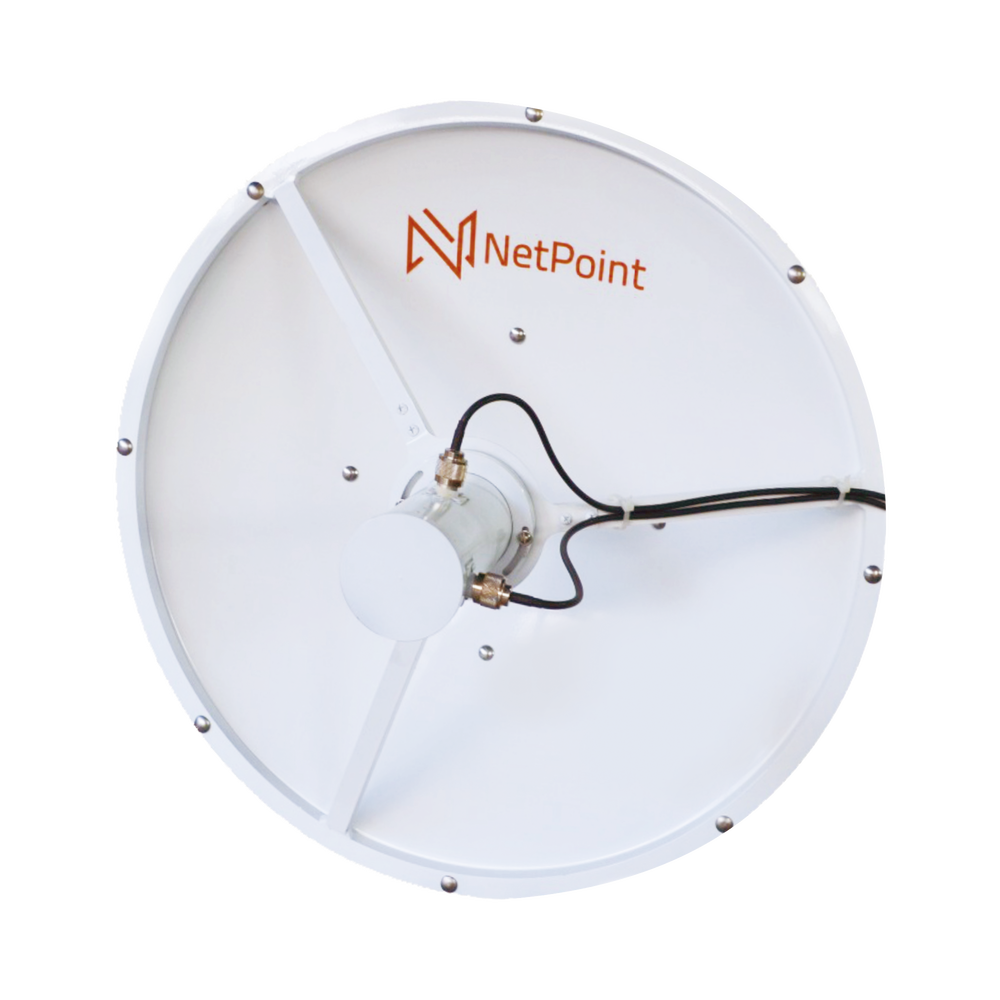

90cm Diameter Directional Antenna, 3.3-3.9 GHz 31 dBi for Point-to-Point applications.

Electrical Specifications:
Frequency Range: 3.3-3.9 GHz
Antenna Type: Parabolic
Connector Type: N - Female
Gain 31 dBi
VSWR: < 2.0
HPOL beamwidth: 5.0°
VPOL beamwidth: 4.8°
Return loss: 9.54 dB
ISO: 30 dB
F/B Radio: 38 dB
XPD: 30 dB
Polarization: Dual

Mechanical Specifications:
Wind resistance speed: 120 km/hr
Azimuth Adjustment: 360°
Elevation Adjustment: ±15°
Suggested mast diameter: 50 - 70, 100 - 114 mm
Operating Temperature: -45 to +60 ℃

High-precision assembly, electrostatic painting
