L3 manageable switch 16 gigabit ports w/PoE 802.3bt, 2 10G SFP+ ports with touch screen (400W)

L3 manageable switch 16 gigabit ports w/PoE 802.3bt, 2 10G SFP+ ports with touch screen (400W)

Incredible Ultra PoE managed switches with Layer 3 switching and security

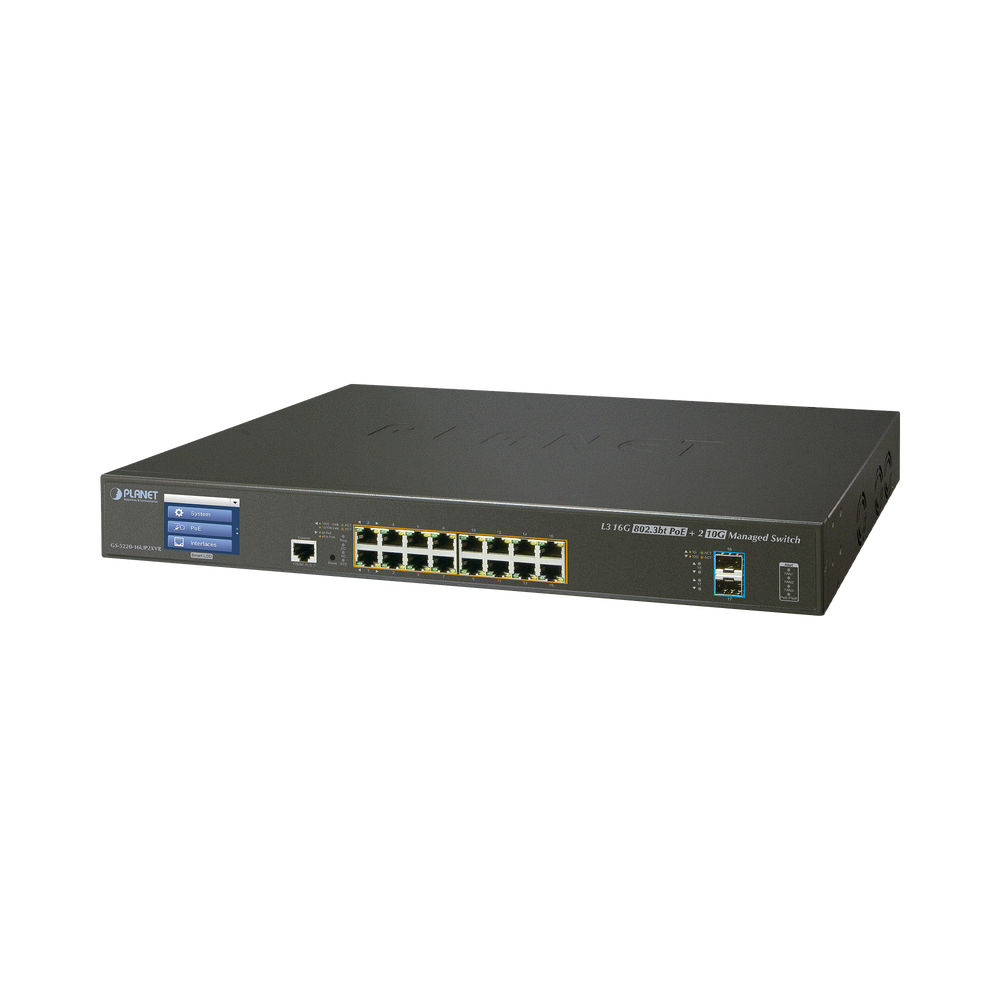

PLANET GS-5220-16UP2XV(R) Cost-optimized 1.25U Gigabit PoE Managed Switch PoE Series with LCD Touchscreen features PLANET ’s intelligent PoE features to improve the availability of critical business applications. They provide IPv6/IPv4 dual-stack management and built-in Layer 3 static routing Gigabit switching along with 16 x 10/100/1000BASE-T ports with 75 Watts Ultra PoE and an additional 2 x 10Gigabit SFP+ ports . With a total power budget up to 400 Watts for different kinds of PoE applications, the GS-5220-16UP2XV(R) PoE Series with LCD Touchscreen provides a fast, secure, and cost-effective PoE network solution for small businesses and enterprises.

Smart and intuitive LCD control

PLANET's unique smart LCD PoE switches feature an intuitive touchpad on the front panel for easy Ethernet and PoE PD management. They greatly improve management efficiency in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. They feature the following special management and status functions:

• IP address, VLAN and QoS settings
• PoE Management and Status
• Port management and status information / SFP
• Troubleshooting: Cable Diagnostics and Remote IP Ping
• Maintenance: Reset, Factory Defaults, and Save Settings

Convenient and intelligent ONVIF devices with detection function

PLANET has recently developed an amazing feature: ONVIF Support, which is specifically designed to cooperate with IP Video Surveillance. Since the GS-5220-16UP2XV(R) PoE series with the LCD touch screen GUI, customers only need one click to search and display all ONVIF devices through the network application. Moreover, customers can upload floor images to the series of switches, making it easier to deploy surveillance and other devices for planning and inspection purposes. In addition, customers can obtain real-time surveillance information and online/offline status. They allow PoE restart control from the GUI.

75 watts of power over 4-pair UTP

The GS-5220-16UP2XV(R) PoE series with LCD touchscreen featuring Ultra PoE adopts IEEE 802.3at/af standard. Instead of supplying power over 2-pair twisted UTP, either end-span (pins 1,2,3 and 6) or mid-span (pins 4,5,7 and 8), they provide the ability to generate up to 75 watts of power by using the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. They can offer more PoE applications, such as:

• PoE PTZ Speed ​​Dome
• Any network device that requires higher PoE power to operate normally
• Thin client
• AIO (All-in-One) Touch PC
• Remote digital signage display

Unique built-in PoE features for managing powered devices

As managed PoE switches for surveillance, wireless and VoIP networks, the GS-5220-16UP2XV(R) PoE series with LCD touch screen features the following special PoE management functions:

• Live PD Control
• Scheduled energy recycling
• PoE Schedule
• PoE Usage Monitoring

Active device testing with smart power

The GS-5220-16UP2XV(R) PoE series with LCD touch screen can be set to monitor the connected PD (powered device) status in real time via ping action. Once the PD stops working and responds, the GS-5220-16UP2XV(R) PoE series with LCD touch screen will resume power from the PoE port and bring the PD back to work. They will greatly improve the network reliability through the PoE port restoring the PD power supply and reducing the management burden of the administrator.

Scheduled energy recycling

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen allows each connected PoE IP camera or PoE wireless access point to reboot at a specific time each week. This will reduce the chance of the IP camera or AP crashing due to a buffer overflow.

PoE program for energy savings

Following the worldwide energy-saving trend and contributing to environmental protection, the GS-5220-16UP2XV(R) PoE series with LCD touch screen can effectively control the power supply in addition to its ability to provide high wattage output . The 'PoE Scheduling' function helps you enable or disable PoE power feeding for each PoE port during specific time intervals and is a powerful feature to help SMBs or enterprises save energy and money. It also increases security by shutting down PDs that should not be in use outside of business hours.

PoE Usage Monitoring

Through the power consumption table in the web management interface, the GS-5220-16UP2XV(R) PoE series with LCD touchscreen allows administrators to monitor the power usage status of connected PDs in real time. This greatly improves facility management efficiency.

Layer 3 routing support

The GS-5220-16UP2XV(R) PoE series with LCD touch screen enables the administrator to conveniently increase network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing, and OSPFv2 (Open Shortest Path First) settings. OSPF is an interior dynamic routing protocol for an autonomous system based on link state. The protocol builds a database for link state by exchanging link states between Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Cost-effective uplink capacity of 10 Gbps

10G Ethernet is a giant leap in the evolution of Ethernet. The two 10G SFP+ slots of the GS-5220-16UP2XV(R) PoE series with LCD touch screen support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX , which means the administrator can now flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the required transmission speed to extend the network efficiently. They greatly support the SMB network to achieve the maximum 10Gbps throughput cost-effectively.

Redundant AC/DC power supply to ensure continuous operation

The GS-5220-16UP2XVR is specially equipped with a 100~240V AC power supply unit and a 36~60V DC power supply unit to provide an enhanced, reliable, and scalable redundant power supply. The uninterruptible power system is specifically designed to meet the demands of high-tech installations requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-16UP2XVR can act as a telecom-grade device that can be located in the electronics room.

Smart, environmentally friendly fan design for quiet operation

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen features a 19-inch metal housing, low-noise design, and effective ventilation system. They support smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capacity. The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen is able to operate reliably, stably, and quietly in any environment without affecting its performance.

Solution for IPv6 networks

By supporting IPv6/IPv4 dual stack and rich management features with easy and friendly user interfaces, the GS-5220-16UP2XV(R) PoE series with LCD touch screen is the best choice for IP surveillance, VoIP and wireless service providers to deploy IPv6 network. It also helps SMBs enter the IPv6 era with the lowest investment and without having to replace network facilities, while ISPs build IPv6 FTTx edge network.

Robust Layer 2 features

The GS-5220-16UP2XV(R) PoE series with LCD touch screen can be programmed for advanced switch management features such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP) , Layer 2/4 QoS, bandwidth control, and IGMP/MLD snooping . The GS-5220-16UP2XV(R) PoE series with LCD touch screen can be programmed for advanced switch management features such as dynamic port link aggregation, Q-in-Q VLAN , Multiple Spanning Tree Protocol (MSTP) , Layer 2/4 QoS, bandwidth control, and IGMP/MLD snooping .
