• Switch Administrable Capa 3, 16 Puertos Gigabit con PoE 802.3bt, 2 Puertos 10 G SFP+, Pantalla Táctil (400 W)
1 3

PLANET

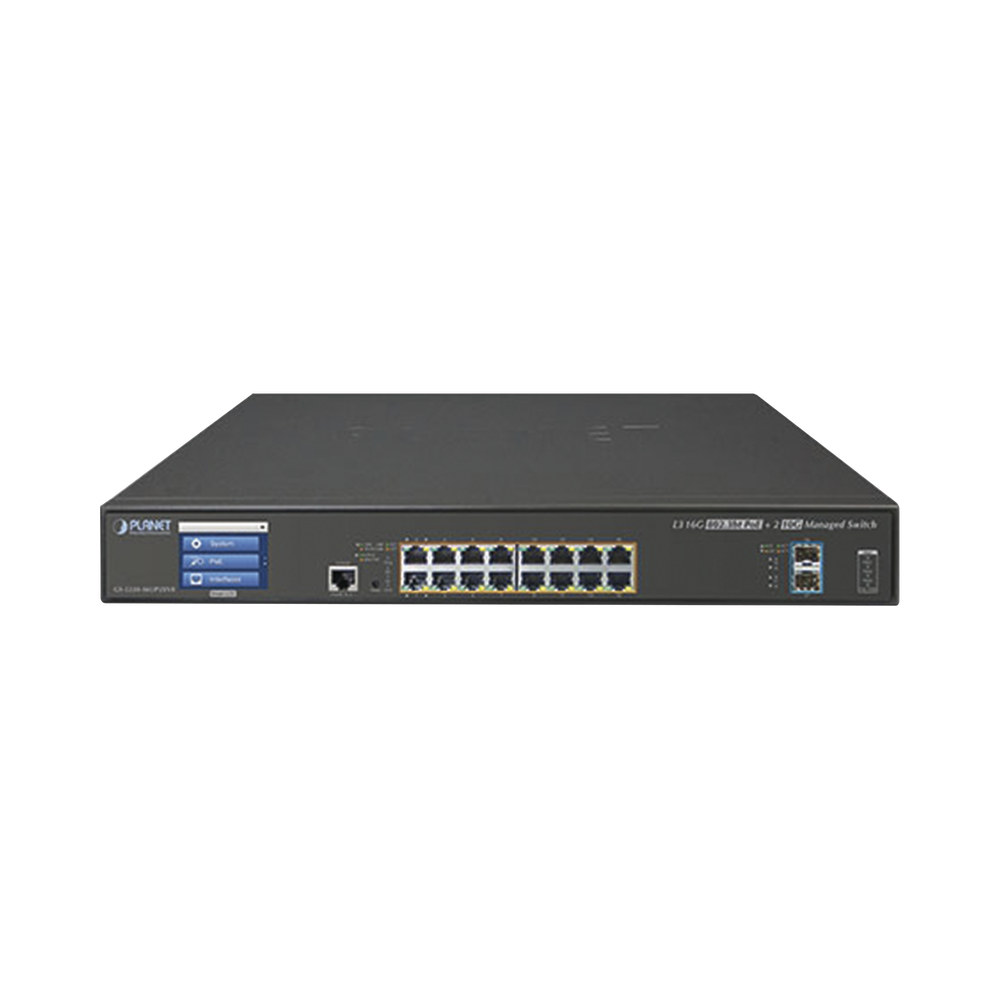

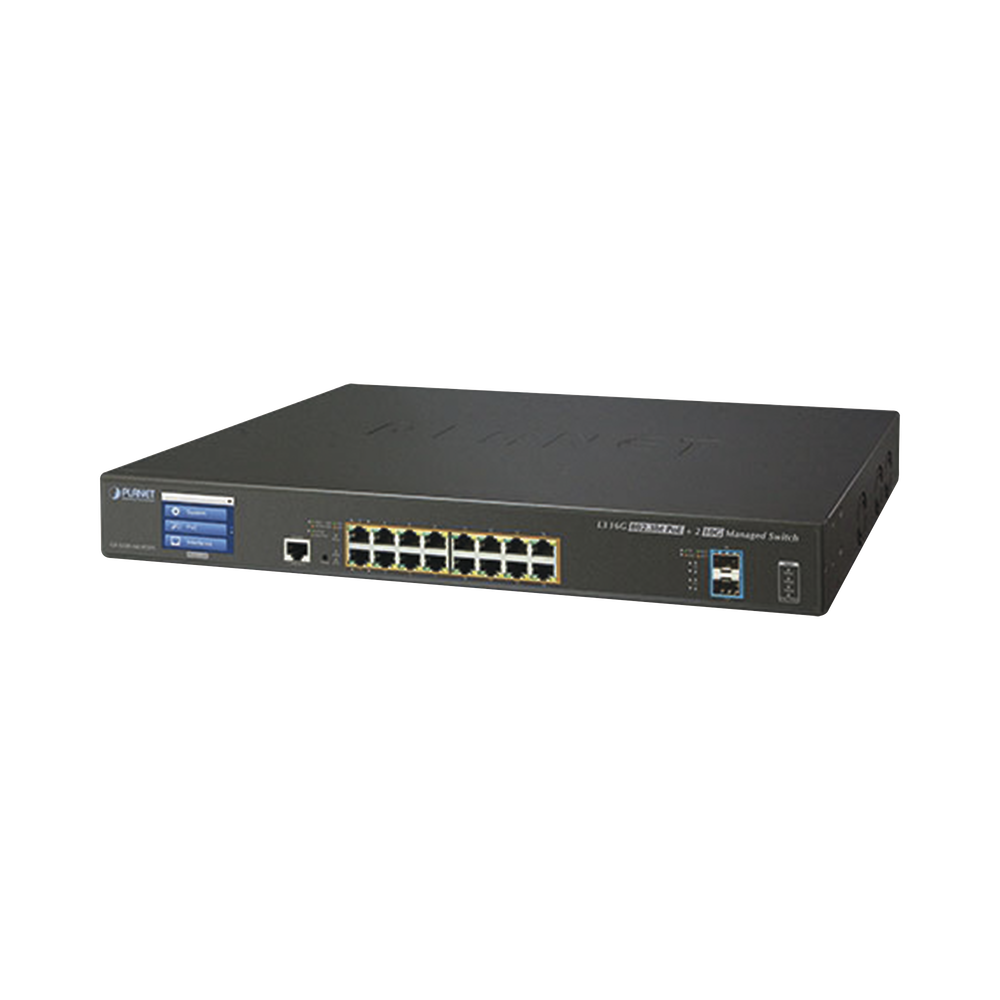

Layer 3 Managed Switch, 16 Gigabit Ports with 802.3bt PoE, 2 10G SFP+ Ports, Touchscreen (400W)

Layer 3 Managed Switch, 16 Gigabit Ports with 802.3bt PoE, 2 10G SFP+ Ports, Touchscreen (400W)

$5.035.539 COP
$5.507.621 COP $5.035.539 COP
Sale Sold out
Shipping calculated at checkout.

Layer 3 Managed Switch, 16 Gigabit Ports with 802.3bt PoE, 2 10G SFP+ Ports, Touchscreen (400W)



Smart and intuitive LCD control

  1. IP address, VLAN and QoS settings
  2. PoE Management and Status
  3. Port management and status information / SFP
  4. Troubleshooting: Cable Diagnostics and Remote IP Ping
  5. Maintenance: Reset, factory default settings.

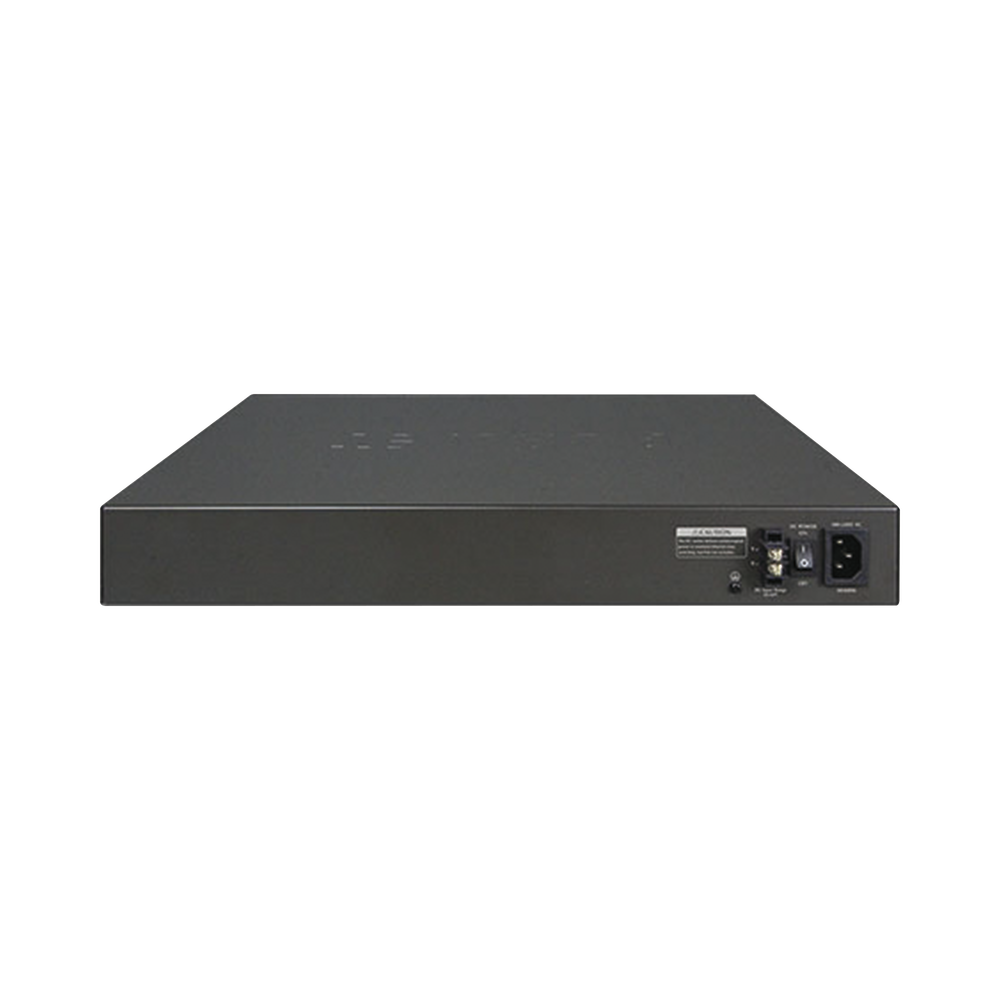

Redundant AC/DC power supply to ensure continuous operation, With intelligent fan design for quiet operation

ONVIF Device Detection .

75 Watts of power with 4-pair UTP

Active device testing with smart power

Scheduled restart

PoE scheduling for energy savings

Hardware specifications
Hardware version 2
SFP+ slots 2 10GBASE-SR/LR SFP+ interfaces (port 17 to port 18)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Copper ports 16 ports 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
Console 1 RS232 to RJ45 serial port (115200, 8, N, 1)
Performance 53.57Mpps@64Bytes
Dimensions 440 x 300 x 56 mm
Weight 4658 g
Energy consumption AC: Max. 468 Watts / 1569.88 BTU
DC: max. 36.6 Watts / 124.88 BTU
Power Requirements: AC AC 100~240V, 50/60Hz, 4.3A
Power Requirements: DC DC 36~60V, 2A
PoE Standard IEEE 802.3af / 802.3at / 802.3bt Ultra PoE PSE
PoE power supply type End-span/Mid-span/UPoE
PoE power output Per port 53 V DC, 75 Watts (max.)
PoE Power Budget 400 Watts (max.)
PoE PD capacity at 15 Watts 16 units
PoE PD capacity at 30 Watts 13 units.
PoE PD capacity at 60 Watts 6 units
Layer 2 management functions
Layer 3 Functions IP Interfaces, Routing Table, Routing Protocols
Basic management interfaces Console; Telnet; Web browser; SNMP v1, v2c; 2.4-inch color LCD touchscreen
Secure management interfaces SSH, SSL, SNMP v3
Operating temperature Temperature: 0 ~ 50 degrees C
Relative humidity: 5 ~ 95% (non-condensing)
Storage temperature Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 95% (non-condensing)
    400 watts (max.), Redundant power supply included, Supports end-span/mid-span, Touchscreen for basic management, PoE standard: IEEE 802.3af / 802.3at / 802.3bt

Out of stock

MODELO: GS-5220-16UP2XVR
