• Switch Administrable Capa 2+, 24 Puertos Gigabit 802.3bt, Hasta 600 W, 4 Puertos 10 G SFP+, Con Pantalla Táctil para Configuración Básica
1 2

PLANET

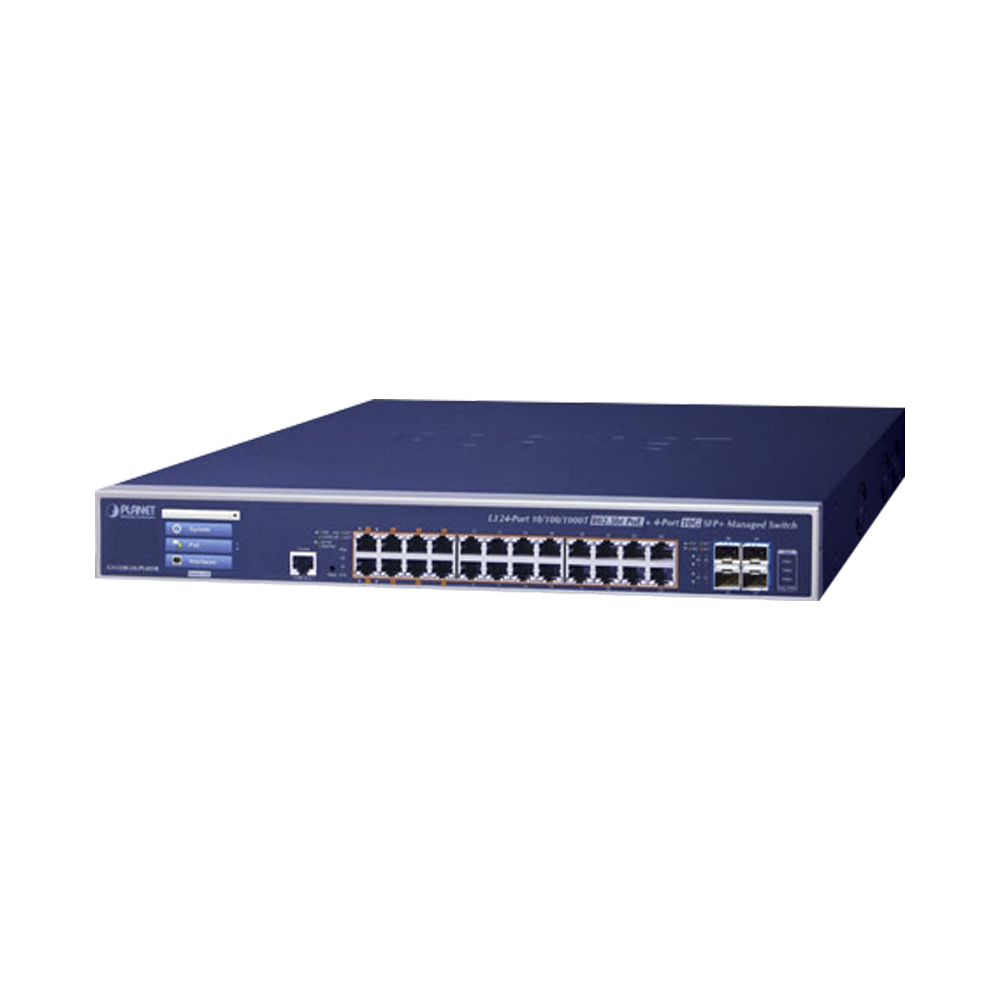

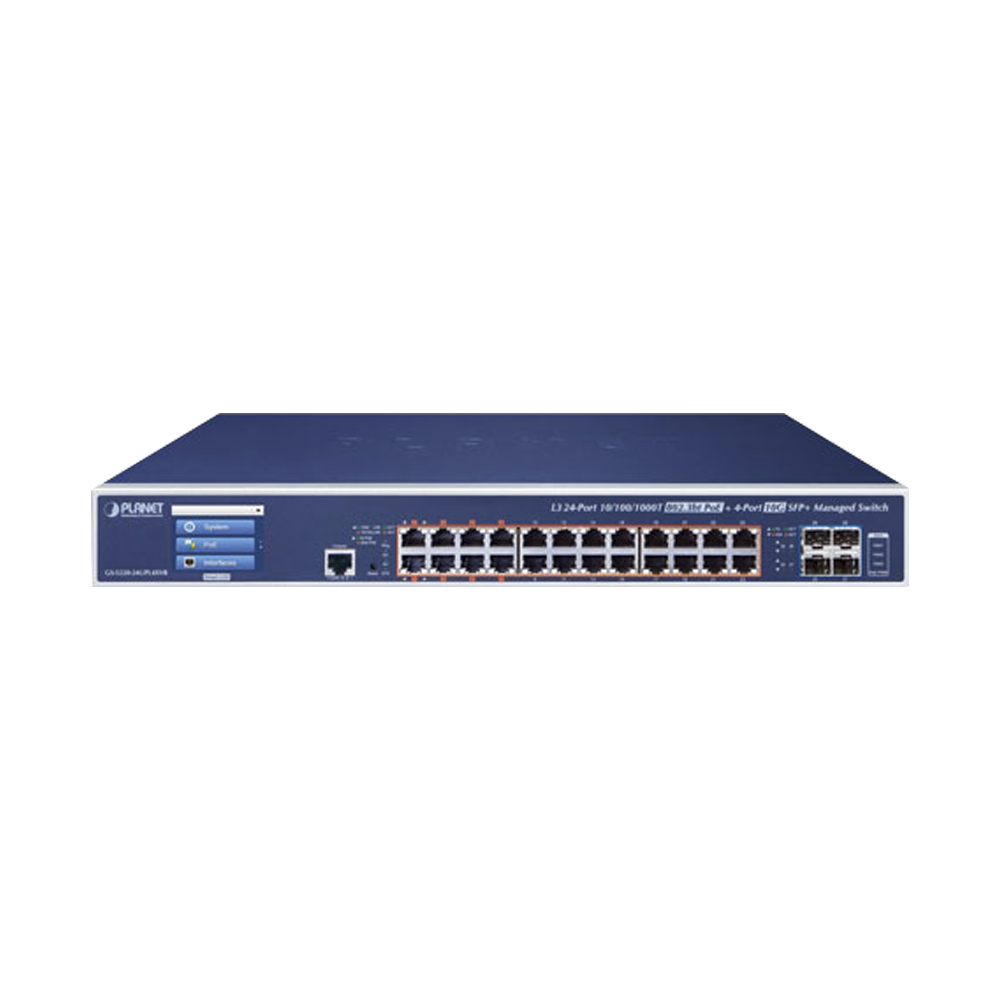

Layer 2+ Managed Switch, 24 802.3bt Gigabit Ports, Up to 600W, 4 10G SFP+ Ports, With Touchscreen for Basic Configuration

Layer 2+ Managed Switch, 24 802.3bt Gigabit Ports, Up to 600W, 4 10G SFP+ Ports, With Touchscreen for Basic Configuration

$6.950.795 COP
$6.794.150 COP $6.950.795 COP
Sale Sold out
Shipping calculated at checkout.

Layer 2+ Managed Switch, 24 802.3bt Gigabit Ports, Up to 600W, 4 10G SFP+ Ports, With Touchscreen for Basic Configuration

Redundant AC/DC power supply to ensure continuous operation

Smart and intuitive LCD control

System IP address, VLAN and QoS settings
PoE and status management
Port management, status, and SFP information
Troubleshooting: Cable Diagnostics and Remote IP Ping
Maintenance: Reset, Factory Default, and Save Settings



Supports ONVIF devices

75 Watts of power over 4-pair UTP

PoE scheduling for energy savings

Hardware Specifications
Copper ports 24 ports 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
SFP+ ports 4 10GBASE-SR/LR SFP+ interfaces (port 25 to port 28)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console 1 RS232 to RJ45 serial port (115200, 8, N, 1)
Dimensions 440 x 300 x 56 mm
Weight 5478g
Energy consumption Max. 740 Watts / 2538.94 BTU
Power Requirements: AC AC 100~240V, 50/60Hz, 8A
Power Requirements: DC DC 36~60V, 2A
PoE Standard 802.3bt PoE++ PSE
Backward compatible with IEEE 802.3af/802.3at PoE PSE
PoE power supply type 802.3bt
UPoE
End-span
Mid-span
PoE power 600 Watts (max.)
PoE PD capacity at 7 Watts 24 pcs.
PoE PD capacity at 15 Watts 20 units
PoE PD capacity at 30 Watts 10 units
Layer 3 Functions IP Interfaces (Max. 128 VLAN interfaces), Routing Table (Max. 128 routing entries), Routing Protocols (IPv4 OSPFv2, IPv4 Hardware Static Routing, IPv6)
Layer 2 management functions Port Configuration, Port Status, Port Mirroring, VLAN, Link Aggregation, Spanning Tree Protocol, QoS, IGMP Snooping, MLD Snooping, Bandwidth Control, RING, Access control list, Security, Network Access Control.
Basic management interfaces Console; Telnet; Web Browser; SNMP v1, v2c
Secure management interfaces SSHv2, TLSv1.2, SNMP v3
ONVIF Device detection
ONVIF Monitoring of ONVIF devices
Floor Map
Operating temperature Temperature: 0 ~ 50 degrees C
Relative humidity: 5 ~ 95% (non-condensing)
Storage temperature Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 95% (non-condensing)













    Supports IEEE802.3af/at/bt PoE, Up to 160m in extended mode, Fault tolerance and resilience, With redundant 36-60V DC power supply

Out of stock

MODELO: GS-5220-24UPL4XVR
