Powerful 802.3bt PoE managed switch with advanced L2+/L4 switching and security

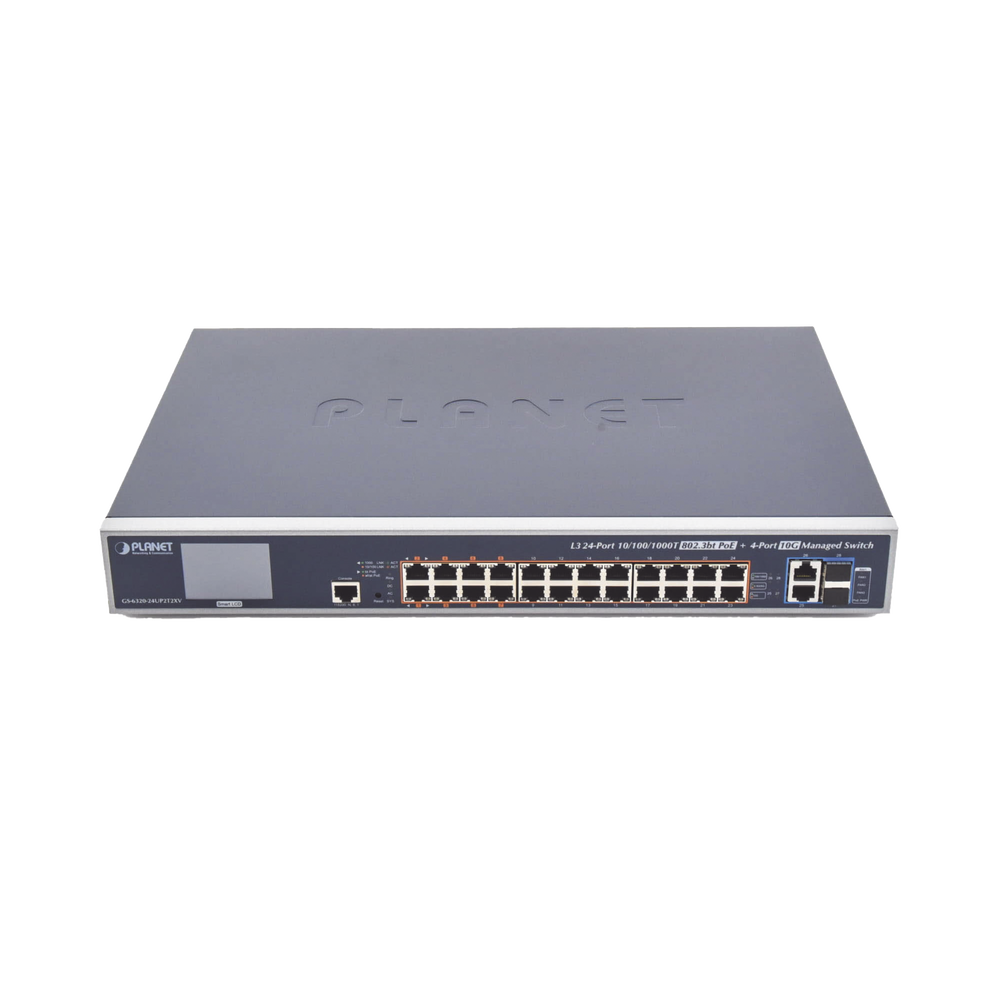

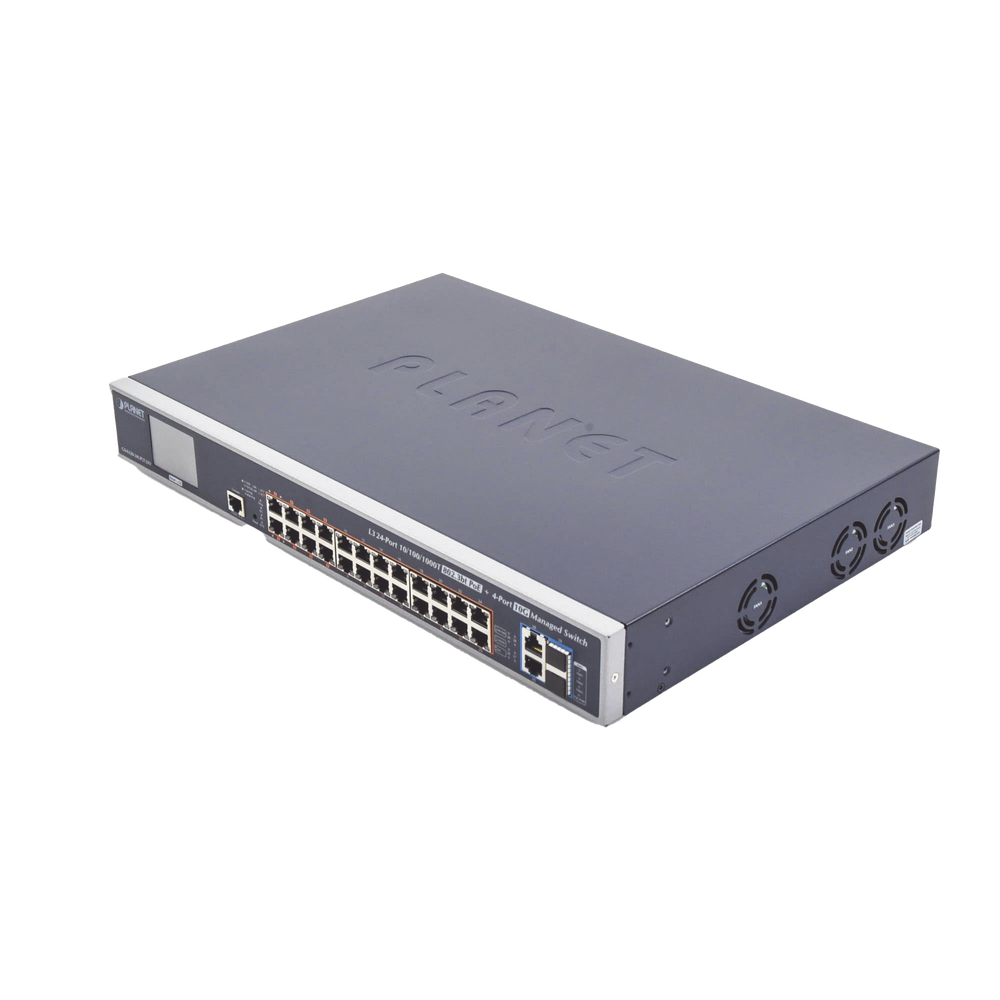

PLANET GS-6320-24UP2T2XV is a 1.25U LCD touchscreen Gigabit 802.3bt PoE managed switch , featuring cost optimization and PLANET ’s smart touch features to improve the availability of critical business applications. It provides IPv6/IPv4 dual-stack management and built-in Gigabit L2+/L4 switching engine along with 24 x 10/100/1000BASE-T 802.3bt PoE++ ports, 2 x 10GBASE-T RJ45 ports and an additional 2 x 10Gigabit SFP+ ports . With a total power budget up to 600 watts for different kinds of PoE applications, the GS-6320-24UP2T2XV provides a fast, secure, and cost-effective 802.3bt PoE network solution for small businesses and enterprises.

IEEE 802.3bt PoE Solutions

The GS-6320-24UP2T2XV supports the 802.3bt standard, delivering up to 95 watts per port for larger device requirements. It can support a variety of PoE applications, including:

• PoE PTZ speed dome cameras
• Any network device that requires higher PoE power to operate normally
• Thin client
• AIO (All-in-One) Touch PC
• Remote digital signage display

New color LCD touch screen

The unique Smart LCD PoE switch provides an intuitive touchpad on its front panel for easy Ethernet and PoE PD management. It greatly improves management efficiency in large-scale networks such as enterprises, hotels, shopping malls, government buildings, and other public areas. It features the following special management and status functions:

• IP address, VLAN and QoS settings
• PoE Management and Status
• Port management and status information / SFP
• Troubleshooting: Cable Diagnostics and Remote IP Ping
• Maintenance: Reset, Factory Defaults, and Save Settings

High-performance Ethernet capacity at 10 Gbps

The GS-6320-24UP2T2XV delivers wire-speed packet transfer performance without the risk of packet loss. The device’s high data throughput makes it ideal for most Gigabit environments. With a 20 Gbps internal fabric and auto-negotiation support on its 10 Gigabit port, the GS-6320-24UP2T2XV can handle extremely large amounts of data transmission in a secure topology that links to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

Convenient and intelligent ONVIF devices with detection function

PLANET has recently developed an amazing feature: ONVIF Support, which is specifically designed to cooperate with IP Video Surveillance. From the GS-6320-24UP2T2XV GUI, customers only need one click to search and display all ONVIF devices through the network application. In addition, customers can upload floor images to a switch and it allows you to deploy any surveillance device for easy inspection and planning. In addition, customers can obtain real-time surveillance information and online/offline status, and it also allows PoE restart control from the GUI.

Unique built-in PoE features for managing powered devices

As a managed PoE switch for surveillance, wireless, and VoIP networks, the GS-6320-24UP2T2XV features the following special PoE management functions:

• Live PD Control
• Scheduled energy recycling
• PoE Schedule
• PoE Usage Monitoring

Active device testing with smart power

The GS-6320-24UP2T2XV can be configured to monitor the status of the connected PD (powered device) in real time via ping action. Once the PD stops working and responds, the GS-6320-24UP2T2XV will resume powering the PoE port and bring the PD back to work. It will greatly improve network reliability through the PoE port restoring the PD's power supply and reducing the administrator's management burden.

Scheduled energy recycling

The GS-6320-24UP2T2XV allows each connected PoE IP camera or PoE wireless access point to reboot at a specific time each week. This will reduce the possibility of the IP camera or AP crashing due to a buffer overflow.

PoE program for energy savings

In line with the global energy-saving trend and contributing to environmental protection, the GS-6320-24UP2T2XV can effectively control power supply in addition to its ability to deliver high wattage. The "PoE Scheduling" feature helps you enable or disable PoE power supply for each PoE port during specific time intervals and is a powerful feature to help SMBs or businesses save energy and money. It also increases security by shutting down PDs that should not be in use outside of business hours.

PoE Usage Monitoring

Through the energy usage table in the web management interface, the GS-6320-24UP2T2XV allows administrators to monitor the power usage status of connected PDs in real time. This greatly improves facility management efficiency.

Cost-effective uplink capacity of 10 Gbps

10G Ethernet is a giant leap in the evolution of Ethernet. The GS-6320-24UP2T2XV’s two 10G SFP+ slots support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX , which means the administrator can now flexibly choose the suitable SFP/SFP+ transceiver according to the required transmission distance or transmission speed to extend the network efficiently. They greatly support SMB network to achieve maximum 10Gbps throughput in a cost-effective way because 10GbE interface could usually be available on Layer 3 switch, but Layer 3 switch might be too expensive for SMBs.

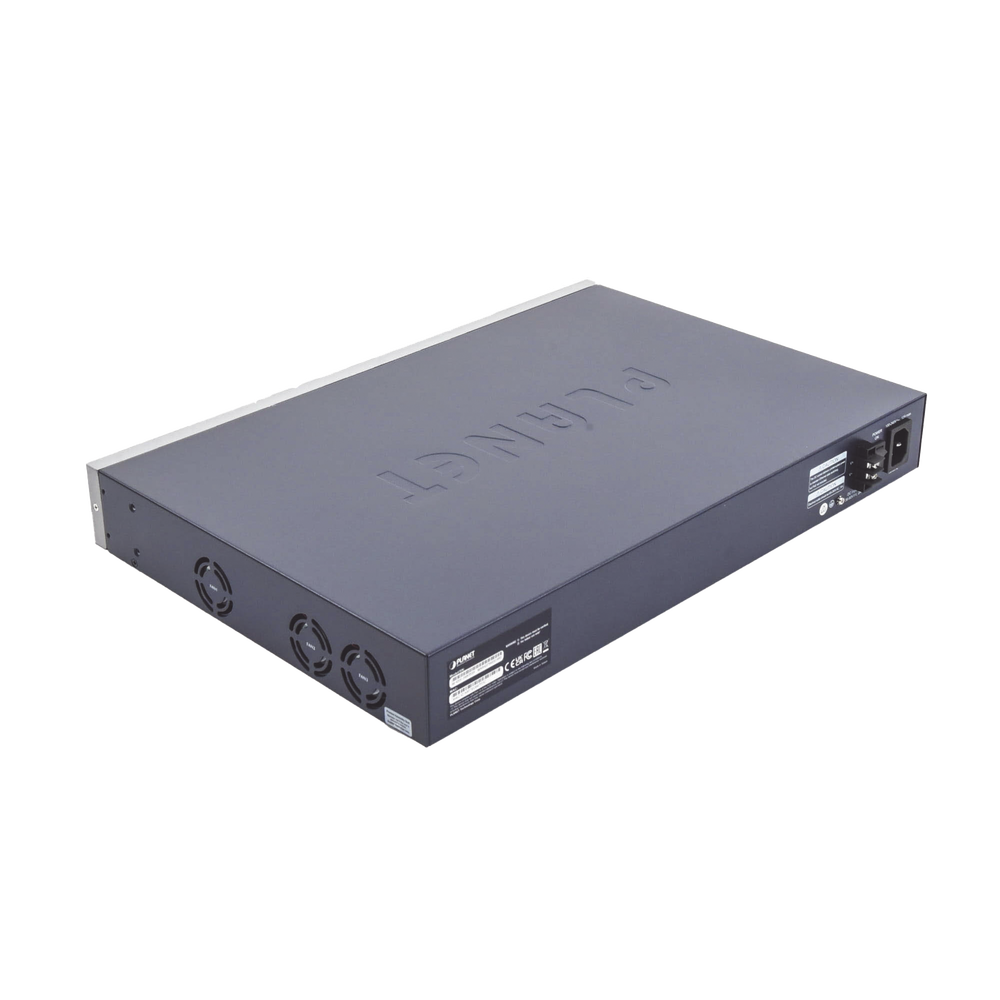

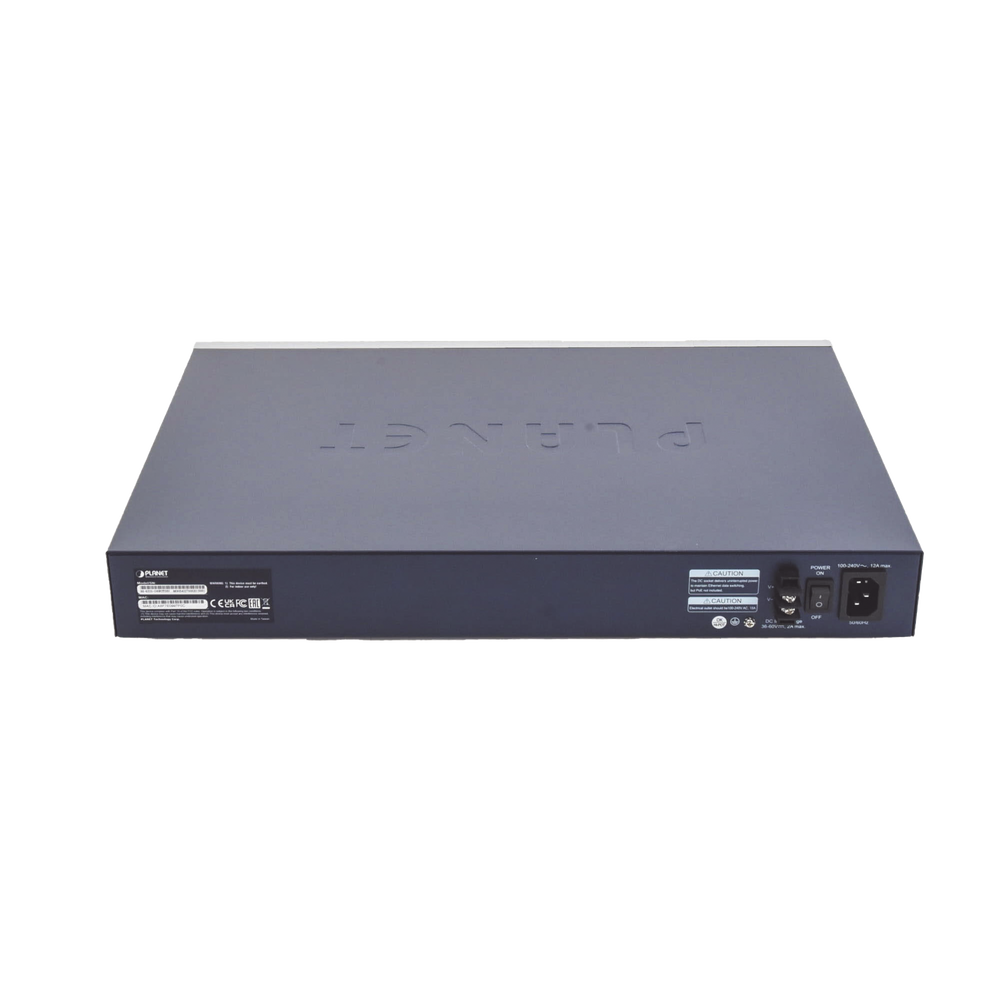

Redundant AC/DC power supply to ensure continuous operation

The GS-6320-24UP2T2XV is specially equipped with a 100~240V AC power supply unit and a 36~60V DC power supply unit to provide an enhanced, reliable, and scalable redundant power supply. The uninterruptible power system is specifically designed to meet the demands of high-tech installations requiring the highest power integrity. With the 36~60V DC power supply, the GS-6320-24UP2T2XV can act as a telecom-grade device that can be located in the electronics room.

Smart, environmentally friendly fan design for quiet operation

The GS-6320-24UP2T2XV features a 19-inch metal housing, a quiet design, and an effective ventilation system. It supports smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capacity. The GS-6320-24UP2T2XV can operate reliably, stably, and quietly in any environment without compromising its performance.

Solution for IPv6 networks

By supporting dual-stack IPv6/IPv4 and extensive management features with easy-to-use user interfaces, the GS-6320-24UP2T2XV is the ideal choice for IP surveillance, VoIP, and wireless service providers to deploy IPv6 networks. It also helps SMEs enter the IPv6 era with minimal investment, eliminating the need to replace network infrastructure, while ISPs build IPv6 FTTx edge networks.

IPv4 and IPv6 VLAN routing for secure and flexible management

To help customers stay on top of their business, the GS-6320-24UP2T2XV not only provides ultra-high transmission performance and excellent Layer 2 technologies, but also offers IPv4/IPv6 VLAN routing function which allows to cross different VLANs and different IP addresses for the purpose of having highly secure, flexible management and simpler network application.

Robust Layer 2 features

The GS-6320-24UP2T2XV can be programmed for advanced switch management features such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP) , Layer 2/4 QoS, bandwidth control, and IGMP/MLD snooping . The GS-6320-24UP2T2XV enables high-speed trunk operation combining multiple ports. It consists of a maximum of 14 trunk groups with 4 ports for each group, and also supports connection failover.
