HD Intercom and SIP Access Control Panel

About the GSC3570

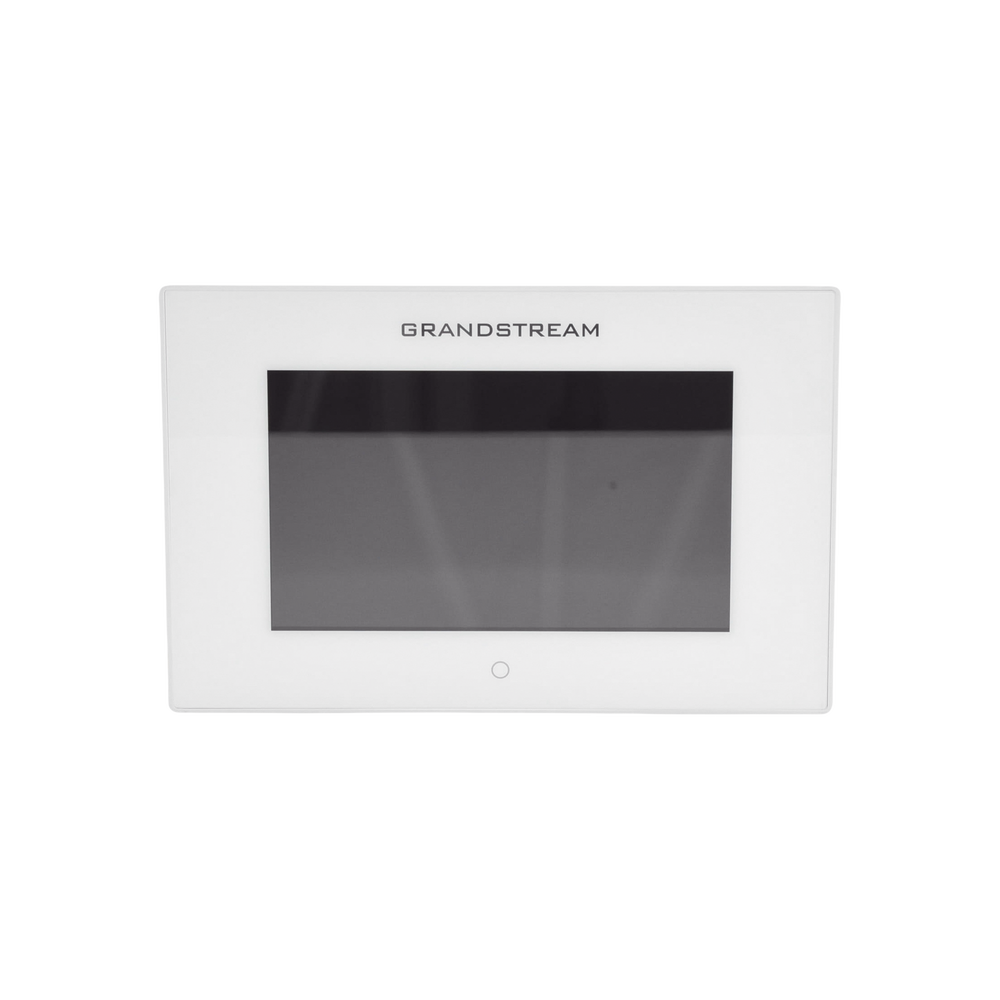

The GSC3570 is a powerful intercom and facility control station designed to provide businesses with a dedicated device for managing facility communications, door access, physical security, and more. This device can be wall-mounted or placed on a desktop as a solution for easy door control, intercom and paging communication, security camera management, and UC integration. The GSC3570 features a 7-inch LCD touchscreen and two-way full-duplex HD audio.

Competitive Features

7-inch 1024x600 capacitive touchscreen
Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac
4 alarm input ports and 1 alarm output port for custom implementations
2-way full-duplex HD audio with advanced echo cancellation
Supports PoE to provide a network connection to the device
4 SIP accounts/lines

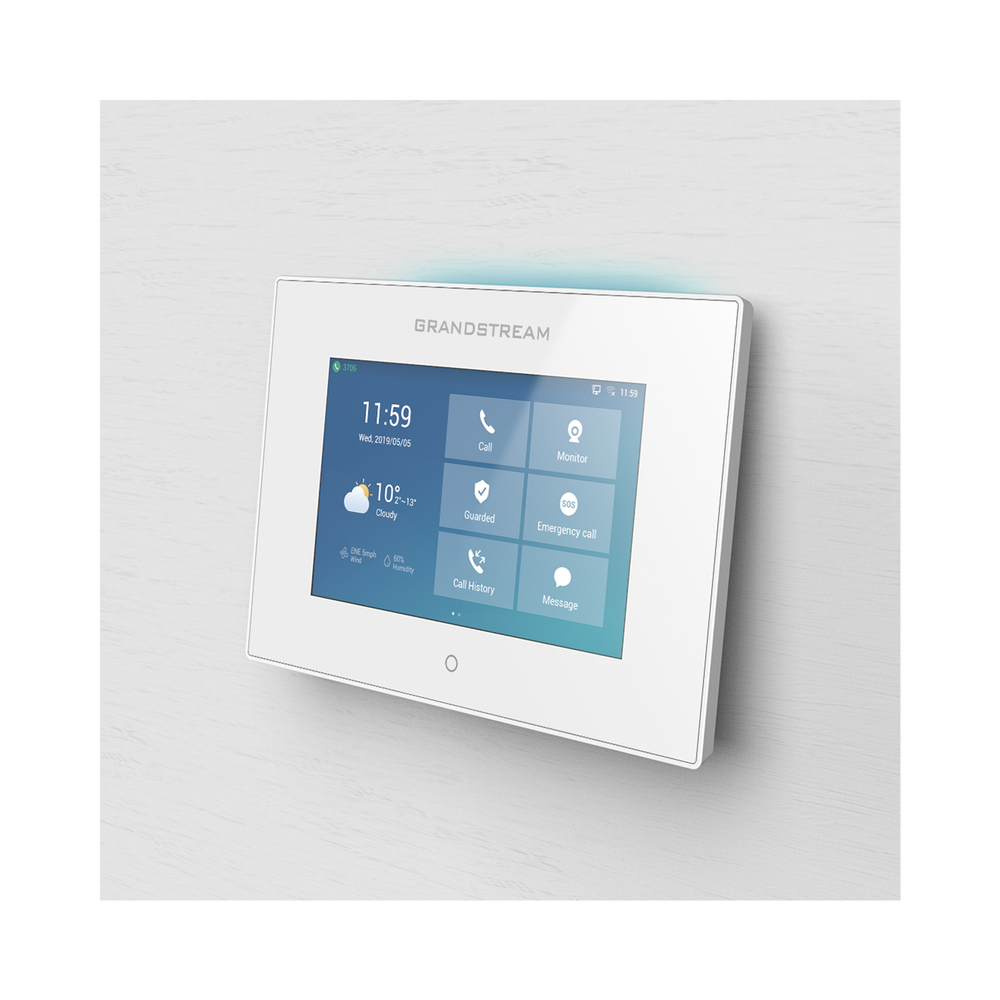

Can be wall mounted or placed on a desk

Access control systems.

Integration with GDS series devices allows the GSC3570 to answer incoming audio and video calls from users requesting access to a facility.
The GSC3570 can view GDS video streams, make two-way calls, and a push of a button activates a GDS3700 series device to unlock an electric deadbolt.

Communication and Security

The GSC3570 HD intercom and facility control station allows businesses to manage facility communications, door access, physical security, and more with a dedicated device, all in one.

Intercom and PA: Call and page custom groups of devices and endpoints in a facility with the touch of a button
Alarm Inputs and Outputs: 4 alarm input ports and 1x alarm output port for custom security triggers
Facility Access Control: Pair with GDS3700 Series electric door locks and facility access systems for a complete facility access solution

Access control

Terminals located throughout a building can be used to monitor and manage a facility

IP Surveillance: GSC3570 can be used to monitor up to 4 active IP security devices
Alarm and Facility Access: Customize deployments with facility access and active monitoring upon alarm activation, all from the GSC3570
Alarm Output : Triggers custom security events such as audio-visual alarms or opening an electric door lock from the GSC3570
Alarm input (passive and active): A variety of security events can trigger a response in the GSC3570, such as a motion capture that automatically displays a security feed from an IP camera.

Technical specifications

Network Interfaces	Dual 10/100Mbps switching ports
Screen	7'' 1024×600 Capacitive TFT LCD Touch Screen with Home Key
Wi-Fi	Yes, dual band 802.11a/b/g/n/ac (2.4GHz & 5GHz)
HD Audio	Yes, dual speakers with support for stereo wideband audio and media playback, echo cancellation
Telephony Features	4 SIP accounts, hold, call waiting, call log, auto answer, etc.
Auxiliary Ports	4 x alarm input, 1 x alarm output, Micro SD card slot
Security	Secure boot and data, dual images for high reliability, random administrator password, user and administrator level passwords, MD5 and MD5-sess based authentication, secure configuration file based on 256-bit AES, SRTP, TLS, 802.1x media access control

7" capacitive touchscreen, 1024*600 pixel resolution, dual-band 802.11 ac WiFi, supports PoE to provide a network connection to the device
