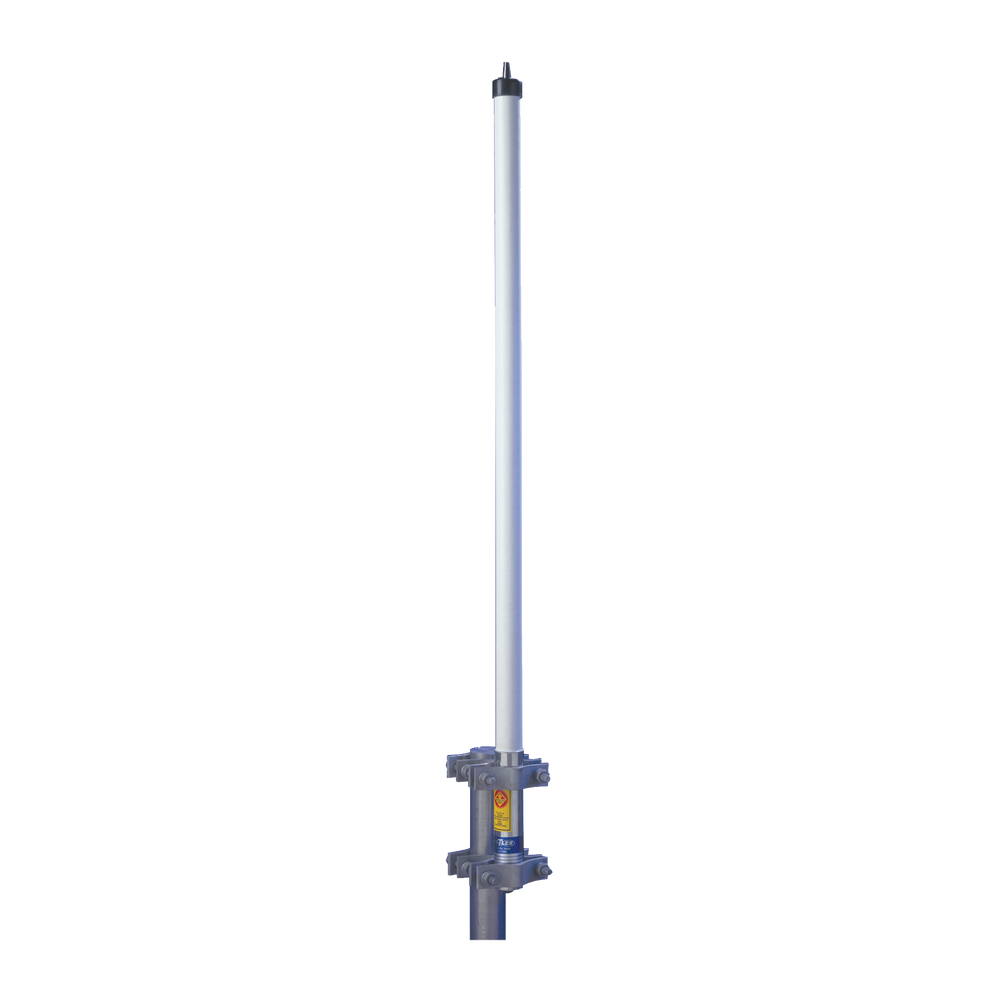

VHF 165-174 MHz Fiberglass Base Antenna, 6 dB Gain, HX Series for Extreme Climates

VHF 165-174 MHz Fiberglass Base Antenna, 6 dB Gain, HX Series for Extreme Climates

Hustler's Spirit series antennas are designed to meet the most demanding requirements for professional communications systems. These antennas feature a fiberglass jacket, providing a superior advantage over antennas with exposed elements, providing equal or better electrical performance and high resistance to lightning, ice, water, and wind.
If you've had problems with lightning in the past, these antennas are the solution.

HX Series Extreme version , for harsh environments, remote locations and installation on high towers.

• Radiators and feed line : Constructed with copper alloy and soldered to reduce the intermodulation effect.
• Weatherproof , they feature a sealed “n” connector, gaskets and plugs that allow drainage in a vertical or inverted position.
• Lightning protection : They have a lightning rod at the top of the antenna connected to a copper line that runs through the antenna to ground it to its support structure.

Specs

• Frequency Range: 165-174 MHz.
• Gain: 6 dB.
• Bandwidth: 10 MHz.
• Power: 700 Watts.
• Connector: N Female.
• Length: 6.1 m.
• Wind resistance: 241 km/h.

• Includes set of 2 model 8527 clamps for mounting on diameters of 1-1/2' to 3-1/4'.
• For side mounting on towers, use SMK150HX mount (Not included)

High Wind Resistance (241 km/h), 700W Power, High Gain, 6 dB
