Access point, 2.4 GHz, 300 Mbps, 2 external omnidirectional antennas, 1 10/100 Mbps WAN port

Access point, 2.4 GHz, 300 Mbps, 2 external omnidirectional antennas, 1 10/100 Mbps WAN port

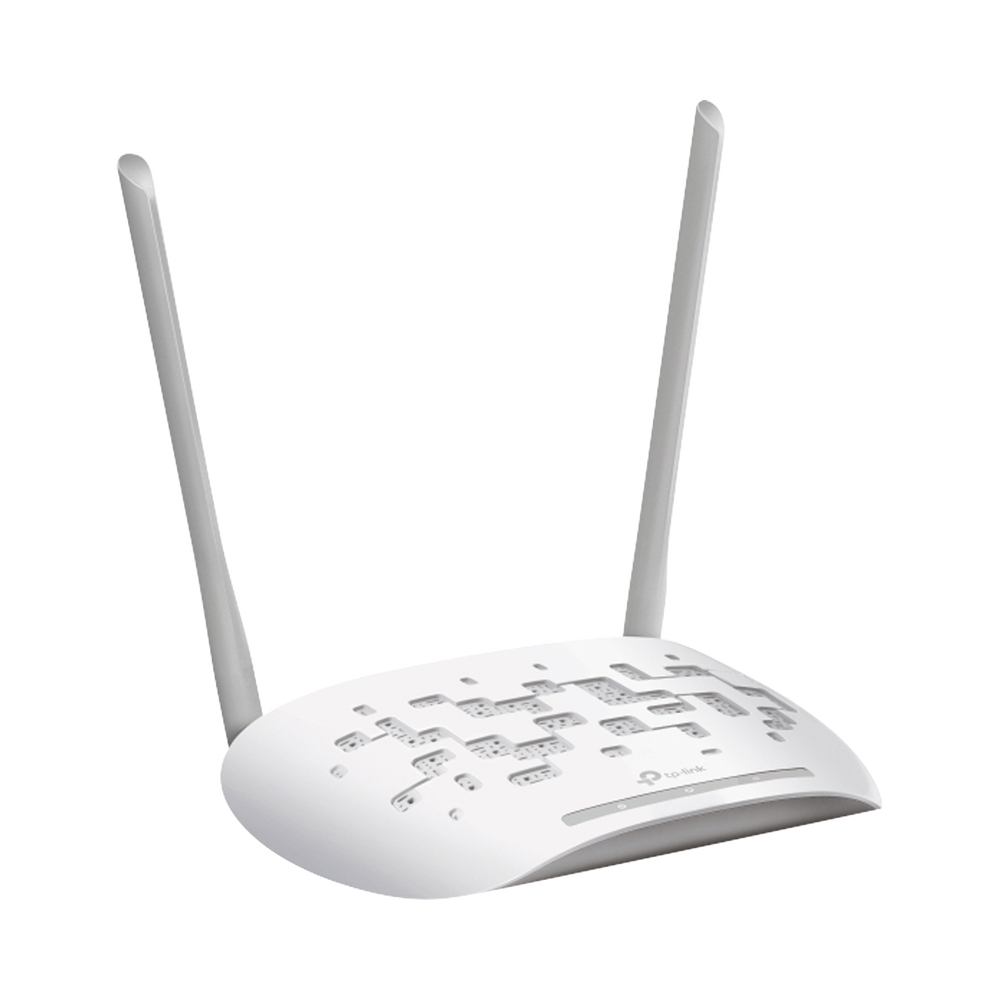

The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as gaming consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a variety of different features that make your wireless networking experience more flexible than ever. Now, you can enjoy a better internet experience when downloading, gaming, streaming video, or any other application you want to use.

• 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
• Supports multiple operating modes: Access Point, Multiple SSID, Client, and Range Extender modes
• Protect your home network with WPA2 encryption and make a quick connection at the touch of a button
• Flexible deployment up to 30 meters (100 feet) with included passive Power over Ethernet injector

Characteristics

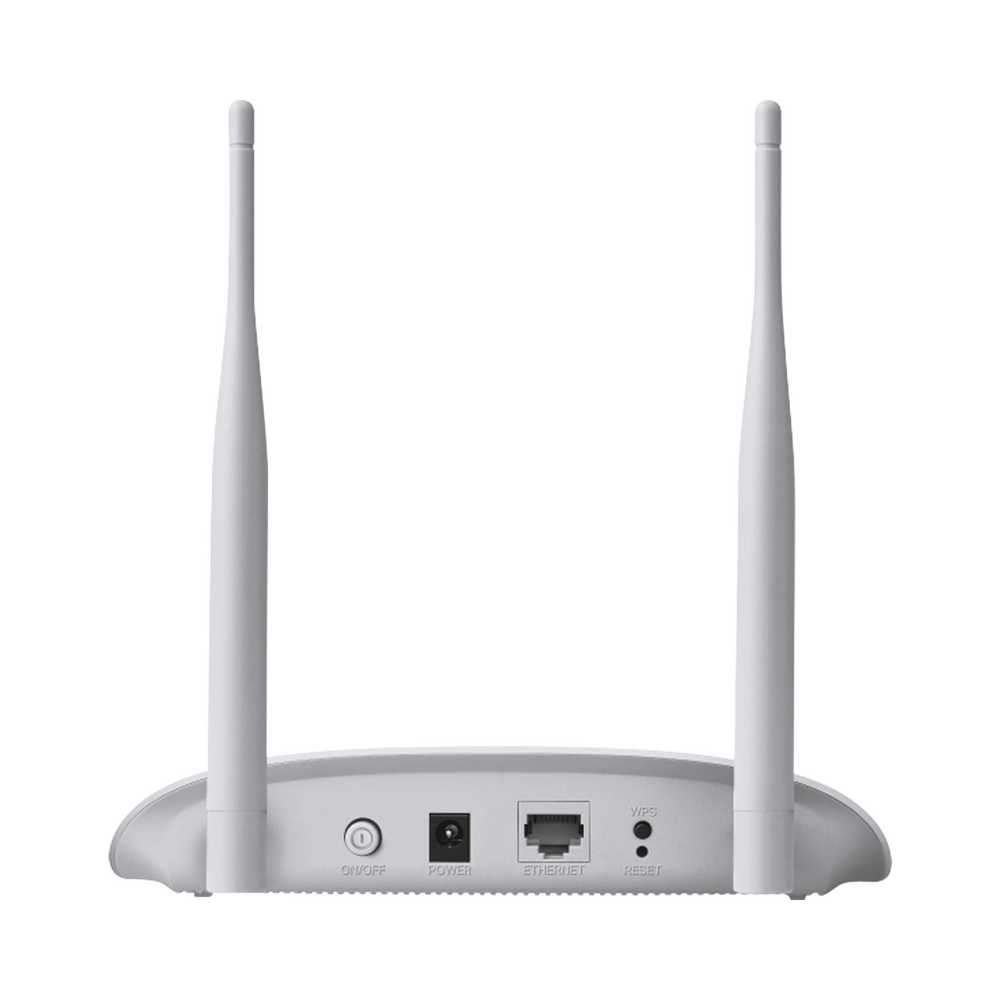

• One 10/100 Mbps Ethernet port (RJ45)
• Support for passive PoE
• Frequency 2.4-2.4835GHz
• Transmitting Power <20dBm(EIRP)
• Wireless Modes Access Point/Multiple SSIDs/Access Point Client/Repeater/
• Universal repeater/bridge+access point
• Advanced Features PoE support up to 30 meters

Physical and electrical characteristics

• Dimensions 7.1 × 5.1 × 1.4 inches (181.6 × 129.5 × 36.2 mm)
• External Power Supply 9VDC / 0.6A
• 2 omnidirectional antennas.
• Operating temperature: 0℃~40℃ (32℃~104℃)
• Storage temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
• Operating humidity: 10% ~ 90% non-condensing
• Storage humidity: 5% ~ 90% non-condensing

Includes

• Wireless Access Point TL-WA801N
• Power supply
• PoE power injector
• Resource CD
• Quick Installation Guide
