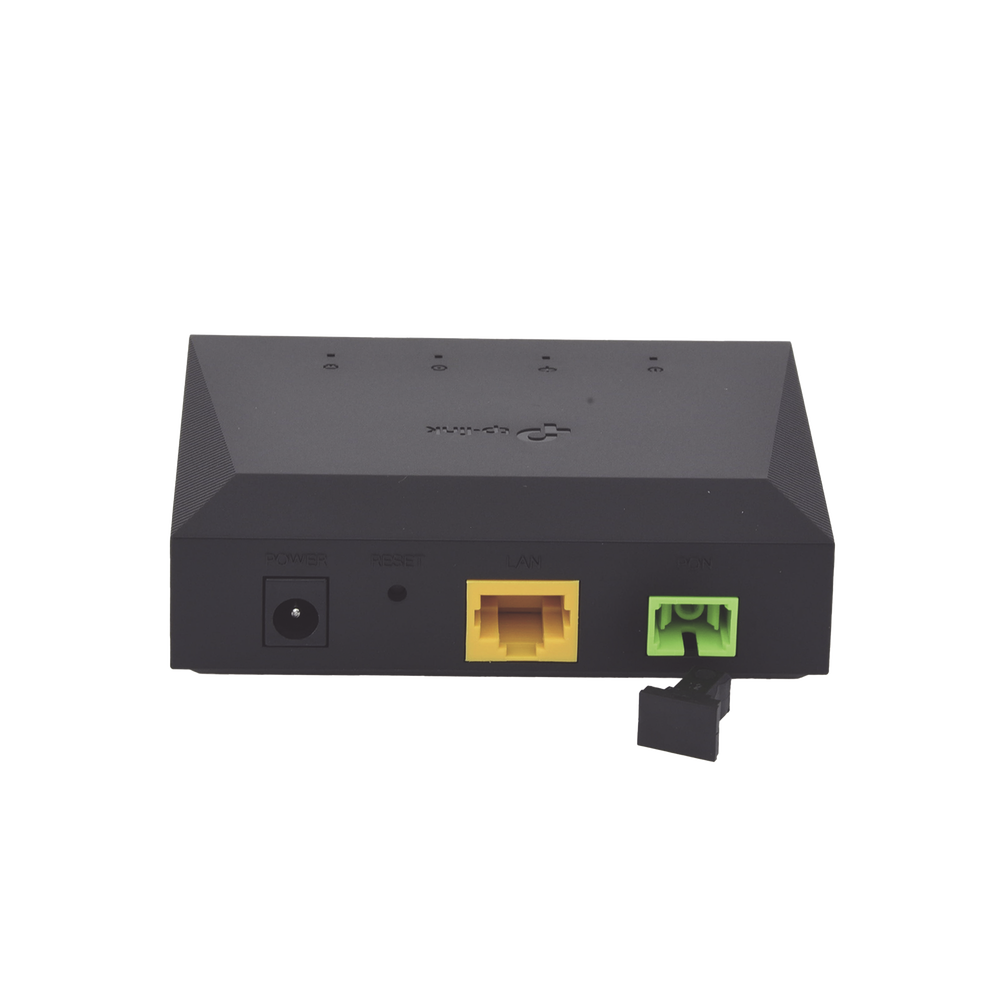

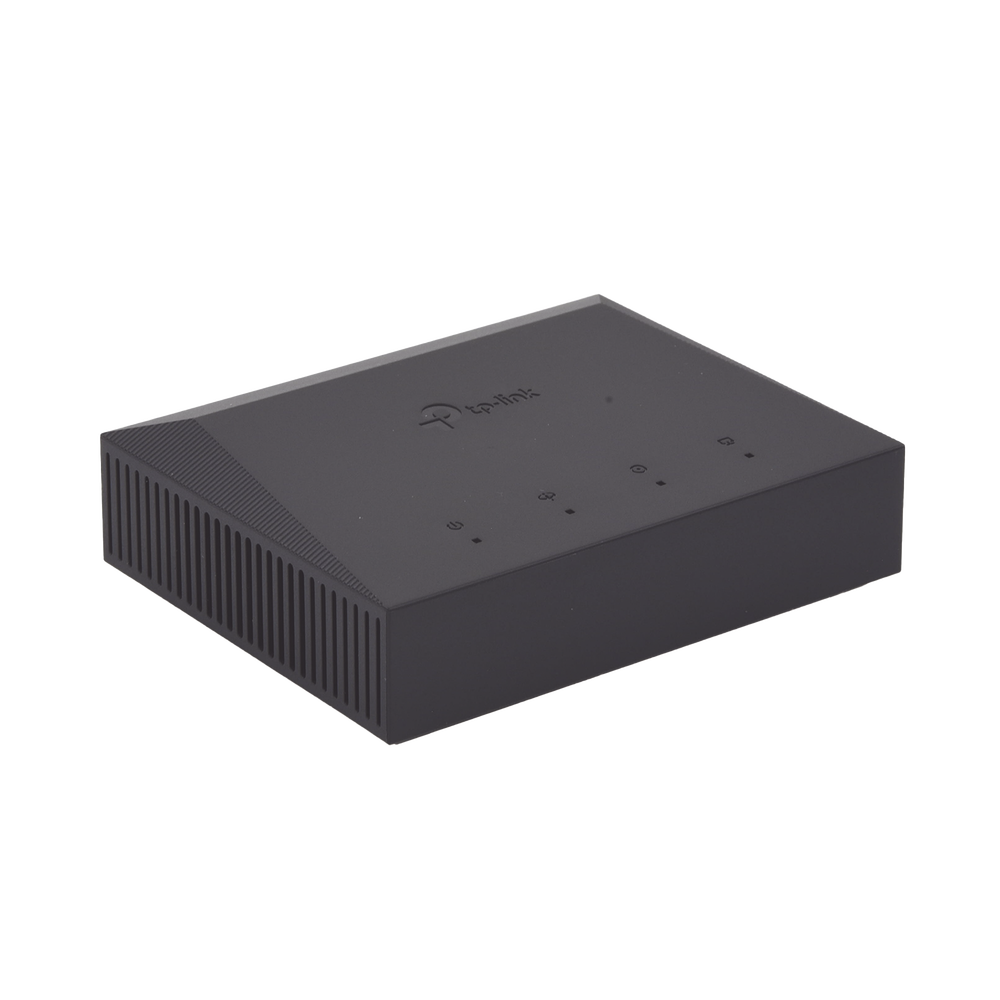

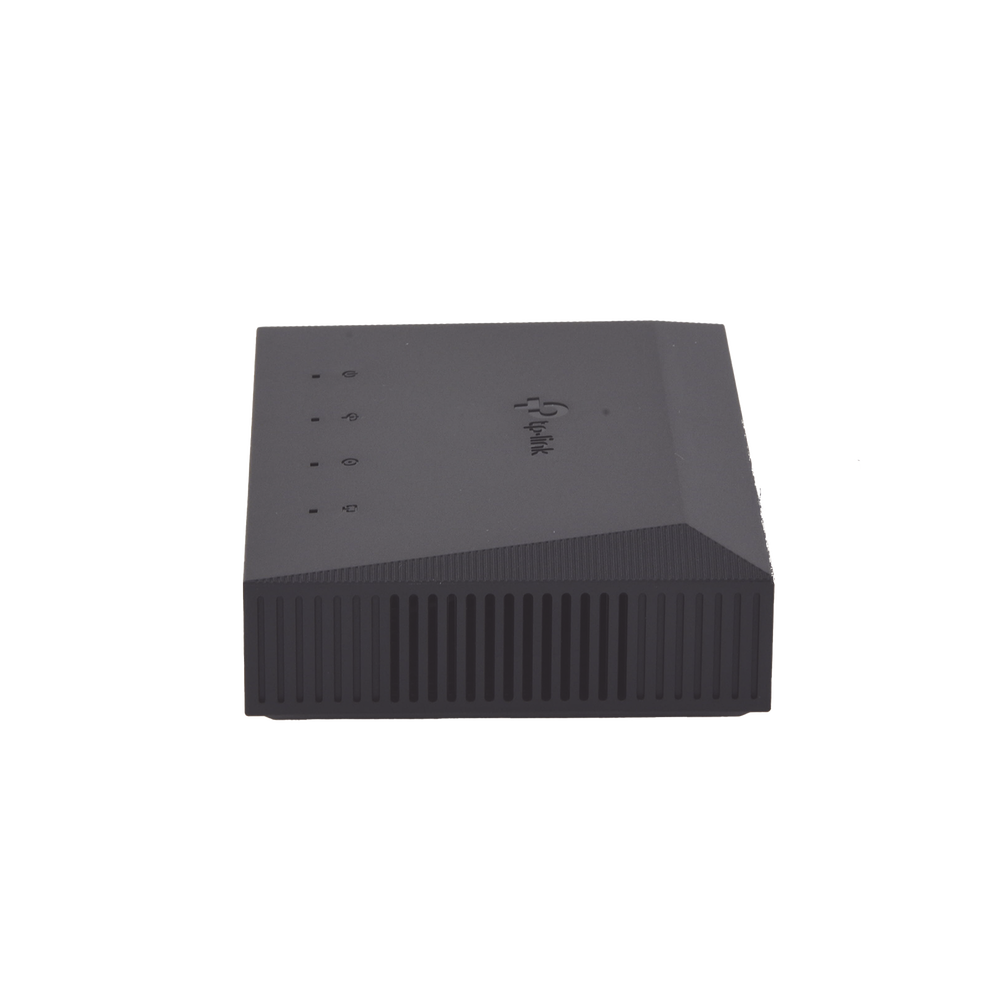

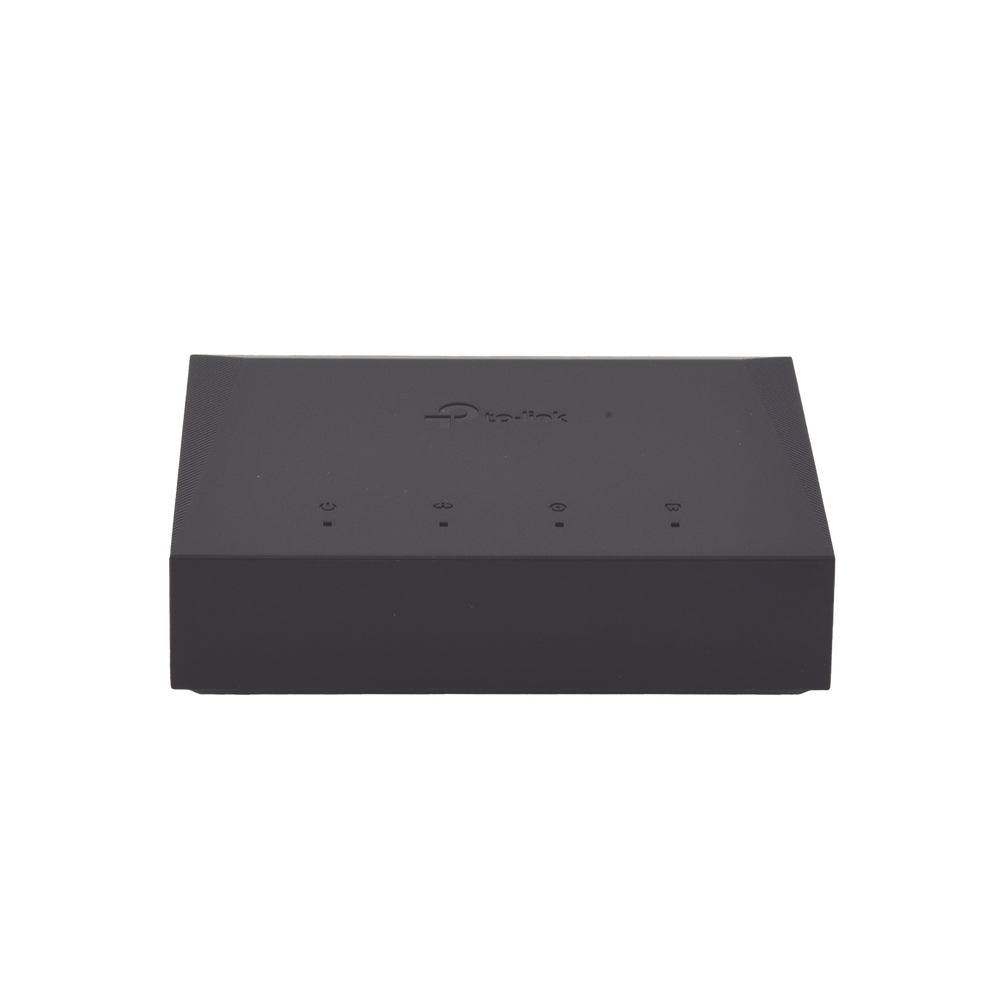

GPON Optical Network Unit (ONU) with 1 RJ45 10/100/1000 Mbps port, 1 GPON SFP port SC/APC connector

GPON Optical Network Unit (ONU) with 1 RJ45 10/100/1000 Mbps port, 1 GPON SFP port SC/APC connector

• Quality of Service: Quality of service control for transaction prioritization and bandwidth management
• Intelligent energy saving method and durability
• The Easy Remote Management-TR-069 protocol allows an operator to remotely configure and manage end-user devices.
• Full Gigabit Port: Fiber access and Gigabit port provide incredibly fast transfer speeds

Characteristics

• Interface: 1 RJ45 10/100/1000Mbps port, 1 SC/APC port
• Button: 1 RESET button
• IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
• Data transfer rates: Upstream: 1.244Gbps, Downstream: 2.488Gbps
• Distance: 0 ~ 20 km max
• GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
• Optical module: Class B+
• Receiver: Super-TIA
• Transmitter: DFB Laser
• Wavelength: 1310nm, 1490nm

Physical and electrical characteristics

• External Power Supply 9VDC/0.6A
• Dimensions (WxDxH) 3.7 x 3.0 x 1.2 inches (95.0 x 75.0 x 29.3 mm)

Includes

• XZ000-G3
• RJ-45 Ethernet Cable
• Quick Installation Guide
• Power Adapter
