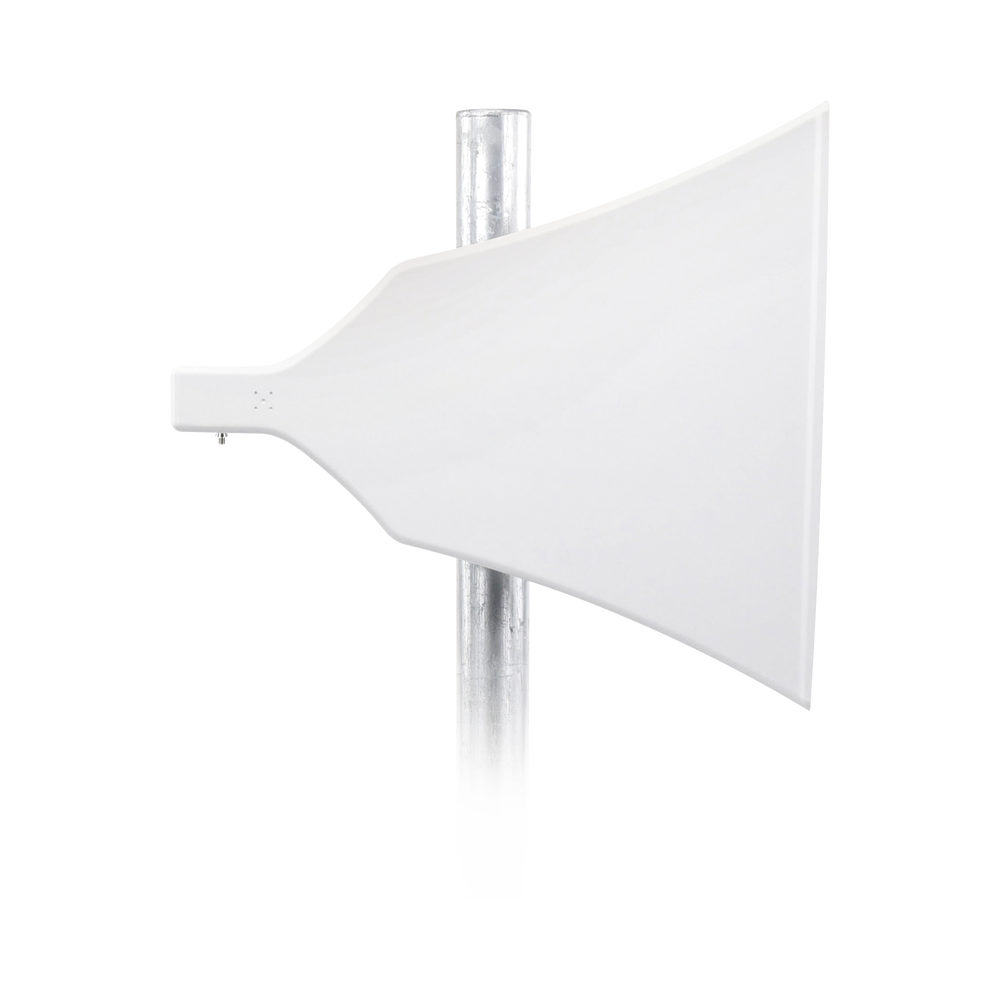

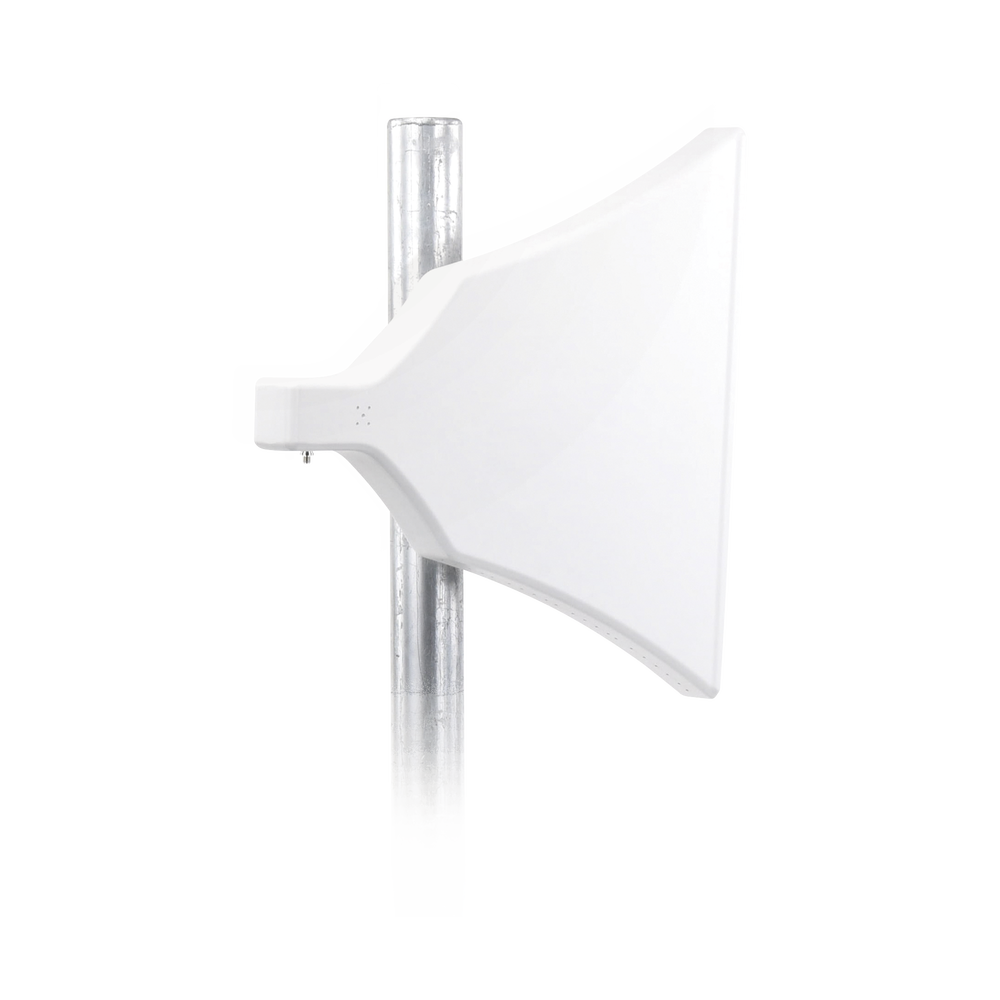

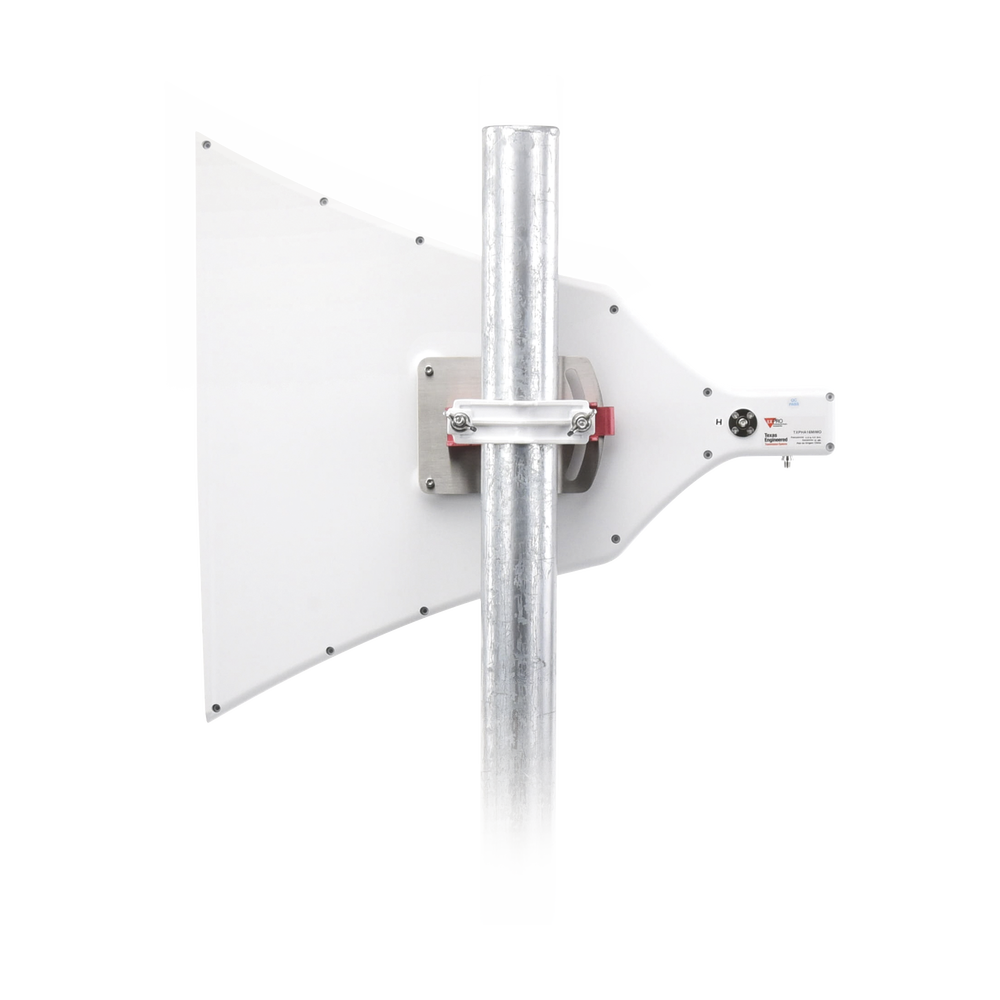

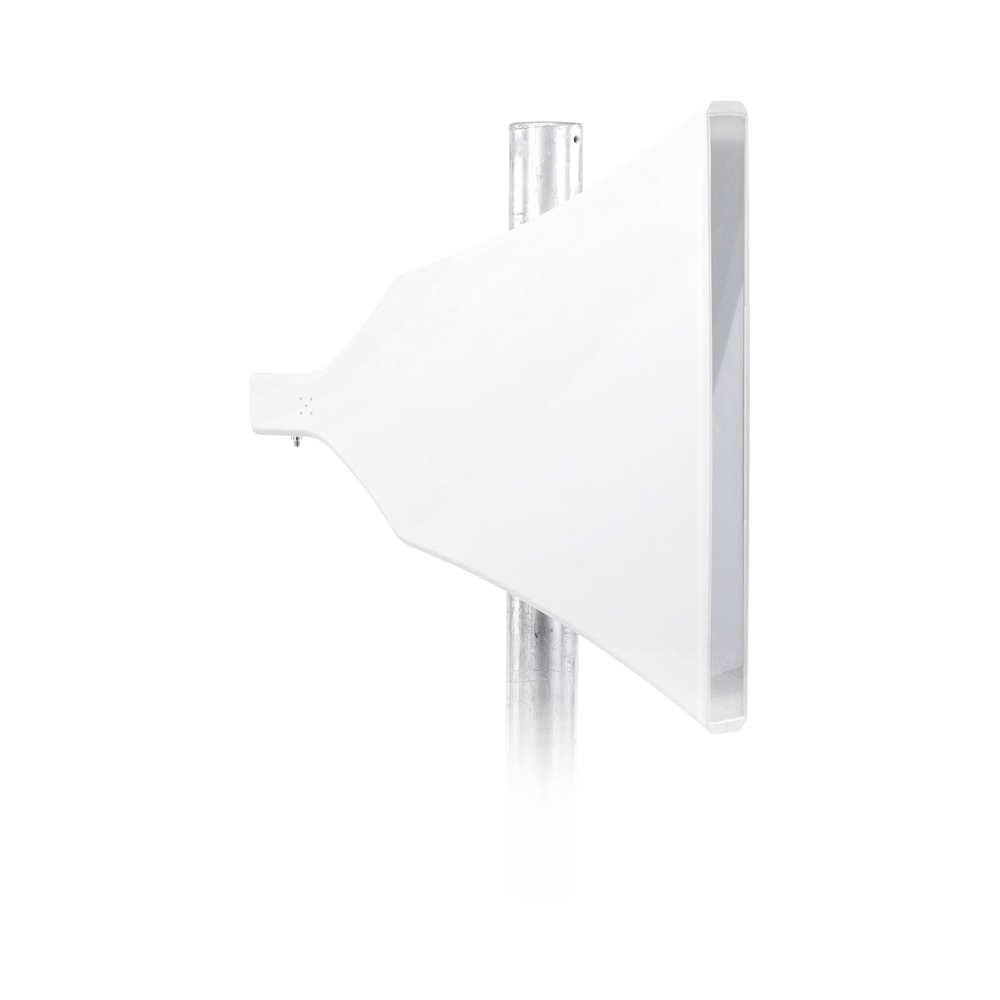

90° Asymmetric Antenna, 16 dBi, High Efficiency Horn Type, 4.9-6.5 GHz, SMA-Female Connector, with Mount Included

90° Asymmetric Antenna, 16 dBi, High Efficiency Horn Type, 4.9-6.5 GHz, SMA-Female Connector, with Mount Included

Specs

• Frequency range 4.9 to 6.5 GHz
• Gain 16.5 dBi
• VSWR < 2.0
• Double Polarization (V/H)
• Horizontal beam width 90°
• Beamwidth Vertical 90°
• Electrical beamwidth 25°
• Isolation 30 dB
• Front to back ratio 30 dB
• Maximum power per port 50 W
• Impedance 50 ohm

Mechanical Specifications

• 2 * SMA connector
• Antenna size 40*40*5cm
• Weight of 2 kg
• Antenna color: White
• Antenna material: Aluminum
• Tube or tower diameter: 30 to 80 mm
• Metal Tilt ± 25°
• Operating temperature -40°C to + 70°C (-32°F to + 158°F)

High Gain, Dual Polarity, 4.9 to 6.5 GHz Frequency, Mimo
