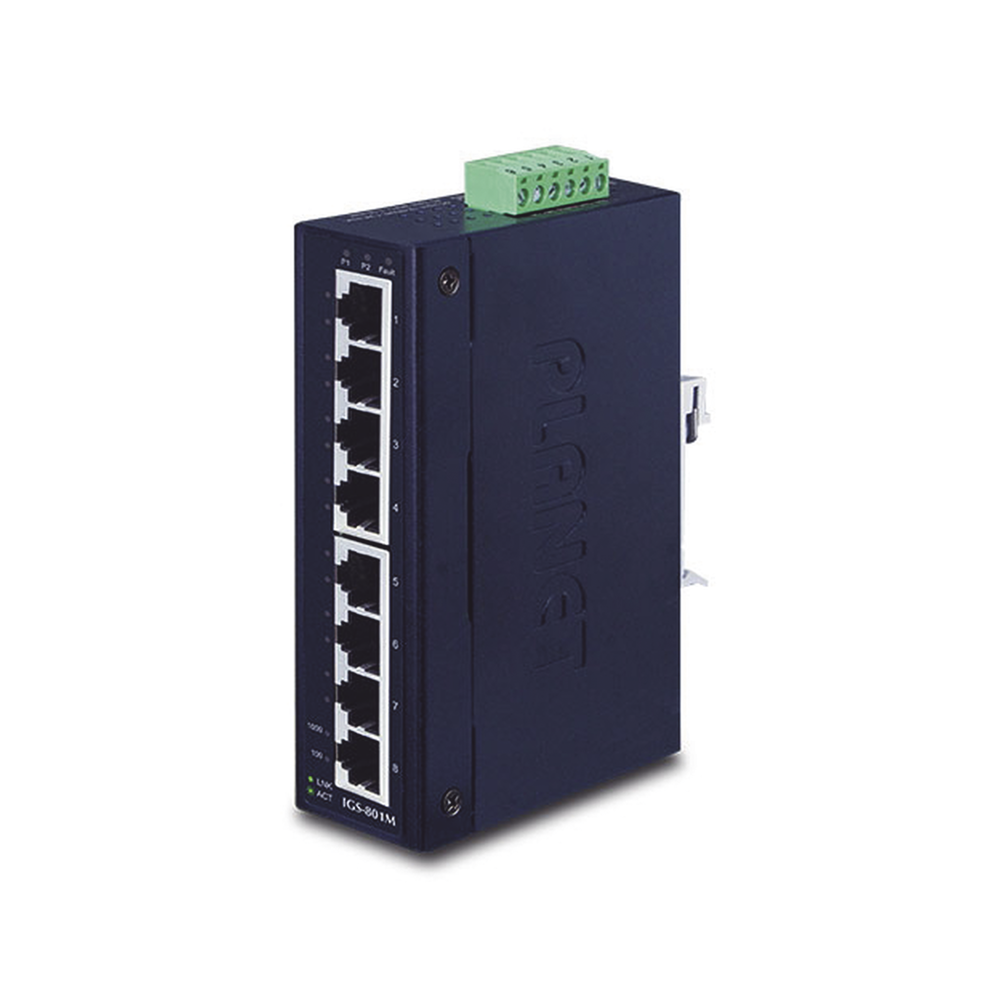

Layer 2 Managed Industrial Switch, 8 Gigabit Ports, Dual Power Input for Redundant Supply

Industrial switch for data collection and forwarding

It offers high performance and high reliability to ensure continuous industrial operation in harsh environments, such as transportation control cabinets, factory floors, outdoor spaces, and locations where temperatures are extremely low or high.

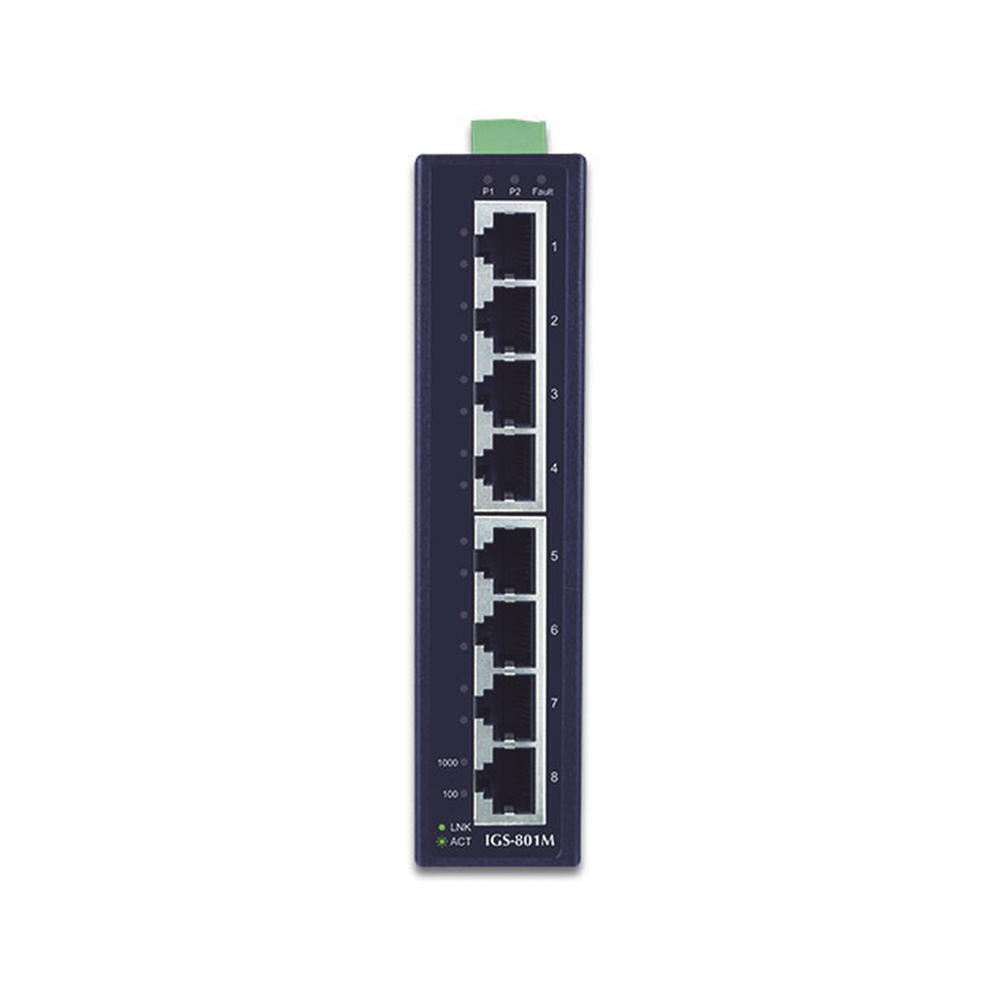

8 RJ45 Ports 10/100/1000 BASE-T auto-MDI / MDI-X

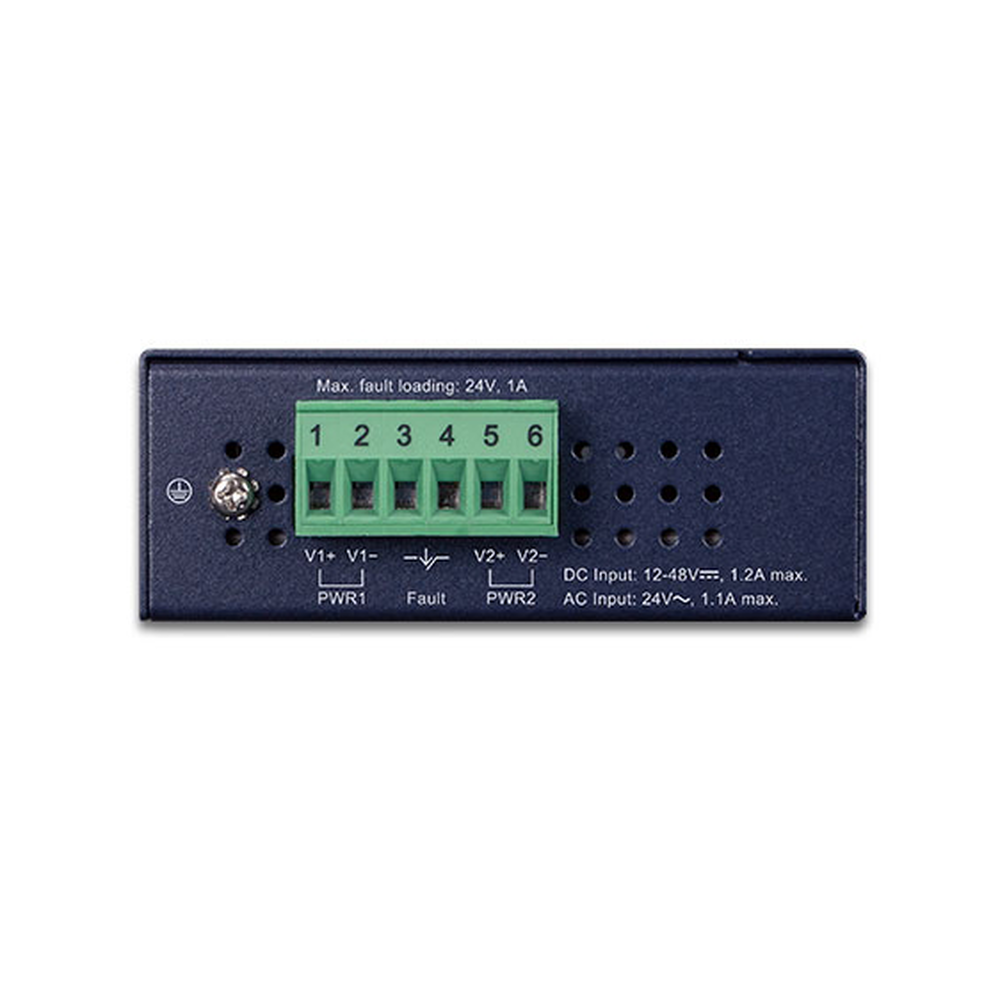

Removable 6-pin terminal block for power input

Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

One power failure relay output. Alarm relay current carrying capacity: 1A @ DC 24V

135 x 87 x 32mm, 1U height

472g

Feeding

(Voltage source not included)

12 to 48 Vdc

Port mirroring, VLAN, Link Aggregation, Spanning Tree Protocol, IGMP Snooping, QoS, Ring

Access control list, Port security, MAC security, Enhanced security

Web Browser, Tenet, SNMP v1, v2c, SSHv2, TLS v1.2, SNMP v3

- 40 to 75°C

1 x IGS-801M Switch

1 x Installation Guide

1 x DIN Rail Kit

1 x Wall mounting kit

8 x RJ45 Caps
