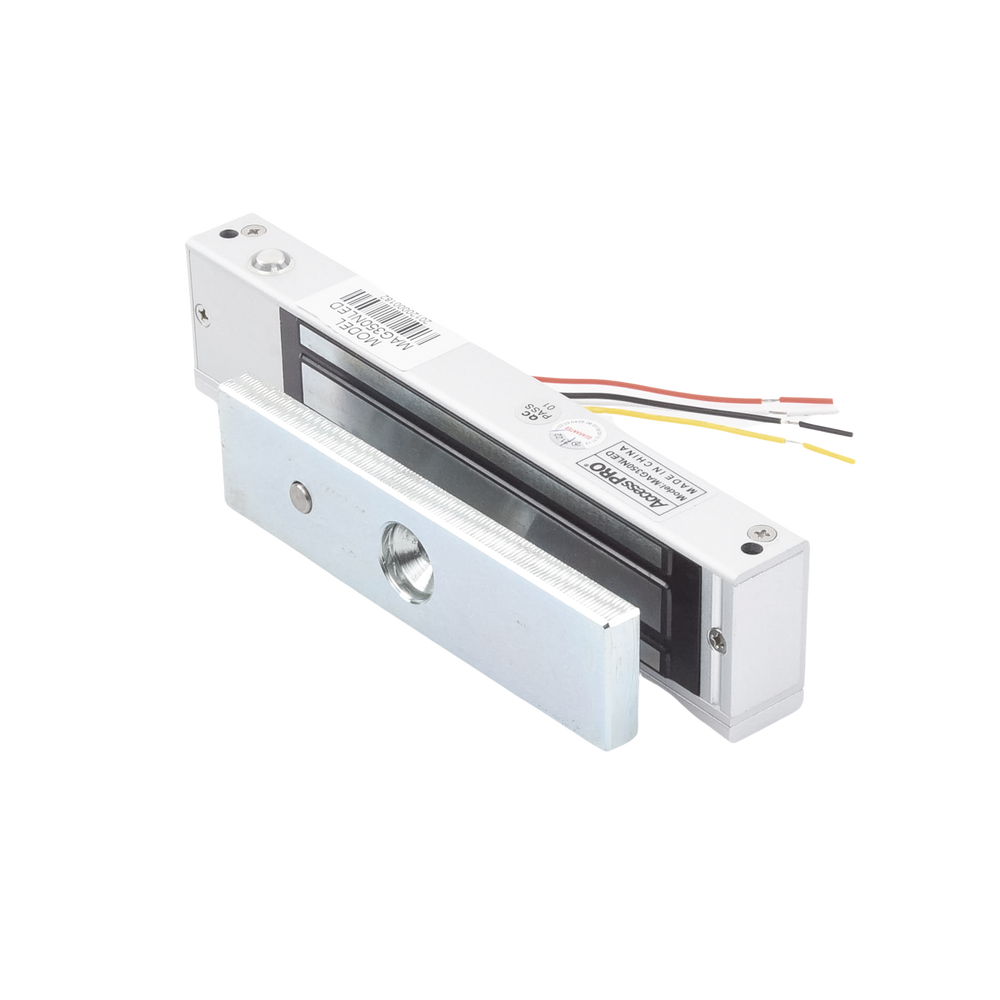

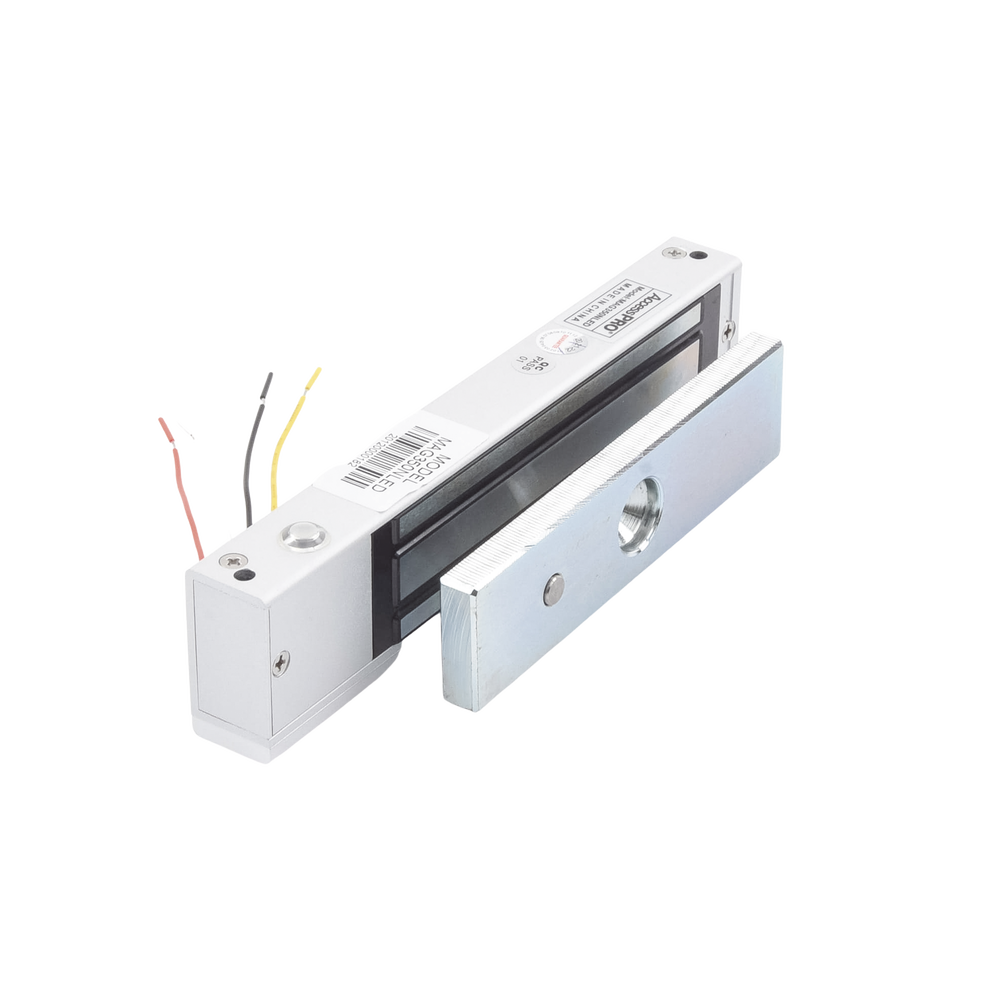

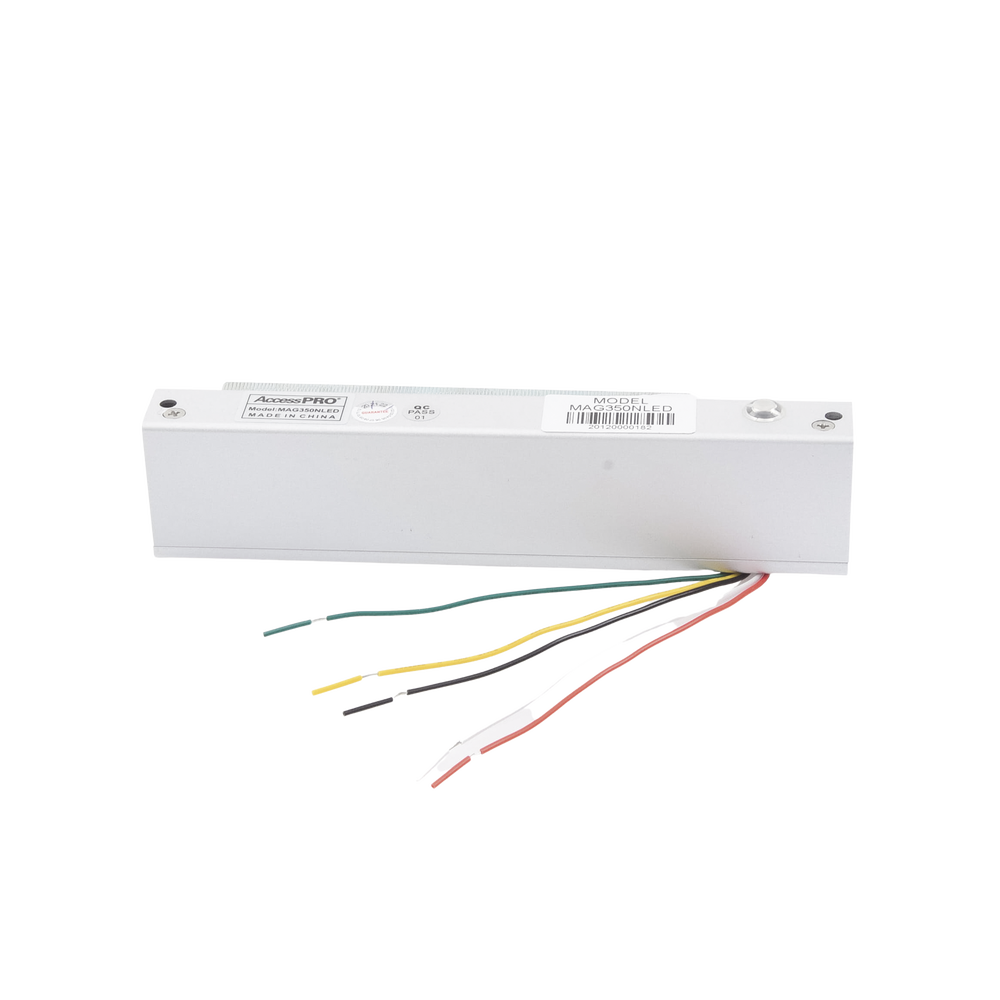

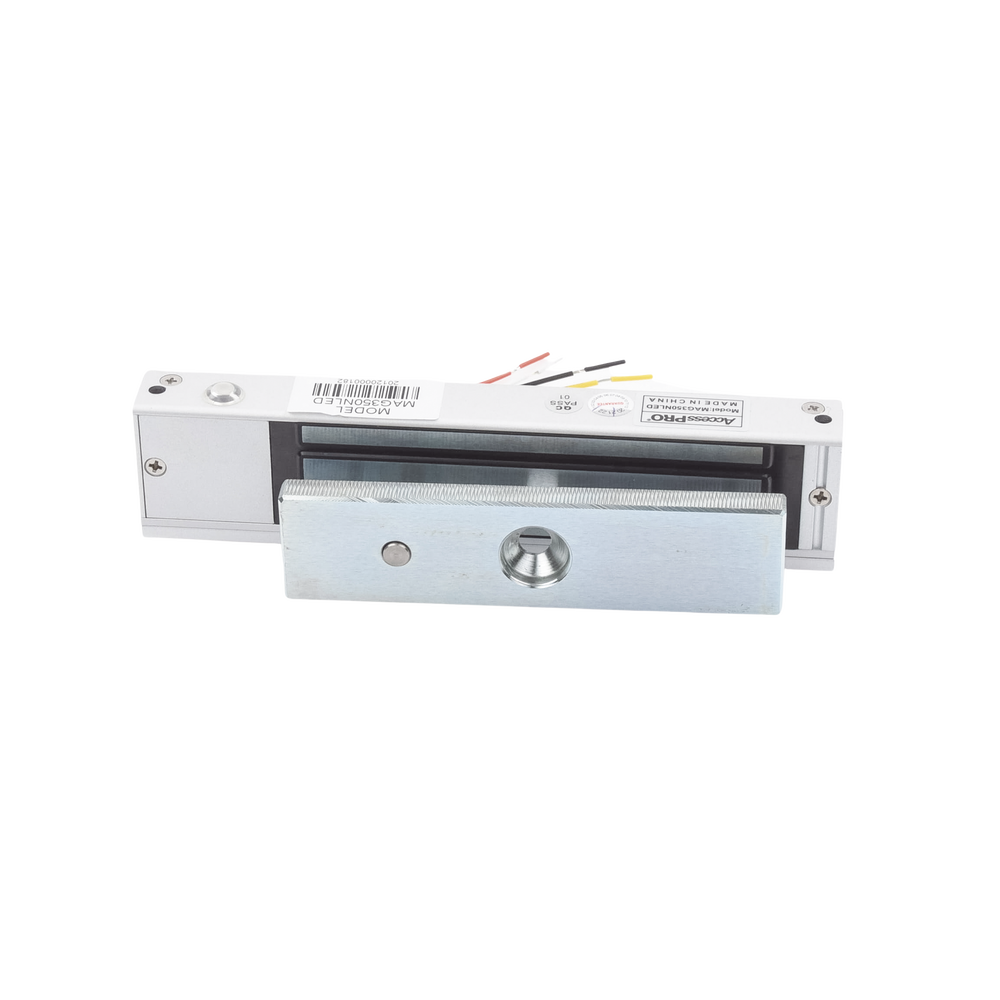

350 lbs Electromagnet / With LED Indicator / For Indoor Use

350 lbs Electromagnet / With LED Indicator / For Indoor Use

• For indoor use.
• Clamping force: 180kg (350 Lbs).
• Voltage: 12/24 Vdc
• Current consumption: 12V/400mA,24V/200mA.
• Plate Lock Status Sensor (NC, NO and COM).
• Magnet finish: Anodized aluminum.
• Plate finish: zinc.
• Magnet Dimensions: 185 x 42.8 x22.4 (mm).
• Plate dimensions: 132 x 32 x 10 (mm).
• Weight: 1.2kg.
• 1 Year Warranty
• Compatible with BZL350N brackets (not included)
• Compatible with Z-type bracket BZ350 (not included)
• Compatible with U bracket for BU350 or BU350S glass doors (not included)
