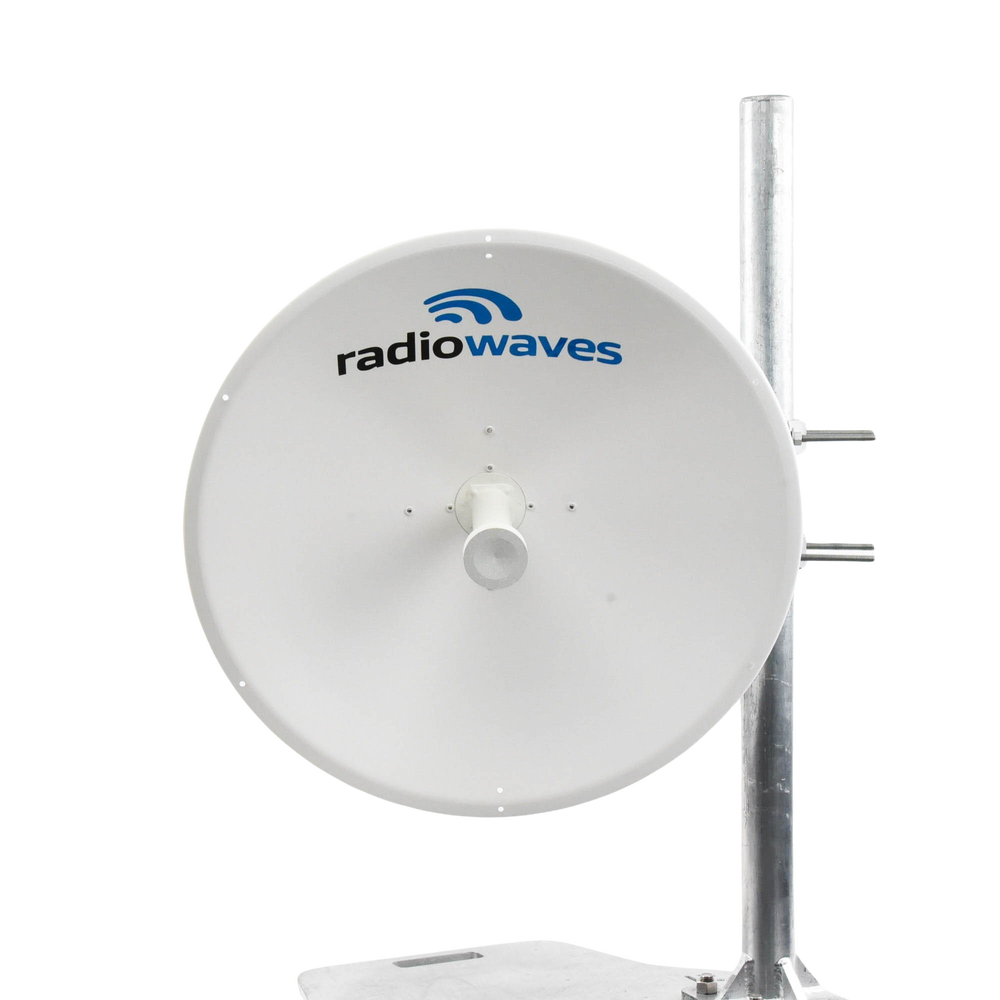

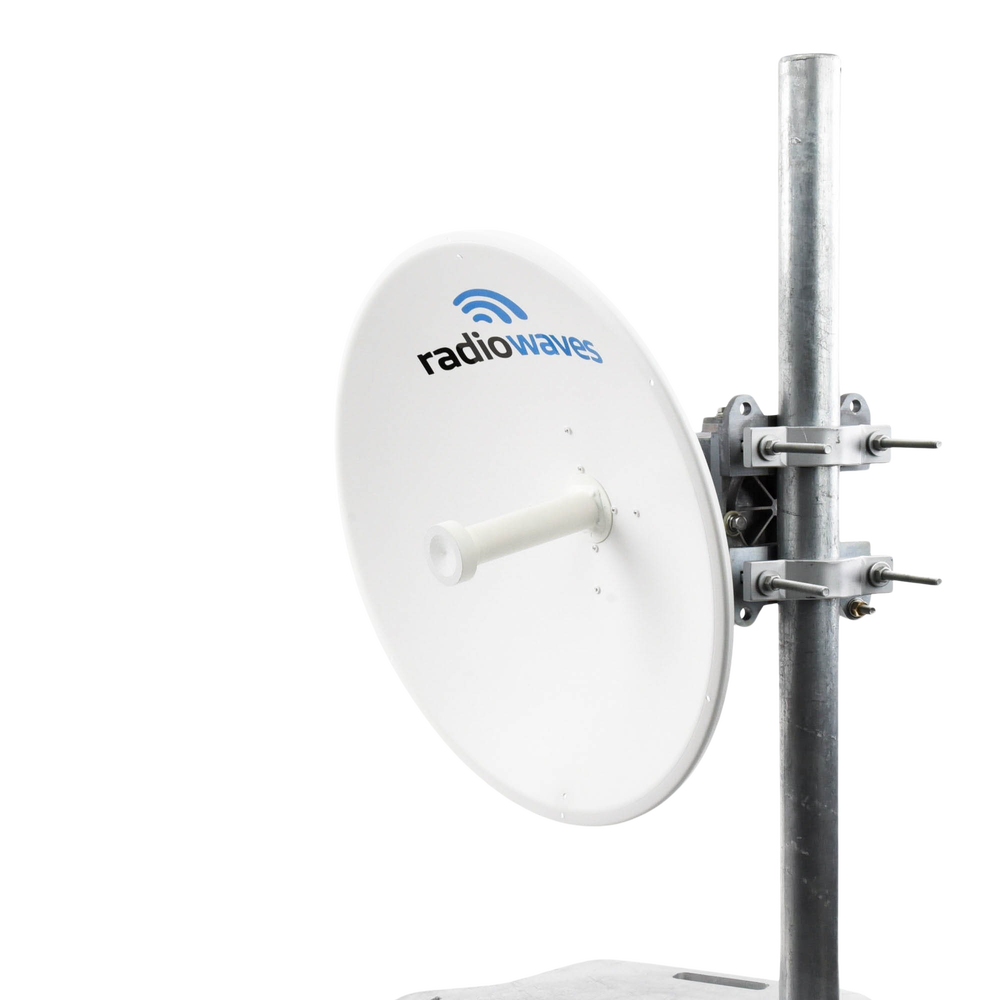

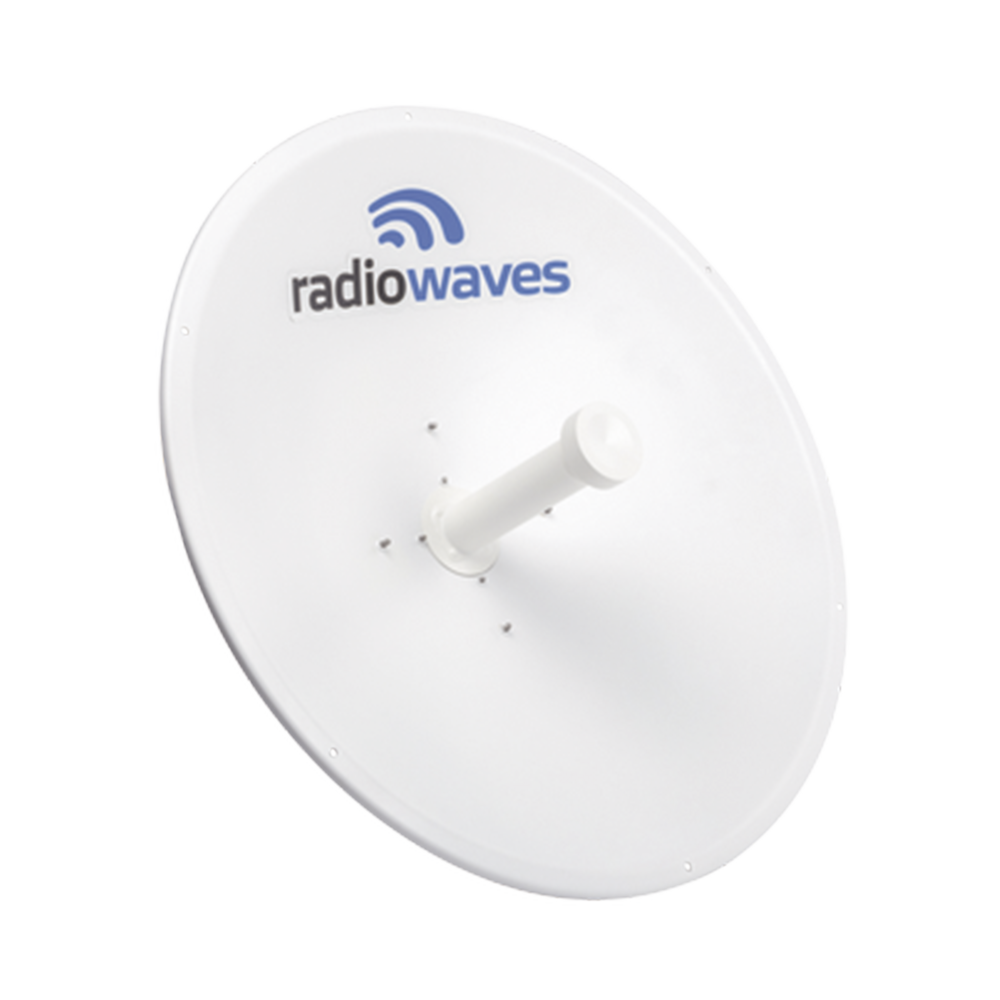

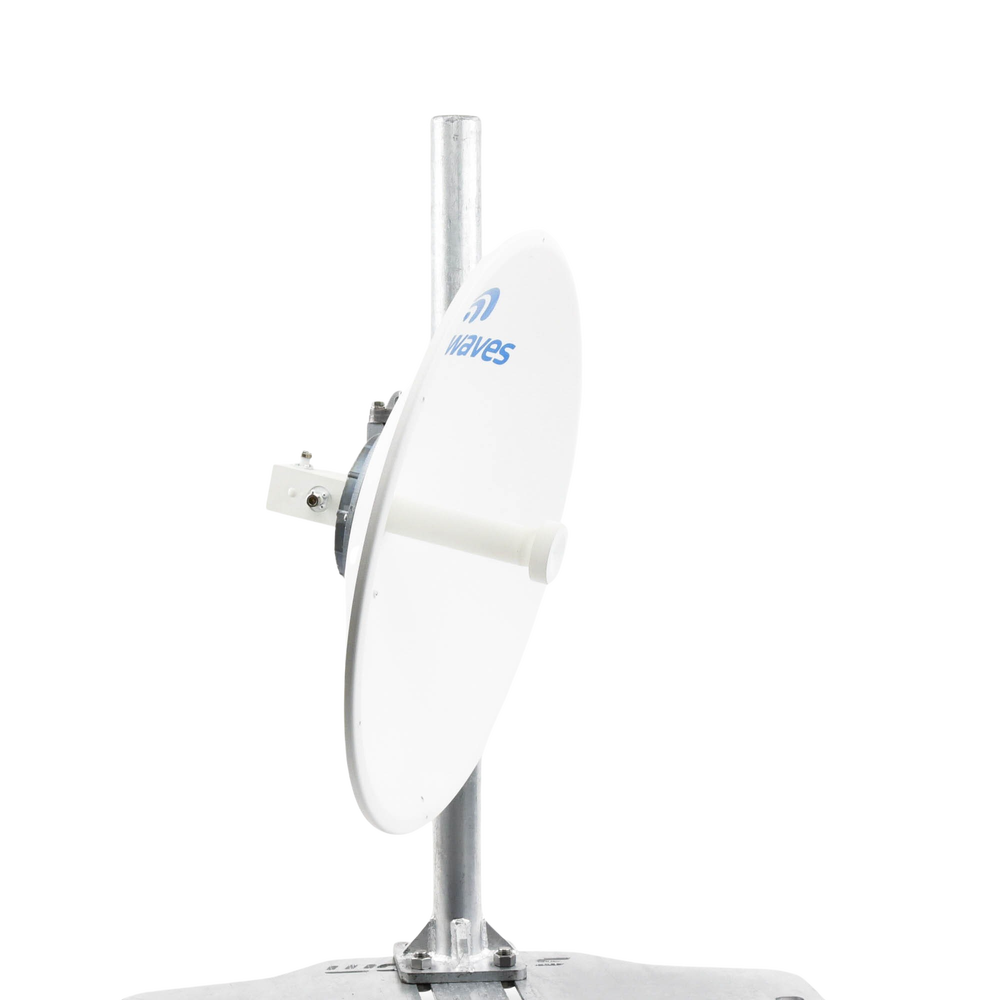

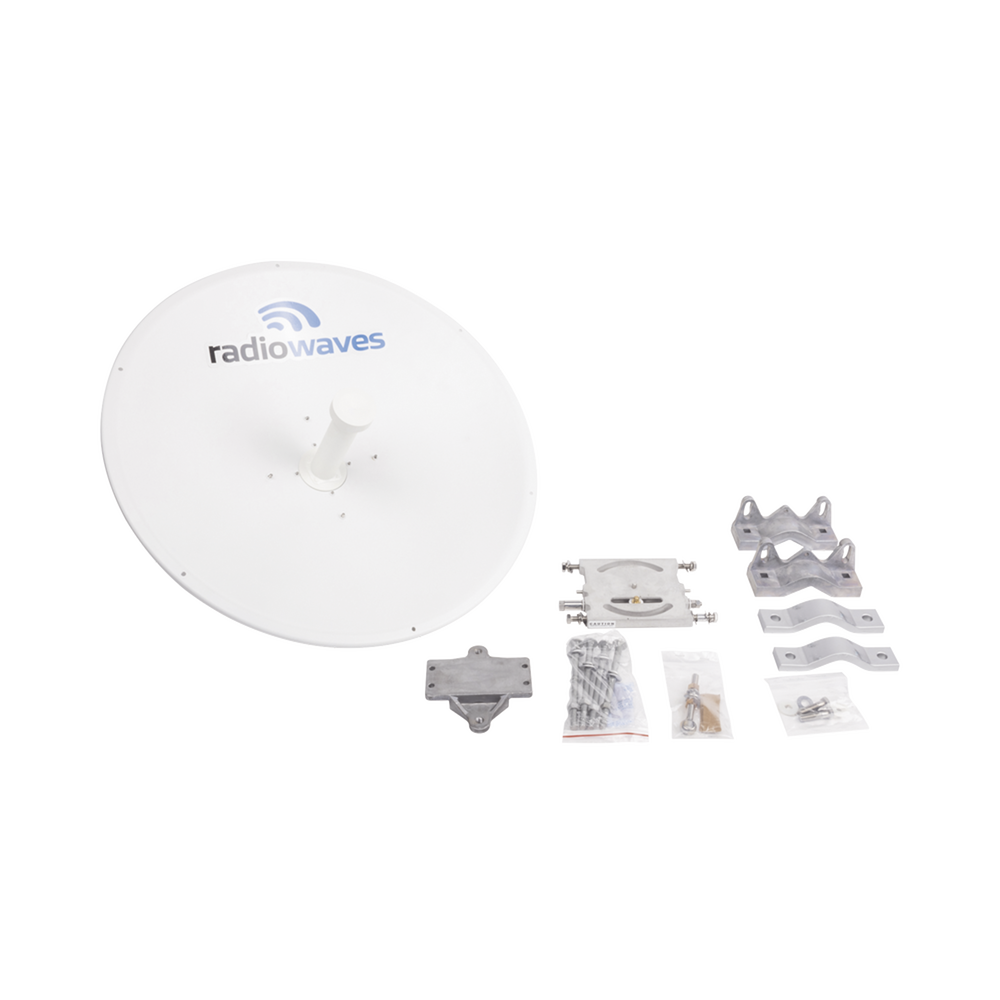

High Performance Directional Antenna, Dimensions (2 ft), 29 dBi Gain, 4.9-6 GHz, N-Female Connectors, Easy Installation, Pre-assembled, Mounting Included

High Performance Directional Antenna, Dimensions (2 ft), 29 dBi Gain, 4.9-6 GHz, N-Female Connectors, Easy Installation, Pre-assembled, Mounting Included

Electrical Specifications

Measurement: 0.6 m (2 ft).
Polarization : Double.

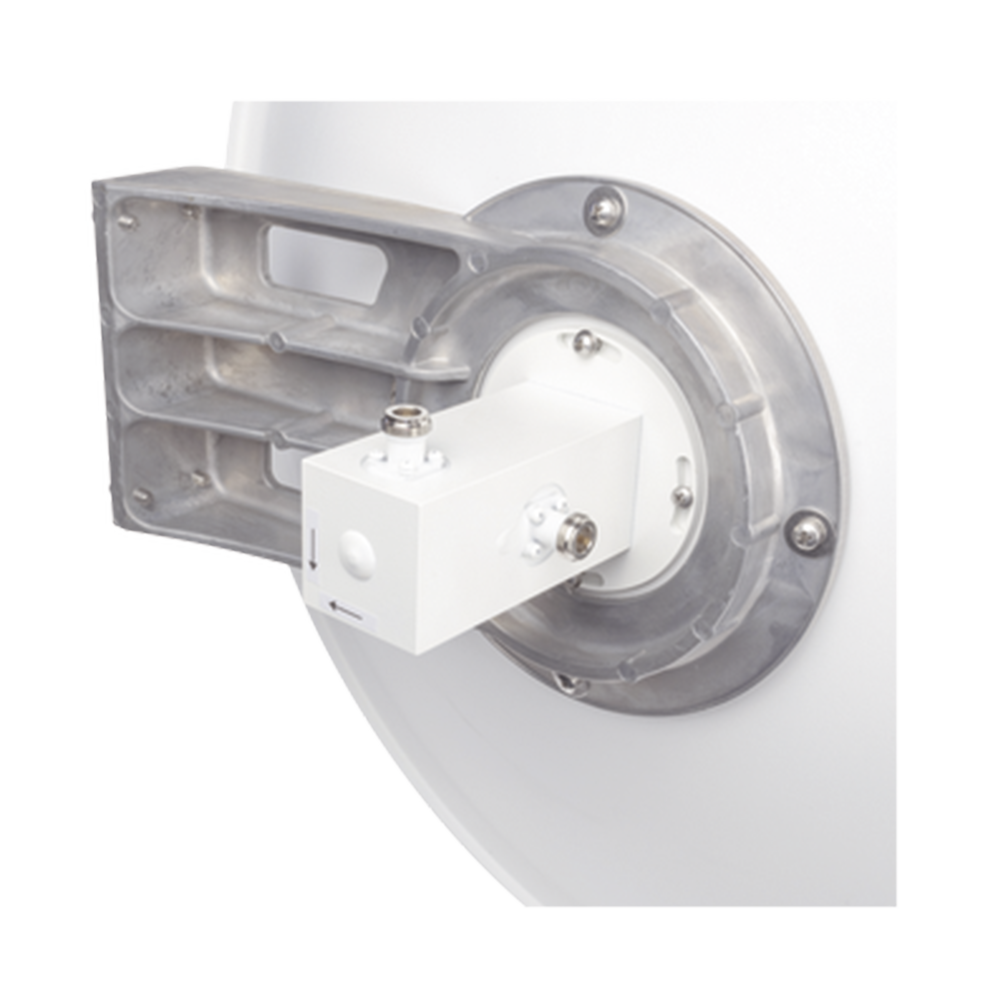

Connectors: N-Female (x2).
Frequency: 4.9 – 6 GHz.
Horizontal/vertical beamwidth : 6.2°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B): 38 dB.
Low frequency gain: 28.5 dBi.
Mid-frequency gain : 29 dBi.
High frequency gain: 29.5 dBi.
Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.
Elevation fine adjustment: ±30°.
Net weight: 9.9 kg (22 lbs) / 11.7 kg (26 lbs) with radome.
Operational wind speed: 145 km/h (90 mph).
Operating temperature range : -40 to 60 °C.
Supports RD2 model radome (not included).

Shipping Information

Dimensions: 71 (length) x 20 (width) x 71 (height) cm
/ 28 (length) x 8 (width) x 28 (height) in
Packaging: Cardboard box.

They withstand all types of weather, simplify on-site installation and guarantee quality, Wide frequency range, 7-year warranty
