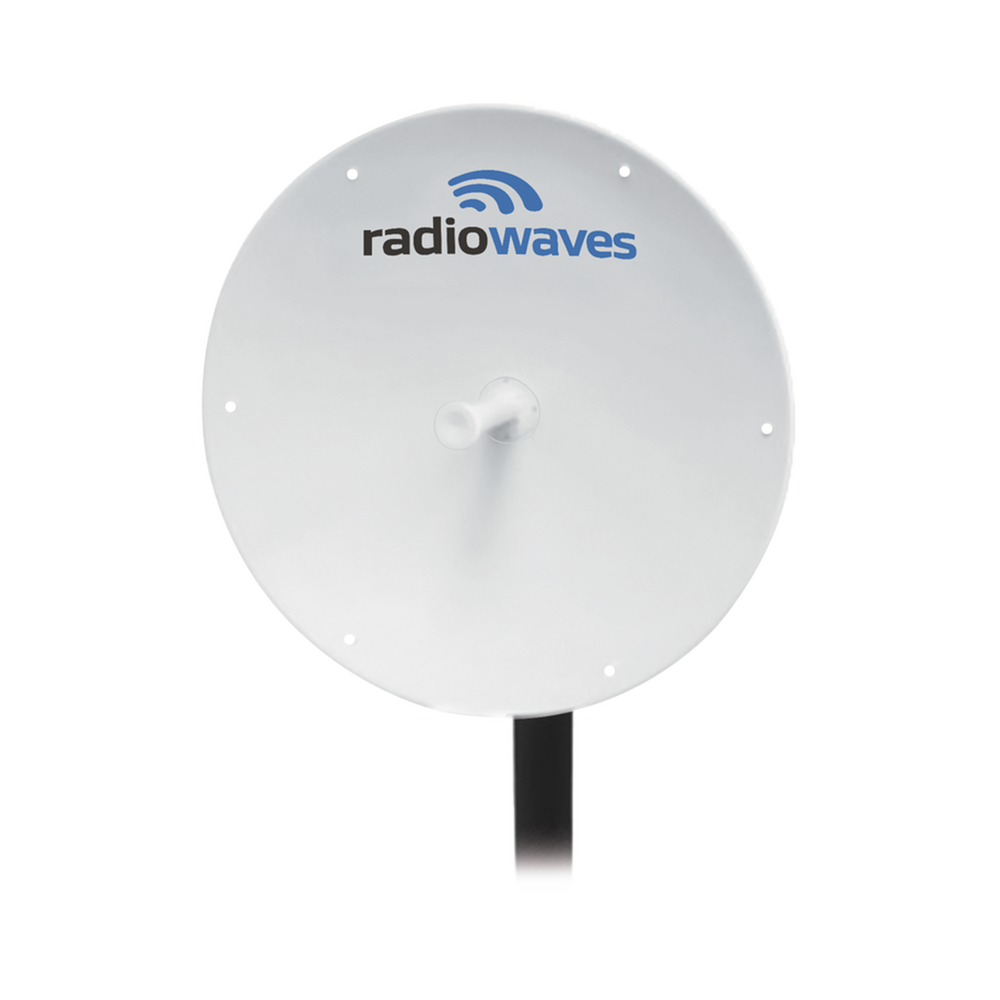

Directional Antenna, Dimensions (3 ft), Gain 33 dBi, 4.9 - 6 GHz, 2 N-female Connectors, Includes mounting.

Directional Antenna, Dimensions (3 ft), Gain 33 dBi, 4.9 - 6 GHz, 2 N-female Connectors, Includes mounting.

Carrier-Class Professional Satellite Dishes

General Characteristics

Electrical Specifications

Measurement: 0.9 m (3 ft).

Polarization: Double.

Connectors : N-Female (x2).

Frequency : 4.9 – 6 GHz.

Horizontal/vertical beamwidth : 4.2°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B) : 40 dB.

Low frequency gain: 32 dBi.

Mid-frequency gain: 32.5 dBi.

High frequency gain: 33 dBi.

VSWR: 1.5:1

Return loss : -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Fine adjustment of elevation : ±25°.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter : 11.4 cm (4.5 in).

Net weight : 15.8 kg (35 lbs) / 19.4 kg (43 lbs) with radome.

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Supports radome model RD3 not included.

Shipping Information

Dimensions: 101 (length) x 43 (width) x 140 (height) cm

/ 40 (length) x 17 (width) x 44 (height) in

Packaging: Wooden box.

Withstands all types of weather., Weight 15.8 kg (35 lbs) / 19.4 kg (43 lbs) with radome., Supports RD3 model radome not included., Dual Polarization.
