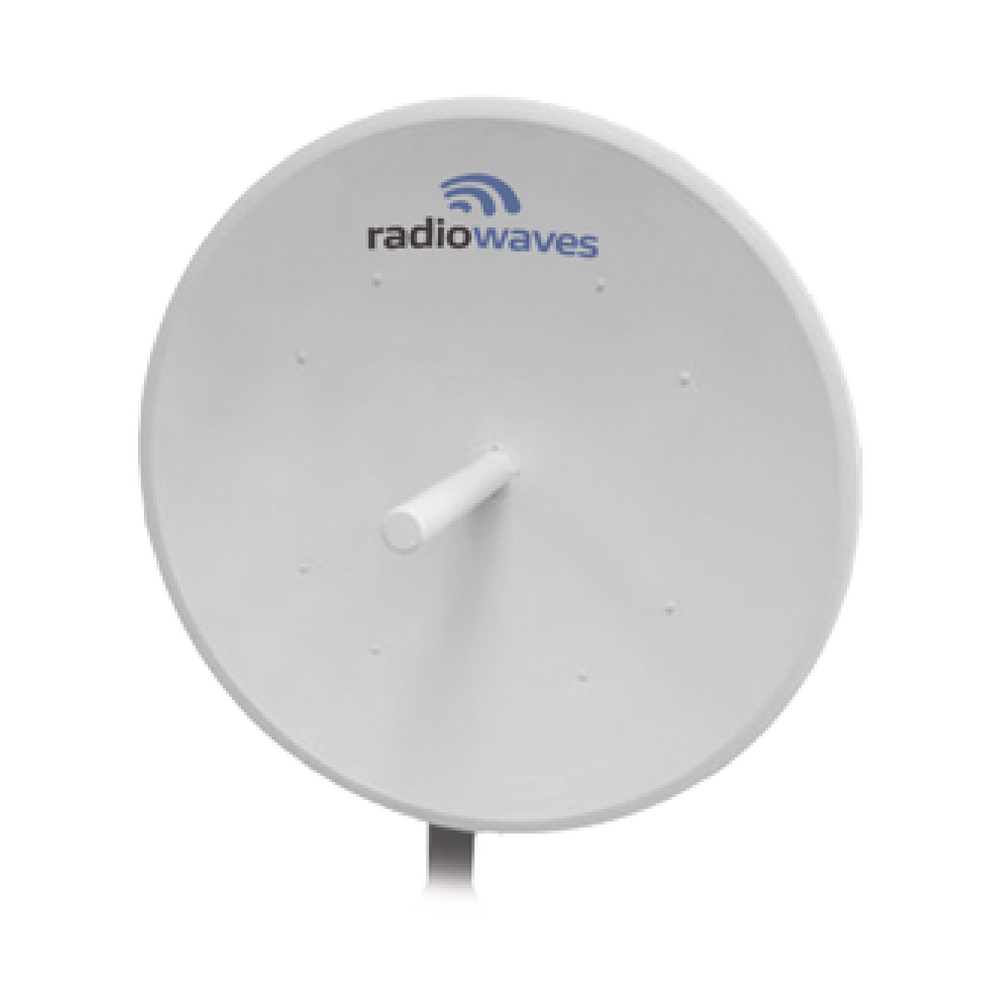

Directional Antenna, Dimensions (4 ft), 4.9 - 6 GHz, 2 N-Female Connectors, Gain 35dBi, Mounting Included

Directional Antenna, Dimensions (4 ft), 4.9 - 6 GHz, 2 N-Female Connectors, Gain 35dBi, Mounting Included

Electrical Specifications

Measurement: 1.2 m (4 ft).

Polarization: Double.

Connectors: N-Female (x2).

Frequency: 4.9 - 6 GHz.

Horizontal/vertical beamwidth: 3.1°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 44 dB.

Low frequency gain : 34.4 dBi.

Mid-frequency gain: 34.9 dBi.

High frequency gain: 35.4 dBi.

Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Fine adjustment of elevation: ±25°.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter: 11.4 cm (4.5 in).

Net weight : 27 kg (60 lbs) / 36 kg (80 lbs) with radome.

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Supports RD4 model radome (not included).

Shipping Information

Dimensions: 150 (length) x 48 (width) x 152 (height) cm

/ 59 (length) x 19 (width) x 60 (height) in

Packaging : Wooden box.

They withstand all types of weather., Double Polarization., Net weight 27 kg (60 lbs) / 36 kg (80 lbs) with radome.
