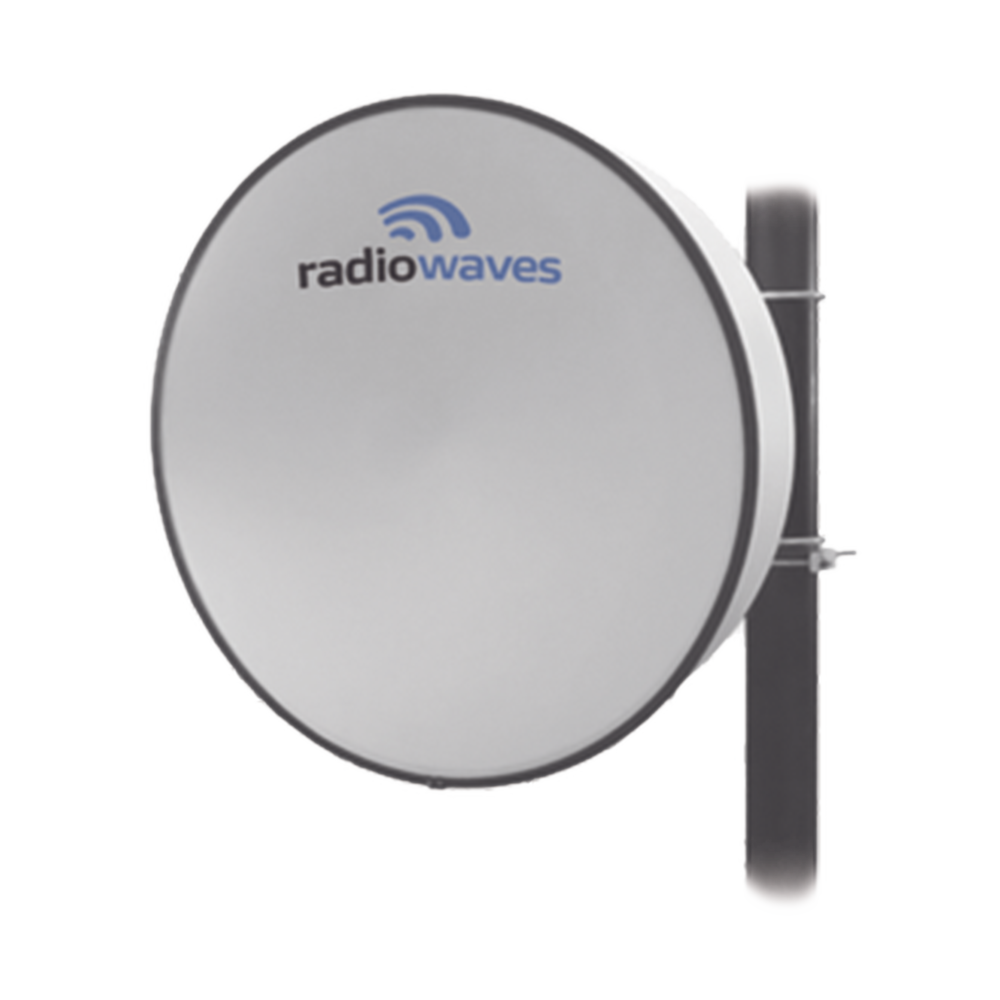

Directional Antenna, Dimensions (3 ft), 4.9 - 6 GHz, 2 N-female connectors, 32dBi Gain, Radome and mount included.

Directional Antenna, Dimensions (3 ft), 4.9 - 6 GHz, 2 N-female connectors, 32dBi Gain, Radome and mount included.

Electrical Specifications

Measurement: 0.9 m (3 ft).

Polarization: Double.

Connectors: N-Female (x2).

Frequency: 4.9 – 6 GHz.

Horizontal/vertical beamwidth: 4.2°.

Cross-polarization discrimination: 30 dB.

Front to Back Ratio (F/B): 46 dB.

Low frequency gain: 31.8 dBi.

Mid-frequency gain: 32.3 dBi.

High frequency gain: 32.8 dBi.

Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±10°.

Fine adjustment of elevation: ±25°.

Minimum mounting tube diameter: 11.4 cm (4.5 in).

Maximum mounting tube diameter: 11.4 cm (4.5 in).

Net weight: 12.3 kg (50 lbs).

Operational wind speed: 145 km/h (90 mph).

Operating temperature range: -40 to 60 °C.

Radome included.

*7-year warranty

Shipping Information

Dimensions: 119 (length) x 71 (width) x 122 (height) cm

/ 47 (length) x 28 (width) x 48 (height) in

Packaging: Wooden box.

High-performance Carrier-Class antennas. Radome included for high isolation. Pre-assembled antennas for easy installation. High attenuation behind the dish to prevent signal loss.
