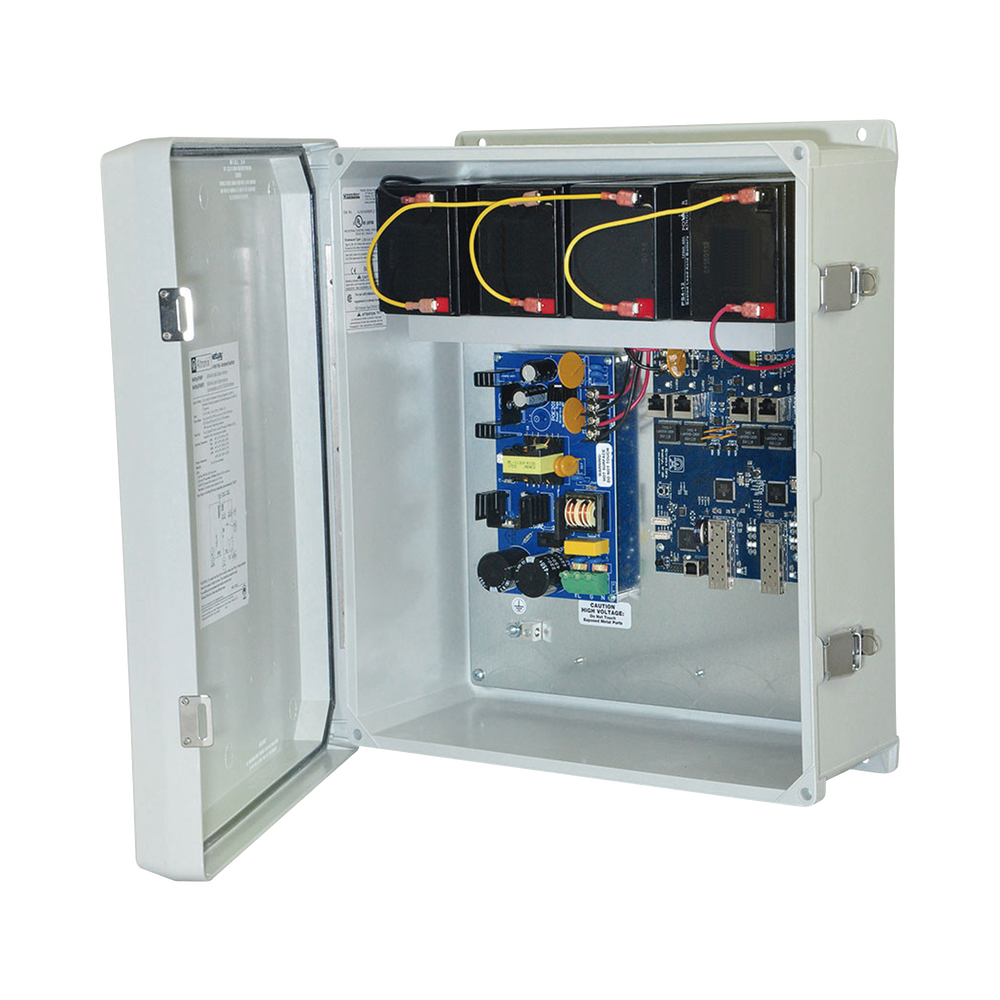

PoE Power Supply / 2 1G Fiber SFP Inputs / 4 10/100/1000 PoE/PoE+ Outputs Configurable for 2 60W Hi-PoE Outputs / Nema IP66 / With Battery Backup Capability / Requires Battery

PoE Power Supply / 2 1G Fiber SFP Inputs / 4 10/100/1000 PoE/PoE+ Outputs Configurable for 2 60W Hi-PoE Outputs / Nema IP66 / With Battery Backup Capability / Requires Battery

Entrance

• 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
• Fuse: 5A / 250V.

Power output

• Four (4) PoE+ ports (30W) or up to two (2) Hi-PoE ports (60W).
• Complies with IEEE 802.3at (30W) and IEEE 802.3af (15W).
• Total power of 120 W.
• Comprehensive surge protection.

Fiber ports

• Two (2) Gigabit SFP ports.
• Use with 1000Base-X (1 Gb) SFP module, compliant with Class 1 laser product (not included).

Ethernet ports

• Four (4) 10/100/1000 Mbps ports.
• Connectivity: RJ45, auto-crossover. T
• Cable type: 4-pair CAT5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100/1000 Mbps, half/full duplex, auto-negotiation.

Backup battery (not included)

• Built-in charger for sealed lead acid or gel batteries.
• With backup battery capacity.
• Battery not included.
• Suggested batteries: PL4.512 / PL712 / PL912.
• Automatic switch to battery backup when AC fails.

LEDs

• Individual PoE LEDs for each port.
• Individual IP link status, 10/100Base-T/active LEDs for each port.
• The ALOS LED indicates the fiber connection for the SFP port.
• The Heartbeat LED indicates the correct operation of the unit.

VLAN

• Multiple management VLAN assignment.
• 802.1Q tagged VLAN. Up to 10 VLAN groups. ID range 2-4095.

LINQ Technology

• Remote network management allows you to reboot and monitor the camera/device.
• Provides local and/or remote access to critical information via LAN/WAN.
• Email notifications and Windows Dashboard alerts provide real-time diagnostics.
• The event log tracks history.

Temperature

• Operating at:
  60W: - 40°C to 75°C (- 40°F to 167°F).
  75W: - 40°C to 70°C (- 40°F to 158°F).
  100W: - 40°C to 55°C (- 40°F to 131°F).
  120W: - 40°C to 45°C (- 40°F to 113°F).
• Storage: -40°C to 85°C (-40°F to 185°F).
• Relative humidity: 85% +/- 5%
• BTU/Hr. (approx.): 61 BTU/Hr.
• Operating altitude - 304.8 to 2,000m.

Product under request

IP66, 2 60W Hi-PoE Outputs, 2 1G Fiber SFP Inputs
