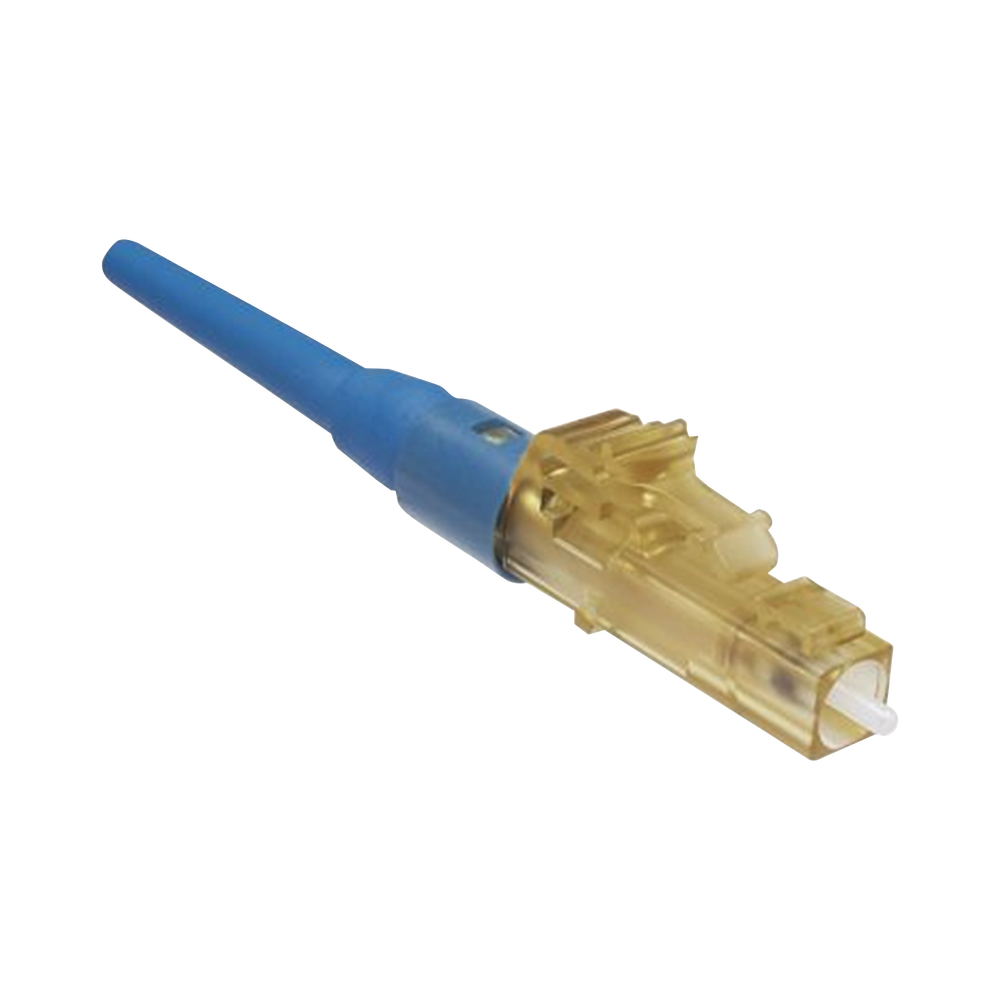

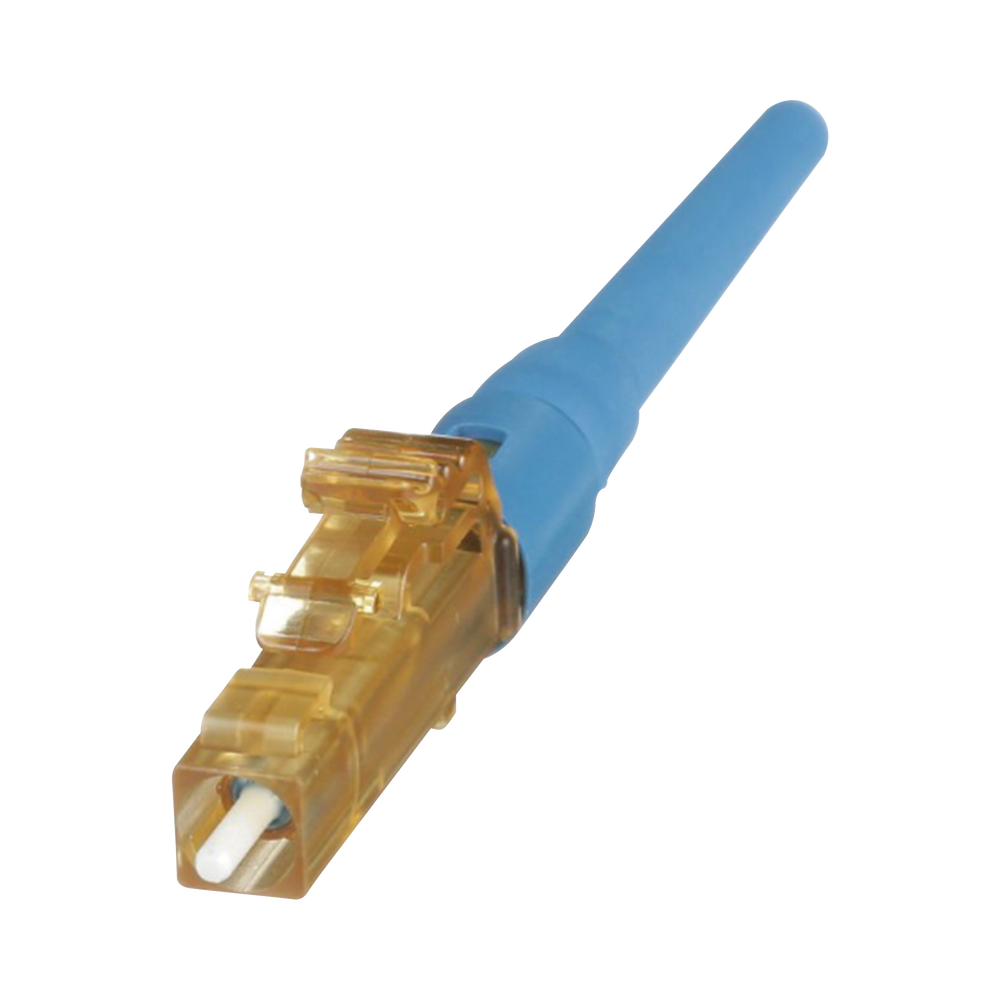

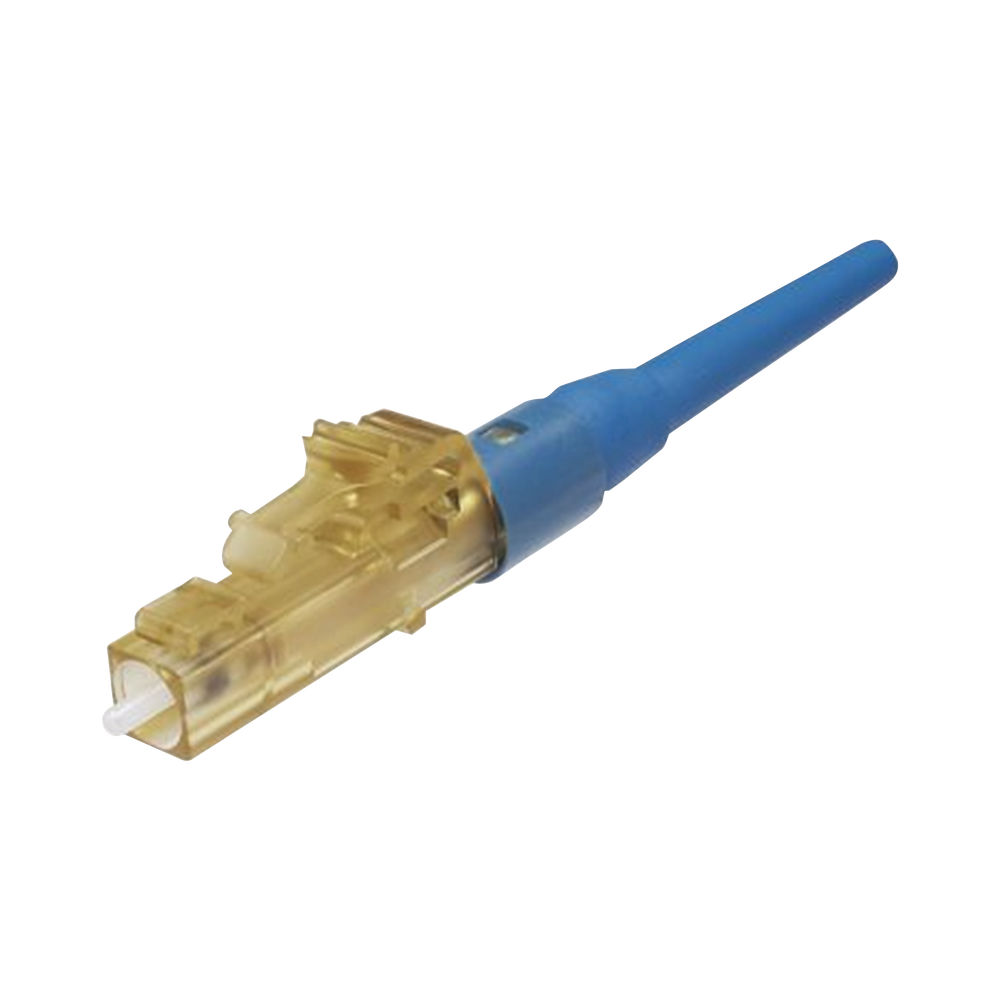

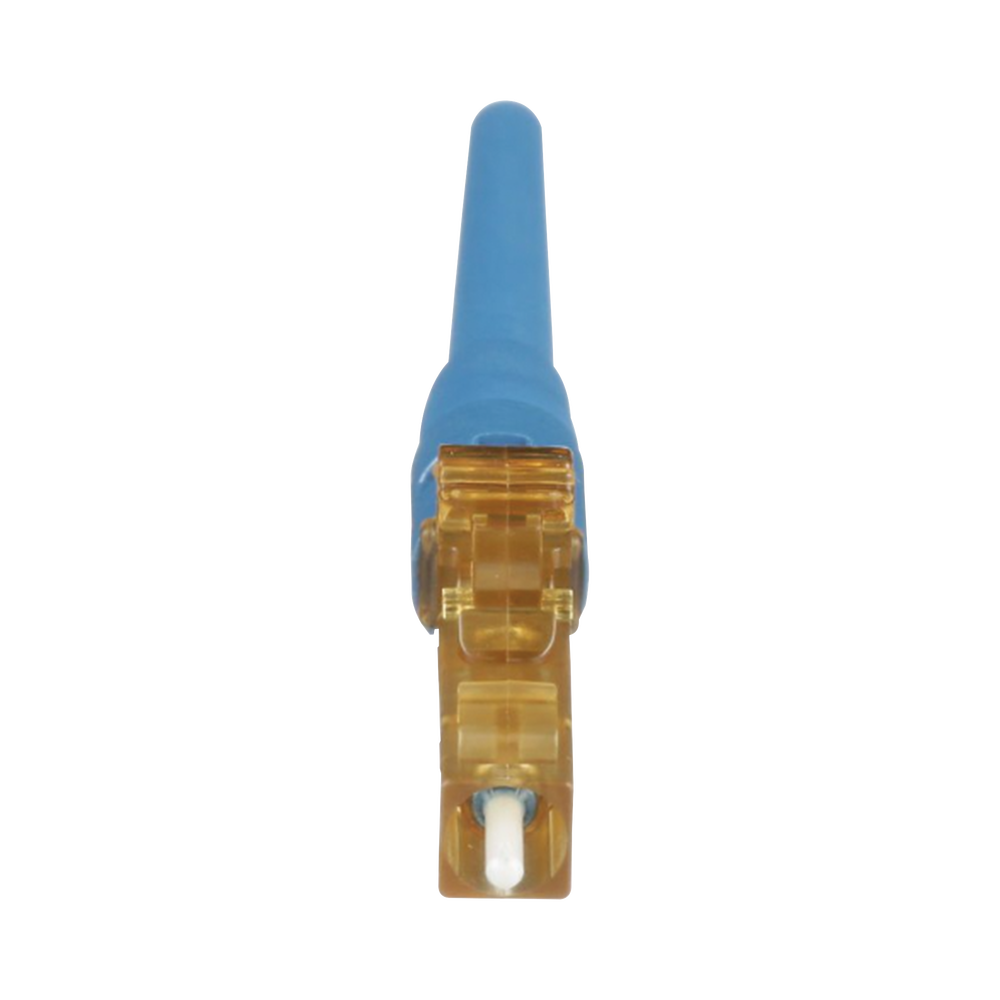

OptiCam LC Simplex Fiber Optic Connector, Singlemode 9/125 OS2, Pre-polished, Blue

OptiCam LC Simplex Fiber Optic Connector, Singlemode 9/125 OS2, Pre-polished, Blue

Small form factor (SFF) back-locking LC pre-polished connectors comply with TIA/EIA-604 FOCIS-10 and contain a factory-terminated fiber, eliminating field polishing and adhesive. Pre-polished LC connectors have an average insertion loss of 0.3 dB per mated pair for both multimode and single-mode fiber. Pre-polished LC connectors shall engage the fiber and buffer in a single action, allowing for up to two terminations without performance degradation.

Technical Specifications:

• Compatible with TIA/EIA-604 FOCIS-10; exceeds requirements of TIA/EIA-568-B.3
• Fiber compatibility: 9/125μm OS1/OS2
• Cable Type: 900μm Cable Only (Tight Buffer)
• Splint type: Zirconium ceramic with a pre-polished fiber piece
• Insertion loss: 0.3dB average (multimode and singlemode)
• Return Loss: >20dB (multimode), >26dB (10Gig™ multimode), >50dB (singlemode)

Insertion Loss: 0.3dB average (multimode and singlemode, Allows up to two re-terminations for optimal results
