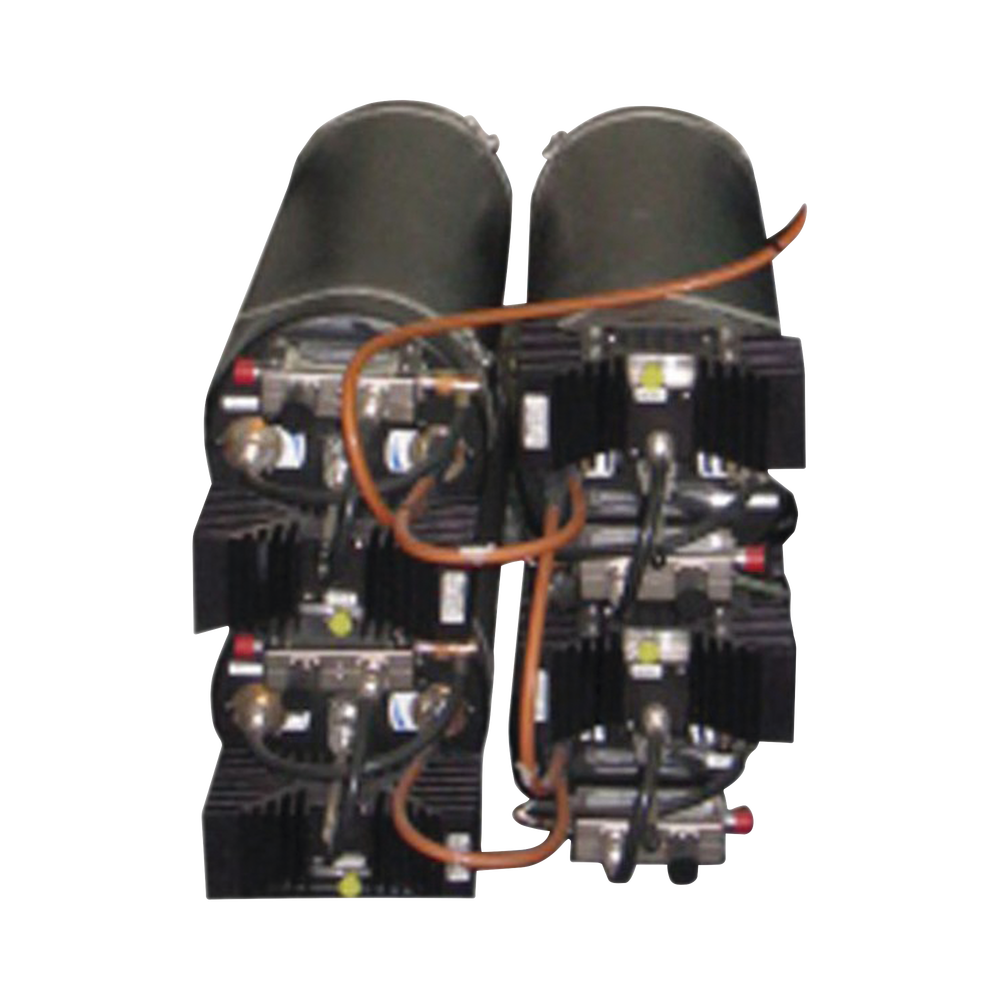

Ferrite Combiner, 4 Channels, 132-174 MHz, 8.5", No Rack, 125 Watt, N Females.

Ferrite Combiner, 4 Channels, 132-174 MHz, 8.5", No Rack, 125 Watt, N Females.

Ferrite Combiner, 4 Channels, 132-174 MHz, 8.5', No Rack, 125 Watt, N Females.

Electrical specifications

• Frequency range: 132-174 MHz.
• Number of channels: 4
• Input VSWR (max): 1.25:1
• Connectors: N-Female.
• Power (per channel): 125 Watt.
• Frequency offset (min): 0.05 MHz.
• Insertion Loss (Typ.) Tx to Ant: 5.1 dB.
• Tx to Tx isolation: 70 dB.
• Antenna to Tx Isolation: 60 dB.

Mechanical specifications

• Width: 457 mm (18 in)
• Length/Height: 432 mm (17 in)
• Depth: 914 mm (36 in)
• External Conductive Material: Aluminum
• Weight: 36.32 kg (80 lbs)
• Finish: Black
• Cavity Width or Diameter: 216 mm (8.5 in).

Environmental specifications

• Temperature range: -30 to +60°C (-22 to +140°F)
