cnPilot XV3-8 WiFi 6 802.11ax Access Point, Dual Band, 5 Software-Defined Radios (SDR), 8x8 MU-MIMO, Application Control Policies, Up to 1,024 Clients, Cloud Management

XV3-8 Wi-Fi 6 Access Point

802.11ax
Standard + MESH 1,024
Omi users
360º cnMaestro or XMS Controller

The high-density architecture reduces the required equipment while leveraging automation to deliver SLAs. The XV3-8 includes seamless roaming, fast roaming, automatic RF optimization, and interference avoidance to automatically optimize performance based on specific local needs. This 8x8 software-defined multi-radio access point is equipped with a dedicated scanning radio.

---

Free management in cnMaestro Comprehensive management of the entire network for inventory management, device onboarding, daily operations, maintenance, configuration, and provisioning, as well as ticket and/or voucher creation, time and bandwidth control, and a captive portal.	Designed for high capacity Triple Play Supports up to 512 active users with high traffic and up to 16 SSIDs.
Aesthetic design for ceiling Designed to be installed on the ceiling of hallways or offices without sacrificing the aesthetics that a network device might create, it adapts to any setting.	Roaming and MESH Backhauling capability for MESH designs and supports Roaming to avoid losing connectivity when moving around rooms.
Guaranteed, categorized as the best Cost-benefit Access Point The XV3-8 offers a reliable, high-capacity indoor Wi-Fi networking solution at a significantly lower cost than its high-end competitors. You'll save network nodes, and we guarantee the equipment for 5 years.	Monitor what's happening on your network. Limit access to restricted pages using the cn Maestro ACL

Designed for edge and high-density services

The XV3-8 features a total of five (5) radios to deliver a next-generation network with high-capacity, high-density edge services. Three data radios can be configured as two 4x4 5 GHz radios plus one 4x4 2.4 GHz radio, or the two 5 GHz radios can be combined into a single 8x8 5 GHz radio with the full power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to improve security protocols, detailed network reporting, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a high-capacity, multi-radio Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.

Comparison with other brands

WiFi 5 vs WiFi 6

Maximum number of connected devices: 1024 Wi-Fi devices.



Operating modes: Access Point or Router (NAT, DHCP Server and Firewall).

Maximum coverage range: 250 meters with line of sight.



Main features:

802.11 a/b/g/n/ac Wave 2/ax standard.

8 radios. Dual-band combination (2.4 and 5 GHz).

MU-MIMO 8x8

Up to 1,147 Mbps at 2.4 GHz.

Up to 4,804 Mbps at 5 GHz.

Omnidirectional Antennas: 5 dBi at 2.4 GHz and 6.7 dBi at 5 GHz.

Power: 24 dBm at 2.4 GHz and 25 dBm at 5 GHz.



General characteristics:

Management type: Standalone, cnMaestro Cloud Managed (free), and cnMaestro on-premises VM or XMS Cloud.

Up to 16 SSIDs (Flexible on any band)

Fast Roaming: Browse from cell to cell without losing connection.

ACL: Create blocking rules for web pages.

ACS function for automatic channel switching to avoid interference.

Schedule SSID to activate SSID on desired days at certain times.

Captive portal Hotspot from the cloud, customizable vouchers.

Limit bandwidth per user or SSID.

Isolation between clients to prevent broadcast and multicast storms from entering the network.

Load Balancing to balance the load between each band.

Supports MESH.

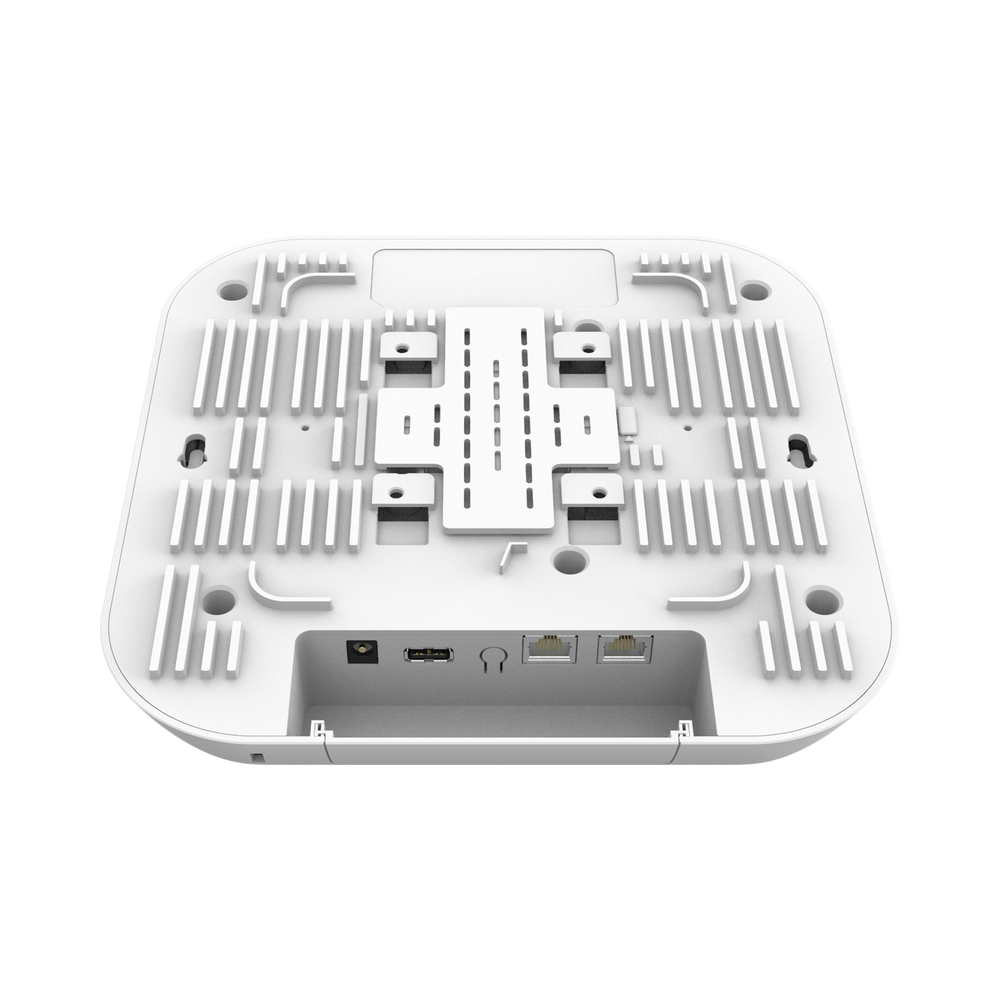

Physical and electrical characteristics.

1 x 802.3 10/100/1000/2500/5000 Mbps PoE IN 802.3at port, powered by cnMatrix Switches or PoE power supply model N000000L034A, not included).

1 port 802.3bz 100/1000/2500/5000 Mbps Auto sensind MDIX

1 USB 3.0 port

Maximum consumption: 35 W
